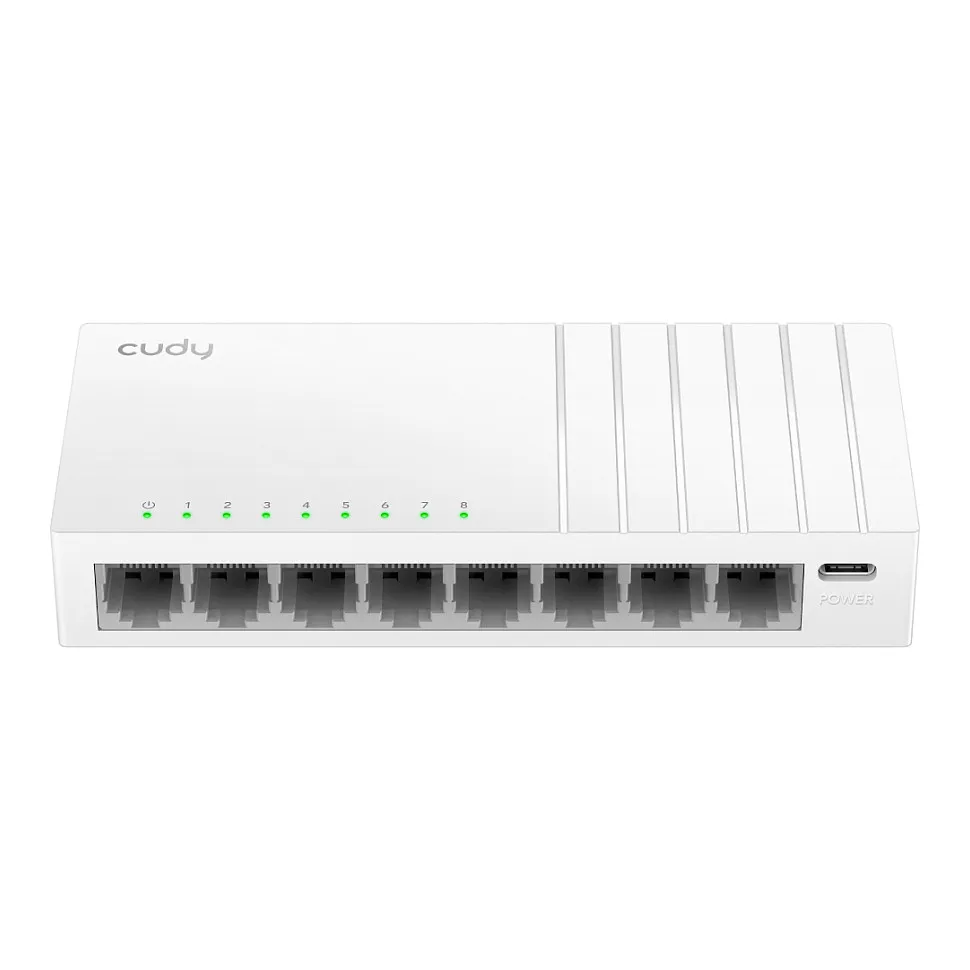

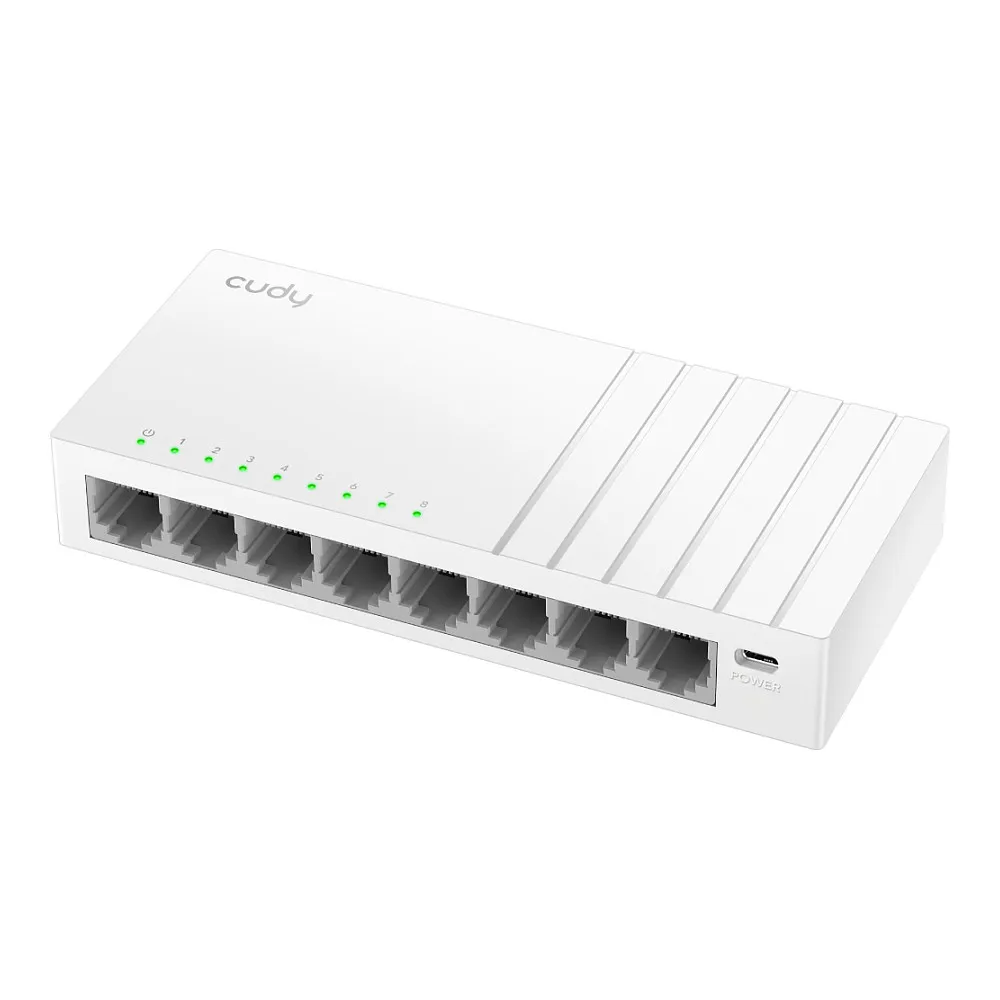

Cudy 8-Port Gigabit Switch with USB-C Power Input, GS108U 2.0. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4096 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3x, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab. Power connector: USB. Wall mountable
No Sockets Nearby? No Worries
No power sockets nearby? Use the USB port on your PC/TV/router/printer to power the switch and expand the connection with ease.
A Moving Network Hub
Do maintenance and troubleshooting more easily with a power bank-powered switch. It can operate for a full day witha 10,000 mAh power bank.
Gigabit Speed
Don’t waste bandwidth—share the network at Gigabit speed. Streaming, downloading, and browsing all run super-fast for everyone.
Extra Transmission Distance
170 meters of Gigabit transmission adding 70% longer distance compared to a standard switch, simplifies wiring for larger premises.
Saves Power
Reduce power consumption when Ethernet ports are idle, saving the electricity expenses on networking facilities.
Wall Mounting
Provides two mounting holes on the bottom of the casing, catering to wall-mounting placement scenarios.
Compact Size. Modern Design.
Compact enough to fit in most home network distribution boxes. The wave line white casing casts a modern aesthetic. The retail package comes with a USB-A to USB-C power cable.
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8
Power connector: USB
Network
Networking standards: IEEE 802.3x, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported: Cat3, Cat5, Cat5e
Feature: Flow control support
Data transmission
Switching capacity: 16 Gbit/s
Forwarding rate: 11.904 Mpps
MAC address table: 4096 entries
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 0.125 MB
Design
Product colour: White
Housing material: Plastic
LED indicators: Power, Link, Activity
Feature: Wall mountable
Power
Power source: USB
Power consumption (max): 4 W
Feature: Surge protection
Surge protection voltage: 8 kV
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 138 mm
Depth: 61.5 mm
Height: 24 mm
Weight: 87.5 g

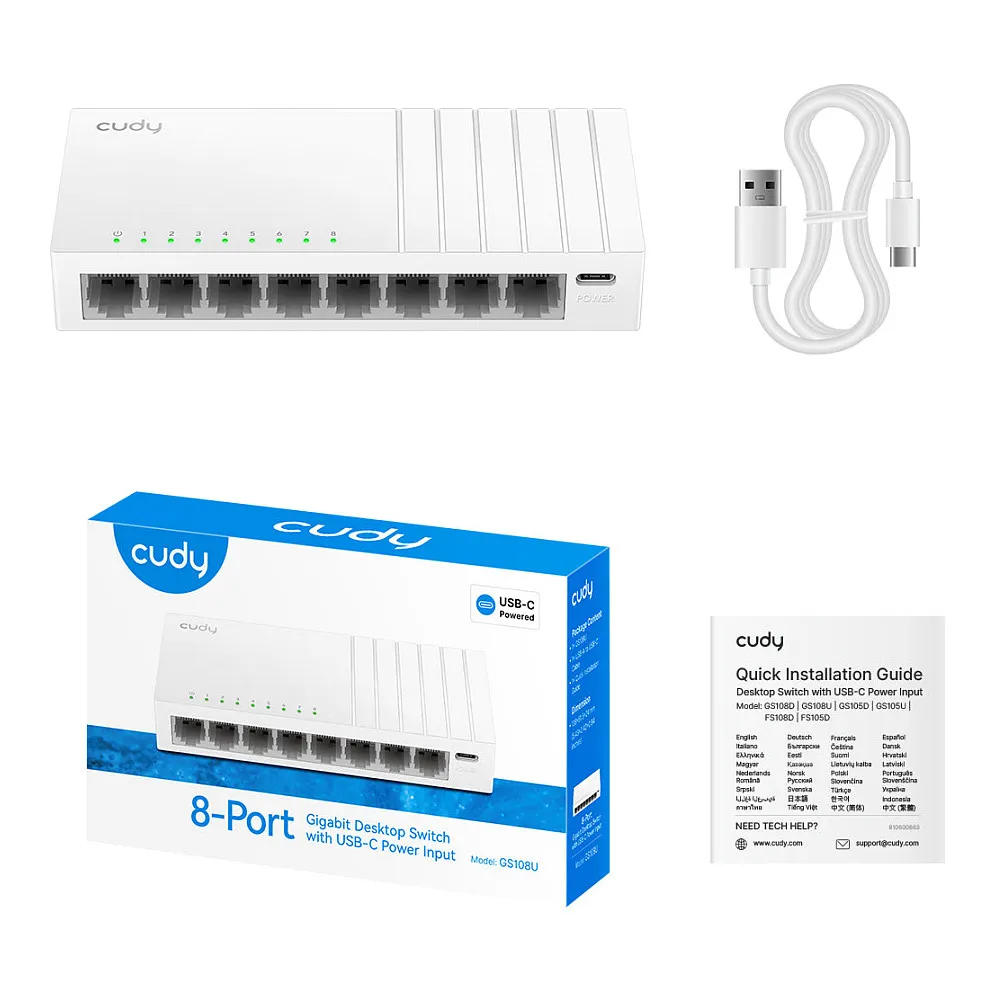

Packaging content
Cables included: USB Type-A to USB Type-C
Feature: User guide
Packaging data
Package width: 143 mm
Package depth: 89 mm
Package height: 32 mm
Package weight: 152.5 g
Logistics data
Master (outer) case net weight: 9.2 kg
Master (outer) case width: 353 mm
Master (outer) case length: 287 mm
Master (outer) case height: 308 mm
Master (outer) case gross weight: 9.7 kg
Products per master (outer) case: 60 pc(s)
