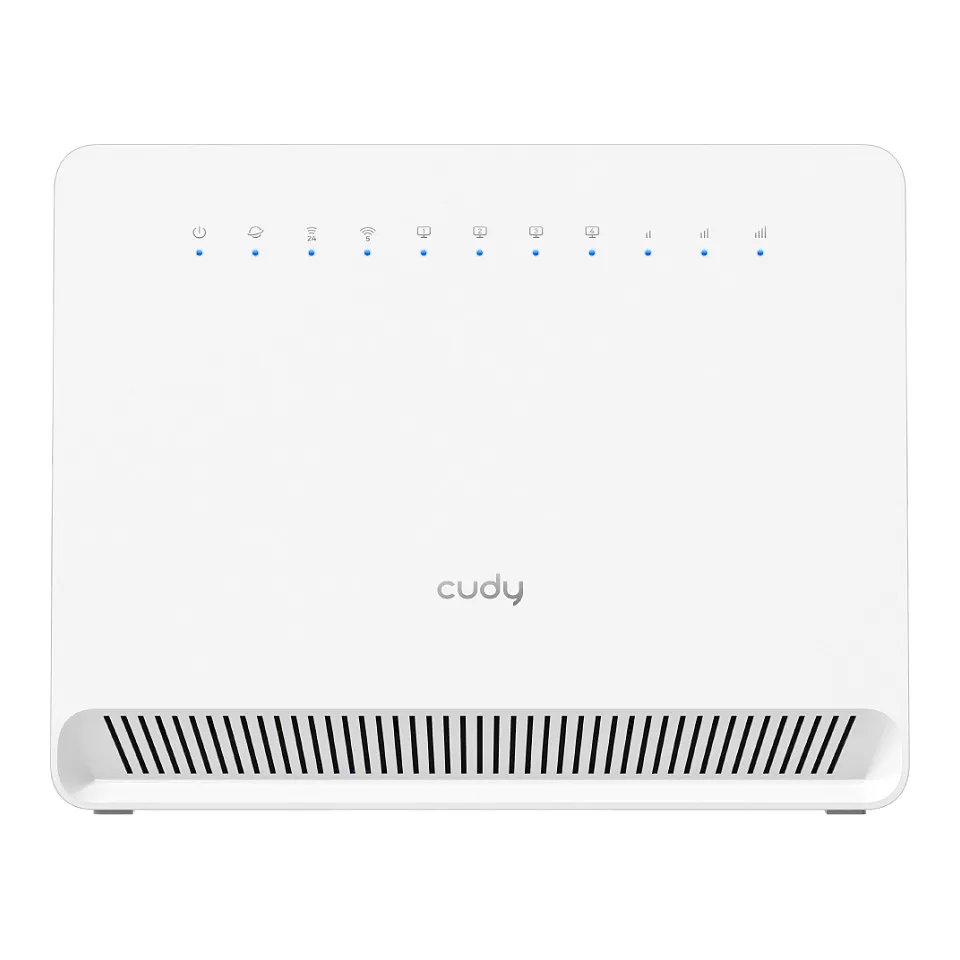

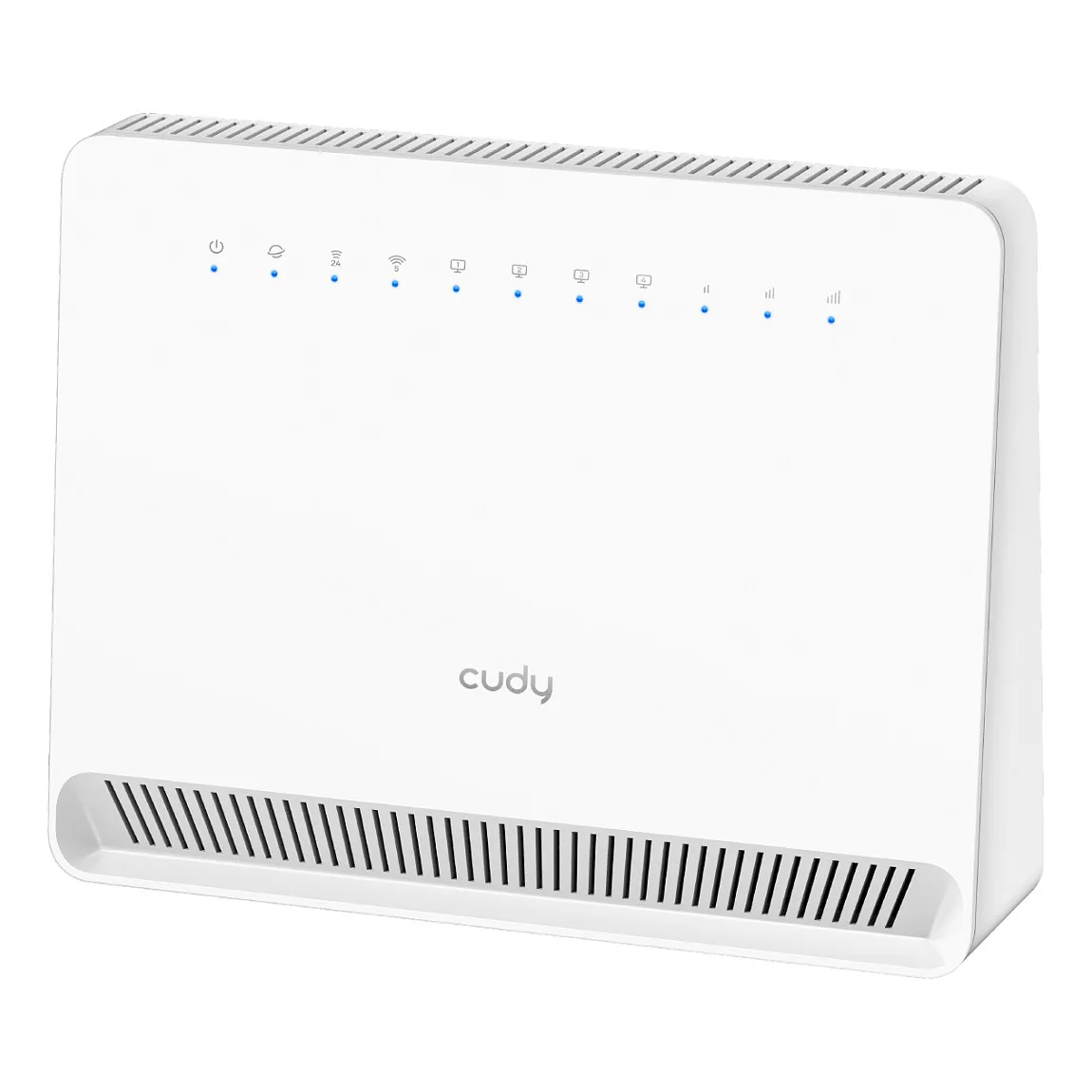

Cudy 4G Cat 6 AC1200 Wi-Fi Router, LT700E 1.0. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Mobile network generation: 4G, 2G standards: Edge, GSM, 3G standards: WCDMA. Security algorithms: WPA, WPA2, WPA3
Responsive 4G up to 300 Mbps Download
Featuring Carrier Aggregation, the LT700E streams data on two carrier bands simultaneously, providing 2X available bandwidth to avoid congestion. Combined with 4×4 MIMO for improved signal quality, the LT700E delivers a more stable high-speed experience.
A Powerful Connectivity Hub
Reponsive AC1200 Wi-Fi
Dual-band WiFi allows newer devices to stream on the less congested 5 GHz band, while IoT and legacy devices can connect to the 2.4 GHz band, making your video chatting, 4K playback, and light control, feel as smooth as possible.
Full Gigabit Ports
Share a wired network capable of speeds up to 1,000 Mbps, providing a high-bandwidth backbone, especially for NAS and creative PCs. The LAN/WAN port can be configured as a WAN port, connecting to another ISP and enabling WAN failover if the SIM card is also utilized.
Abundant Features for Detailed Tweaking
Online Redundancy
WAN/Cellular backup provides robust network resilience, making it suitable for surveillance and other always-online scenarios.
Band Lock
The 4G Band Lock allows the user to lock the working frequency to one or several bands.
TTL Settings
Support manual sets TTL values to meet ISP’s requirements (such as Verizon and Visible). Support set IPv4 TTL and IPv6 HL Values.
DNS Encryption
Allow encrypting domain lookups, preventing eavesdropping and manipulation of DNS data from a man-in-the-middle attack.
Easy Setup and Versatile Management
Plug and Play
Insert your Nano SIM card with an active subscription plan, power on the router, and enjoy the Wi-Fi.
Schedule and Filtering
Set a bed time and a domain blacklist to regulate your children’s online behavior.
VPN Server and Client
ZeroTier/WireGuard/OpenVPN/IPSec/L2TP/PPTP are available for boundless VPN applications.
Fast Roaming
Works as Cudy a Mesh main node to enable fast roaming when using with other Cudy Mesh devices.
Cudy App
Manage your network from your phone. This model supports cloud remote control and local control via the Cudy App.
Feature: Ethernet WAN
Feature: DSL WAN
Feature: SIM card slot
WAN connection type: RJ-45
Wireless LAN features
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max): 867 Mbit/s
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band): 300 Mbit/s
WLAN data transfer rate (second band): 867 Mbit/s
Network
Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Feature: Port forwarding
Feature: Port triggering
Feature: Dynamic DNS (DDNS)
VPN server: Yes
Mobile network
Mobile network generation: 4G
2G standards: Edge, GSM
3G standards: WCDMA
4G standard: LTE-TDD & LTE-FDD

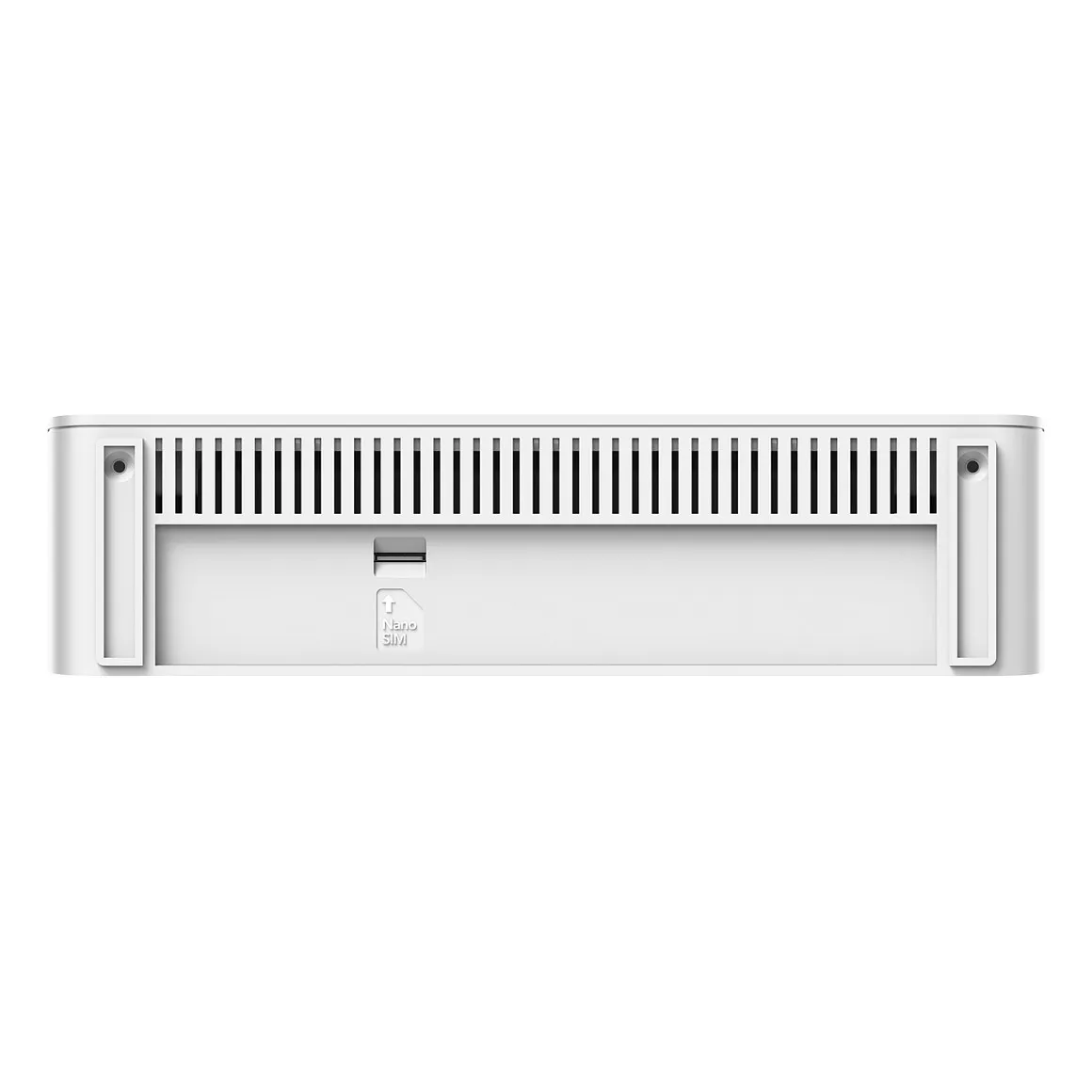

SIM card type: NanoSIM
Feature: Short Message Service (SMS)

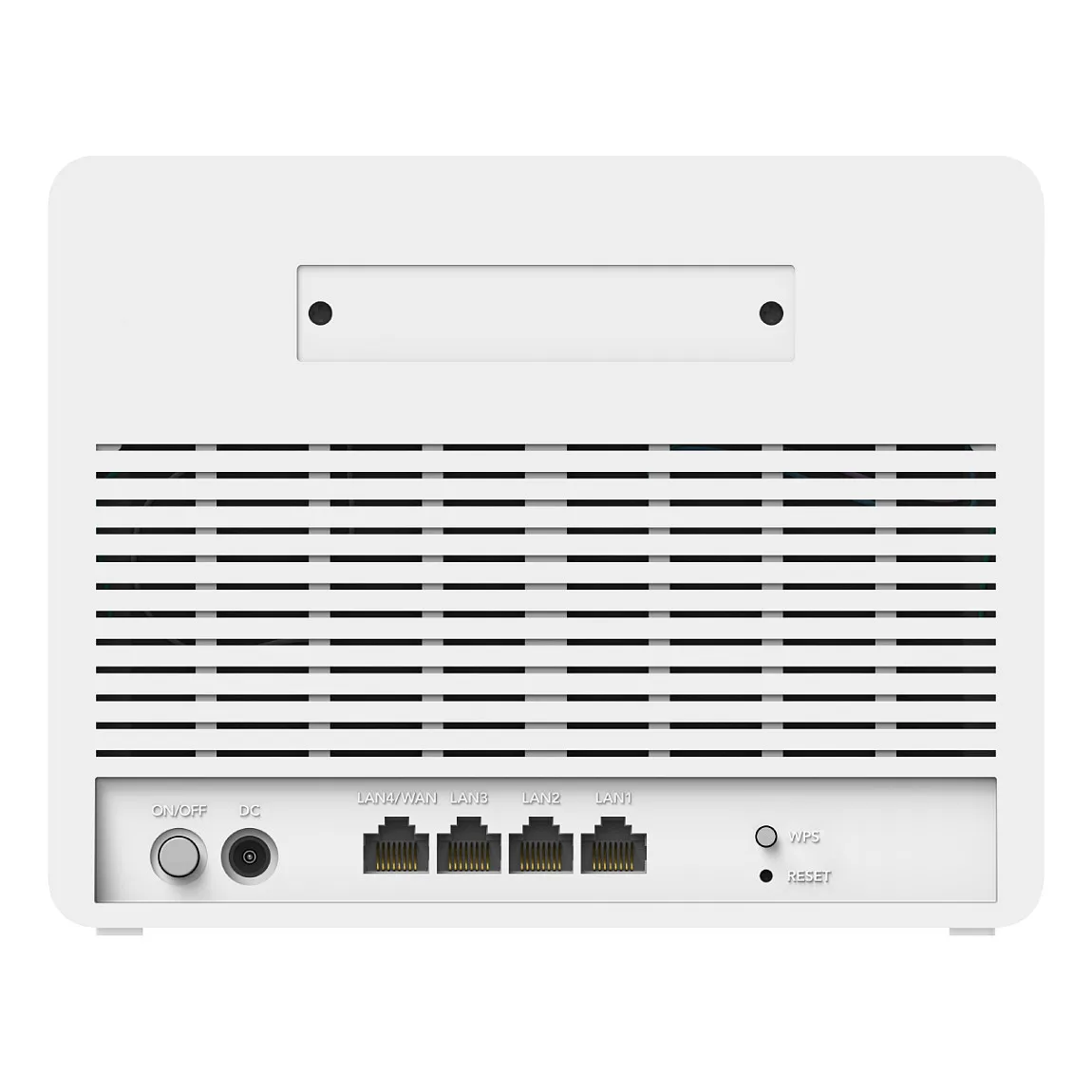

Ports & interfaces
Ethernet LAN (RJ-45) ports: 4
Feature: DC-in jack
Management features
Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: Wake-on-LAN ready
Feature: Reset button
Feature: WPS push button
Feature: MU-MIMO technology
Feature: MIMO
Security
Security algorithms: WPA, WPA2, WPA3
Feature: Guest access
Feature: DoS attack prevention
Feature: MAC address filtering
Feature: IGMP snooping
Feature: DMZ support
Protocols
Feature: DHCP client
Feature: DHCP server
Feature: Universal Plug and Play (UPnP)
Supported network protocols: IPv4 / IPv6
Design
Product colour: White
Feature: Wall mountable
LED indicators: System, WLAN
Product type: Desktop/pole router
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC)

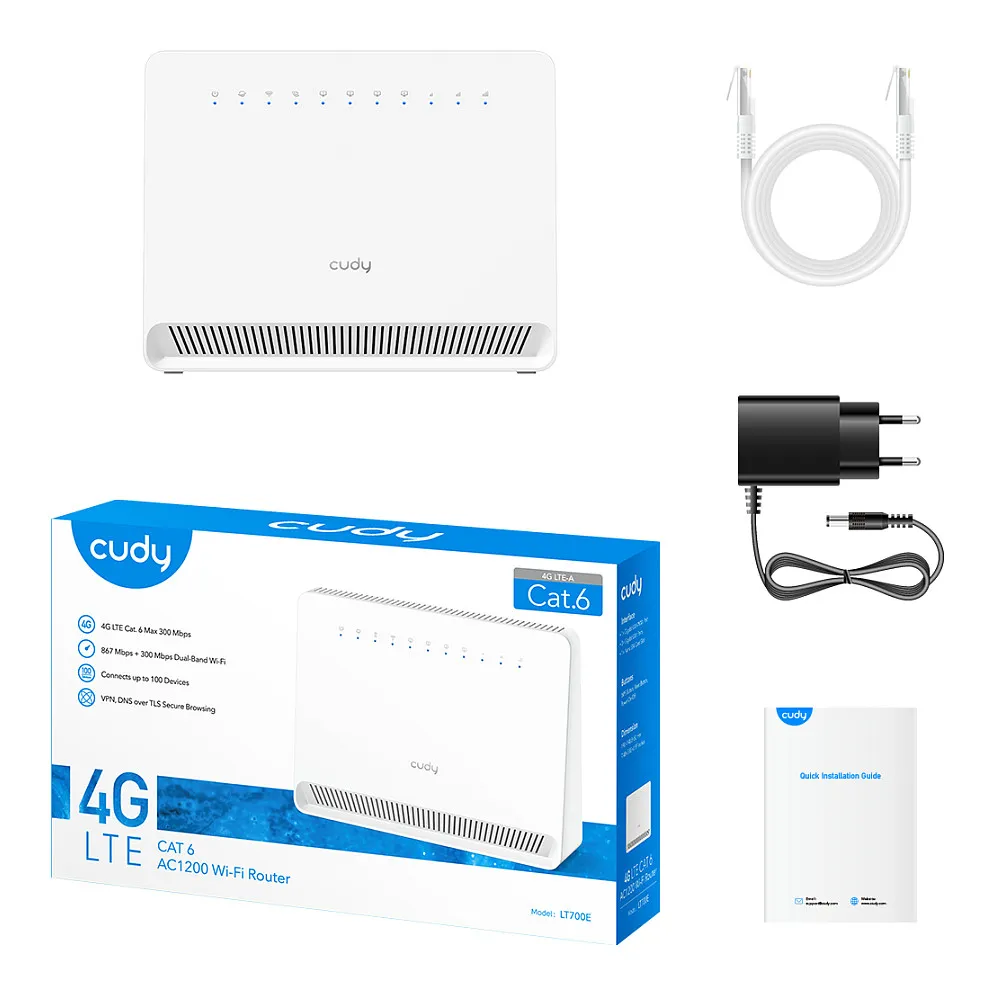

Packaging content
Cables included: LAN (RJ-45)
Feature: Mounting kit
Feature: Quick installation guide
Antenna
Antenna design: Internal & external
Antenna connector type: SMA
Antenna gain level (max): 5 dBi
Antennas quantity: 4
Feature: Detachable antenna(s)
Features
Internal memory: 128 MB
Flash memory: 16 MB
Power
Power source type: PoE
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Output voltage: 12 V
Output current: 1 A
Power consumption (typical): 3.6 W
Operational conditions
Storage temperature (T-T): -40 – 70 °C
System requirements
Linux operating systems supported: Yes
Mac operating systems supported: Yes
Weight & dimensions
Width: 190 mm
Depth: 50 mm
Height: 148.8 mm
Weight: 300 g
Packaging data
Package width: 270 mm
Package depth: 58 mm
Package height: 168 mm
Package weight: 595 g
