COUGAR Power Supply GEX PRO 650W ATX3.1 / 80 Plus Gold / Modular. Total power: 650 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 400,520,640,760 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CE, EAC, Federal Communications Commission (FCC), RoHS, UKCA
Outstanding performance and exceptional value
The COUGAR GEX PRO series boasts high-quality 80 PLUS Gold certification, achieving up to 91% conversion efficiency. Utilizing a native PCIe 12V-2X6 connector design, this power supply delivers power to next-gen graphics cards through a single 12+4-pin cable, bringing them into compliance with Intel’s ATX 3.1 standard. With flawless power delivery in 40°C environments, it is designed for users who are price-conscious but unwilling to compromise on reliability and silence.
ATX 3.1 Certified
Designed to support next-generation systems, the COUGAR GEX PRO series conforms to the ATX 3.1 standard. Featuring a native 12V-2X6 design, it provides power to the next-generation graphics cards through a single 12+4-pin cable. With both 80 PLUS Gold efficiency rating and Cybenetics certifications (750W/850W), it offers high-quality stability, durability, and reliability.
The COUGAR GEX PRO series passes the four strict power excursion tests from PSU ATX 3.1 Guide, in which the spike power consumption must bear up to 200% of the rated power for 100μs.
Designed for the New Era of PCIe Gen 5.1!
The COUGAR GEX PRO series supports the latest PCIe 5.1 specification: its powerful and stable performance meets the needs of next-generation GPUs, delivering perfect power for next-gen graphics cards. Equipped with a modular native PCIe 12V-2X6 connector, the 650mm length provides sufficient slack to reduce the risk of faulty connection during PC installation, without the need for a 6+2 pin adaptor.
Notice: Before using the PCIe 12+4pin cable, please go to the graphics card official website to check the recommended wattage requirements.
High Performance
Efficiency
The GEX PRO series features a highly efficient design that surpasses the 80 PLUS Gold standard, to help you save money on your electricity bill.
Perfect Fan Speed to Noise Ratio

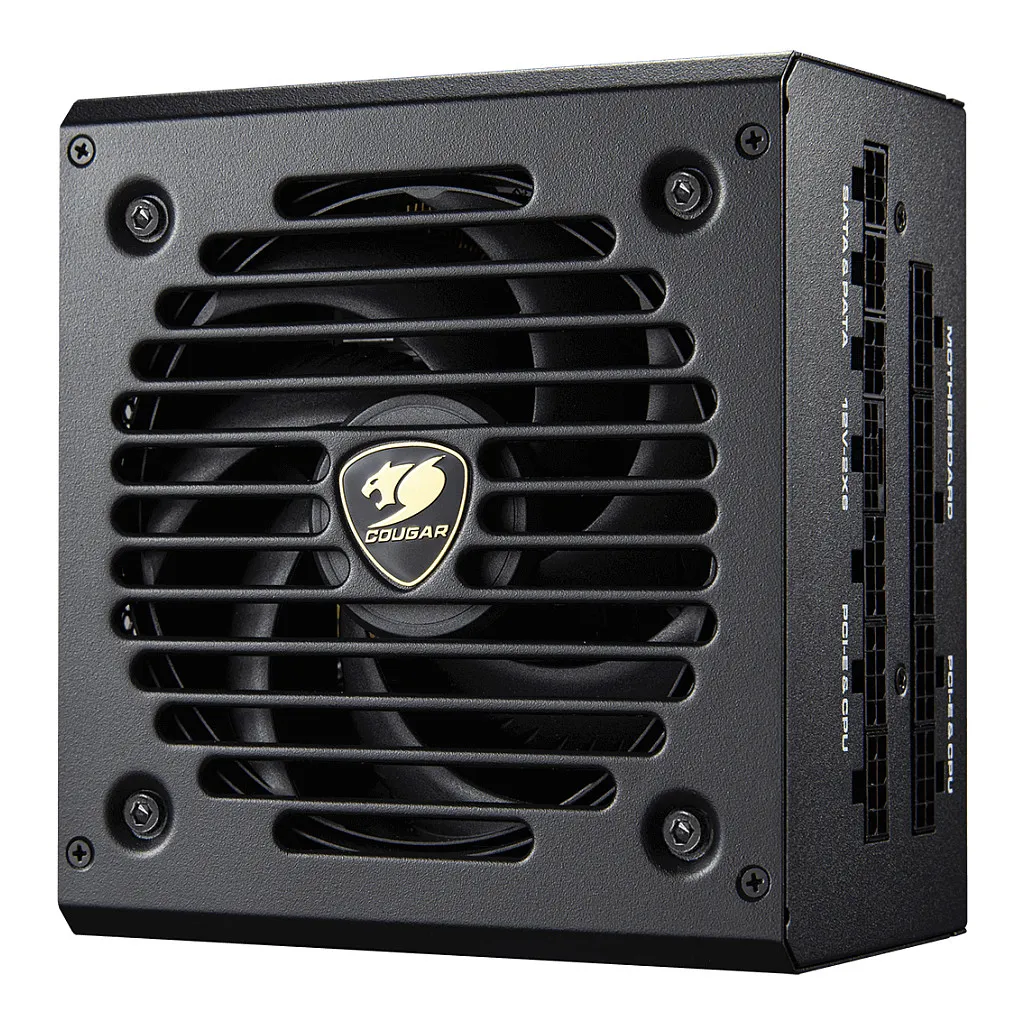

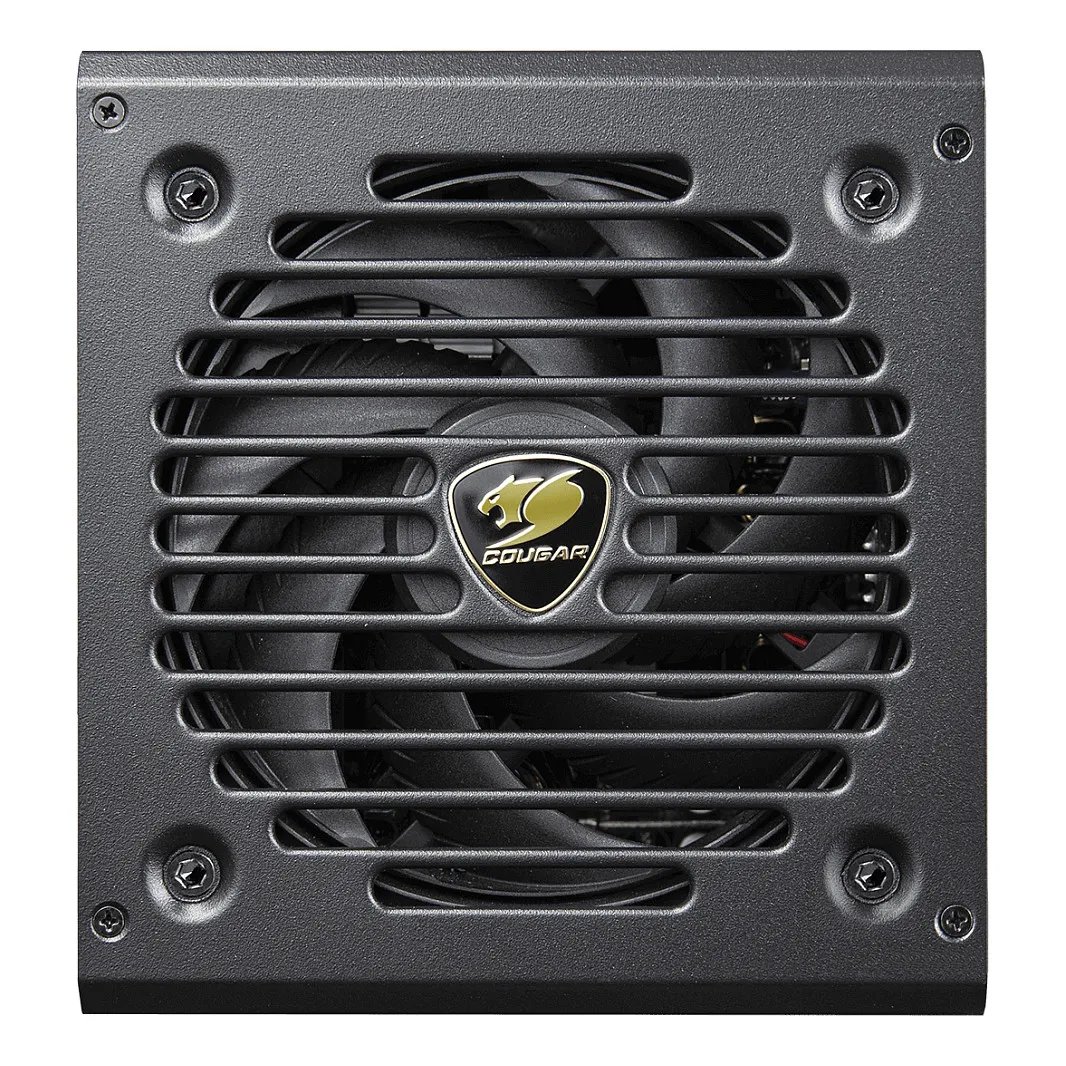

Using COUGAR’s exclusive 120mm HDB fan, the advanced fan blade design enhances airflow smoothness and optimizes silent performance.
HDB Fan
Compared to other fan bearing types, the HDB fan is considered the best in its class for operating noise and expected lifespan. Fluid dynamics and fluid-based characteristics greatly reduce friction and vibration, resulting in better reliability and quieter operation.
More Stability. Less Noise.

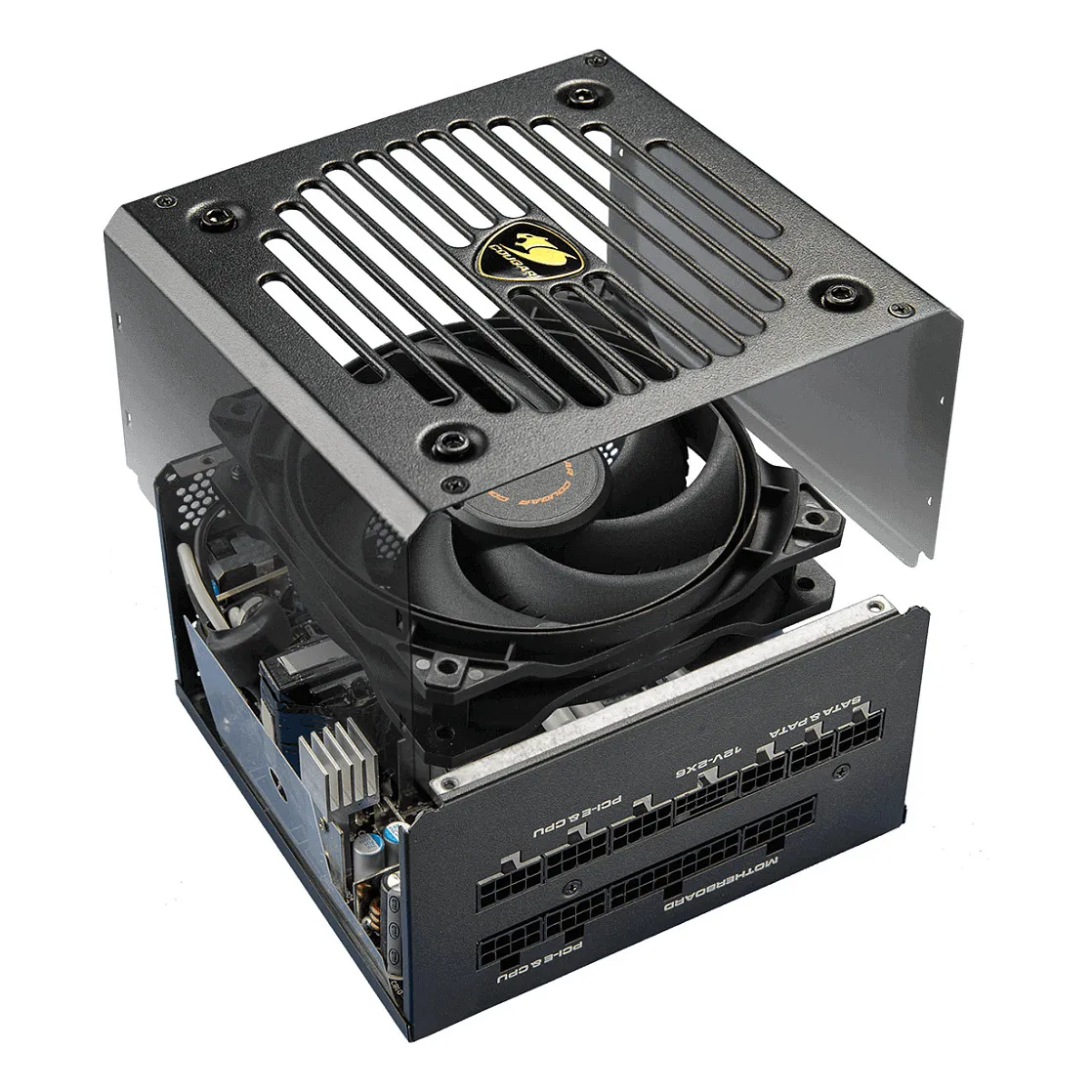

Crafted for quiet operation, COUGAR’s exclusive 120mm HDB fan achieves an ideal equilibrium between efficient cooling and minimal noise. Optimized, grooved fan blades are molded with an integrated stabilizing ring, minimizing flex during rotation and reducing turbulence for an optimal and silent cooling experience.
Refined Regulation. Stable Operation
It includes 105°C Japanese capacitors standby power to ensure keep providing computer with stable electrical supply.
– Tight 2% voltage regulation for ultra-stable operation.
– Optimally perform in 40ºC working temperature environments.
Easy PC Builds
One Size Fits All
At 140mm in length, the GEX PRO is one of the most compact, fully modular PSUs. it fits in a wide range of cases, giving you additional flexibility for building your PC.

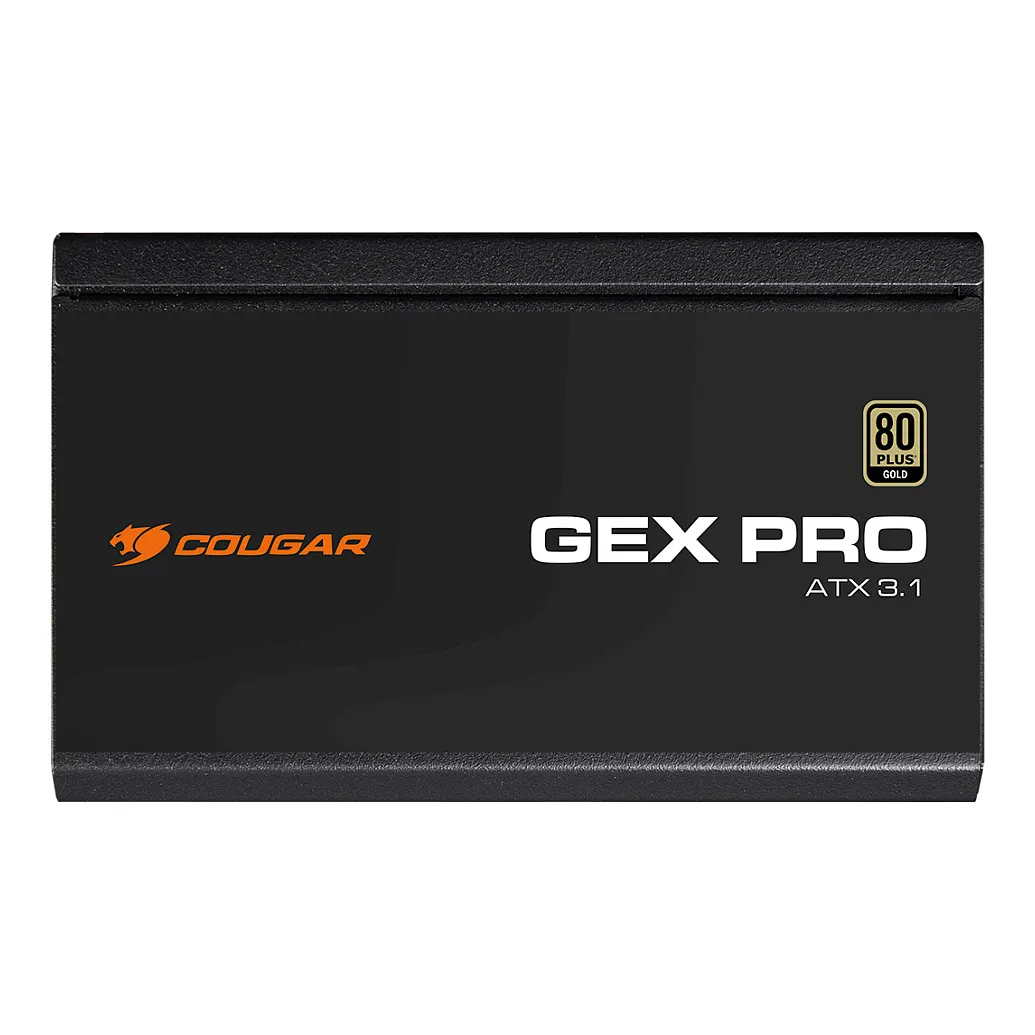

Stylish Design
Featuring a sleek embossed black design with ample cable length for easy and aesthetically pleasing PC installation.

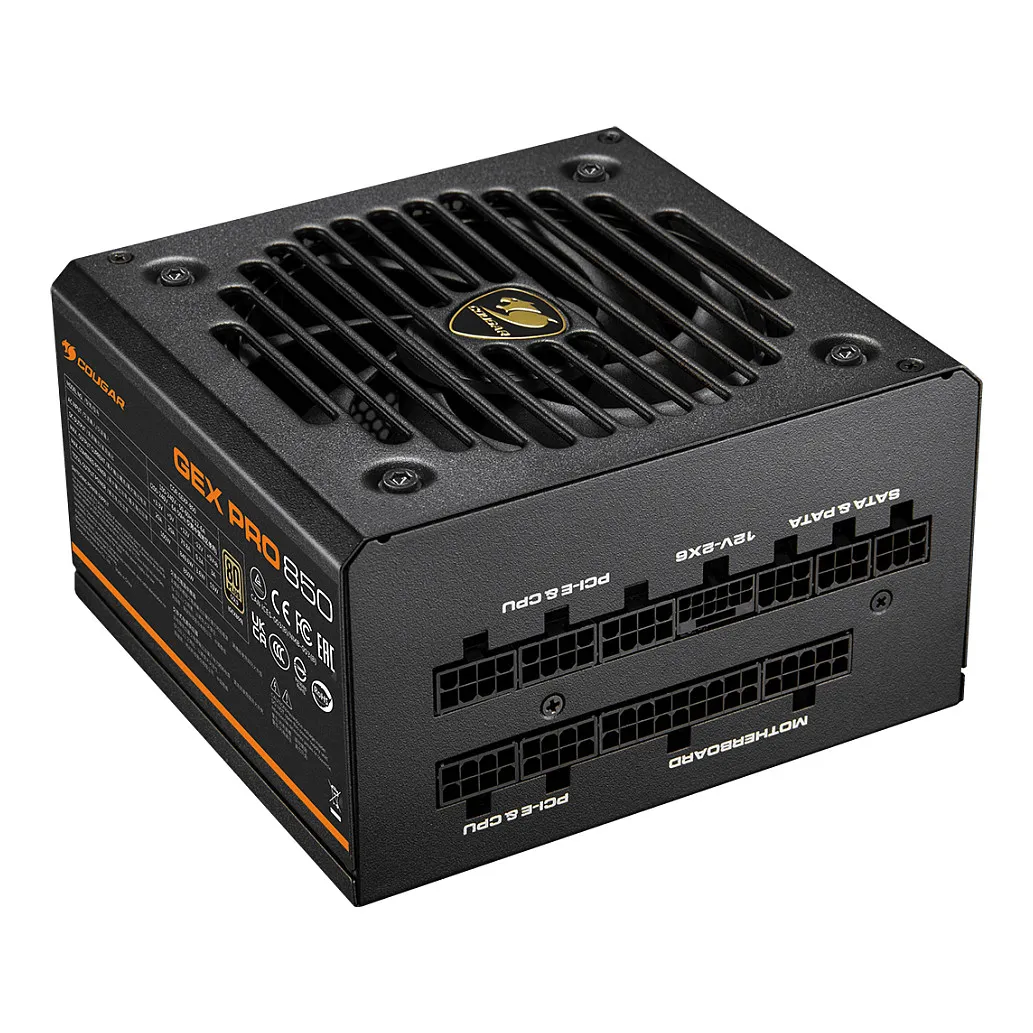

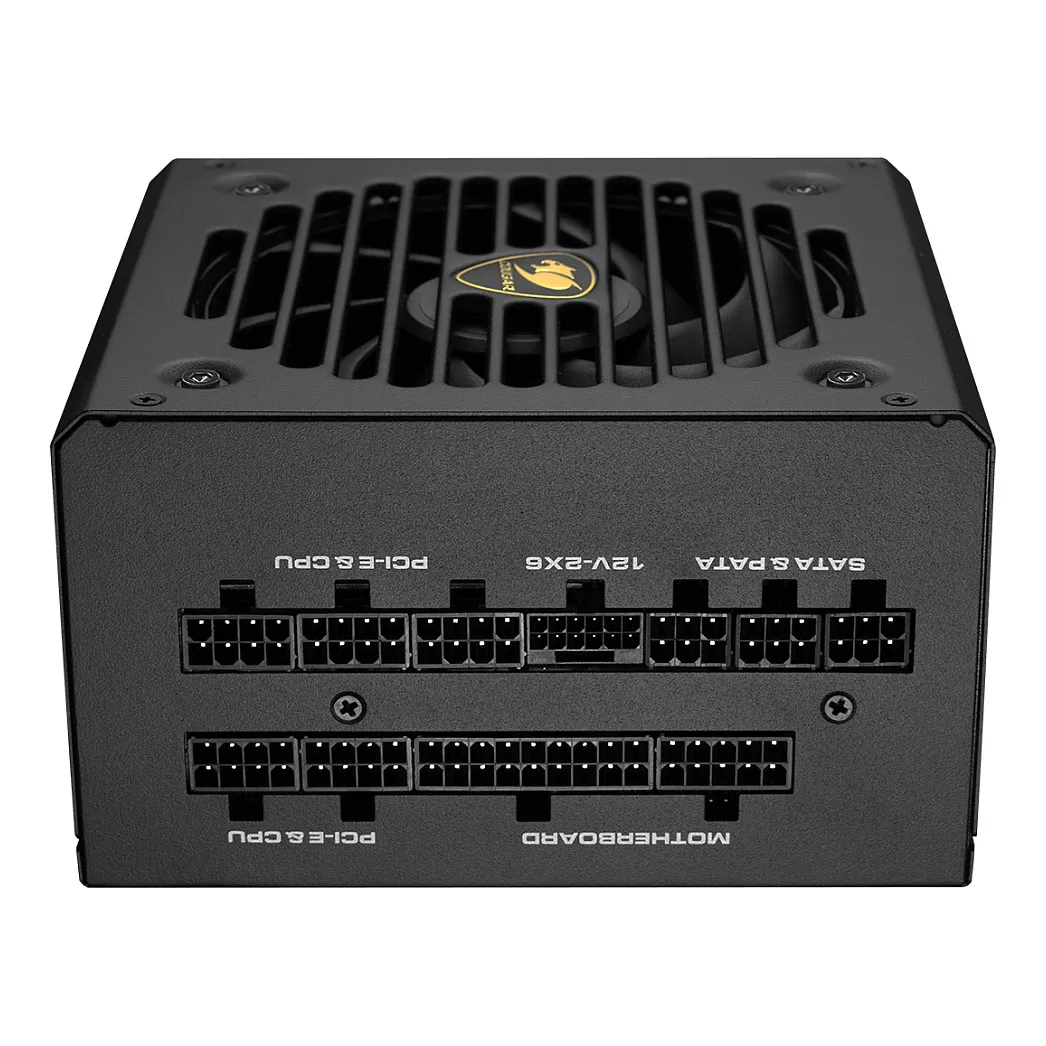

Fully Modular Cables / Embossed black cables
Connect only the cables you need, reducing cable clutter and friction and improving the airflow and the ease of installation of DIY solutions.
Support PCI Express 5.1 Graphics Cards 12+4 Pin Connector
Connect the 12V-2X6 with true 200% power excursion dynamic outputs.
80 PLUS Gold Certified
Up to 91% efficiency power conversion to cut down your electricity bill.
Durable HDB Fan
COUGAR’s 120mm HDB fan: efficient cooling, minimal noise.
Compact PSU Size for All PC Cases
Its 140mm length suits most cases and allows for easy installation.

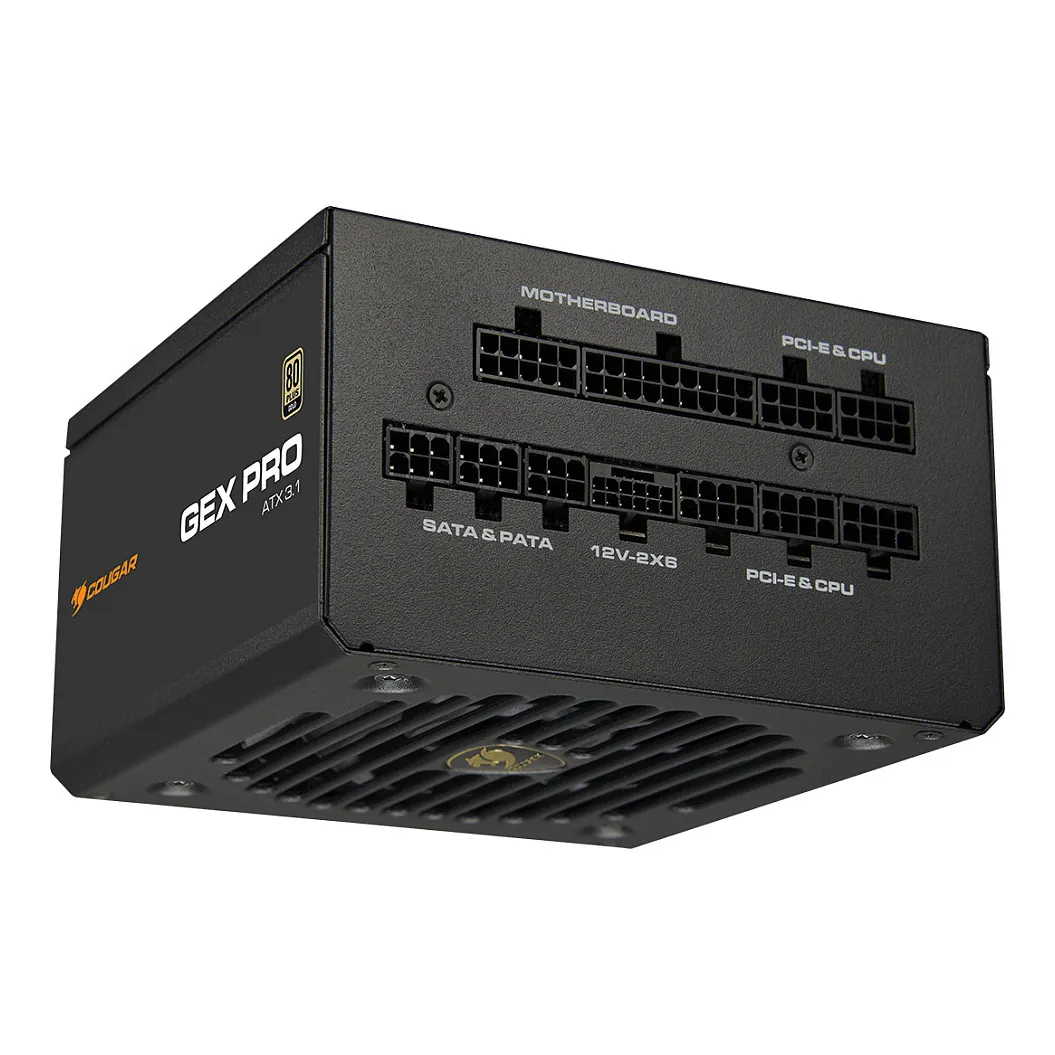

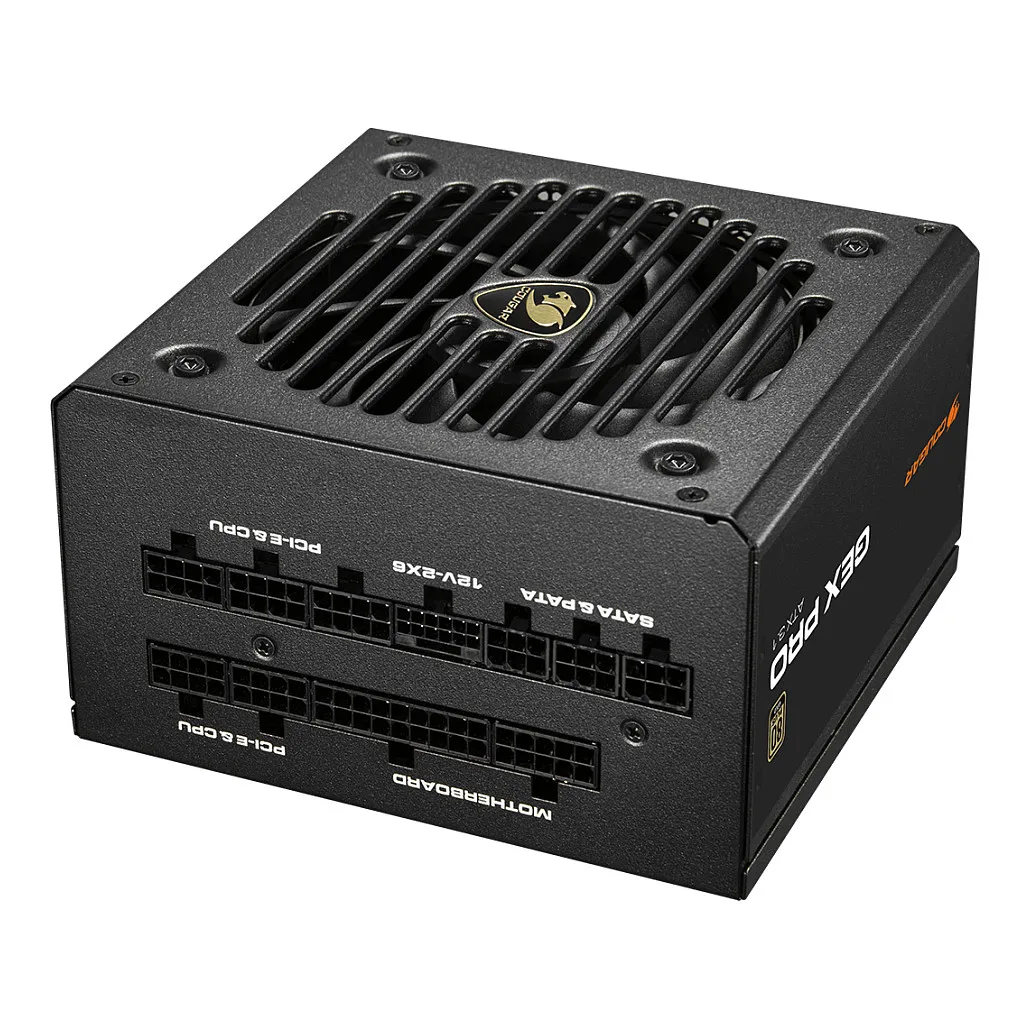

Fully Modular Power Supply Unit
Connect only the cables you need for less clutter and better airflow.
Silent Spin
Groundbreaking grooved fan blade design lets you experience noiseless gaming.
Compatible with The Lastest PC Technology
Created for user with current and next-generation multi-core CPU platforms.
Flawless Operation at 40°C
Powerful performance at 40°C ambient temperature.
Total power: 650 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Input current: 10-5 A
Combined power (+3.3V): 100 W
Combined power (+12V): 649.2 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 54.1 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Efficiency: 91%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

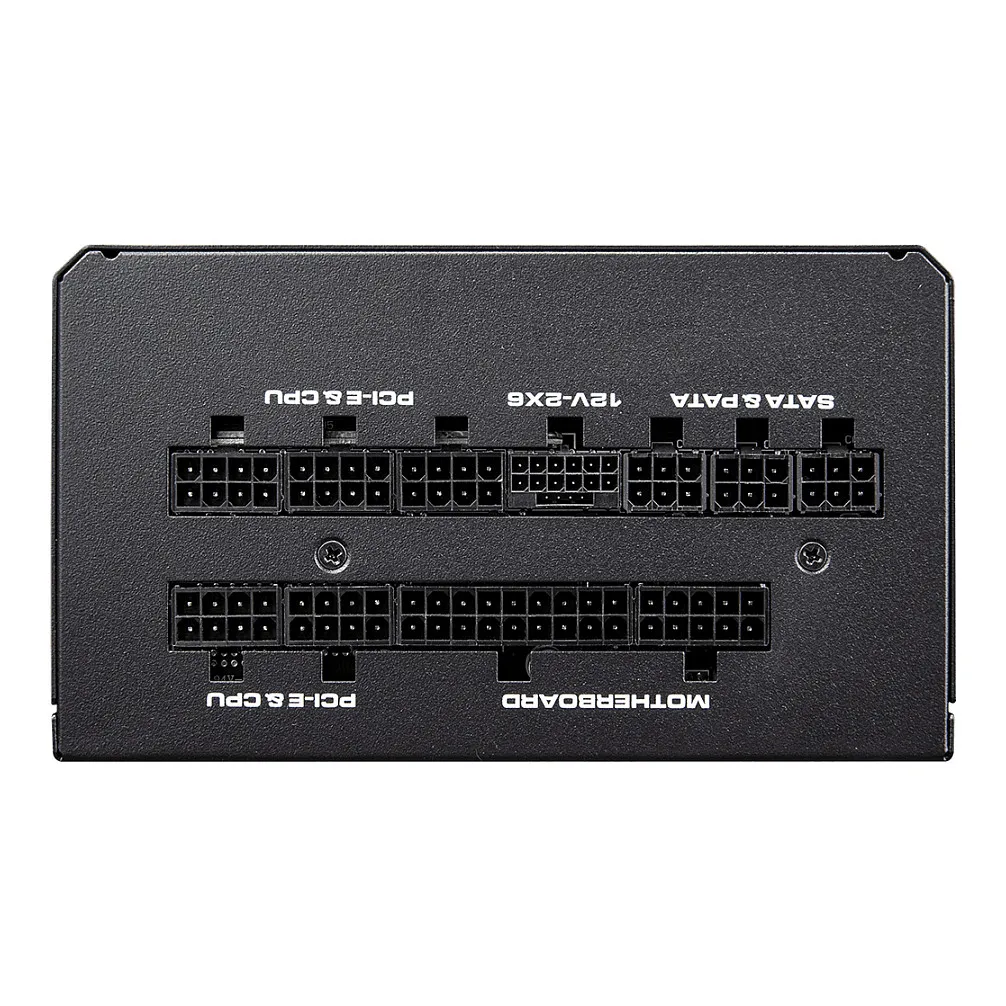

Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 8
Number of PATA power connectors: 3
SATA power cable length: 400,520,640,760 mm
PCI Express power connectors (6+2 pin): 2
PCI Express power connectors (12+4 pin): 1
PCI Express power connectors (12+4 pin) cable length: 650 mm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 70 cm
Feature: PCI Express connector
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: HDB
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top

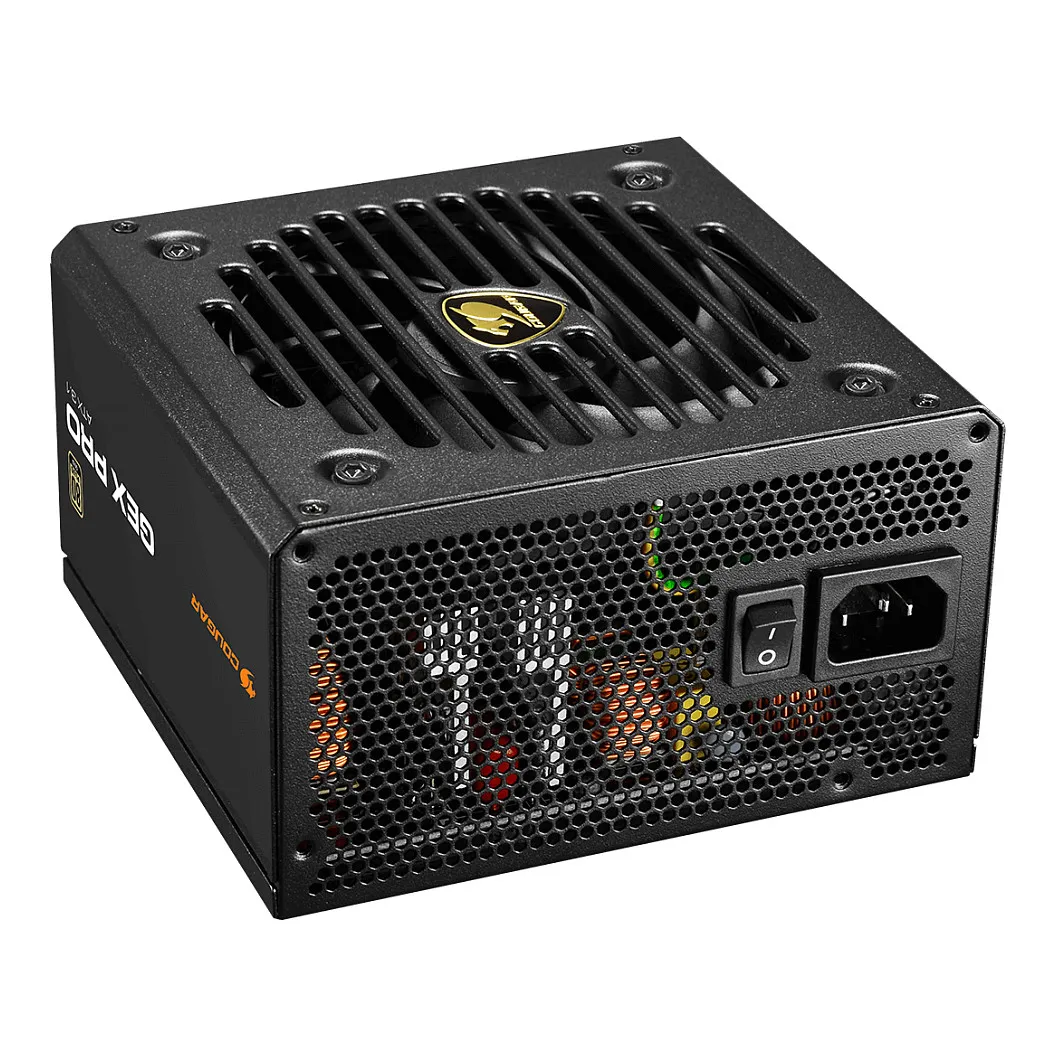

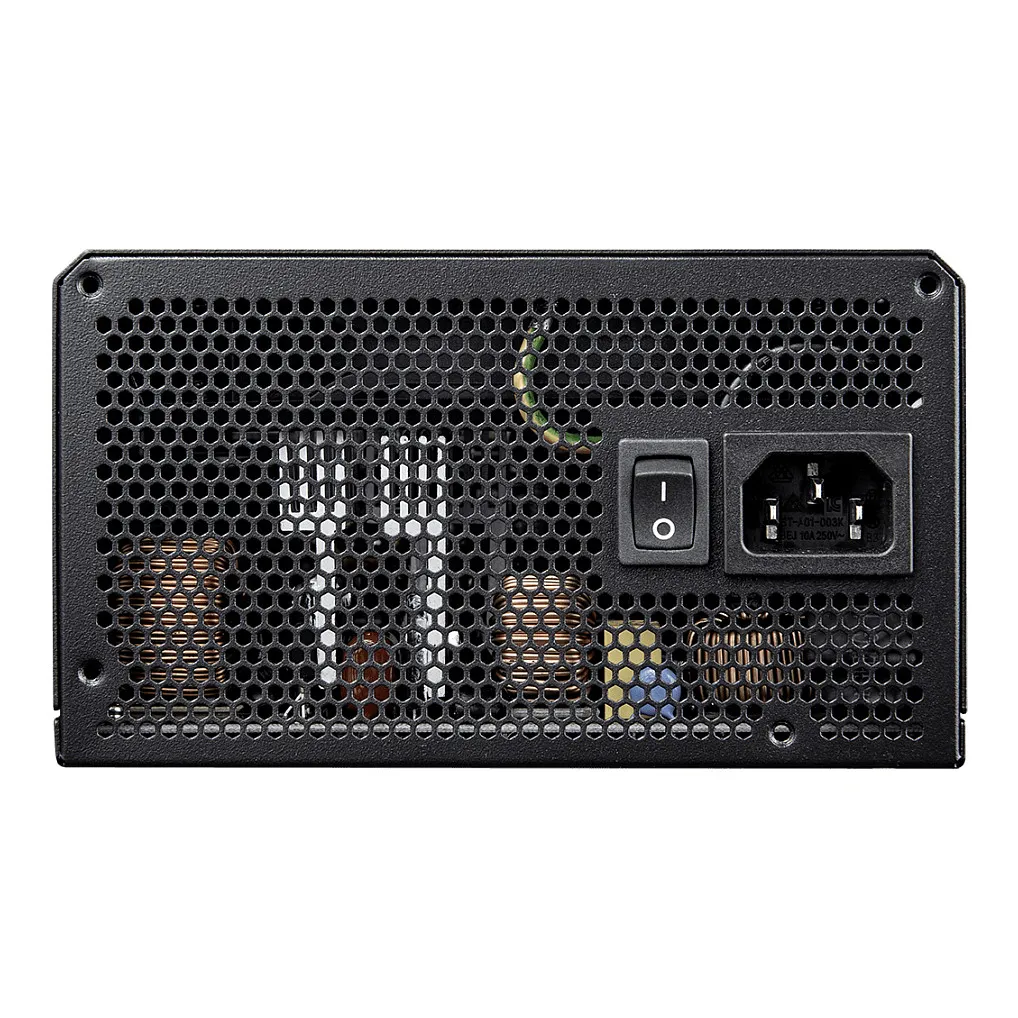

Feature: On/off switch
Operational conditions
Operating temperature (T-T): 10 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 20 – 85%
Storage relative humidity (H-H): 5 – 95%
Certificates
Compliance certificates: CE, EAC, Federal Communications Commission (FCC), RoHS, UKCA
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 56 mm
Weight: 2.05 kg
Packaging data
Package width: 215 mm
Package depth: 330 mm
Package height: 107 mm
Package weight: 2.07 kg
Package type: Box
