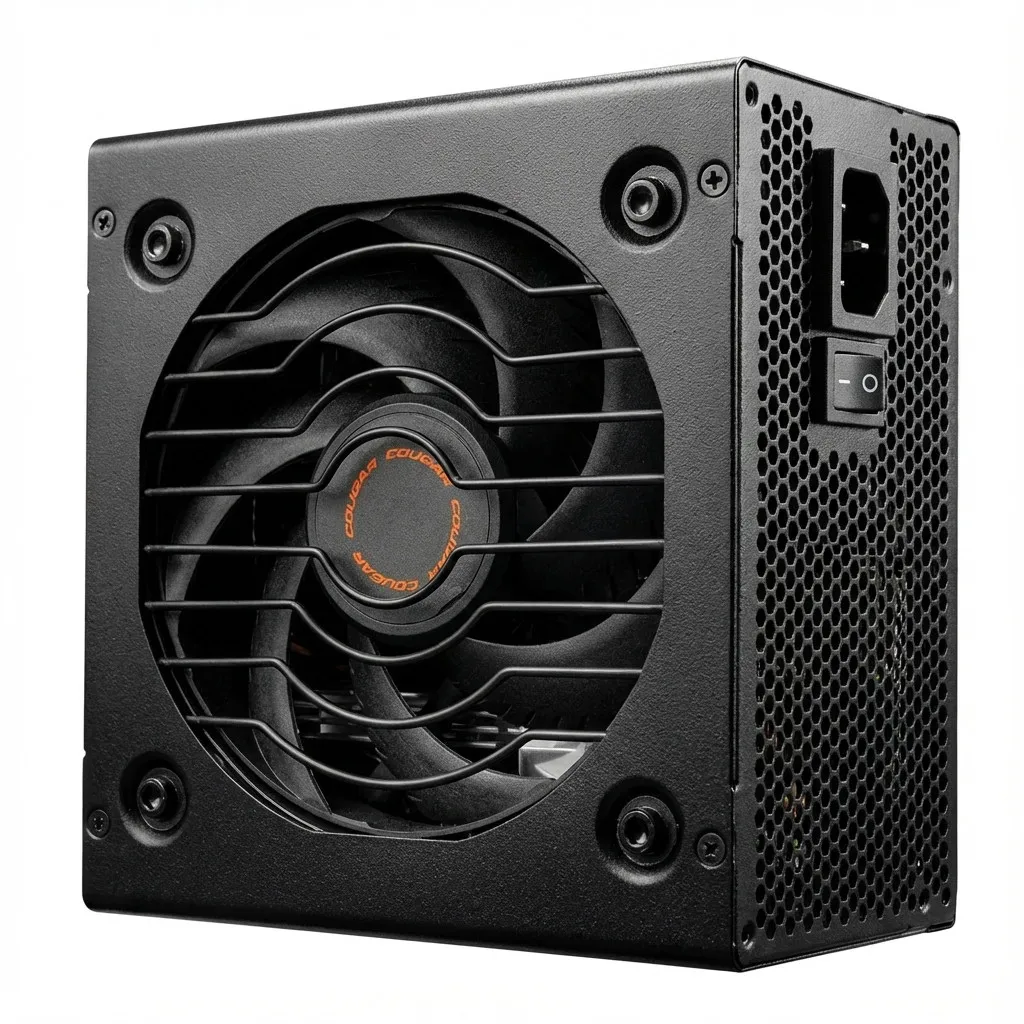

COUGAR Power Supply GR 750W ATX3.1/PCIE 5.1 / 80 Plus Gold. Total power: 750 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 150,450 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Certification: FCC, CE, EAC, UK CA, RoHS
The COUGAR GR series is an 80 PLUS Gold-certified power supply, delivering reliable performance even at 40°C. Designed with a native PCIe 12V-2X6 connector, it meets Intel ATX 3.1 and PCIe 5.1 standards. As a modular PSU, it efficiently supports next-gen GPUs with a single 12+4-pin cable, reaching up to 91% efficiency. This reduces energy consumption, lowers electricity costs, and ensures stable power delivery.
ATX 3.1 Certified
Designed to support next-generation systems, the COUGAR GR series conforms to the ATX 3.1 standard. Featuring a native 12V-2X6 design, it provides power to the next-generation graphics cards through a single 12+4-pin cable. With an 80 PLUS Gold efficiency rating, it offers high-quality stability, durability, and reliability.
The COUGAR GR series passes the four strict power excursion tests from PSU ATX 3.1 Guide, in which the spike power consumption must bear up to 200% of the rated power for 100μs.
Designed for the Next Generation of GPUs
The COUGAR GR series supports the latest PCIe 5.1 specification: its powerful and stable performance meets the needs of next-generation GPUs, delivering perfect power for next-gen graphics cards. Equipped with a modular native PCIe 12V-2X6 connector, the 600mm length provides sufficient slack to reduce the risk of faulty connection during PC installation, without the need for a 6+2 pin adaptor.
High Performance
Efficiency
The GR series features a highly efficient design that surpasses the 80 PLUS Gold standard, to help you save money on your electricity bill.
Perfect Fan Speed to Noise Ratio
Using COUGAR’s exclusive 120mm rifle bearing fan , the advanced fan blade design enhances airflow smoothness and optimizes silent performance.
More Stability, Less Noise
Crafted for quiet operation, COUGAR’s exclusive 120mm rifle bearing fan achieves an ideal equilibrium between efficient cooling and minimal noise. Optimized, grooved fan blades are molded with an integrated stabilizing ring, minimizing flex during rotation and reducing turbulence for an optimal and silent cooling experience.
Refined Regulation. Stable Operation
Highly durable and consistently reliable 105°C Japanese main capacitor.
– The GR’s LLC, DC-DC and Tri-Sense (3.3V, 5V, and 12V) design provides high-quality outputs, with an extremely tight 5% voltage regulation to deliver ultra-stable operation.
– Optimally perform in 40ºC working temperature environments.
Stylish Design
Featuring a sleek embossed black design with ample cable length for easy and aesthetically pleasing PC installation.
Fully Modular Cables / Embossed black cables
Connect only the cables you need, reducing cable clutter and friction and improving the airflow and the ease of installation of DIY solutions.
Support PCI Express 5.1 Graphics Cards 12+4 Pin Connector
Connect the 12V-2X6 with true 200% power excursion dynamic outputs.
80 PLUS Gold Certified
Up to 91% efficiency power conversion to cut down your electricity bill.
Compact PSU Size
140mm length fits most PC cases and makes installation easy.
Japanese Main Capacitors
Highly durable and consistently reliable 105°C Japanese main capacitors.
Full Protections
SCP, OCP, OVP, UVP, OPP, OTP
Silent Spin
Groundbreaking grooved blade, rifle bearing fan design lets you experience noiseless gaming.
Compatible with The Lastest PC Technology
Created for user with current and next-generation multi-core CPU platforms.
Flawless Operation at 40°C
Powerful performance at 40°C ambient temperature.
Total power: 750 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Input current: 10 A
Combined power (+3.3V): 100 W
Combined power (+12V): 750 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 62.5 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Efficiency: 91%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under total voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 6
SATA power cable length: 150,450 mm
Peripheral (Molex) power connectors (4-pin): 2
PCI Express power connectors (6+2 pin): 2
PCI Express power connectors (12+4 pin): 1
PCI Express power connectors (12+4 pin) cable length: 600 mm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 70 cm
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: Rifle
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Feature: On/off switch
Certificates
Certification: FCC, CE, EAC, UK CA, RoHS
Weight & dimensions
Width: 140 mm
Depth: 150 mm
Height: 86 mm
Weight: 2.2 kg
Packaging data
Package width: 305 mm
Package depth: 210 mm
Package height: 105 mm
Package weight: 2.55 kg
