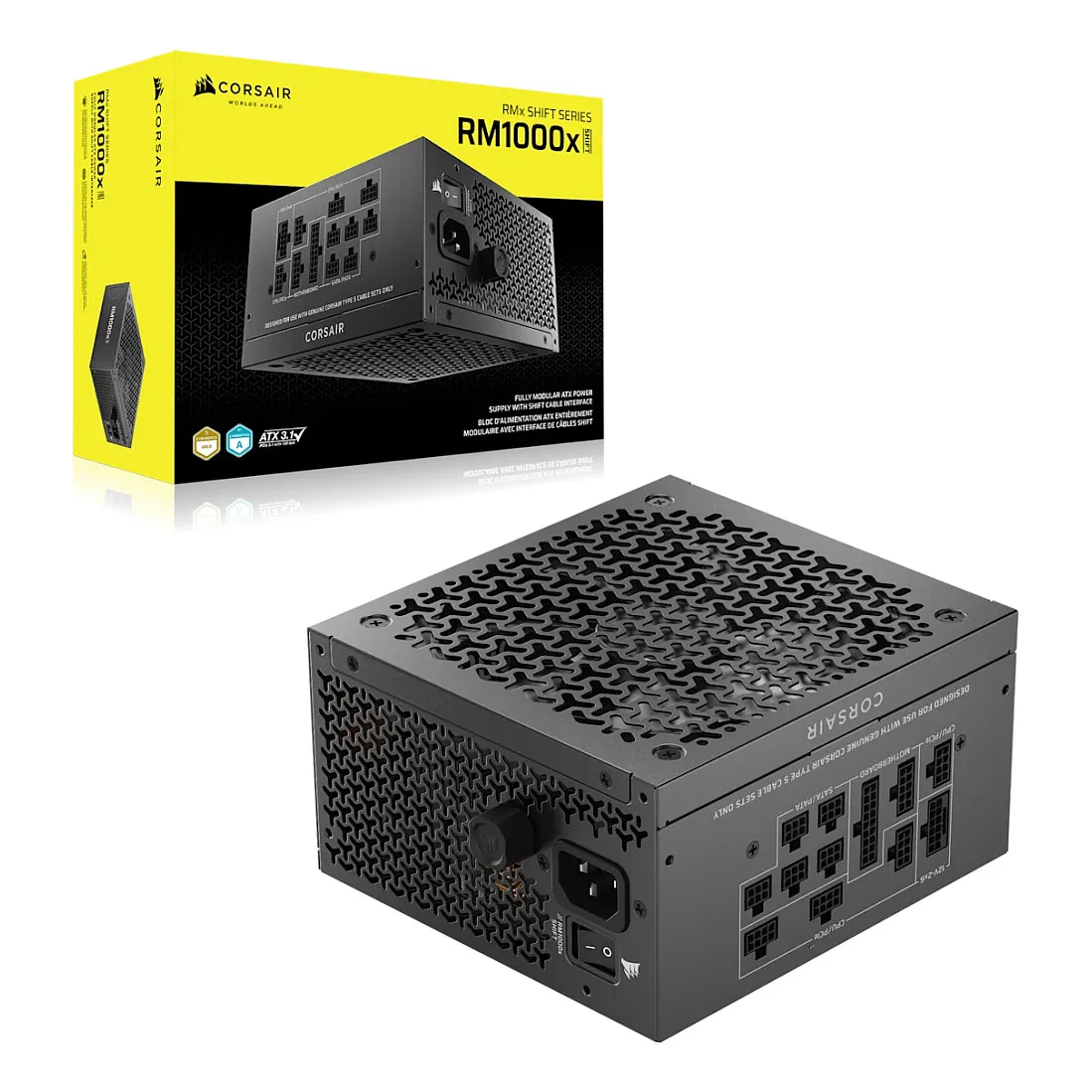

Corsair RMx Shift Series RM1000x. Total power: 1000 W, AC input voltage: 100 – 240 V, AC input frequency: 47 – 63 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 100,500,700 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Width: 160 mm, Depth: 150 mm, Height: 86 mm

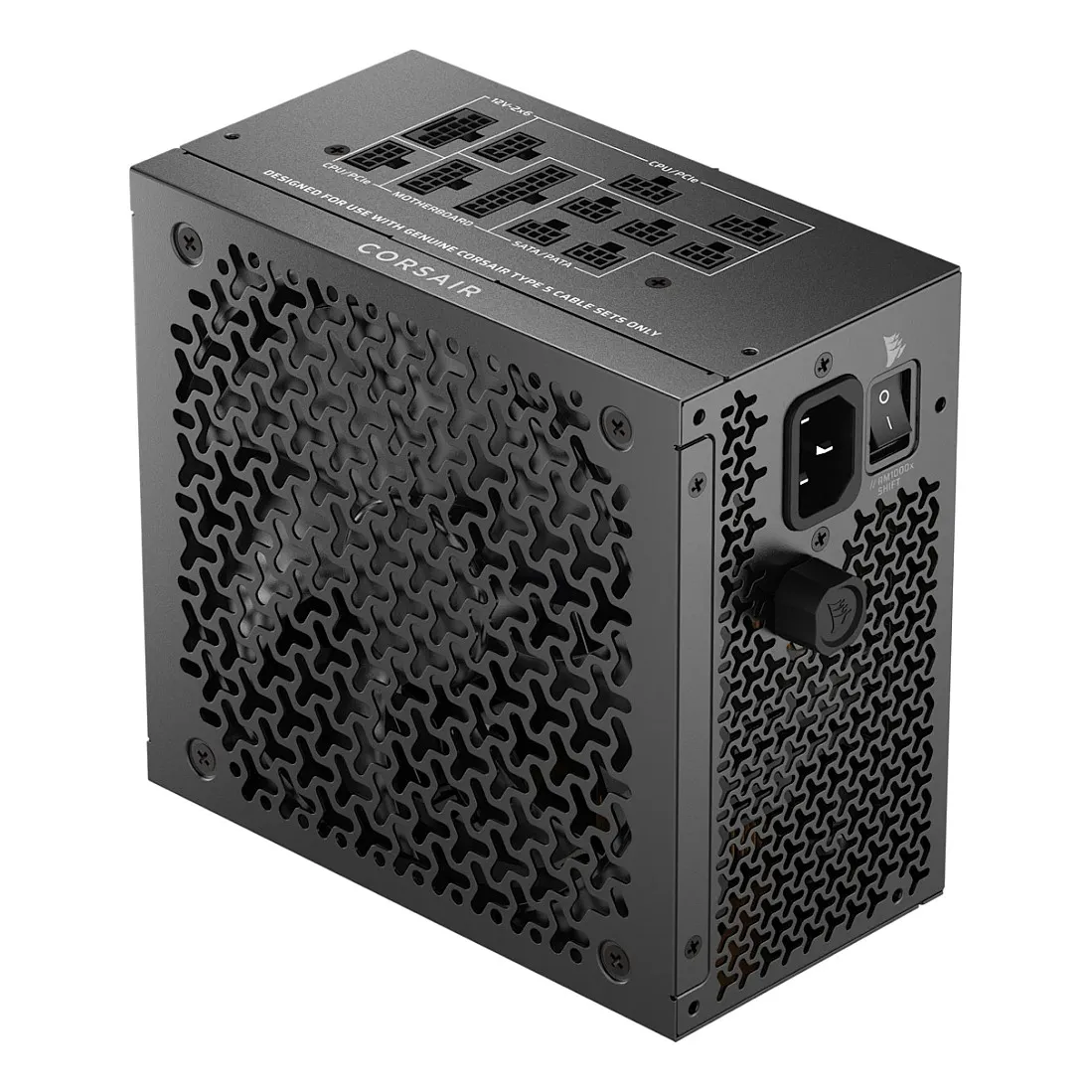

A patented PSU panel features modular, compact Type-5 connectors located on the side of the power supply, making it easier to plug in and manage your cables.
NATIVE 12V-2×6 GPU POWER CABLE
Power modern graphics cards, such as the NVIDIA® GeForce RTX™ 50 Series, using the included 12V-2×6 cable with a dual-color connector for visual confirmation of a secure GPU-side connection for easy, worry-free power delivery.
CYBENETICS GOLD CERTIFIED
Steady power output at up to 89% overall efficiency and Cybenetics™ Gold certified for lower power consumption, less noise, and cooler temperatures.
ATX 3.1 COMPLIANT and PCIe 5.1 READY
The RMx SHIFT Series features the latest standards for power delivery and connectivity to provide efficient, reliable power. RMx SHIFT Series are built with a robust resonant LLC topology with DC-DC conversion and 105°C-rated Japanese industrial-grade capacitors.
FULLY MODULAR TYPE-5 CONNECTORS
CORSAIR Type-5 PSU cables take up less space, which combines with the modular design to allow for easier cable management.
DEBOSSED-PVC CABLE KIT INCLUDED
The ultra-flexible cable kits make cable management easy and the included low-profile cable combs keep cables tidy for a sophisticated look and an easier build.
MANUAL FAN SPEED CONTROL KNOB
Want to get more air through the PSU or to exhaust heat from your case? Override the Zero RPM Mode and low-noise profile with the manual fan override knob, increasing fan speed and airflow.
140mm FLUID DYNAMIC BEARING FAN
A Fluid Dynamic Bearing fan with a magnetic dome structure minimizes noise, while Zero RPM Mode eliminates fan noise entirely at low to medium loads.
Total power: 1000 W
AC input voltage: 100 – 240 V
AC input frequency: 47 – 63 Hz
Combined power (+3.3V): 120 W
Combined power (+12V): 1000 W
Combined power (+5V): 120 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 83.2 A
Max output current (+5V): 20 A
Max output current (+5Vsb): 3 A
Ports & interfaces
Motherboard power connector: 24-pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 12
Number of PATA power connectors: 4
SATA power cable length: 100,500,700 mm
Feature: EPS power connector (8-pin)
PCI Express power connectors (6+2 pin): 2
PCI Express power connectors (12+4 pin): 1
PCI Express power connectors (12+4 pin) cable length: 650 mm
Feature: ATX Power connector (24-pin)
Feature: PCI Express connector
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 14 cm
Number of fans: 1 fan(s)
Feature: On/off switch
Weight & dimensions
Width: 160 mm
Depth: 150 mm
Height: 86 mm
Weight: 3.1 kg
Other features
Legal guarantee: 7 year(s)
