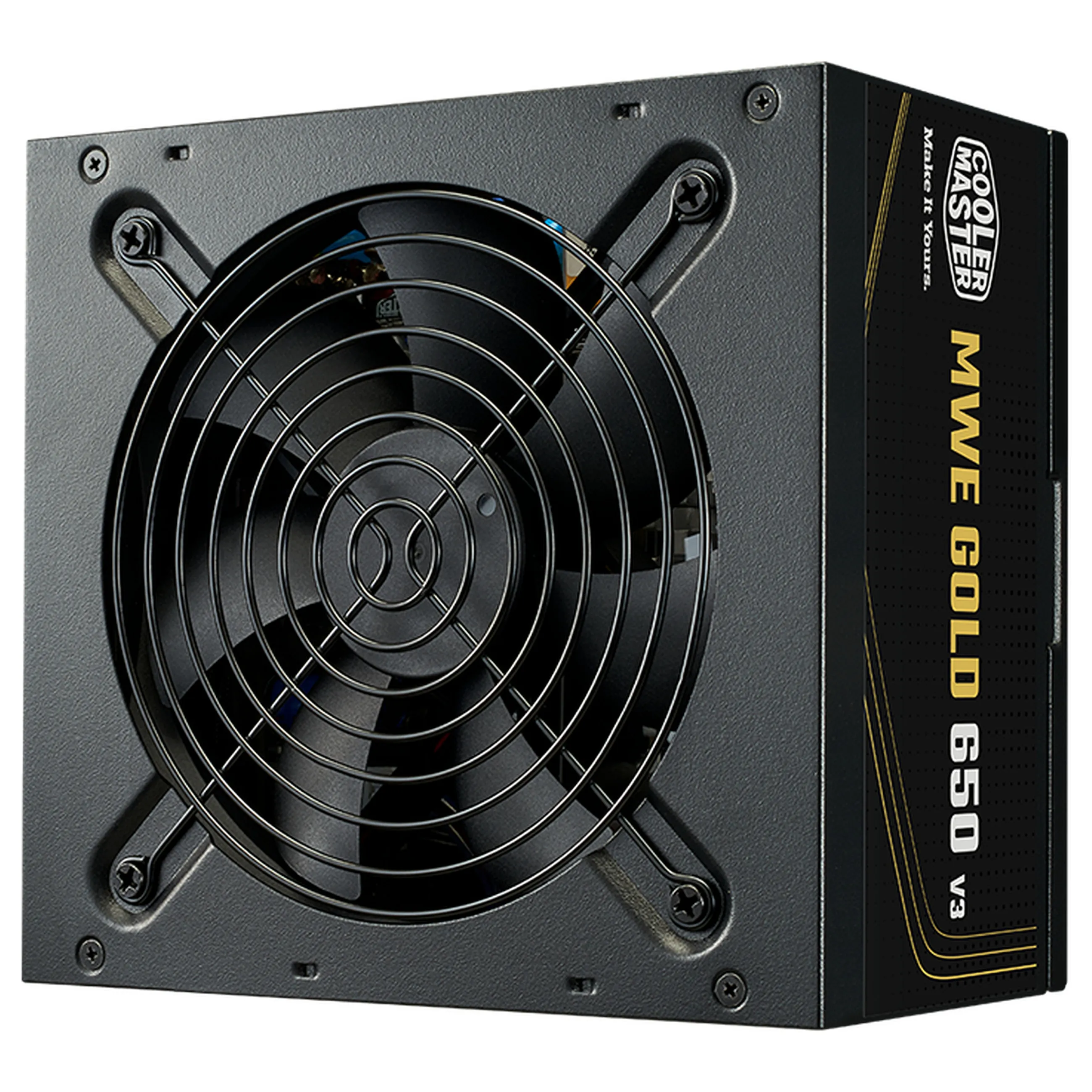

Cooler Master MWE Gold V3 ATX 3.1 Non-Modular Series. Total power: 650 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 50 cm, SATA power cable length: 400,550,700 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: BIS, BSMI, CCC, China Compulsory Certification (CCC), EAC, Federal Communications Commission…, Certification: ErP 2014 Lot 3
Cooler Master presents the MWE Gold V3 ATX 3.1 Ready featuring high power, ultra-silent performance with exceptional efficiency and reliability.
ATX 3.1 Support & a Durable 12V-2×6 Native Cable
The ATX 3.1-compliant power supply supports 200% Times the peak power, making it ideal for next generation series GPUs to easily meet the demands of future high-performance graphics cards. Includes 180-degree 12+4pin (12V-2×6) cable that can support the maximum power consumption of 450W for mainstream graphics cards.
Certified Efficiency
The MWE Gold V3 ATX 3.1 is certified to achieve more than 90% efficiency at typical loads.
Quiet HDB Fan
A hydrodynamic bearing fan delivers long-lasting quiet and effective cooling.
Premium Braided EPS Connectors
Two 4-pin EPS connectors are included for universal compatibility with current-gen motherboards. The cables feature premium braided sleeving for enhanced durability, flexibility, and a clean, professional look.
Total power: 650 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Input current: 5 – 10 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+12V): 648 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 54 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 16 ms
Efficiency: 90%
Power Good signal delay range: 100 – 150 ms
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 24-pin ATX
Motherboard power cable length: 50 cm
Number of SATA power connectors: 6
SATA power cable length: 400,550,700 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 550,700,400 mm
Feature: EPS power connector (8-pin)
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 4
PCI Express power cable length: 62 cm
Feature: PCI Express connector
Number of EPS connectors: 2
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC/Server
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: HDB
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan speed: 0 – 2400 RPM
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Certificates
Compliance certificates: BIS, BSMI, CCC, China Compulsory Certification (CCC), EAC, Federal Communications Commission (FCC), KC, RCM, REACH, RoHS, UKCA, cTUVus
Certification: ErP 2014 Lot 3
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Weight: 1.7 kg
Packaging data
Package width: 190 mm
Package depth: 260 mm
Package height: 110 mm
Package weight: 2.11 kg
Logistics data
Master (outer) cases per pallet: 120 pc(s)
Master (outer) case width: 275 mm
Master (outer) case length: 570 mm
Master (outer) case height: 215 mm
Other features
EPS cable length: 67 cm
Legal guarantee: 5 year(s)
