Cooler Master MWE GOLD 850 V3 ATX 3.1 Non-Modular. Total power: 850 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 400,550,700 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: BIS, BSMI, CCC, CE, EAC, Federal Communications Commission (FCC), RCM, TÜV mark, UKCA, cTUVus
Several changes and additions improve the overall user experience. Together, these design choices deliver an advanced PSU that is highly efficient and reliable. With an embossed cable, exceptional temperature resilience and a 5-year warranty, the MWE Gold V3 will evolve your machine.

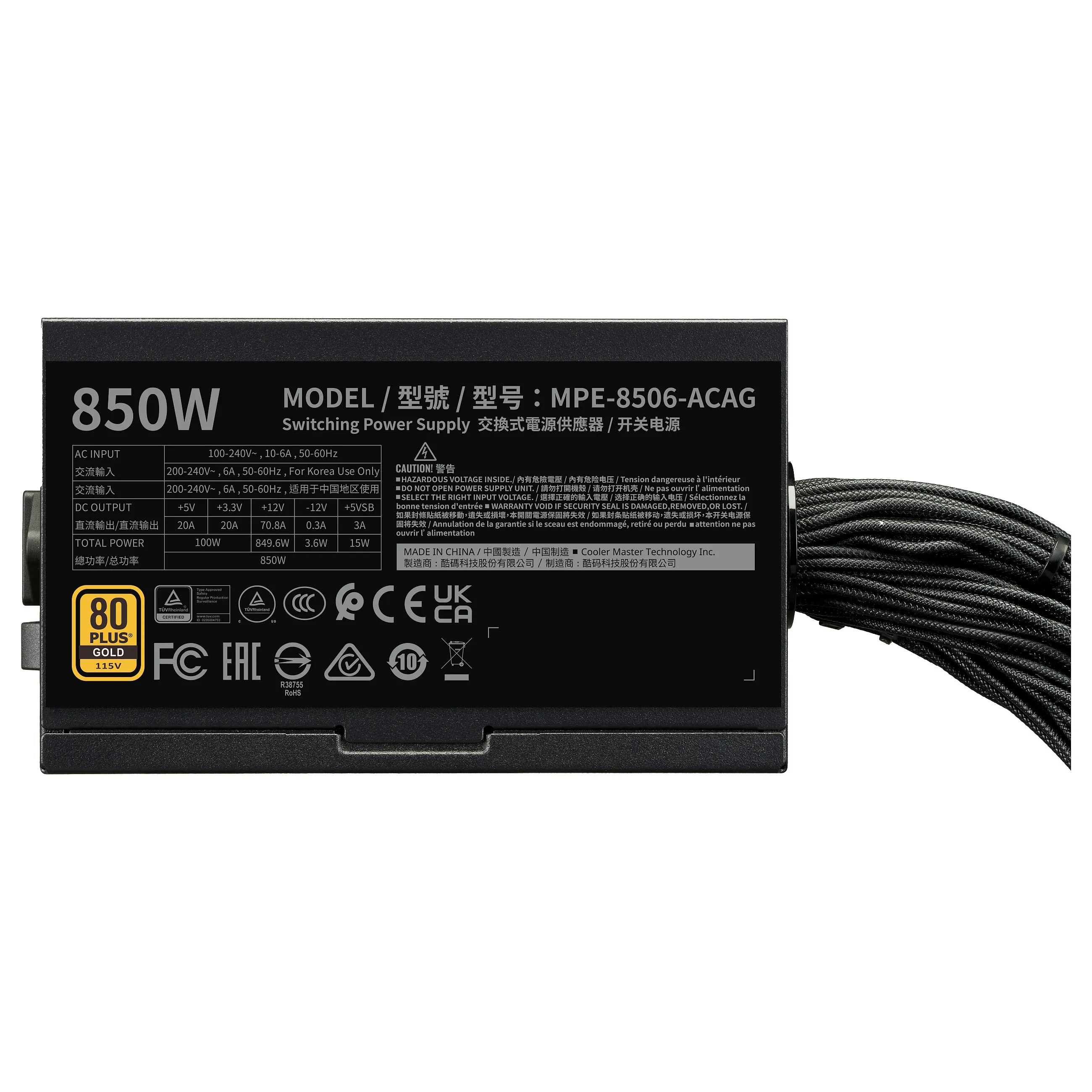

Total power: 850 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Input current: 6 – 10 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 849.6 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 70.8 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 16 ms
Efficiency: 90%
Power Good signal delay range: 100 – 150 ms
Power protection features: Over current, Over power, Over total voltage, Over voltage, Short circuit, Under voltage
Ports & interfaces

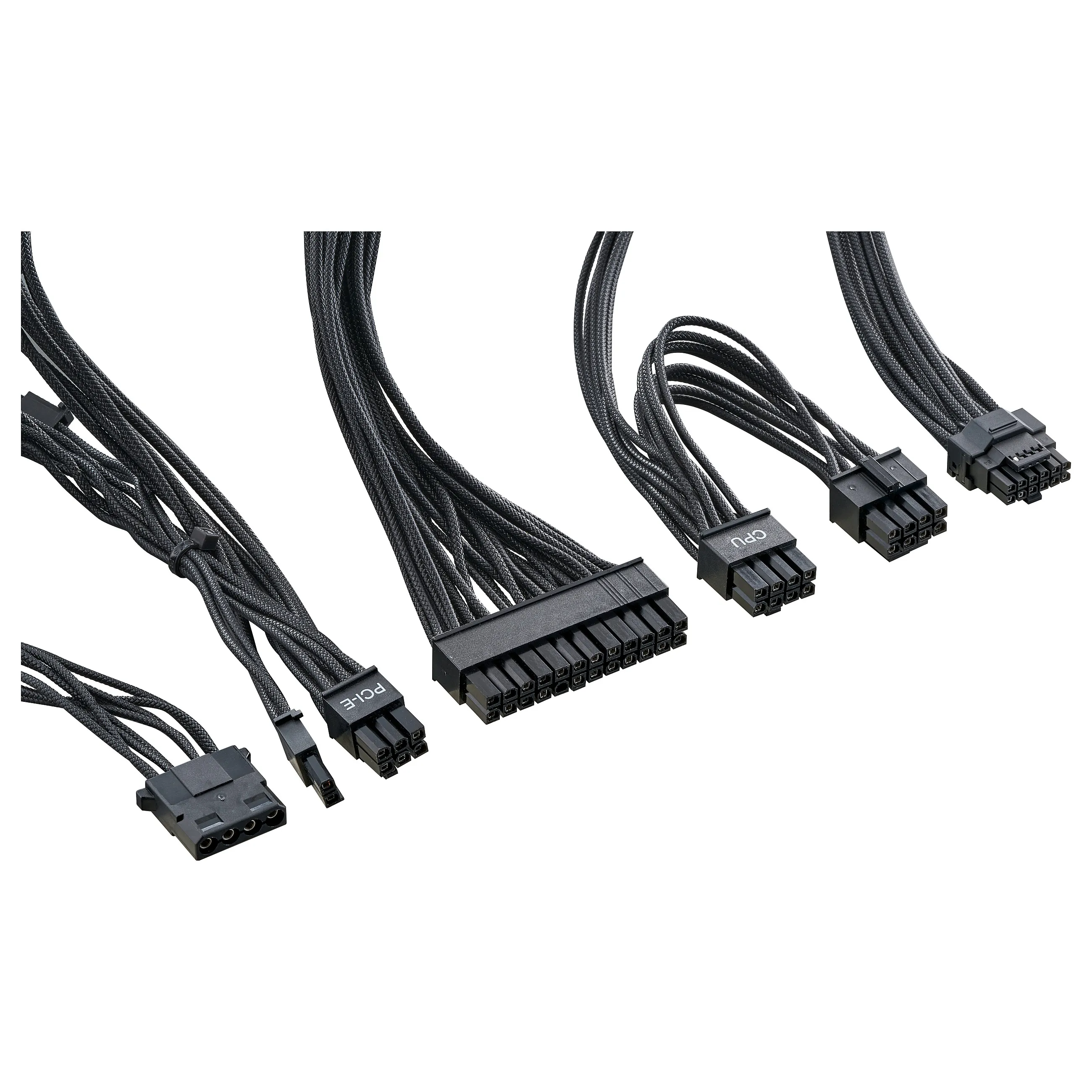

Motherboard power connector: 24-pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 6
SATA power cable length: 400,550,700 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 400,550,700 mm
Feature: EPS power connector (8-pin)
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 4
Feature: ATX Power connector (24-pin)
Number of EPS connectors: 2
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: HDB
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active

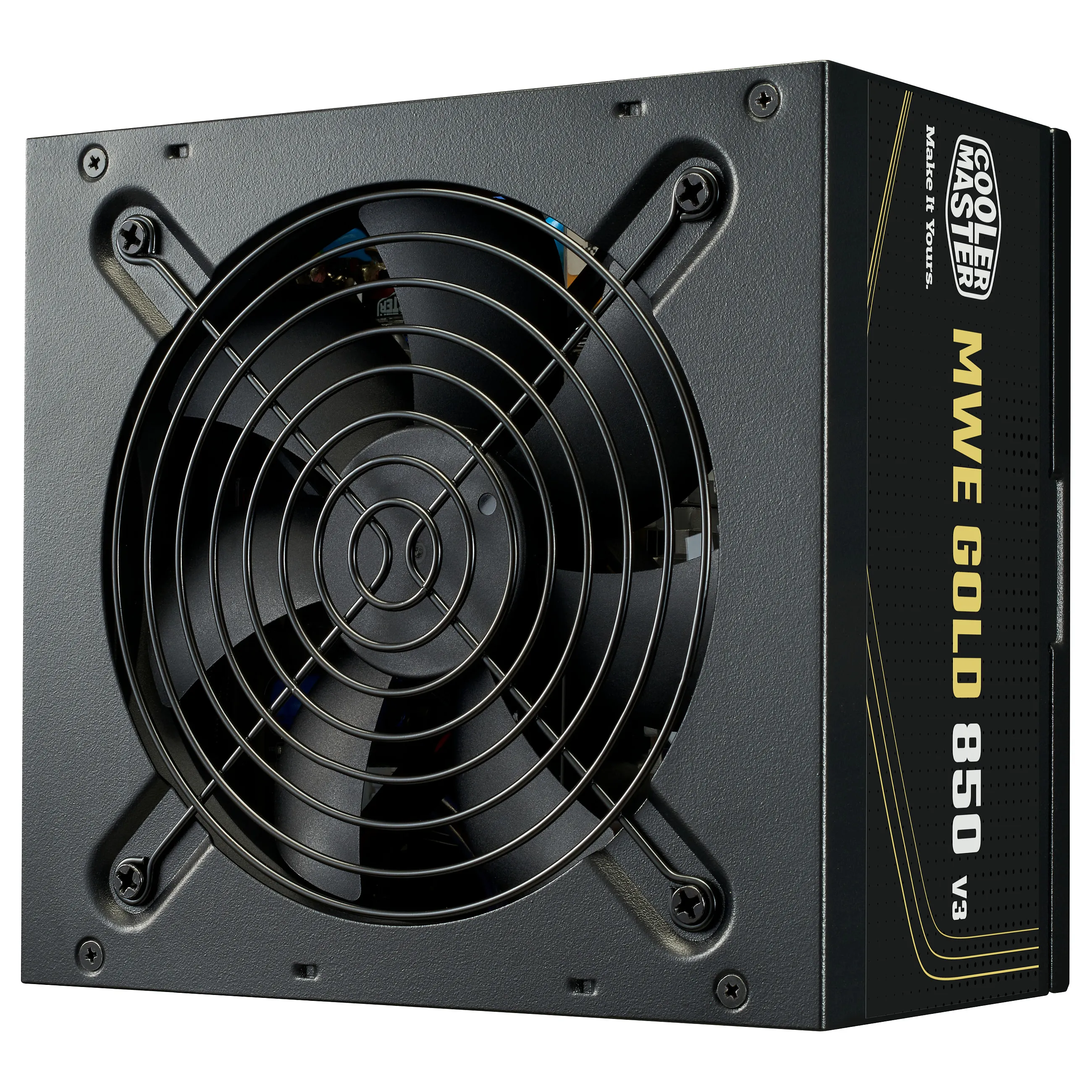

Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top

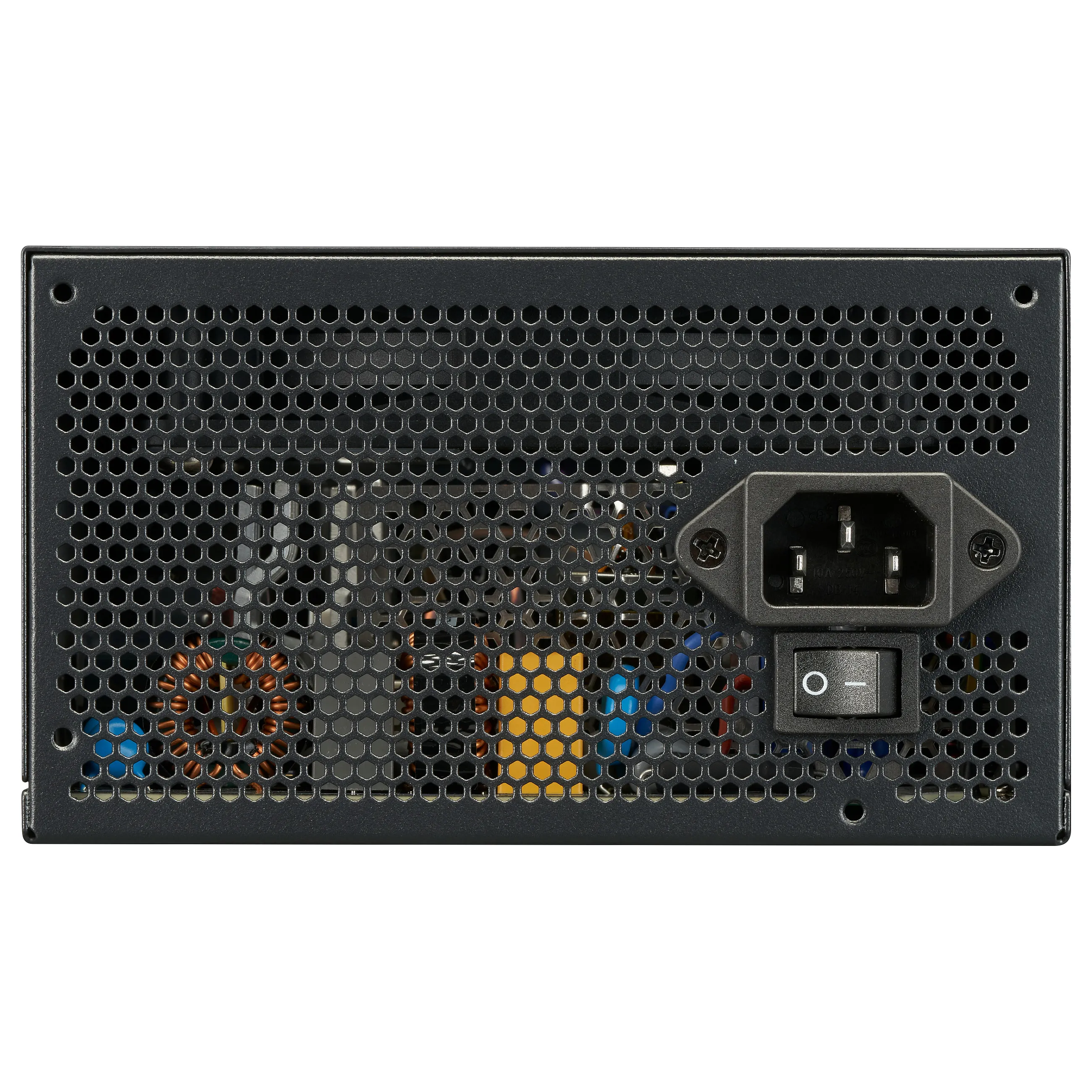

Feature: On/off switch
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Certificates
Compliance certificates: BIS, BSMI, CCC, CE, EAC, Federal Communications Commission (FCC), RCM, TÜV mark, UKCA, cTUVus
Weight & dimensions
Width: 140 mm
Depth: 150 mm
Height: 86 mm
Weight: 1.8 kg
Packaging data
Case or master carton dimensions (W x D x H): 275 x 215 x 570 mm
Package width: 190 mm
Package depth: 110 mm
Package height: 260 mm
Package weight: 2.21 kg
Package type: Box
Technical details
Sustainability certificates: ErP
