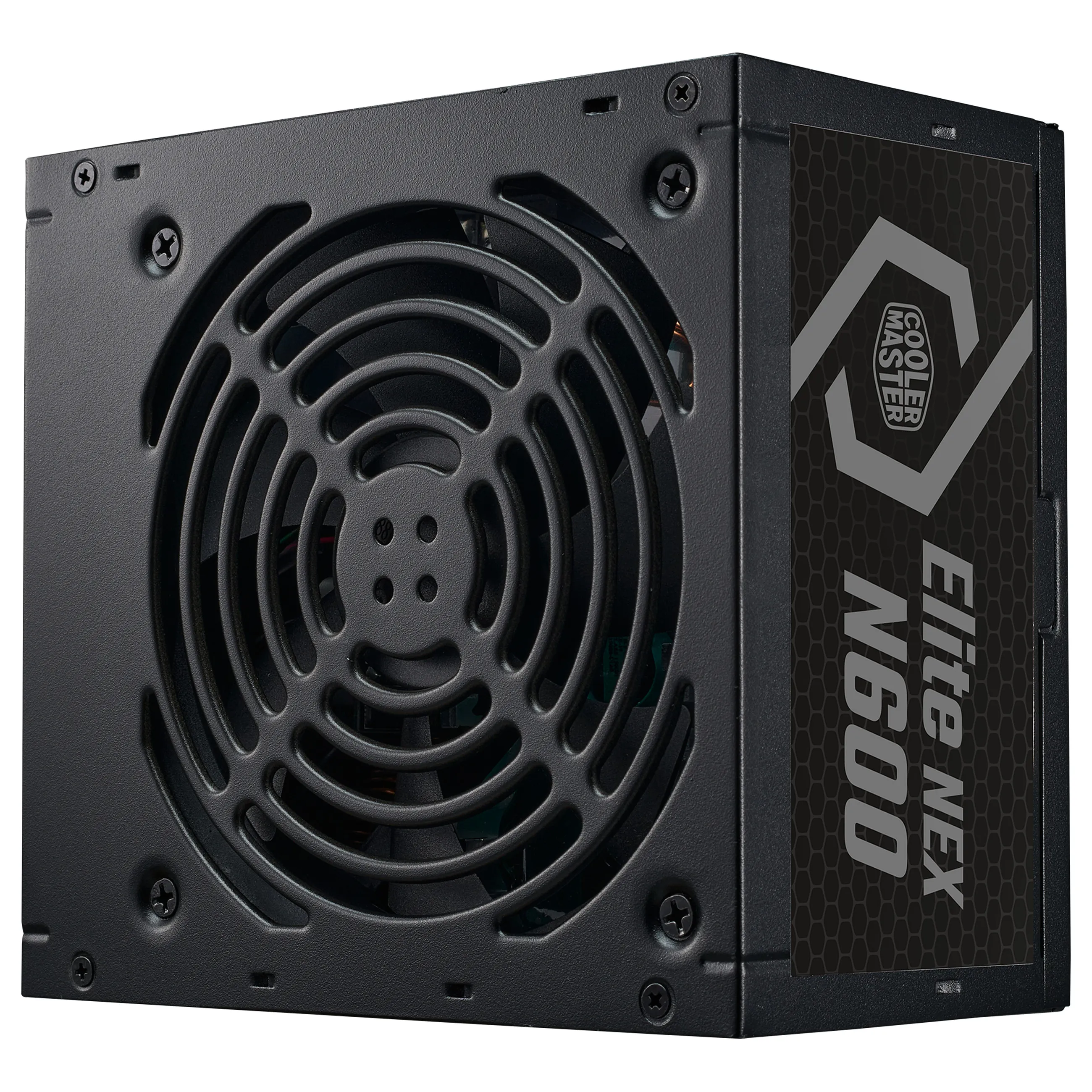

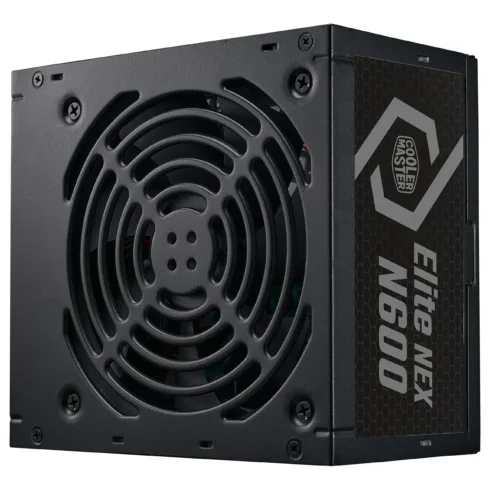

Cooler Master Elite NEX 230V 600. Total power: 600 W, AC input voltage: 200 – 240 V, AC input frequency: 50 – 60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 400,550,700 mm. Purpose: PC/Server, Bearing technology: Sleeve, Mean time between failures (MTBF): 100000 h. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CE, UKCA, Certification: ErP 2014 Lot 3, TUV, CCC, EAC
NEX Level Power
The Elite NEX power supply unit is a dependable choice for entry level users and system integrators. The quiet 120mm fan, active PFC and 3 years warranty deliver a complete power solution at a popular price.
Active PFC + Dual Forward Topology Design
Constructed with the active PFC for high-end power supply and the dual forward topology design, it can not only reduce interference and increase power quality, but reduce power loss to increase efficiency.
High Temperature Resistance
It’s capable of operating at 40°C under full load, allowing a longer lifespan in warmer environments.
Peak Power Tolerance
This unit can reliably push an additional 100W at peak power load for up to 20 seconds.
75% Efficiency
The power supply maintains an average efficiency of 75% at typical loads.

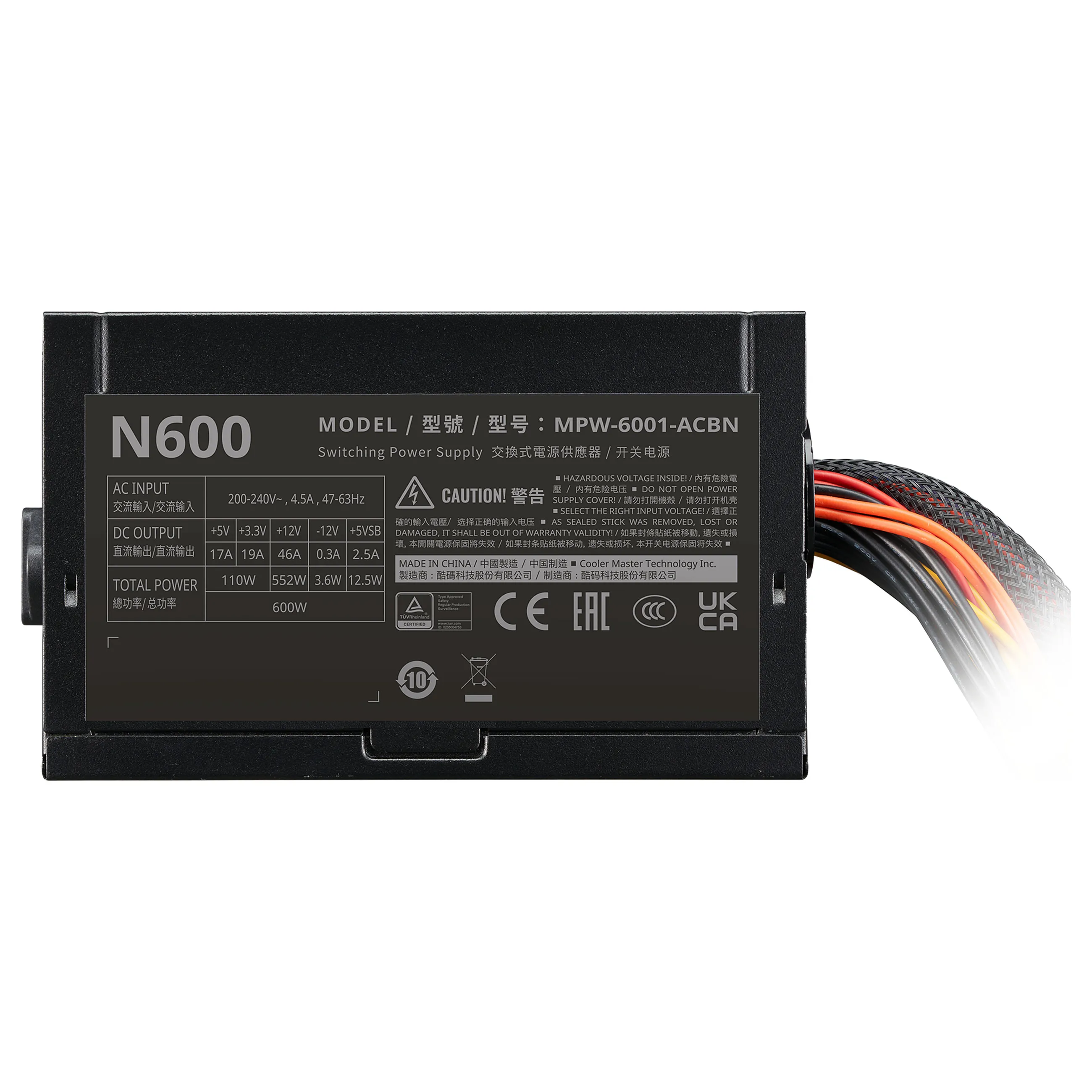

Total power: 600 W
AC input voltage: 200 – 240 V
AC input frequency: 50 – 60 Hz
Input current: 4.5 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 110 W
Combined power (+12V): 552 W
Combined power (+5V): 110 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 19 A
Max output current (+12V): 46 A
Max output current (+5V): 17 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Hold time: 10 ms
Efficiency: 75%
Power Good signal delay range: 100 – 500 ms
Power protection features: Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 24-pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 5
SATA power cable length: 400,550,700 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 550,700,400 mm
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 2
PCI Express power cable length: 62 cm
Cabling type: Non-Modular
Performance
80 PLUS certification: No
Purpose: PC/Server
ATX version: 2.41
Bearing technology: Sleeve
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Certificates
Compliance certificates: CE, UKCA
Certification: ErP 2014 Lot 3, TUV, CCC, EAC
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Weight: 1.4 kg
Packaging data
Package width: 190 mm
Package depth: 245 mm
Package height: 95 mm
Package weight: 1.78 kg
Technical details
Feature: Sustainability compliance
Logistics data
Products per pallet: 64 pc(s)
Master (outer) case width: 260 mm
Master (outer) case length: 503 mm
Master (outer) case height: 220 mm
Products per master (outer) case: 5 pc(s)
Other features
EPS cable length: 55 cm
Legal guarantee: 3 year(s)
