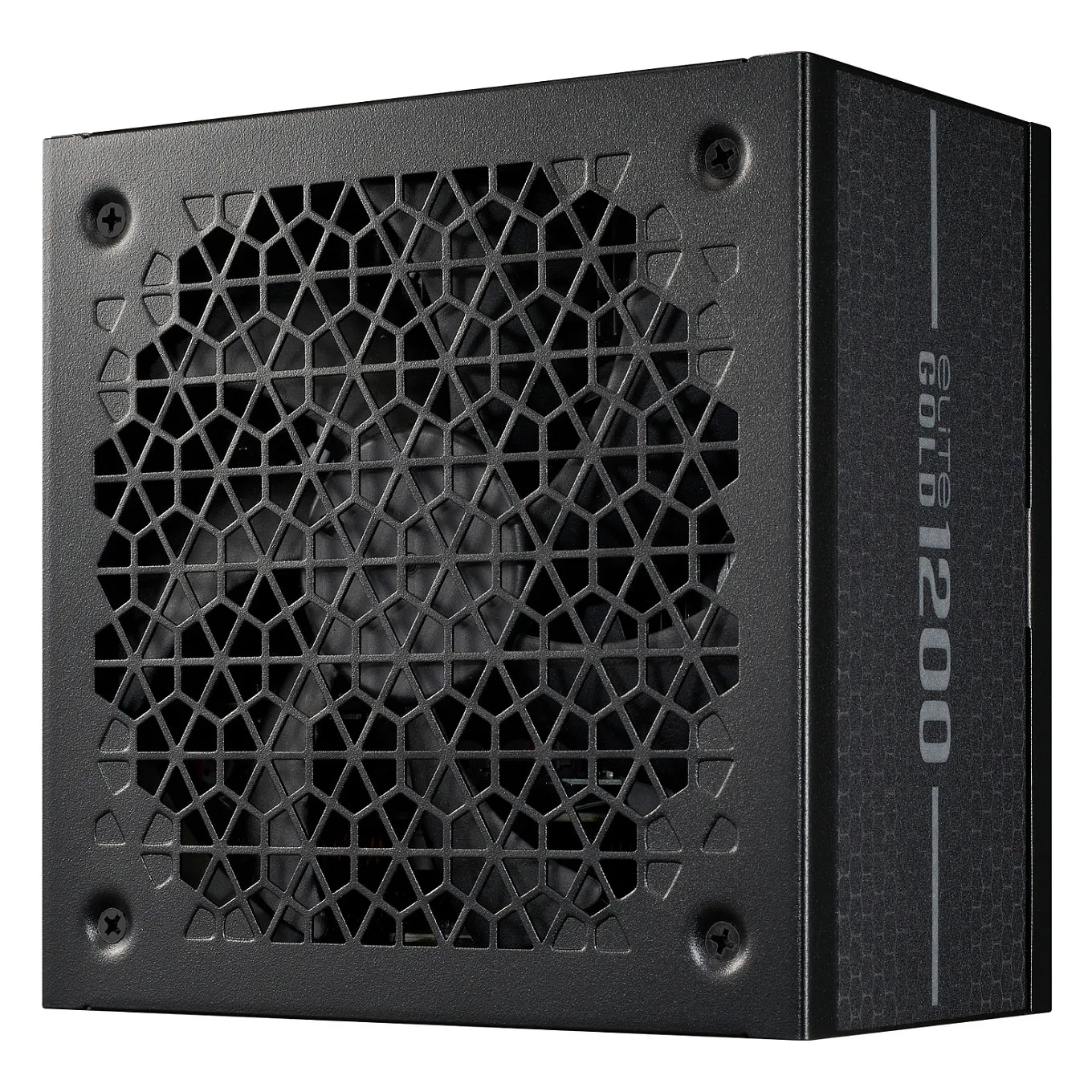

Cooler Master Elite Gold 1200. Total power: 1200 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 500,600,700 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Certification: cTUV us, CB, CE, FCC, BSMI, EAC, RCM, UKCA, RoHS2.0, REACH
Cooler Master Elite Gold 1200 powers high-end gaming rigs and professional systems with ATX 3.1 support – ideal for RTX 50 GPUs. It offers 80 Plus Gold efficiency, reliable operation up to 40°C, quiet FDB cooling, embossed modular cables, dual EPS connectors, and a 5-year warranty for dependable, high-load performance.
Compatible with ATX 3.1 and PCIe Gen 5.1 standards
ATX 3.1 provides tighter voltage and current regulation, supporting up to 200% peak power. The Elite Gold 1200 meets full ATX 3.1 specs and supports PCIe Gen 5.1 for stable next-gen performance with RTX 50 GPUs and future high-power cards.
*All performance stats confirmed in 25°C ambient temperature testing.
High Temperature Resilience
Operates reliably at up to 40°C, making it ideal for extended gaming sessions, professional rendering, and sustained high-load workloads—all without sacrificing stability or efficiency.
QUIET FDB FAN
Fluid Dynamic Bearing fan ensures long-lasting, stable, and quiet cooling. Fan speed adjusts automatically based on power and stops when the system is idle or under low load (below 30%).
*All performance stats confirmed in 25°C ambient temperature testing.
80 PLUS GOLD CERTIFIED EFFICIENCY
Cooler Master Elite Gold 1200 achieves over 90% efficiency at typical loads, reducing energy waste and heat output.
*All performance stats confirmed in 25°C ambient temperature testing.
Fully Modular Embossed Cable Design
The fully modular design comes with flat black cables that can be tailored to each build, offering improved grip and a premium look for easier management and a cleaner overall setup.
*All performance stats confirmed in 25°C ambient temperature testing.

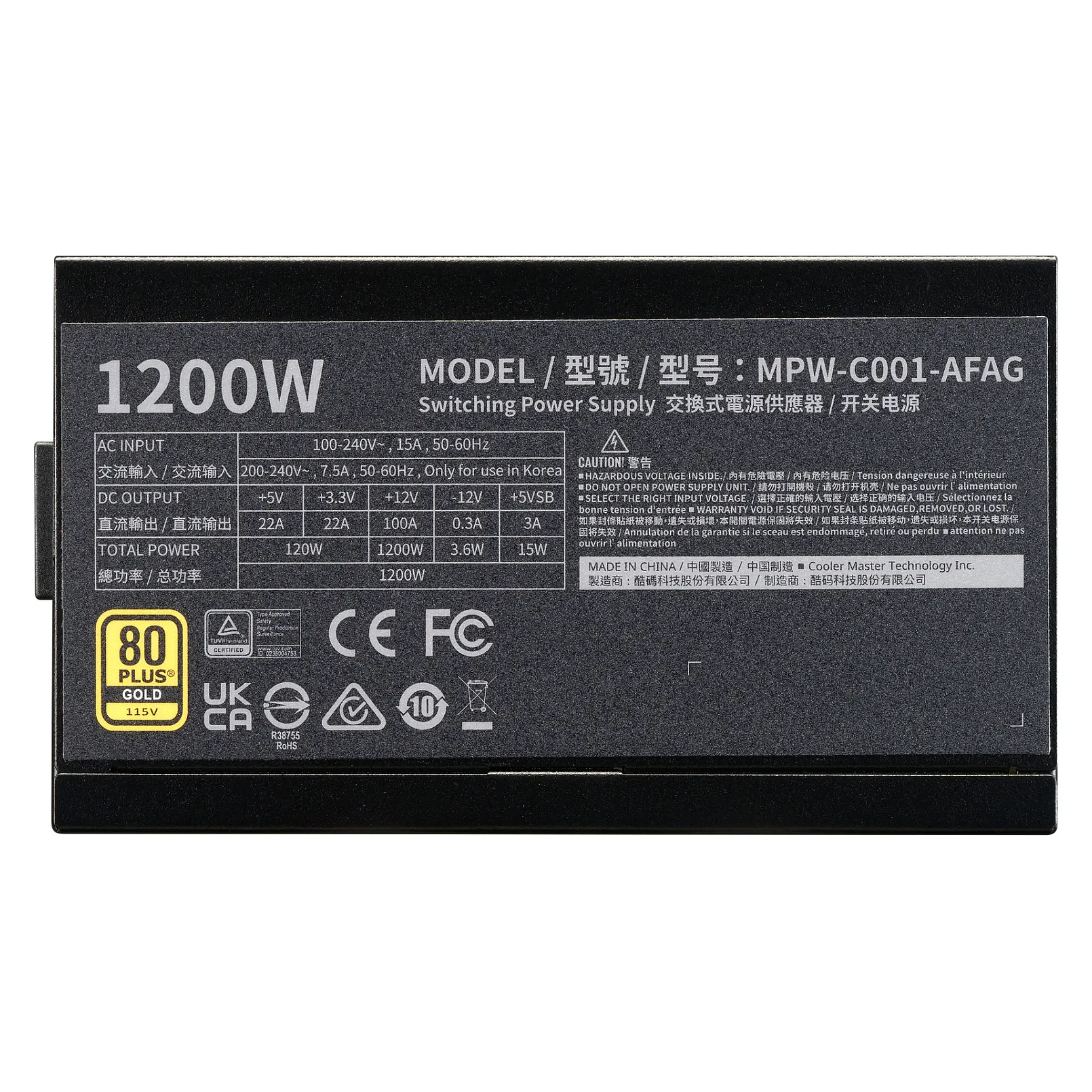

Total power: 1200 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Input current: 7.5 – 15 A
Power Factor Correction (PFC) type: Active
Number of +12V rail(s): 1
Combined power (+3.3V): 120 W
Combined power (+12V): 1200 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 22 A
Max output current (+12V): 100 A
Max output current (+5V): 22 A
Max output current (-12V): 3.6 A
Max output current (+5Vsb): 3 A
Hold time: 16 ms
Efficiency: 90%
Power Good signal delay range: 100 – 150 ms
Power protection features: Over power, Over voltage, Overheating, Short circuit, Under voltage

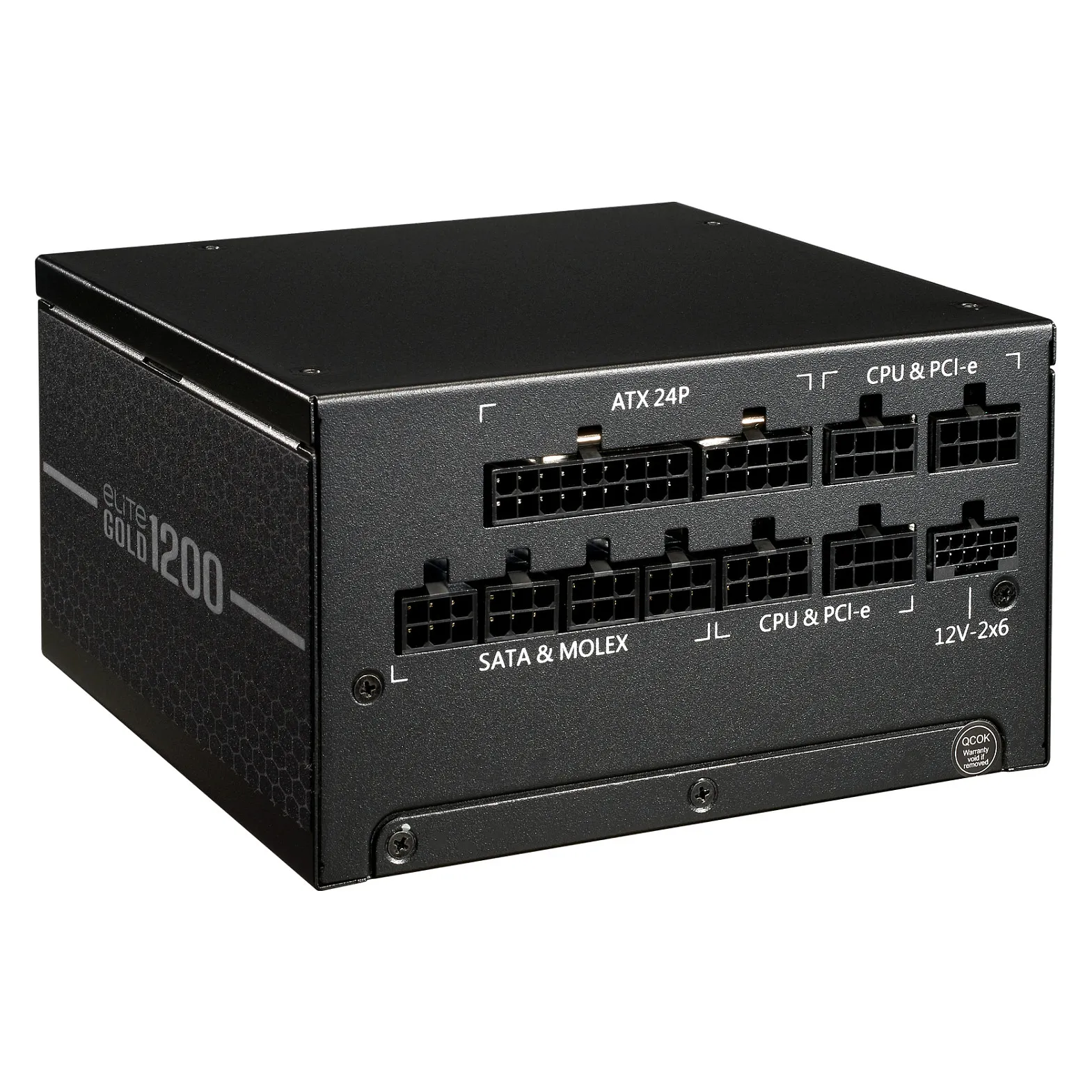

Ports & interfaces
Motherboard power connector: 24-pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 9
SATA power cable length: 500,600,700 mm
Number of SATA power cables: 3
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 500,600,700 mm
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 6
PCI Express power connectors (12+4 pin): 1
PCI Express power connectors (12+4 pin) cable length: 600 mm
Feature: ATX Power connector (24-pin)
Number of EPS connectors: 2
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Certificates
Certification: cTUV us, CB, CE, FCC, BSMI, EAC, RCM, UKCA, RoHS2.0, REACH
Weight & dimensions
Width: 150 mm
Depth: 150 mm
Height: 86 mm
