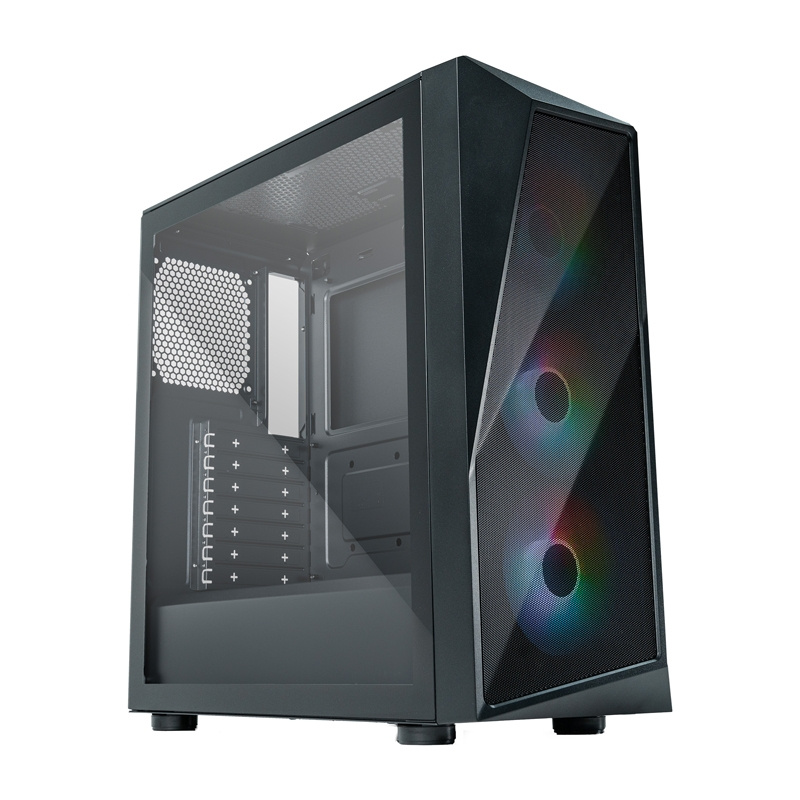

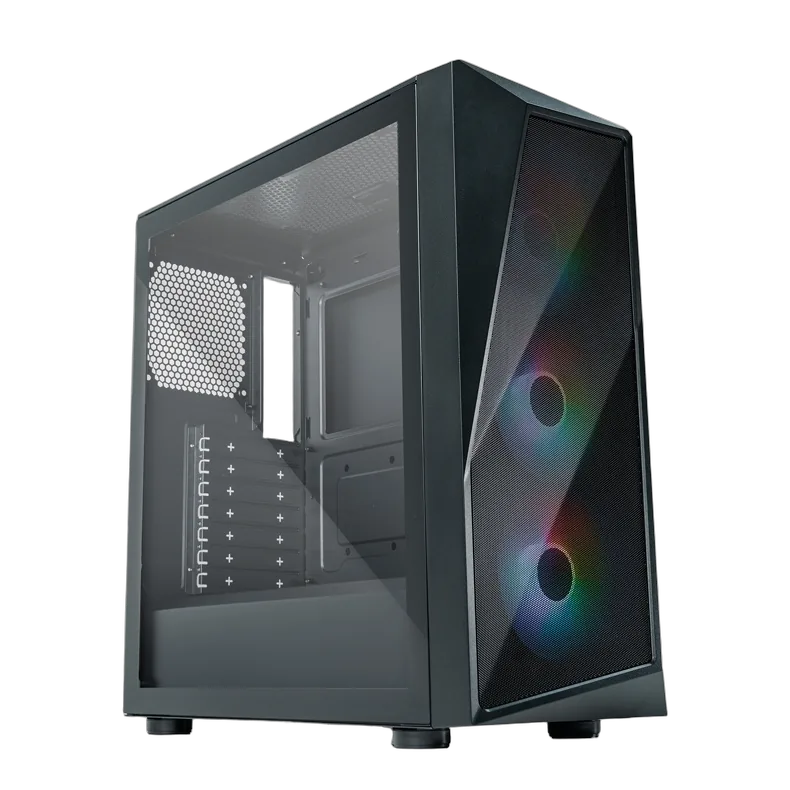

Cooler Master CMP 520 computer case (black)
The Cooler Master CMP 520 is a modern computer case designed for users who want to combine reliable performance with an attractive design. With three pre-installed CF120 ARGB fans, a spacious design and a built-in ARGB hub, you can build a powerful and aesthetically pleasing PC setup that catches the eye and ensures stable component performance.
Three ARGB fans as standard

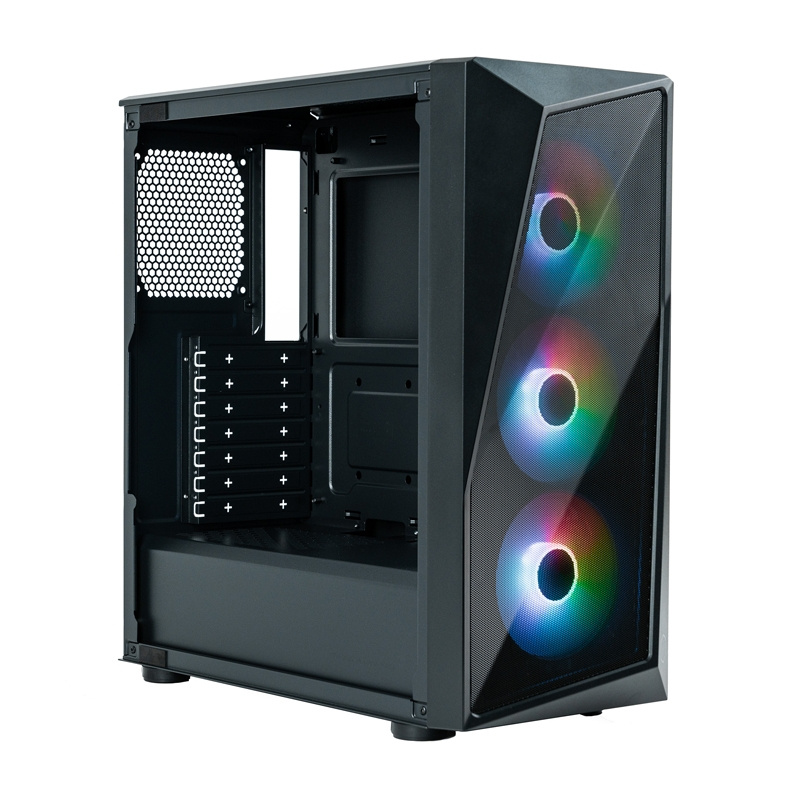

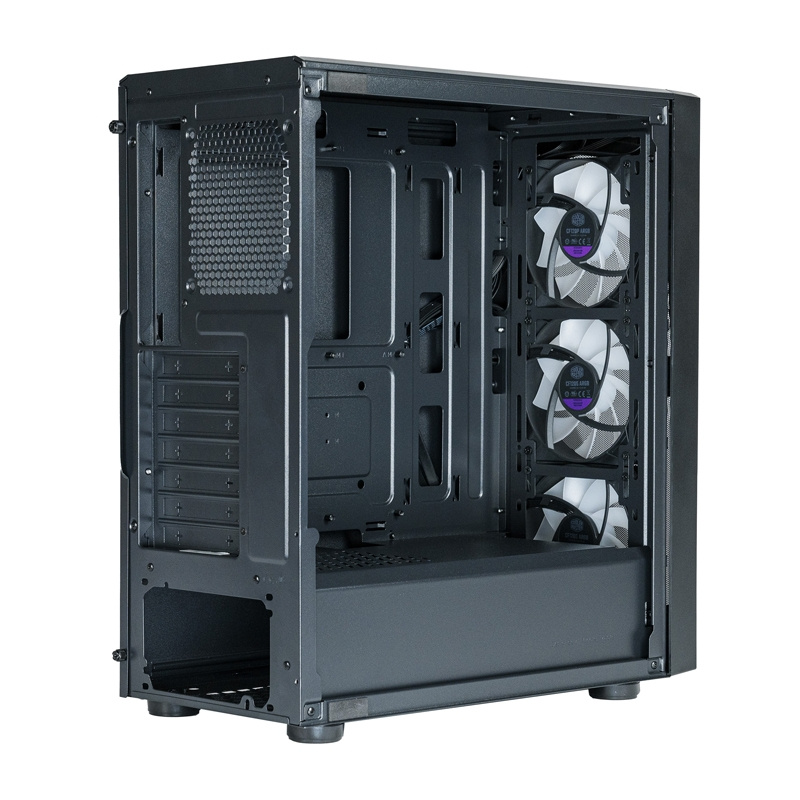

Three CF120 ARGB fans have been installed on the front of the case to provide excellent airflow and give the interior a gaming feel. The case is also equipped with a built-in ARGB hub, which makes it easy to manage cables inside and allows you to synchronize the backlighting through the motherboard.
Mesh front panel, several available ports

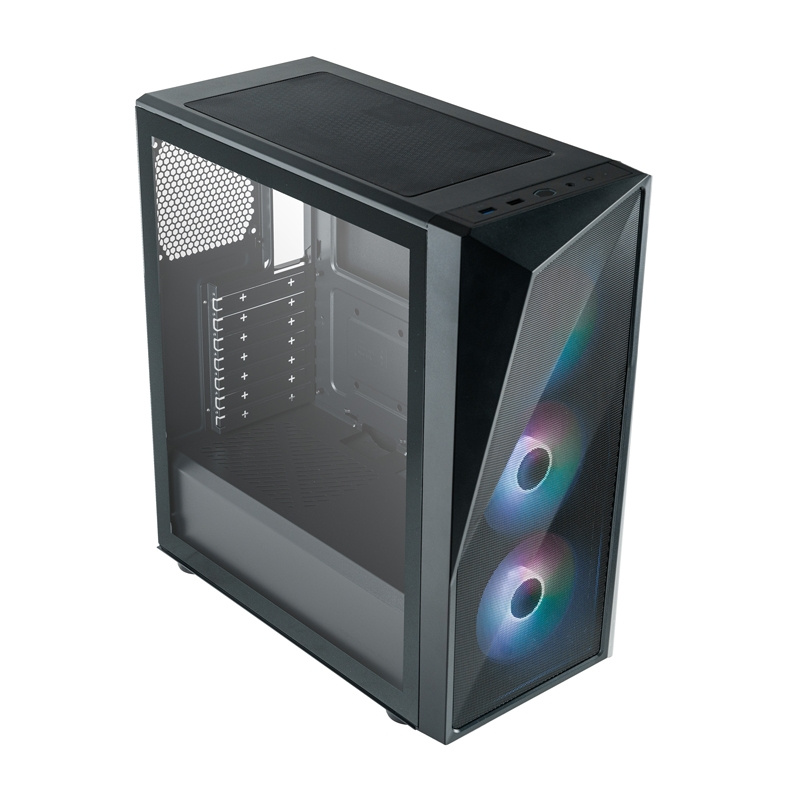

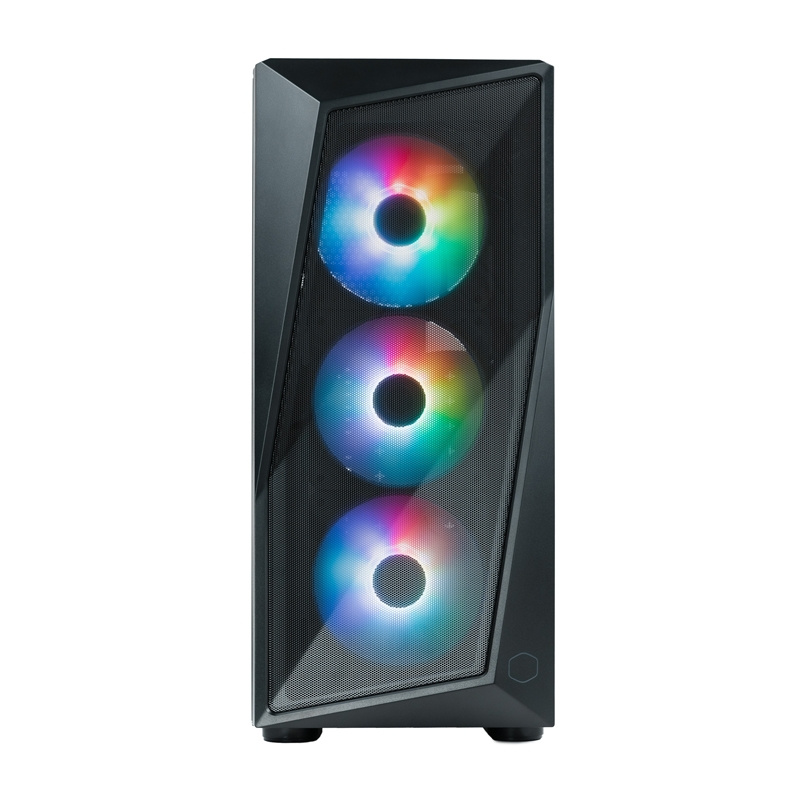

An asymmetrical perforated mesh front panel ensures optimal airflow and protects the interior from dust. This design improves cooling efficiency while giving the case a modern, original style. What’s more, the CMP 520 is equipped with several useful ports – it has one USB-A 3.2 Gen 1 port, one USB-A 2.0 port and one headphone output / microphone input.
Thoughtful design

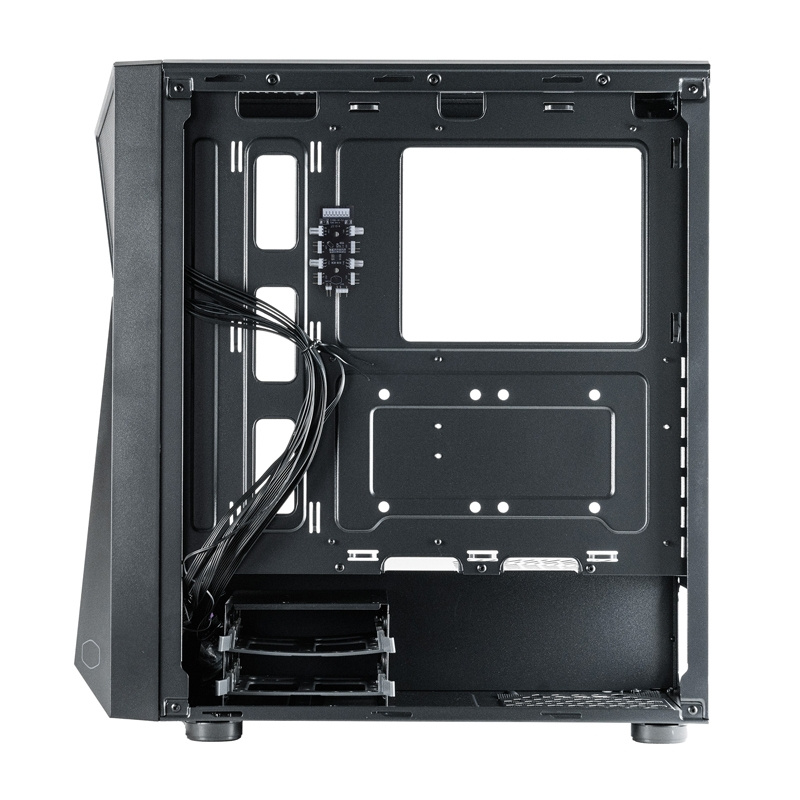

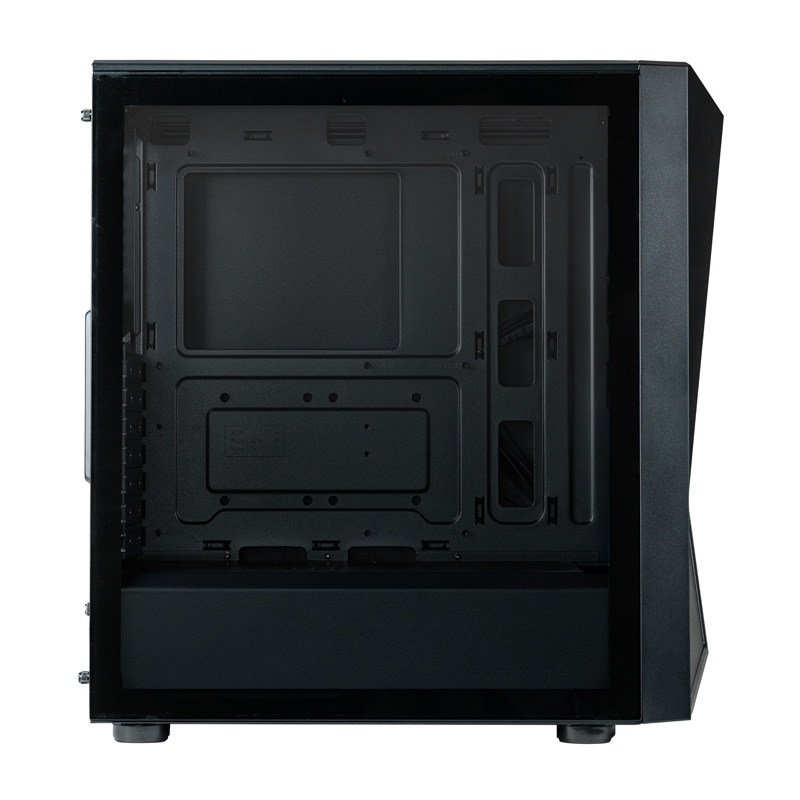

The interior of the case has been designed with efficient space management and aesthetics in mind. A side panel made of tempered glass allows selected components to be exposed, while a bottom compartment with a power supply cover allows cables to be routed neatly and supports air circulation thanks to ventilation holes. In addition, the CMP 520 features dust filters on the bottom and top.
Ready for expansion
The CMP 520 offers support for motherboards in Mini-ITX, Micro-ATX and ATX standards. The case also allows the installation of a graphics card up to 350 mm long (after removing the front fans), a CPU cooler up to 161 mm high and a PSU up to 160 mm long. In addition, there are two 2.5″/3.5″ bays and two dedicated 2.5″ bays for flexible disk space management.
Flexible cooling mounting options
The case offers a wide range of cooling installation options. You can mount up to six 120mm fans in it – two on the top, three on the front and one on the back. This way you don’t have to worry about your computer overheating! The CMP 520 also supports various types of water cooling. Customize your cooling configuration and enjoy stable system operation!
| Manufacturer | Cooler Master |
|---|---|
| Model | CP520-KGNN-S00 |
| Color | Black |
| External materials | Steel, plastic |
| Side panel | Tempered glass |
| Dimensions (with protruding parts) | 439 x 204 x 463 mm |
| Dimensions (without protruding parts) | 432 x 204 x 448 mm |
| Motherboard standard | Mini-ITX, Micro-ATX, ATX |
| Expansion card slots | 7 |
| 5.25″ ODD bays | 0 |
| 2.5″/3.5″ HDD bays | 2 |
| 2.5″ SSD bays | 2 |
| Connectors | 1x USB-A 3.2 Gen 1, 1x USB 2.0, 1x 3.5mm jack (headphone output / microphone input) |
| ARGB controller | ARGB Fans Hub |
| Factory-installed fans (front) | Front: 3x CF120 ARGB |
| Fan mounting options | Top: 2x 120 mm / 2x 140 mm; Front: 3x 120 mm / 2x 140 mm; Rear: 1x 120 mm; |
| Water cooling mounting options | Top: 120 mm / 240 mm (for RAM less than 35 mm high); Front: 120 mm / 240 mm / 140 mm / 280 mm; Rear: 120 mm; |
| Max CPU cooling height | 161 mm |
| Max. PSU length | 160 mm |
| Max. length of graphics card | 350 mm (excluding front fans and water cooling) |
| Space for cabling behind the motherboard tray | 18.5 mm |
| Dust filters | Top, bottom |
| Power supply standard | ATX, bottom mount |
