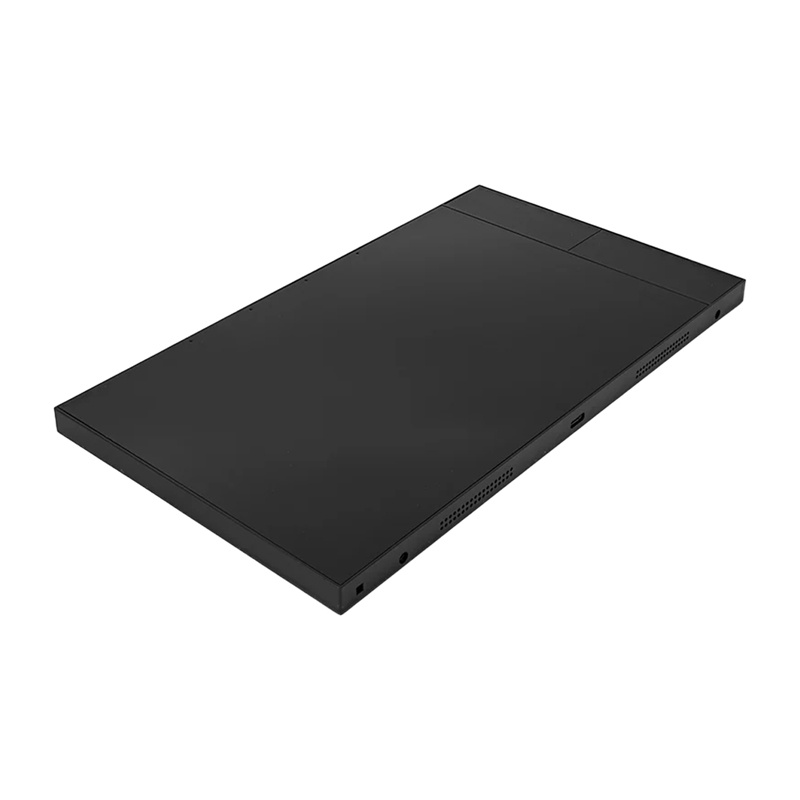

Shelly Wall Display XL 10.1″ WiFi/BLU Control Panel (black)
The Shelly Wall Display XL is a wall-mounted control panel with a 10.1″ touchscreen display and built-in relay, designed for device operation and integration in modern residential and commercial installations. It provides lightning-fast response thanks to a quad-core processor, offers four fully customizable buttons, connects via Wi-Fi 6 (2.4/5 GHz) and Bluetooth 5.4, and supports media playback and Internet radio. Its added advantage is mounting in a standard wall box and remote management via the Shelly Smart Control app. All this makes the device perfect for homes, apartments, hotels or offices.
Touch screen and powerful processor
The 10.1″ HD color display with responsive 5-point touch panel (G+FF) and 1280×752p resolution provides a clear image and intuitive control. It allows you to use large tiles, widgets and device groups, and is easy to use even for guests or children. In addition, a quad-core CPU (Rockchip RK3566 Cortex-A55), 2 GB RAM and 16 GB Flash memory running on Android 11 guarantee instant panel response, fast screen switching and scene reliability. Forget about stuttering and lags!
Convenient device control
The built-in relay allows you to directly control devices up to 1,500 watts – perfect for lamps, fans and more. You’ll also have four fully customizable buttons to assign your favorite functions, such as turning off all lights, opening a lock or starting a scene. Physical control is convenient for homebuyers and guests – no apps or logins. In addition, the panel supports Home Assistant, MQTT and Webhooks, so you can easily integrate it into your smart home ecosystem and join existing automations. At the same time, full compatibility with the Shelly Smart Control app allows you to remotely control devices, create smart scenes and much more. Now, with just a few clicks, you can turn off the lights or adjust the air conditioning settings – even when you’re out with friends or at work.
View room energy consumption
The dashboard allows you to monitor your room’s energy consumption (from your Shelly Smart Control account) and provides readings from connected Shelly PM meters (sold separately). This makes it easy to identify the devices that consume the most electricity, which will help you change your habits and start saving on your bills!
Scenes, schedules and automations
Create and trigger scenes with a single touch or physical button. Schedules (up to 20) and Webhooks (up to 20, 5 URLs per hook) are available, making it easy to build complex scenarios. Make the fan turn on when the room temperature exceeds a certain threshold, and the lights turn off when you go to bed!
Multimedia and Internet radio at your fingertips
Built-in 2×2 W stereo speakers and an integrated media player and Internet radio allow you to play music, notifications or alarms. The panel also works with Bluetooth and Sonos speakers. Control the listening right from the screen or with the buttons and enjoy your favorite songs wherever you are – in the kitchen, bedroom or living room.
| Manufacturer | Shelly |
|---|---|
| Model | WallDisplayXLB |
| Dimensions (H × W × D). | 155.8 × 272.5 × 38.3 mm |
| Weight | 920 g |
| Touchscreen | 5-point capacitive, G+FF |
| Screen resolution | 1280 × 752 px |
| Maximum clamping torque | 0.4 Nm |
| Cable cross section | 0.2-2.5 mm² / 24-14 AWG (solid, wire, sleeves) |
| Wire stripping length | 15 mm |
| Mounting | Wall box (EU standard) |
| Housing material | Metal, PC coated, glass |
| Case color | Black |
| Speaker | 2 × 2 W |
| Operating temperature | From -20°C to 40°C |
| Operating humidity | 30%-70% RH |
| Maximum operating altitude | 2000 m |
| Power supply | 100-240 V~ 50/60 Hz |
| Power consumption | < 15 W |
| USB-C power supply | 5 V⎓ / 3 A |
| Power button | 1 button (screen on/off) |
| Function buttons | 4 configurable control buttons |
| Maximum switching voltage | 240 V~ |
| Maximum switching current | 5 A |
| AC output | 100-240 V~ 50/60 Hz |
| USB-C output | 5 V⎓ / 0.5 A |
| Internal temperature sensor | No |
| Ambient temperature sensor | No |
| Humidity sensor | No |
| Light sensor | Yes |
| Microphone | Yes (four-microphone array) |
| G-sensor | No |
| Proximity sensor | Yes (≤ 1 m) |
| Wi-Fi | Wi-Fi 6 Dual Band |
| Wi-Fi RF band | 2.4 GHz and 5 GHz |
| Maximum RF Wi-Fi power | < 20 dBm |
| Wi-Fi range | Up to 30 m indoors / up to 50 m outdoors (depending on conditions) |
| Bluetooth | 5.4 |
| Bluetooth RF bandwidth | 2402-2480 MHz |
| Maximum Bluetooth RF power | < 4 dBm |
| Bluetooth range | Up to 10 m indoors / up to 30 m outdoors (depending on conditions) |
| Processor | Rockchip RK3566 Quad-core Cortex-A55 |
| RAM | 2 GB |
| Flash memory | 16 GB |
| Operating system | Android 11 |
| Schedules | 20 |
| Webhooks (URL shares) | 20 (up to 5 URLs per webhook) |
| Scripts | No |
| MQTT | Yes |
