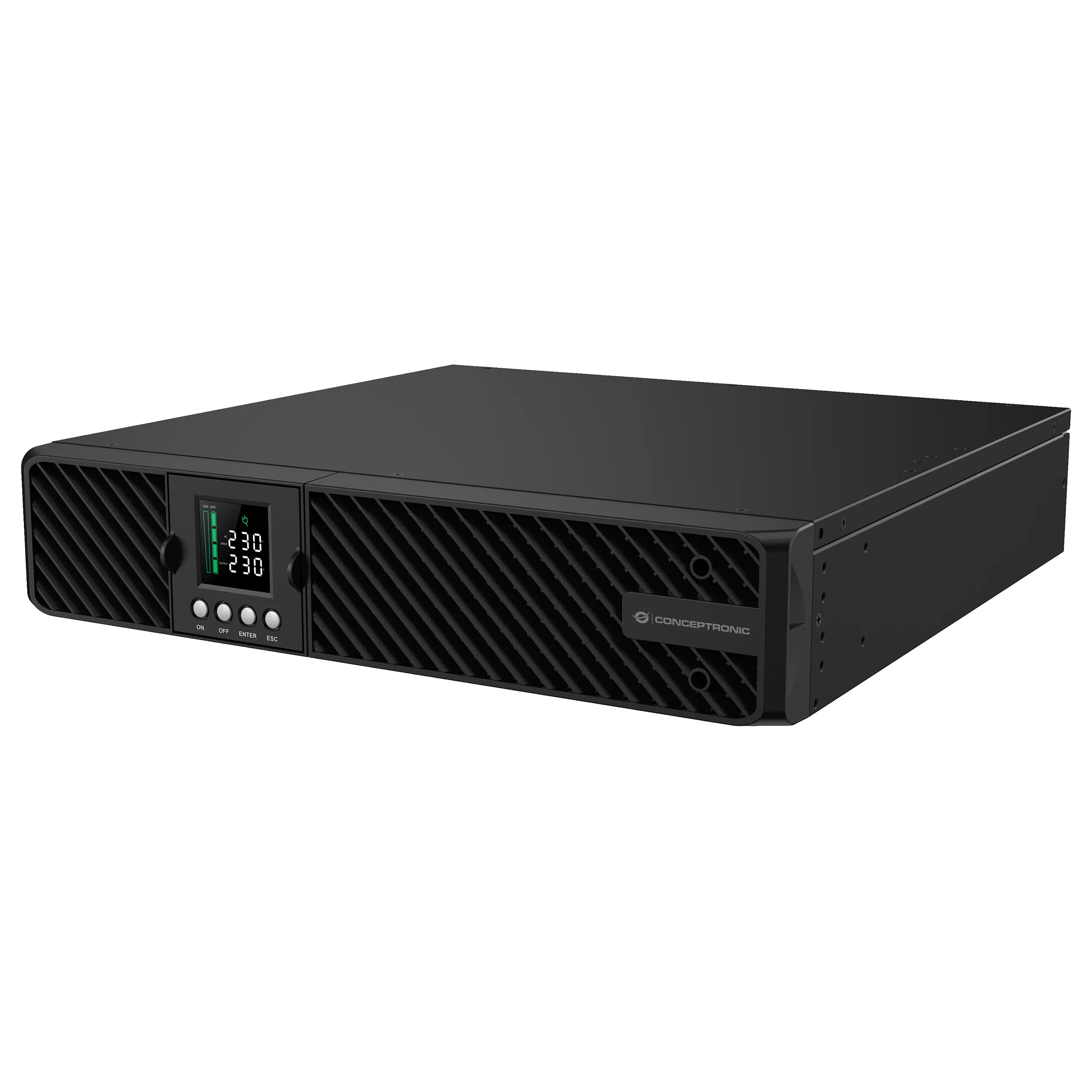

Conceptronic ZEUS51E3K 3000VA 3000W Online UPS, IEC. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 3000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C19 coupler, AC outlets quantity: 9 AC outlet(s). Battery capacity: 9 Ah, Battery voltage: 12 V, Battery recharge time: 4 h. Form factor: Desktop, Product colour: Black, Cooling type: Active. Compliance certificates: CE, RoHS
The Conceptronic Online UPS includes a HID-compatible USB connection for seamless communication with your devices and an Emergency Power Off (EPO) port for added safety during emergencies. The easy battery replacement feature allows for convenient maintenance. Additionally, the outlet programmable management feature enables you to customize power distribution according to your needs.
Simple to install and operate, the Conceptronic Online UPS offers a dependable and efficient way to protect your systems from power surges and failures, ensuring the smooth operation of your critical equipment.
UPS topology: Double-conversion (Online)
Output power capacity: 3 kVA
Output power: 3000 W
Waveform: Sine
Input operation voltage (min): 220 V
Input operation voltage (max): 240 V
Input frequency: 50/60 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Maximum current: 16 A
Output power factor: 1
Feature: ECO mode
Feature: Emergency Power Off (EPO)
Input current Total Harmonic Distortion (THD): 5%
Audible alarm modes: Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm

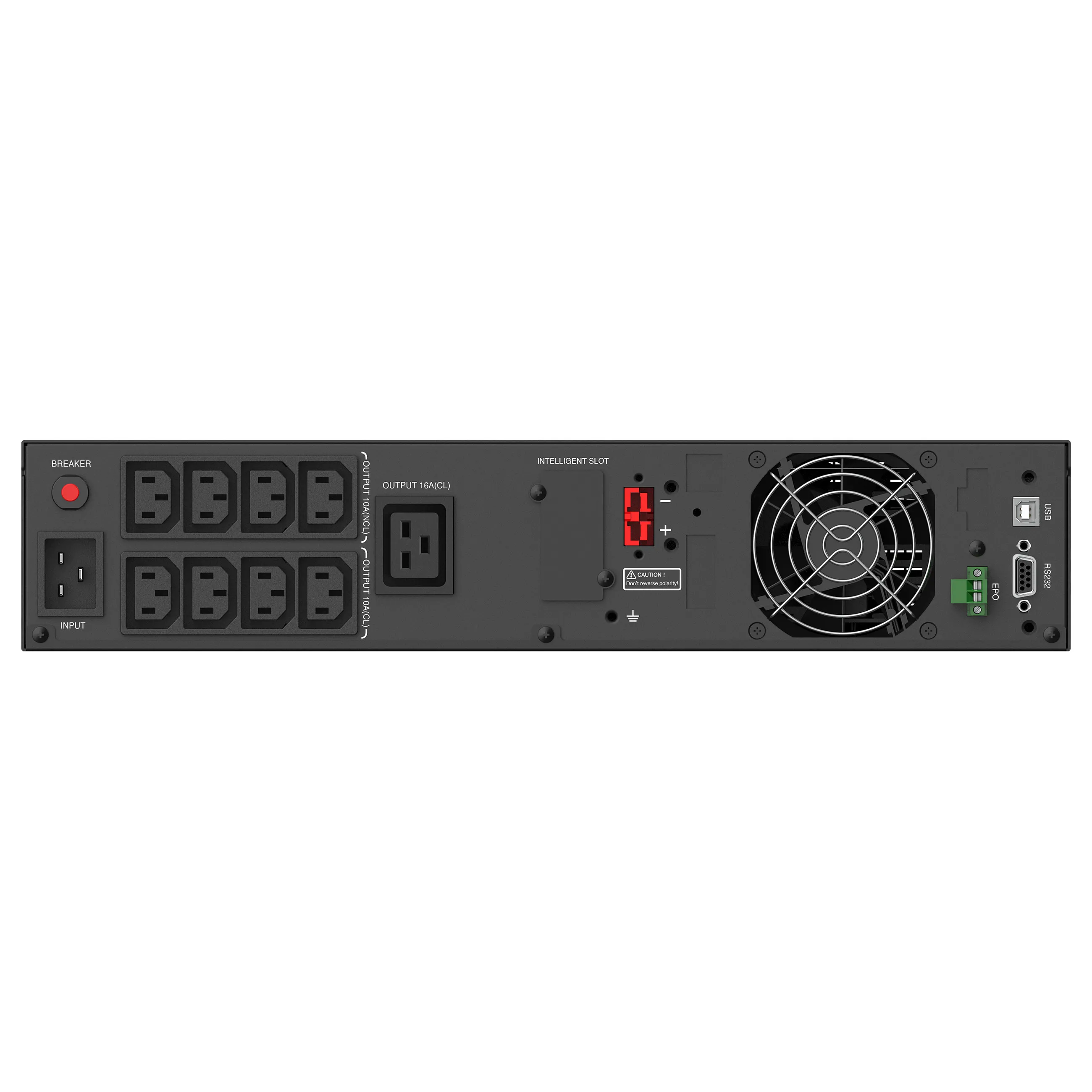

Ports & interfaces
AC outlet types: C13 coupler, C19 coupler
Power plug: C19 coupler
AC outlets quantity: 9 AC outlet(s)
Feature: USB port
USB 2.0 ports quantity: 1
USB port type: USB Type-B
Feature: Serial interface
Serial interface type: RS-232
RS-232 ports: 1
Feature: Programmable sockets
Battery
Battery capacity: 9 Ah
Battery voltage: 12 V
Battery recharge time: 4 h
Battery capacity: 108 Wh
Design
Form factor: Desktop
Cooling type: Active
Product colour: Black
Display type: LCD
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 20 – 90%
Certificates
Compliance certificates: CE, RoHS
Packaging content
Feature: Rack mount kit
Cables included: Input power cable, RS-232, USB cable
Feature: Quick installation guide
Weight & dimensions
Width: 438 mm
Depth: 610 mm
Height: 88 mm
Weight: 27.3 kg
Packaging data
Feature: Screws included
Logistics data
Products per pallet: 16 pc(s)
Pallet gross length: 110 cm
Pallet gross width: 76 cm
Pallet gross height: 2.14 m
Harmonized System (HS) code: 8504402000
Master (outer) case width: 550 mm
Master (outer) case length: 746 mm
Master (outer) case height: 226 mm
Master (outer) case gross weight: 30.3 kg
Products per master (outer) case: 1 pc(s)
Country of origin: China
