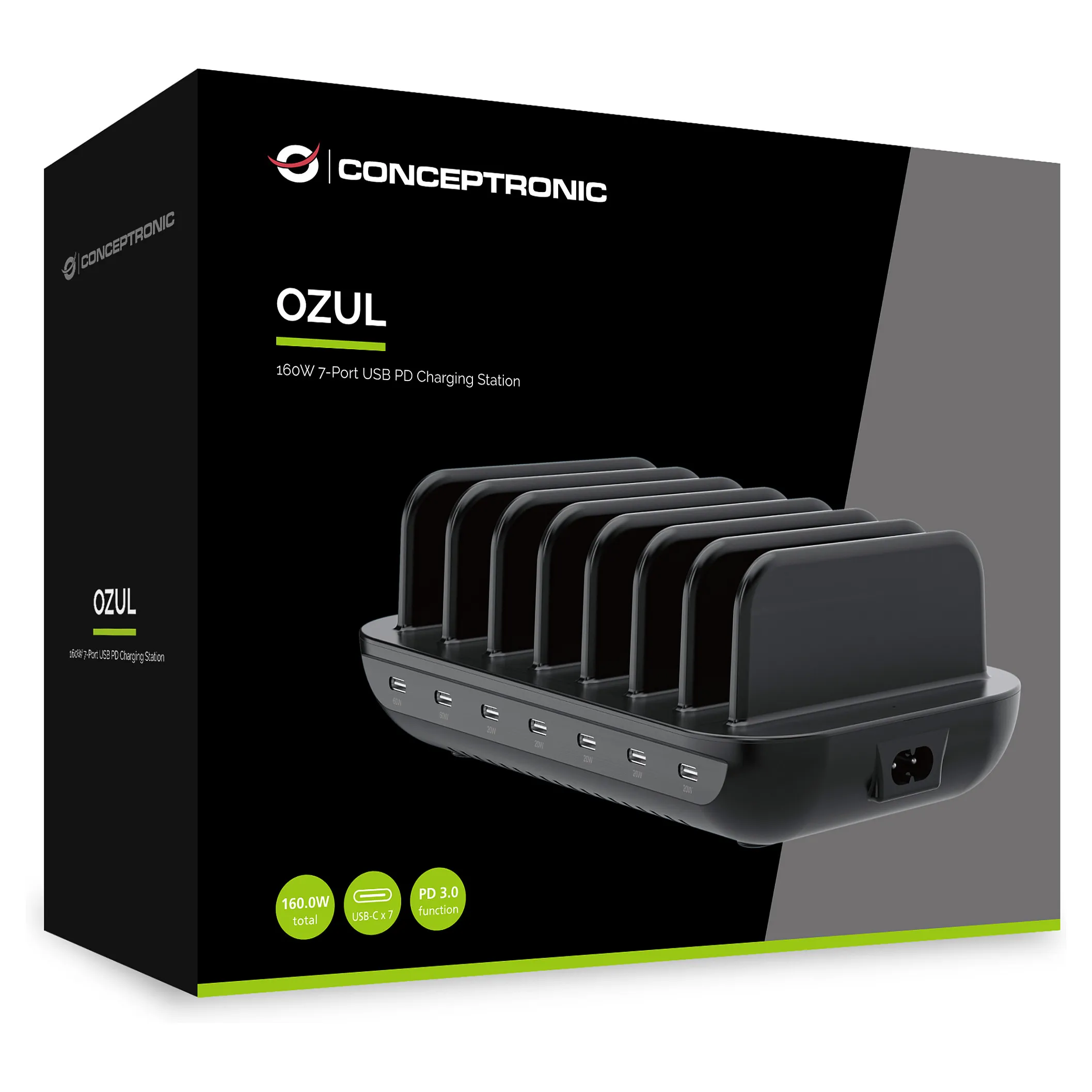

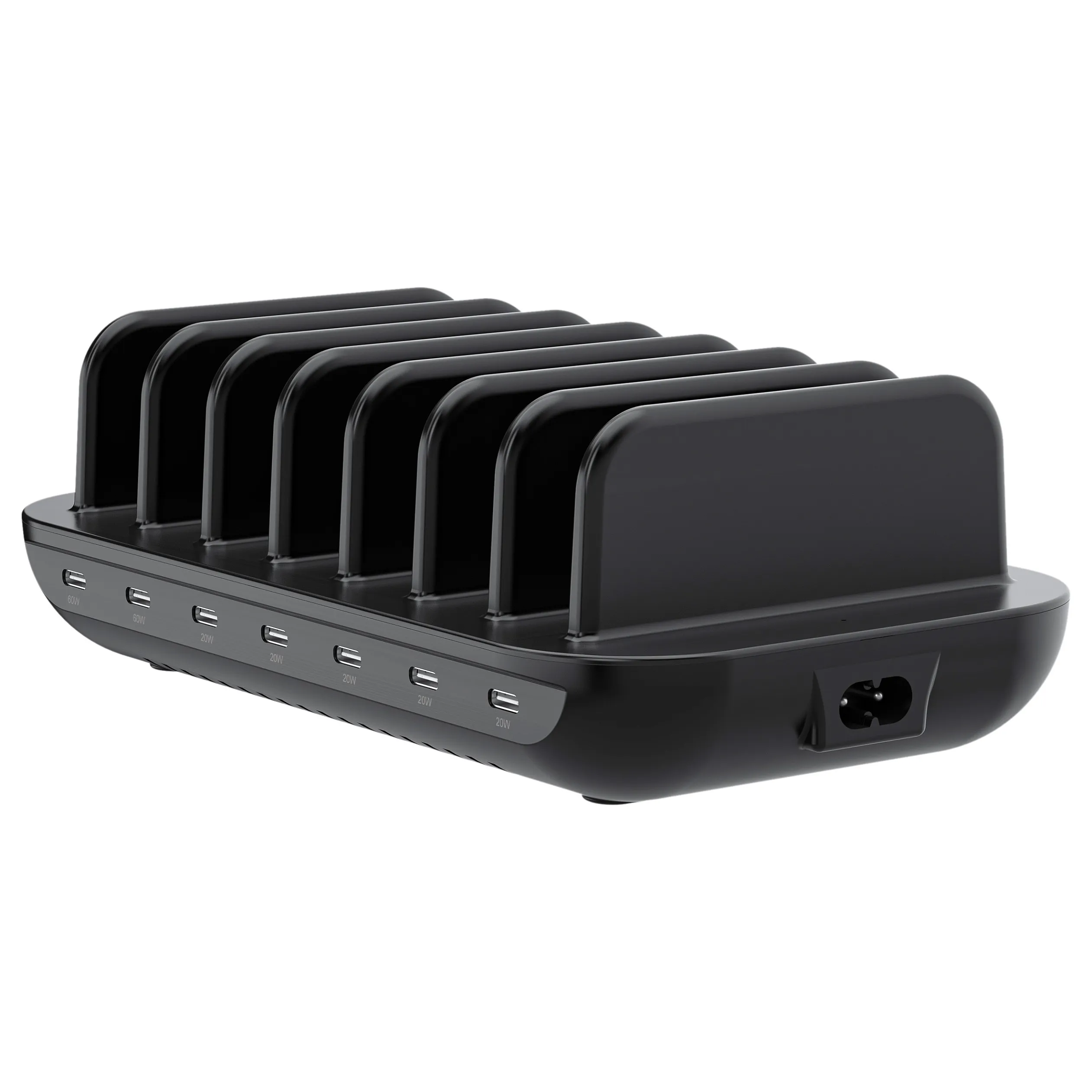

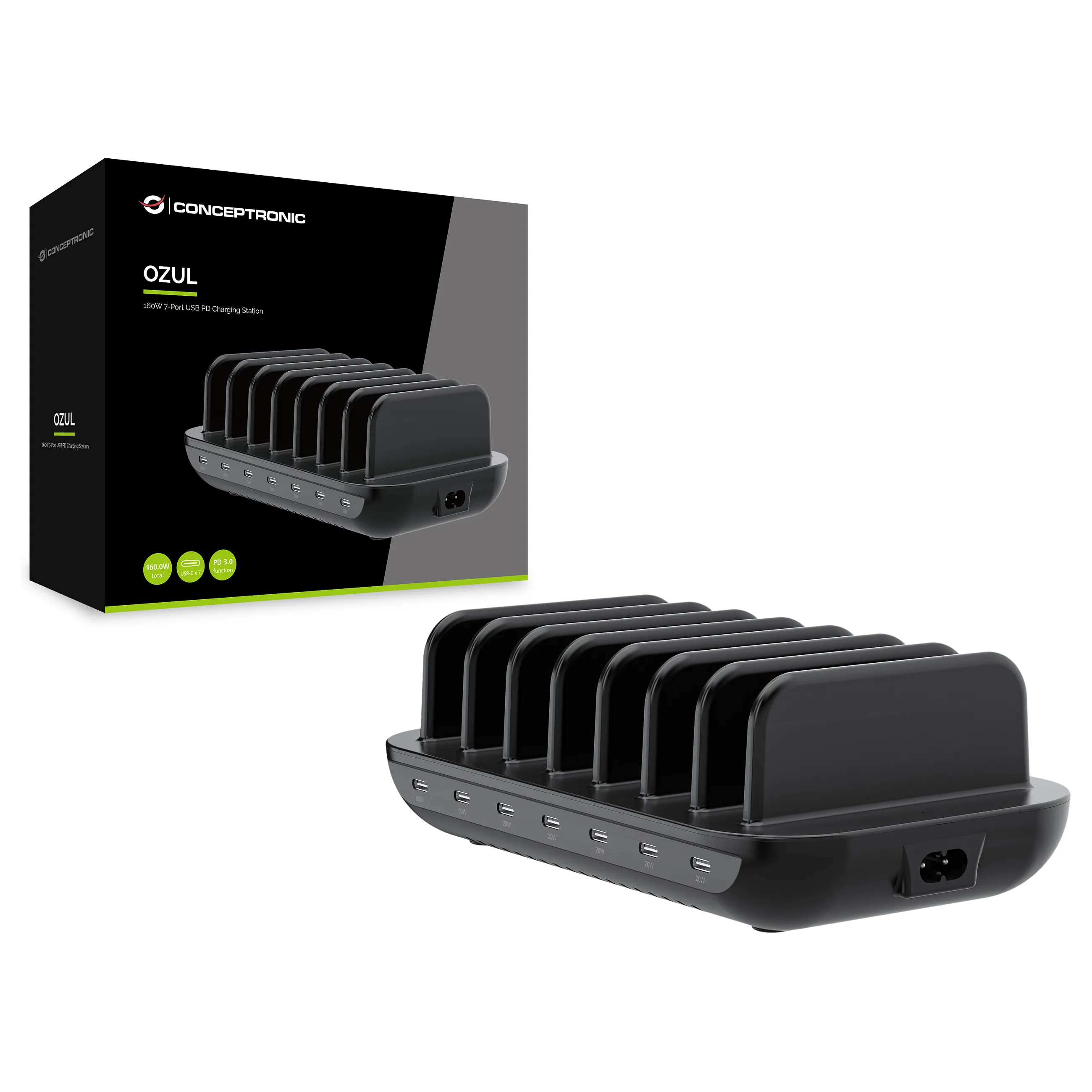

Conceptronic OZUL07B 160W 7-Port USB PD Charging Station, USB-C x 7, PD 3.0. Charger type: Indoor, Power source type: AC, Charger compatibility: Universal. Input voltage: 100 – 240 V, Maximum output voltage: 20 V. USB Type-C ports quantity: 7, Fast charging, Power protection features: Over current, Over power, Short circuit. Product colour: Black

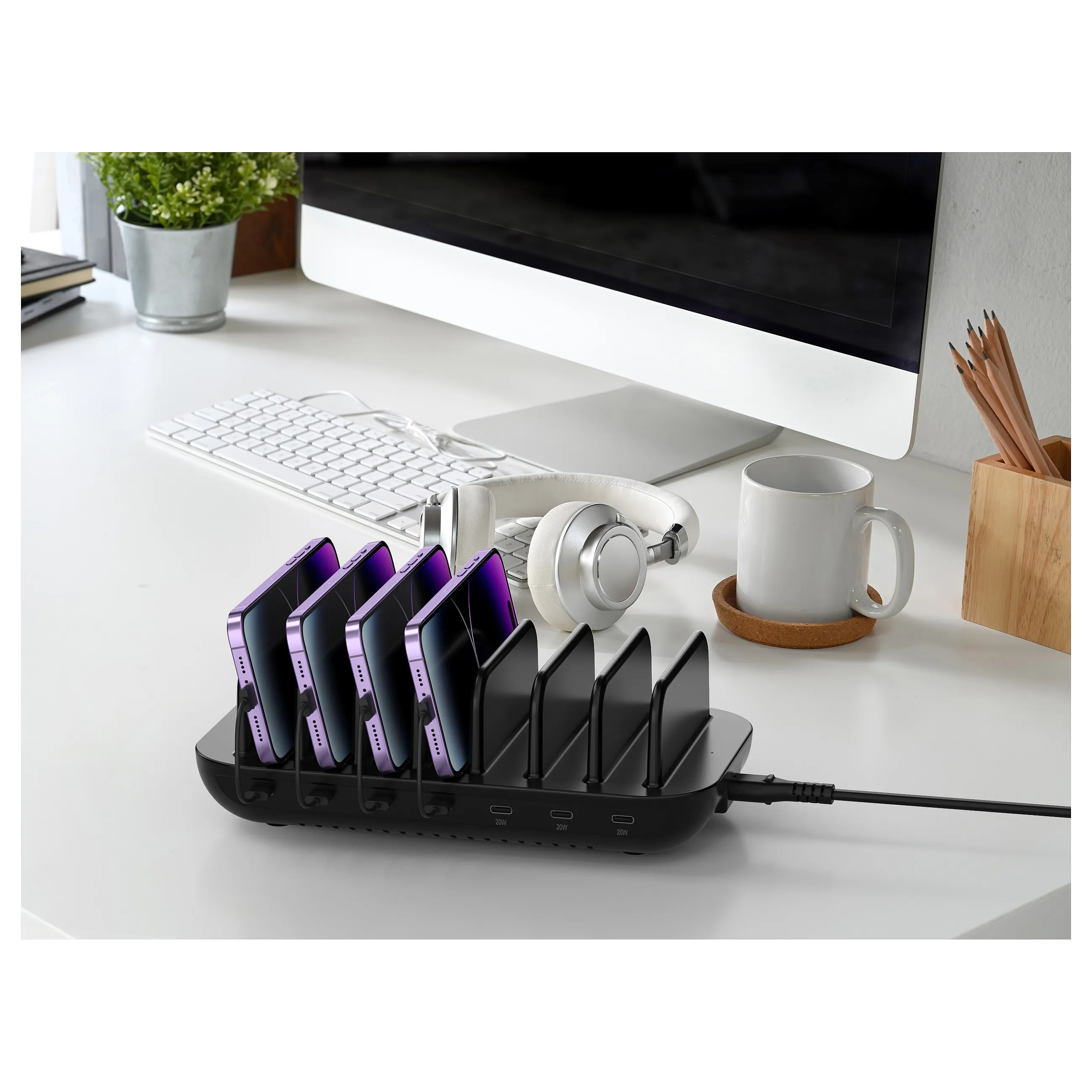

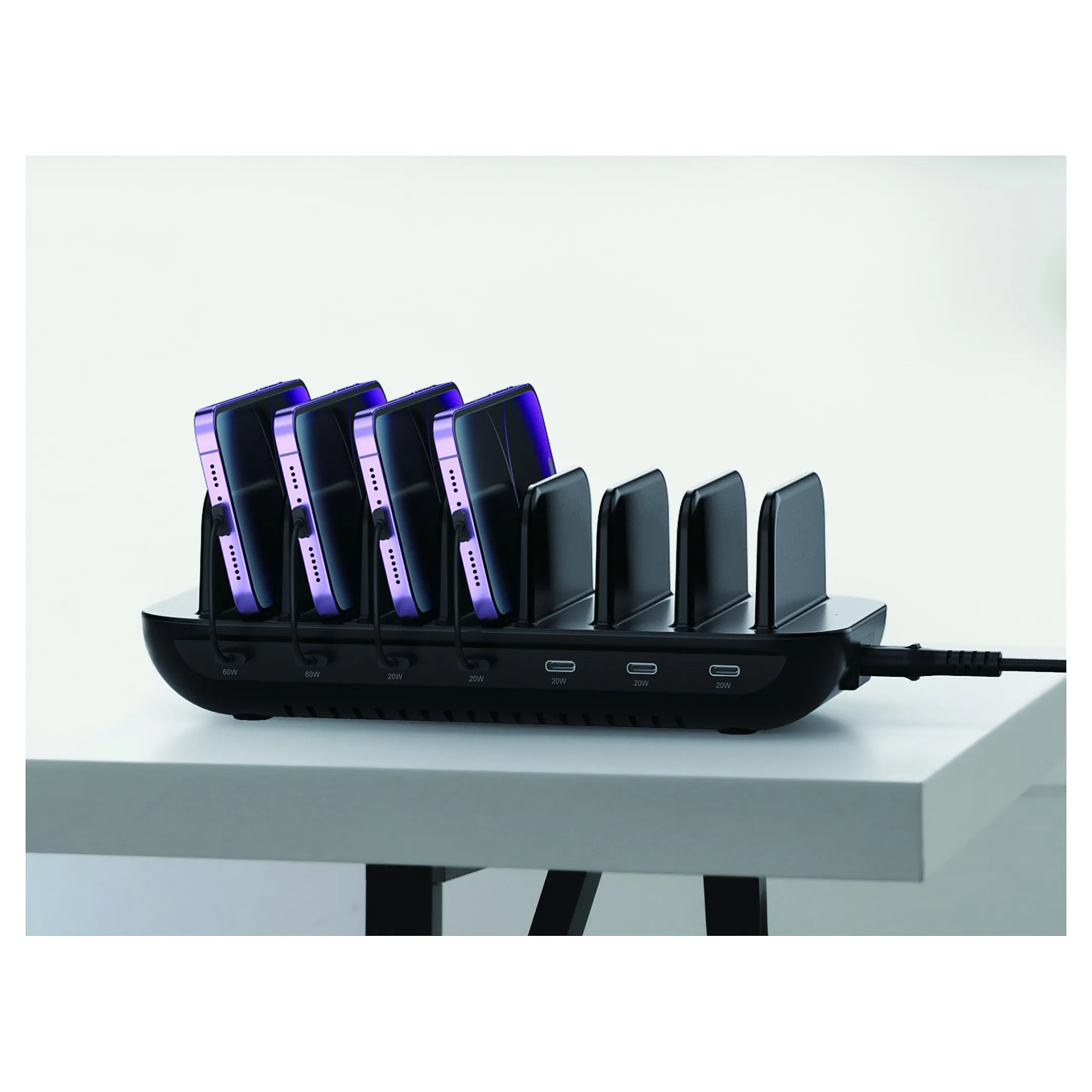

Equipped with seven USB-C ports, this charging station uses USB Power Delivery (PD) 3.0 technology to provide fast and efficient charging for multiple devices at once. Two high-powered USB-C ports deliver up to 60W each, which is ideal for laptops and tablets. The other five USB-C ports offer up to 20W each, making them perfect for smartphones and other mobile devices. With a total output capacity of 160W, it keeps all your devices charged and ready to go.
Built-in protections against overload, short circuits, and overheating ensure added safety and reliability, making it a dependable solution for both home and office use.
Charger compatibility: Universal
Power source type: AC
USB Type-C ports quantity: 7
Feature: Fast charging
Fast charging technology: Power Delivery 3.0
Charger type: Indoor
Number of simultaneously connected devices (max): 7
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
Power protection features: Over current, Over power, Short circuit
Design
Product colour: Black
Housing material: Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Power
Input voltage: 100 – 240 V
Input frequency: 50 – 60 Hz
Input current: 2.5 A
Maximum power: 160 W
Maximum output voltage: 20 V
Minimum output voltage: 5 V
Port 1 output power: 60 W
Port 2 output power: 60 W
Port 3 output power: 20 W
Port 4 output power: 20 W
Port 5 output power: 20 W
Port 6 output power: 20 W
Port 1 output current: 3.25 A
Port 2 output current: 3.25 A
Port 3 output current: 3 A
Port 4 output current: 3 A
Port 5 output current: 3 A
Port 6 output current: 3 A
Average active efficiency: 80%
Weight & dimensions
Width: 125 mm
Depth: 216 mm
Height: 74 mm
Weight: 898 g
Packaging data
Package width: 185 mm
Package depth: 235 mm
Package height: 76 mm
Package weight: 1.31 kg
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 80 °C
Storage relative humidity (H-H): 5 – 90%
Packaging content
Cables included: AC, USB Type-C to USB Type-C
Feature: Manual
Certificates
Compliance certificates: CE, RoHS
Technical details
Master (outer) cases per pallet: 42 pc(s)
Logistics data
Harmonized System (HS) code: 8504408390
Pallet gross width: 120 cm
Pallet gross length: 80 cm
Pallet gross height: 190.2 cm
Master (outer) case width: 380 mm
Master (outer) case length: 400 mm
Master (outer) case height: 250 mm
Master (outer) case gross weight: 13.8 kg
Products per master (outer) case: 10 pc(s)
Country of origin: China
