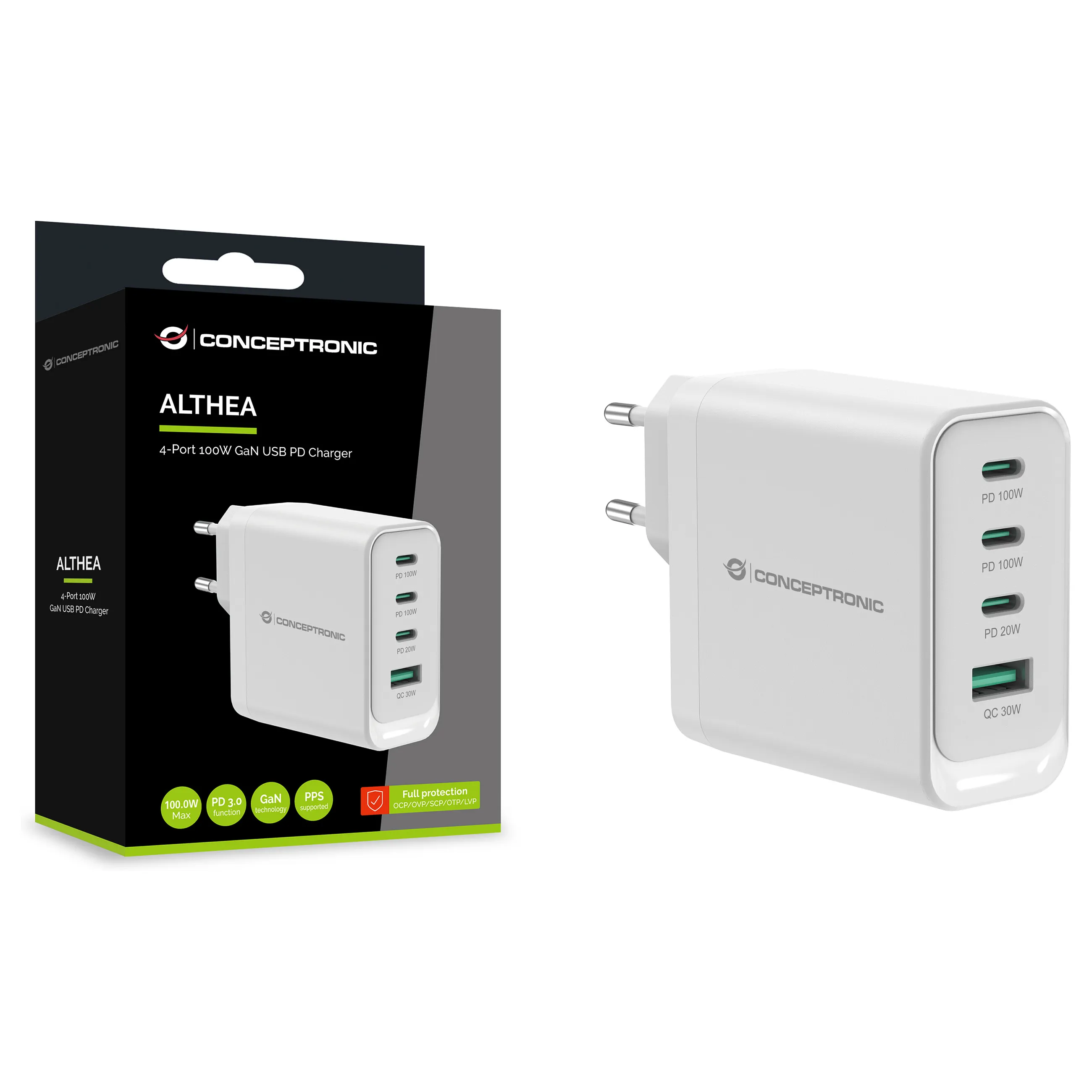

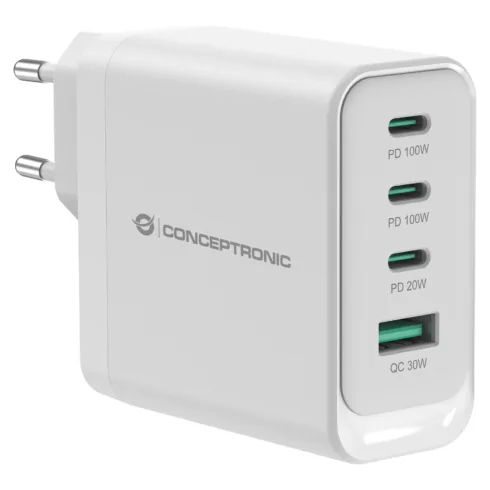

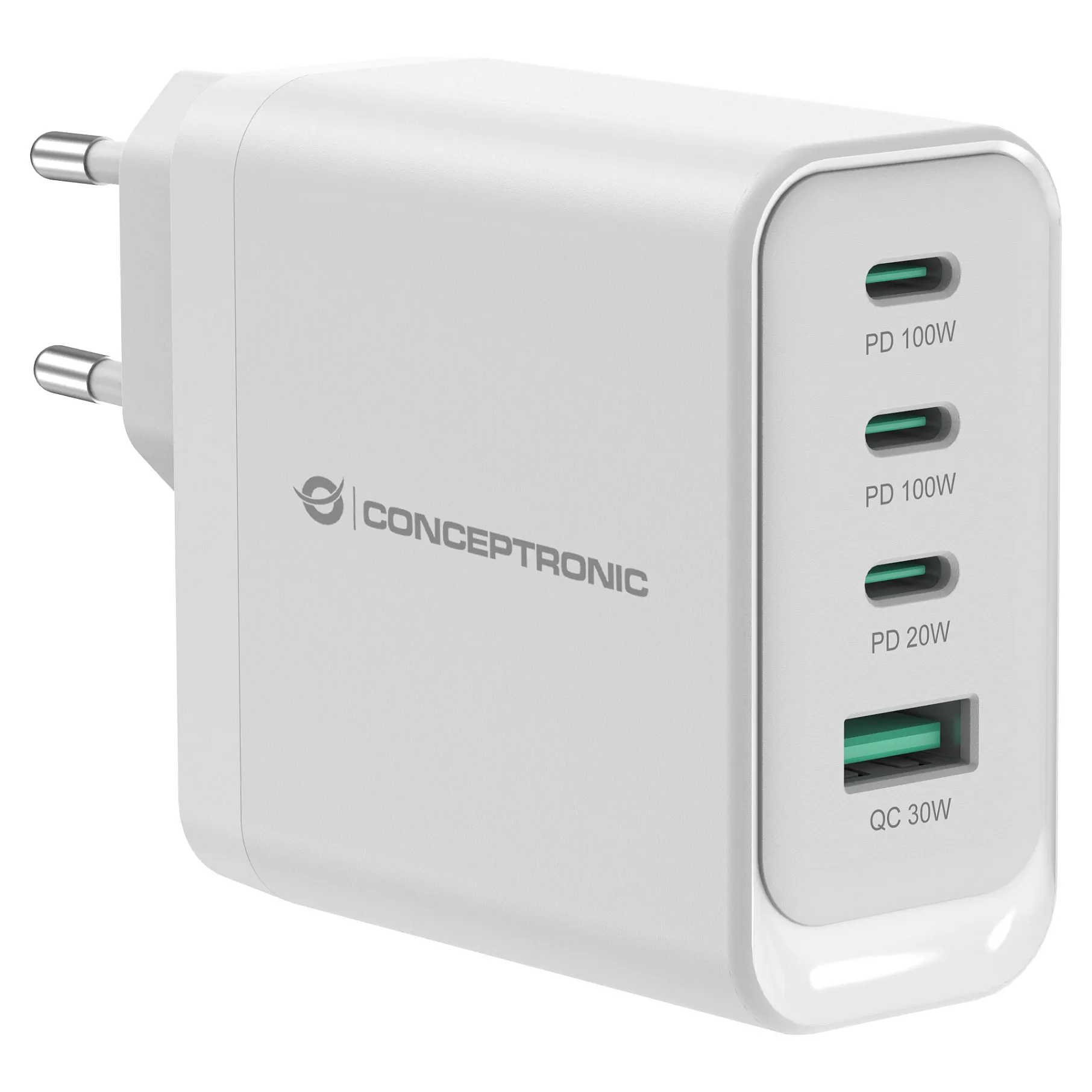

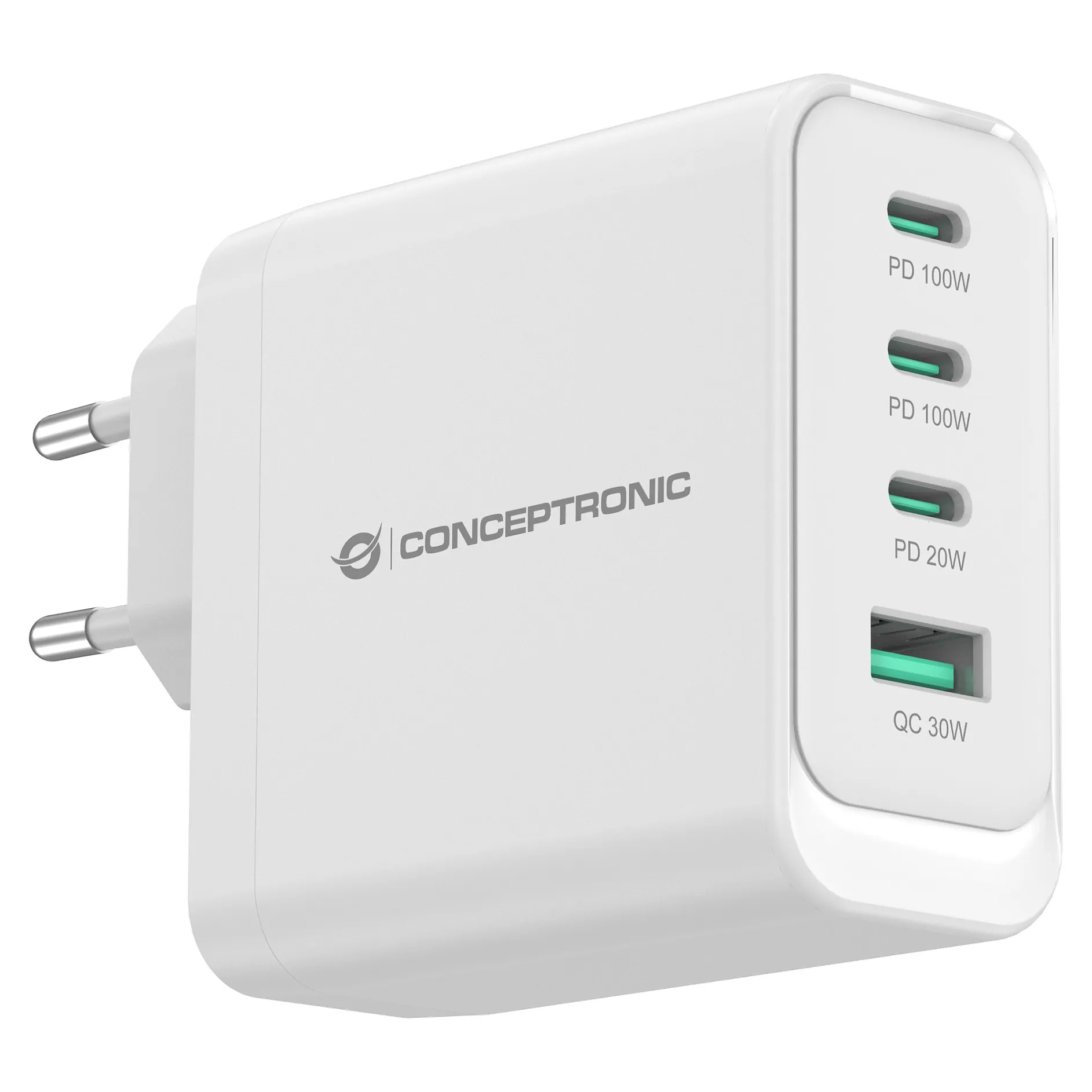

Conceptronic ALTHEA22W100 4-Port 100W GaN USB PD Charger, USB-C x 3, USB-A x 1, QC 3.0, PPS, PD 3.0. Charger type: Indoor, Power source type: AC, Charger compatibility: Universal. Input voltage: 100 – 240 V, Maximum output voltage: 20 V. USB Type-C ports quantity: 3, Fast charging, Power protection features: Overheating, Overload, Short circuit. Product colour: White
This charger harnesses cutting-edge Gallium Nitride (GaN) technology to deliver up to 100W of total power, ensuring exceptionally fast and efficient charging. It features a versatile port selection with 4 ports: 3 USB-C ports supporting Power Delivery (PD) 3.0 and 1 USB-A port with Quick Charge (QC) 3.0. This configuration allows for simultaneous charging of multiple devices with varying power requirements. The charger supports a wide range of output options from 3.3V to 20.0V, ensuring compatibility with everything from smartphones to laptops. Enhanced safety is provided through built-in protections against overload, short-circuiting, and overheating, safeguarding both the charger and your devices. It incorporates USB Power Delivery (PD) 3.0 and Quick Charge (QC) 3.0 technologies for rapid charging and features Programmable Power Supply (PPS) compliance to optimize charging efficiency while minimizing heat generation.
Performance
Charger compatibility: Universal
Power source type: AC
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1

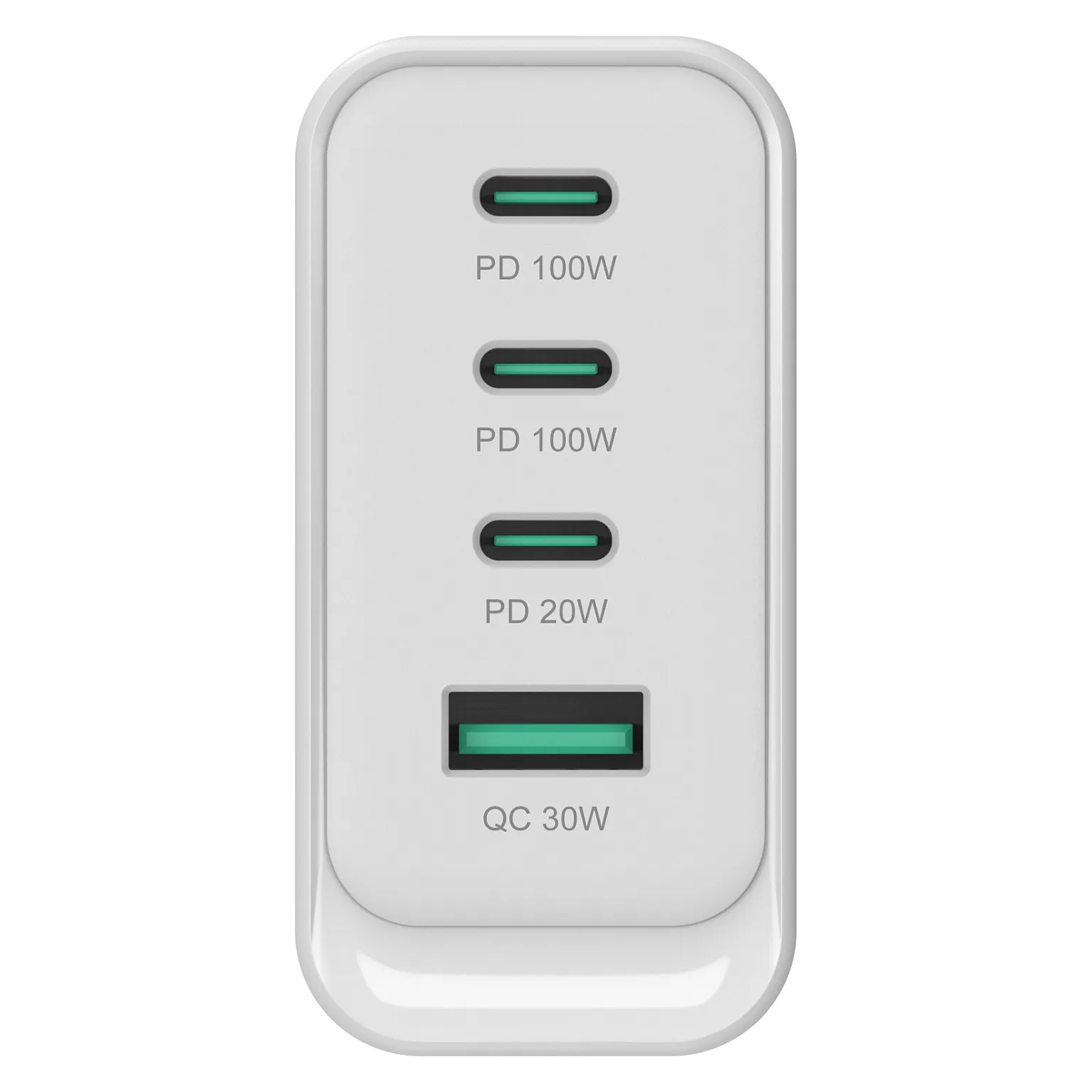

USB Type-C ports quantity: 3
Feature: Fast charging
Fast charging technology: Adaptive Fast Charging, Hisilicon FCP, Power Delivery 3.0, Programmable Power Supply (PPS), Quick Charge 3.0
Charger type: Indoor
Number of simultaneously connected devices (max): 4
Feature: Programmable power supply (PPS)
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
Power protection features: Overheating, Overload, Short circuit
Design
Product colour: White
Housing material: Polycarbonate (PC)
Feature: Gallium nitride (GaN) transistors
Power
Input voltage: 100 – 240 V
Input frequency: 50 – 60 Hz
Input current: 2.2 A
Maximum power: 100 W
Maximum output voltage: 20 V
Minimum output voltage: 3.3 V
Port 1 output current: 4.5 A
Port 2 output current: 4.5 A
Port 3 output current: 3 A
Port 4 output current: 3 A
Weight & dimensions
Width: 68.5 mm
Depth: 65 mm
Height: 32 mm
Weight: 191.4 g
Packaging data
Package width: 127 mm
Package depth: 94 mm
Package height: 35 mm
Package weight: 247.4 g
Package type: Hanging box
Operational conditions
Operating temperature (T-T): 0 – 25 °C
Storage relative humidity (H-H): 10 – 90%
Packaging content
Quantity per pack: 1 pc(s)
Feature: Manual
Certificates
Compliance certificates: CE, RoHS
Technical details
Master (outer) cases per pallet: 64 pc(s)
Logistics data
Customs product code (TARIC): 8504408390
Harmonized System (HS) code: 850440
Pallet gross width: 120 cm
Pallet gross length: 80 cm
Pallet gross height: 183.2 cm
Master (outer) case width: 385 mm
Master (outer) case length: 272 mm
Master (outer) case height: 210 mm
Master (outer) case gross weight: 10.4 kg
Products per master (outer) case: 40 pc(s)
Country of origin: China
