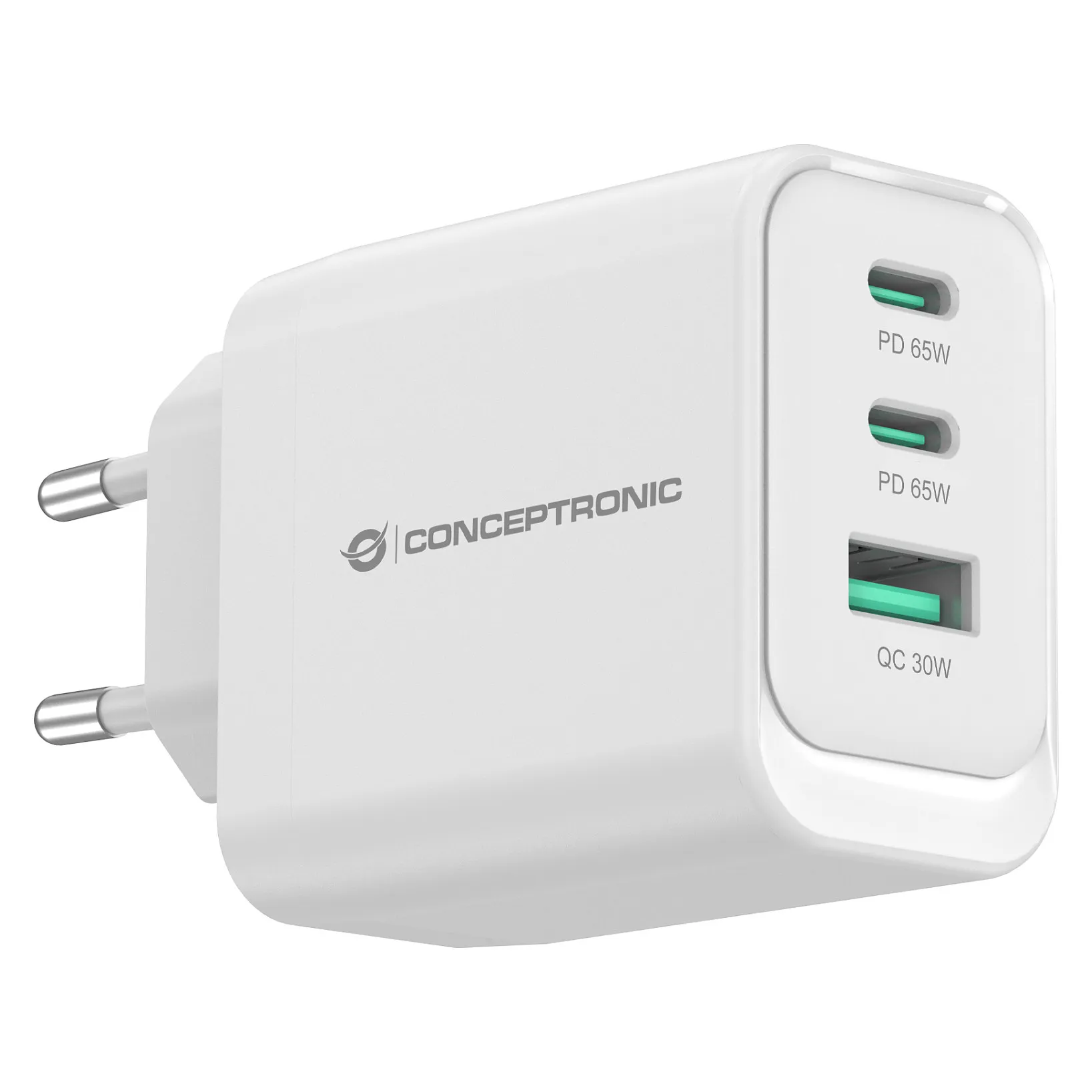

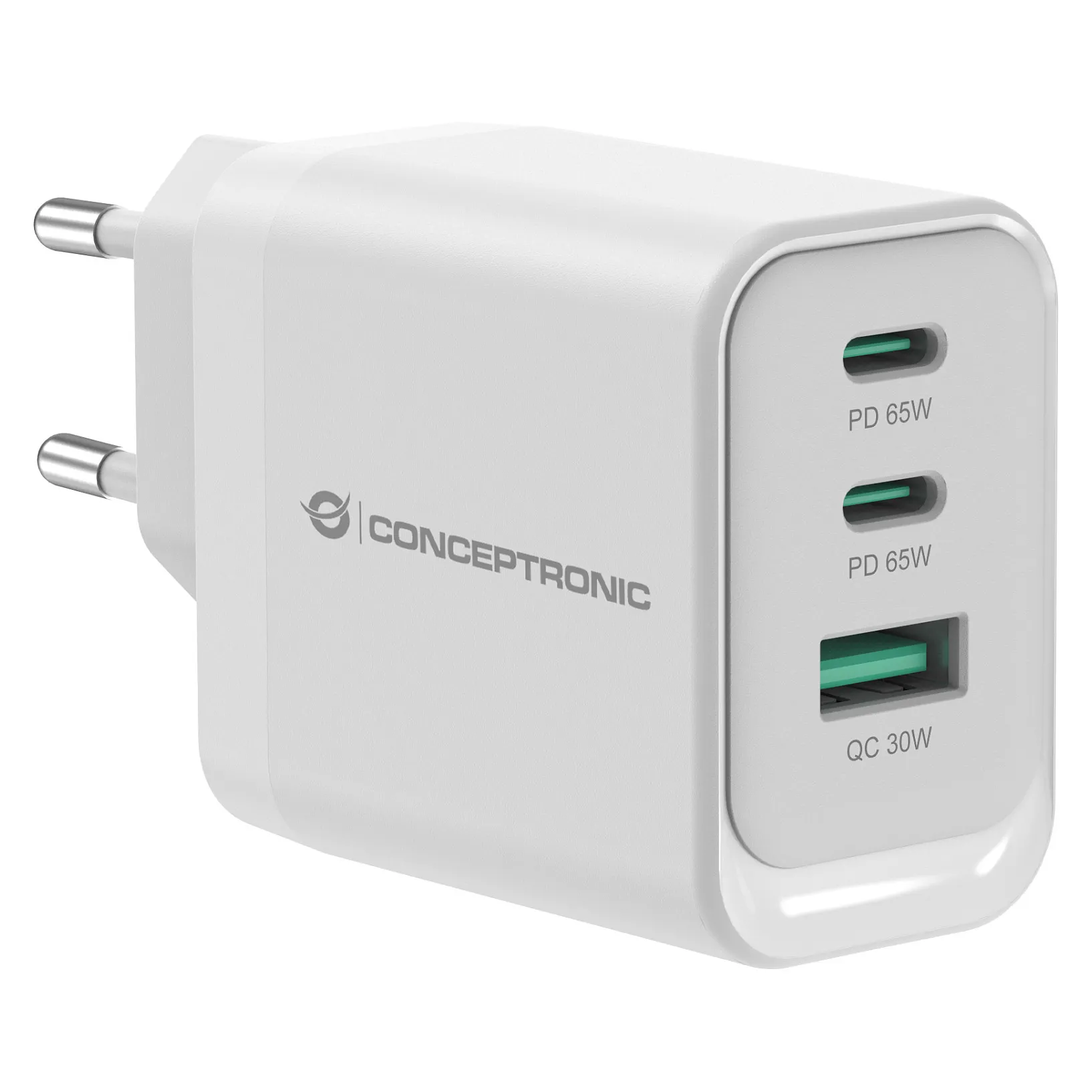

Conceptronic ALTHEA21W65 3-Port 65W GaN USB PD Charger, USB-C x 2, USB-A x 1, QC 3.0, PPS, PD 3.0. Charger type: Indoor, Power source type: AC, Charger compatibility: Universal. Input voltage: 100 – 240 V, Maximum output voltage: 20 V. USB Type-C ports quantity: 2, Fast charging, Power protection features: Overheating, Overload, Short circuit. Cable length: 1.5 m, Product colour: White
This charger features cutting-edge Gallium Nitride (GaN) technology, delivering up to 65W of total power for faster and more efficient charging. It includes 3 versatile ports: 2 USB-C ports with USB Power Delivery (PD) 3.0 and 1 USB-A port with Quick Charge (QC) 3.0, allowing you to charge multiple devices simultaneously with varying power requirements. The charger supports output options ranging from 3.3V to 20.0V across its ports, ensuring broad compatibility with devices from smartphones to laptops. Enhanced safety features protect against overload, short circuiting, and overheating, safeguarding both the charger and connected devices. Additionally, it incorporates USB PD 3.0 and QC 3.0 technologies, along with Programmable Power Supply (PPS) compliance to maximize charging efficiency and minimize heat.
Performance
Charger compatibility: Universal
Power source type: AC
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB Type-C ports quantity: 2
Feature: Fast charging
Fast charging technology: Power Delivery 3.0, Programmable Power Supply (PPS), Quick Charge 3.0
Charger type: Indoor
Number of simultaneously connected devices (max): 3
Feature: Programmable power supply (PPS)
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
Power protection features: Overheating, Overload, Short circuit
Design
Product colour: White
Cable length: 1.5 m
Housing material: Polycarbonate (PC)
Feature: Gallium nitride (GaN) transistors
Power
Input voltage: 100 – 240 V
Input frequency: 50 – 60 Hz
Input current: 1.5 A
Maximum power: 65 W
Maximum output voltage: 20 V
Minimum output voltage: 3.3 V
Port 1 output current: 4.5 A
Port 2 output current: 4.5 A
Port 3 output current: 3 A
Weight & dimensions
Width: 57 mm
Depth: 51 mm
Height: 32 mm
Weight: 129.6 g
Packaging data
Package width: 127 mm
Package depth: 84 mm
Package height: 35 mm
Package weight: 177.6 g
Package type: Hanging box
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 80 °C
Storage relative humidity (H-H): 10 – 90%
Packaging content
Cables included: USB Type-C to USB Type-C
Feature: Manual
Certificates
Compliance certificates: CE, RoHS
Technical details
Master (outer) cases per pallet: 32 pc(s)
Logistics data
Customs product code (TARIC): 8504408390
Harmonized System (HS) code: 850440
Pallet gross width: 120 cm
Pallet gross length: 80 cm
Pallet gross height: 159.2 cm
Master (outer) case width: 385 mm
Master (outer) case length: 272 mm
Master (outer) case height: 360 mm
Master (outer) case gross weight: 14.9 kg
Products per master (outer) case: 80 pc(s)
Country of origin: China
Charger compatibility: Universal
Power source type: AC
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB Type-C ports quantity: 2
Feature: Fast charging
Fast charging technology: Power Delivery 3.0, Programmable Power Supply (PPS), Quick Charge 3.0
Charger type: Indoor
Number of simultaneously connected devices (max): 3
Feature: Programmable power supply (PPS)
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
Power protection features: Overheating, Overload, Short circuit
Design
Product colour: White
Cable length: 1.5 m
Housing material: Polycarbonate (PC)
Feature: Gallium nitride (GaN) transistors
Power
Input voltage: 100 – 240 V
Input frequency: 50 – 60 Hz
Input current: 1.5 A
Maximum power: 65 W
Maximum output voltage: 20 V
Minimum output voltage: 3.3 V
Port 1 output current: 4.5 A
Port 2 output current: 4.5 A
Port 3 output current: 3 A
Weight & dimensions
Width: 57 mm
Depth: 51 mm
Height: 32 mm
Weight: 129.6 g
Packaging data
Package width: 127 mm
Package depth: 84 mm
Package height: 35 mm
Package weight: 177.6 g
Package type: Hanging box
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 80 °C
Storage relative humidity (H-H): 10 – 90%
Packaging content
Cables included: USB Type-C to USB Type-C
Feature: Manual
Certificates
Compliance certificates: CE, RoHS
Technical details
Master (outer) cases per pallet: 32 pc(s)
Logistics data
Customs product code (TARIC): 8504408390
Harmonized System (HS) code: 850440
Pallet gross width: 120 cm
Pallet gross length: 80 cm
Pallet gross height: 159.2 cm
Master (outer) case width: 385 mm
Master (outer) case length: 272 mm
Master (outer) case height: 360 mm
Master (outer) case gross weight: 14.9 kg
Products per master (outer) case: 80 pc(s)
Country of origin: China
