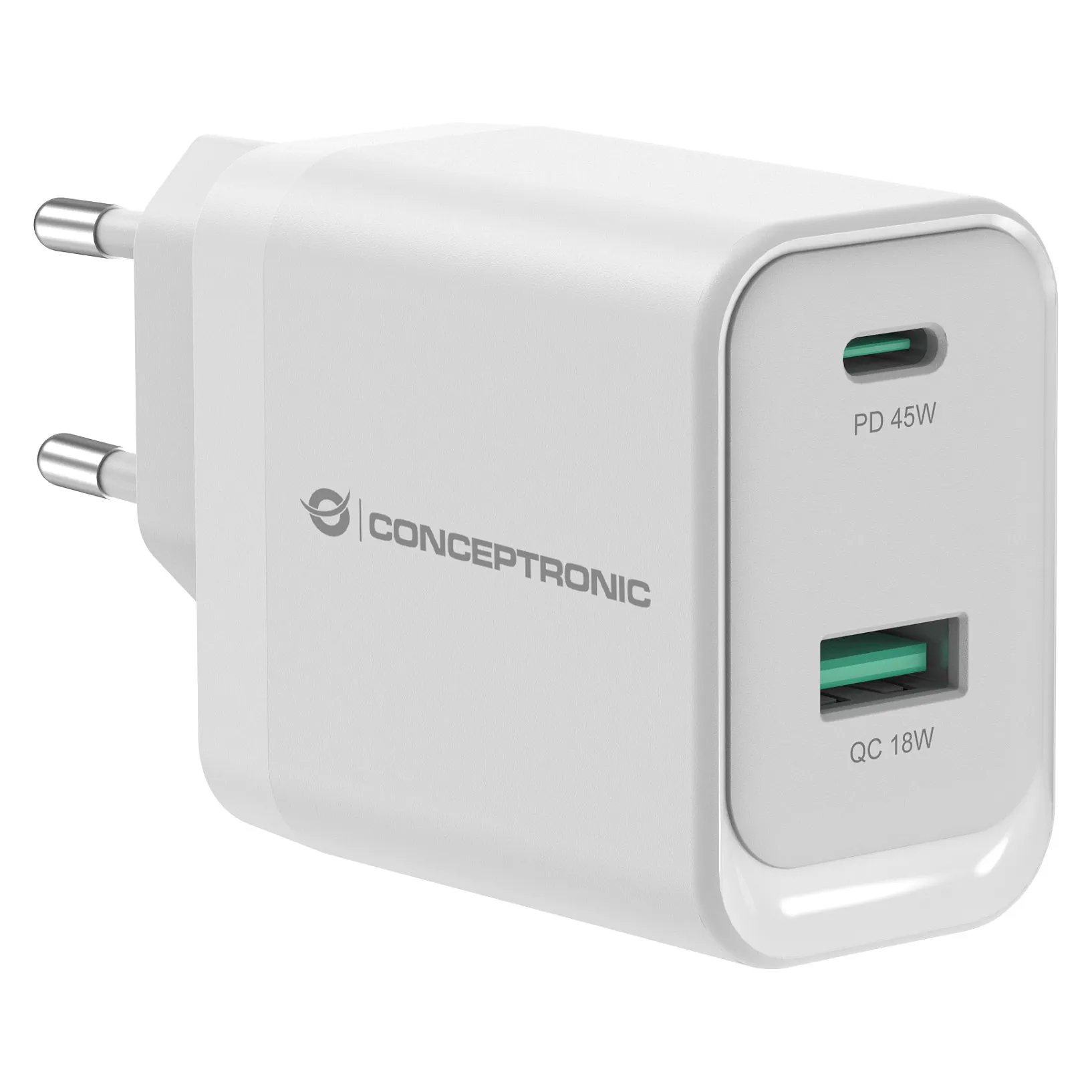

Conceptronic ALTHEA20W45 2-Port 45W GaN USB PD Charger, USB-C x 1, USB-A x 1, QC 3.0, PPS, PD 3.0. Charger type: Indoor, Power source type: AC, Charger compatibility: Universal. Input voltage: 100 – 240 V, Maximum output voltage: 20 V. USB Type-C ports quantity: 1, Fast charging, Power protection features: Overheating, Overload, Short circuit. Product colour: White
This charger leverages advanced Gallium Nitride (GaN) technology to provide up to 45W of total power, delivering faster and more efficient charging. It features a versatile port selection with 1 USB-C port supporting USB Power Delivery (PD) 3.0 and 1 USB-A port with Quick Charge (QC) 3.0, allowing for simultaneous charging of multiple devices with different power needs. The charger supports a wide range of output options from 5.0V to 20.0V, ensuring compatibility with a variety of devices, including smartphones and laptops. Enhanced safety is ensured with built-in protections against overload, short circuiting, and overheating. Additionally, it incorporates USB Power Delivery (PD) 3.0 and Quick Charge (QC) 3.0 technologies for rapid charging, along with Programmable Power Supply (PPS) compliance to maximize efficiency and minimize heat generation.
Performance
Charger compatibility: Universal
Power source type: AC
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB Type-C ports quantity: 1
Feature: Fast charging
Fast charging technology: Power Delivery 3.0, Programmable Power Supply (PPS), Quick Charge 3.0
Charger type: Indoor
Number of simultaneously connected devices (max): 2
Feature: Programmable power supply (PPS)
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
Power protection features: Overheating, Overload, Short circuit
Design
Product colour: White
Housing material: Polycarbonate (PC)
Feature: Gallium nitride (GaN) transistors
Power
Input voltage: 100 – 240 V
Input frequency: 50 – 60 Hz
Input current: 1.2 A
Maximum power: 45 W
Maximum output voltage: 20 V
Minimum output voltage: 5 V
Port 1 output current: 3 A
Port 2 output current: 3 A
Weight & dimensions
Width: 57 mm
Depth: 51 mm
Height: 32 mm
Weight: 86.5 g
Packaging data
Package width: 127 mm
Package depth: 84 mm
Package height: 35 mm
Package weight: 134.5 g
Package type: Hanging box
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 80 °C
Storage relative humidity (H-H): 10 – 90%
Packaging content
Feature: Manual
Certificates
Compliance certificates: CE, RoHS
Technical details
Master (outer) cases per pallet: 32 pc(s)
Logistics data
Customs product code (TARIC): 8504408390
Harmonized System (HS) code: 850440
Pallet gross width: 120 cm
Pallet gross length: 80 cm
Pallet gross height: 159.2 cm
Master (outer) case width: 385 mm
Master (outer) case length: 272 mm
Master (outer) case height: 360 mm
Master (outer) case gross weight: 11.5 kg
Products per master (outer) case: 80 pc(s)
Country of origin: China
Charger compatibility: Universal
Power source type: AC
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB Type-C ports quantity: 1
Feature: Fast charging
Fast charging technology: Power Delivery 3.0, Programmable Power Supply (PPS), Quick Charge 3.0
Charger type: Indoor
Number of simultaneously connected devices (max): 2
Feature: Programmable power supply (PPS)
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
Power protection features: Overheating, Overload, Short circuit
Design
Product colour: White
Housing material: Polycarbonate (PC)
Feature: Gallium nitride (GaN) transistors
Power
Input voltage: 100 – 240 V
Input frequency: 50 – 60 Hz
Input current: 1.2 A
Maximum power: 45 W
Maximum output voltage: 20 V
Minimum output voltage: 5 V
Port 1 output current: 3 A
Port 2 output current: 3 A
Weight & dimensions
Width: 57 mm
Depth: 51 mm
Height: 32 mm
Weight: 86.5 g
Packaging data
Package width: 127 mm
Package depth: 84 mm
Package height: 35 mm
Package weight: 134.5 g
Package type: Hanging box
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 80 °C
Storage relative humidity (H-H): 10 – 90%
Packaging content
Feature: Manual
Certificates
Compliance certificates: CE, RoHS
Technical details
Master (outer) cases per pallet: 32 pc(s)
Logistics data
Customs product code (TARIC): 8504408390
Harmonized System (HS) code: 850440
Pallet gross width: 120 cm
Pallet gross length: 80 cm
Pallet gross height: 159.2 cm
Master (outer) case width: 385 mm
Master (outer) case length: 272 mm
Master (outer) case height: 360 mm
Master (outer) case gross weight: 11.5 kg
Products per master (outer) case: 80 pc(s)
Country of origin: China
