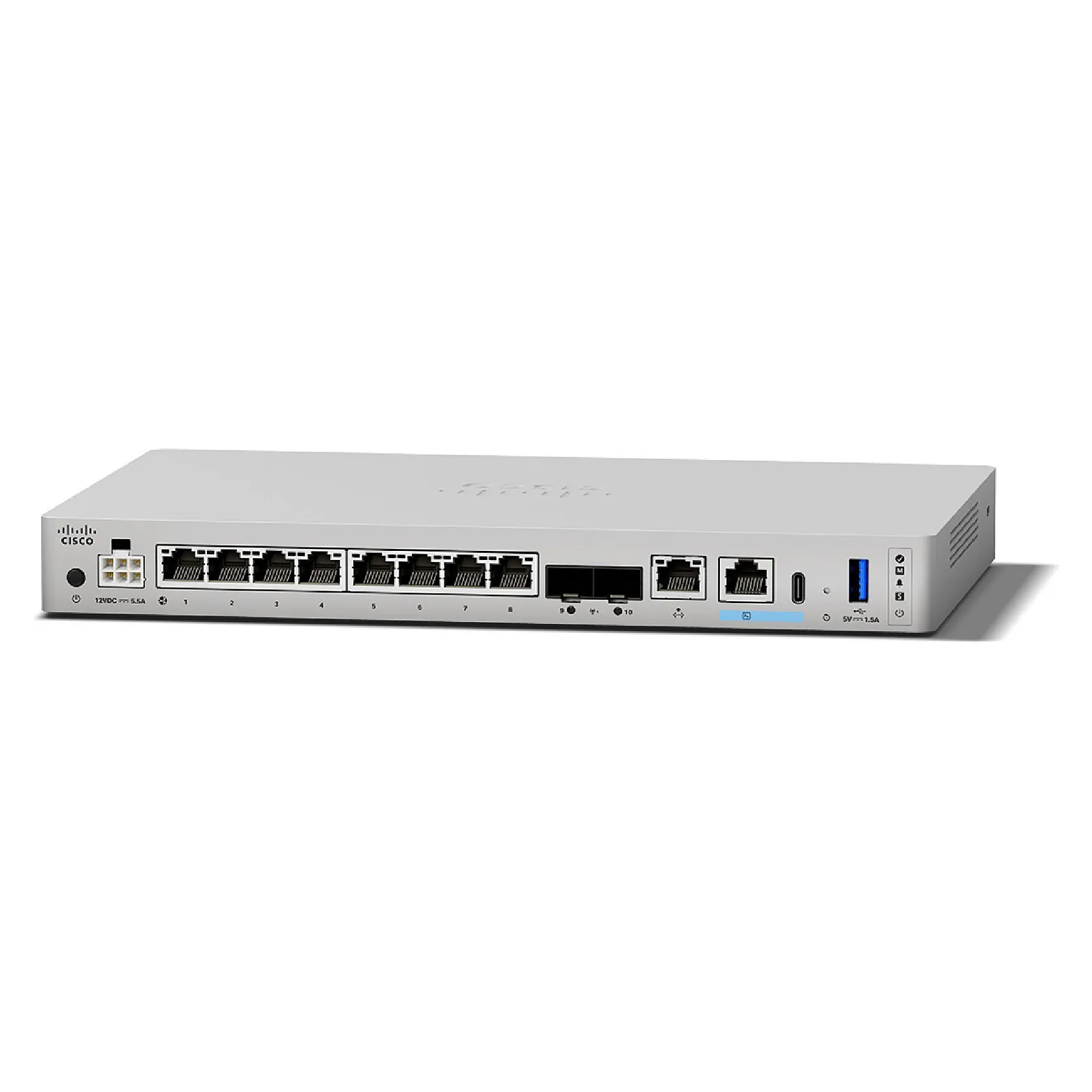

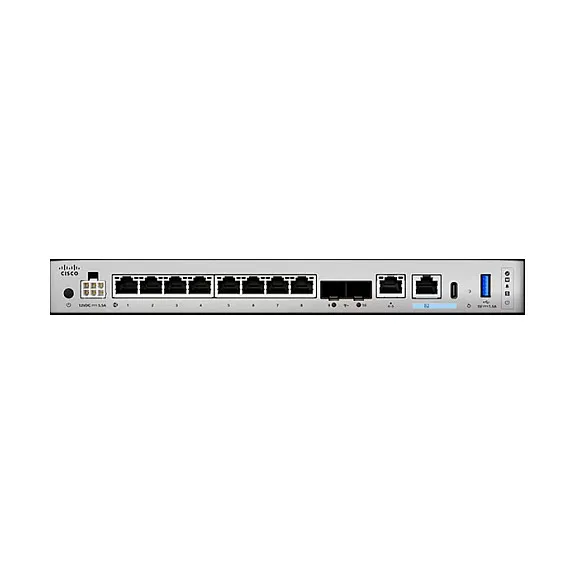

Cisco Secure Firewall 1220. Firewall throughput: 15 Gbit/s, IPS/IDS throughput: 9000 Mbit/s, Threat protection throughput: 9000 Mbit/s. TLS interception: 1500 MB/s. Networking standards: IEEE 802.3at. LED indicators: SFP. Console port: RJ-45/USB Type-C, WAN connection: SFP+
The Cisco Secure Firewall 1200 Series is a family of security appliances that serves to connect and protect the distributed enterprise. It extends Cisco’s enterprise security policy and threat inspection to users and devices in branch offices and smaller sites.
Powered by an efficient network processor, 1200 Series delivers high levels of security policy and threat defense without compromising user experience.
Data transmission
Firewall throughput: 15 Gbit/s
IPS/IDS throughput: 9000 Mbit/s
Threat protection throughput: 9000 Mbit/s
Performance
TLS interception: 1500 MB/s
Network
Networking standards: IEEE 802.3at
Management features
LED indicators: SFP
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Console port: RJ-45/USB Type-C
WAN connection: SFP+
SFP+ module slots quantity: 2
Storage
SSD capacity: 480 GB
Design
Feature: Rack mounting
Form factor: 1U
Power
AC input voltage: 100-240 V
AC input frequency: 50/60 Hz
Input current: 0.4 – 0.17 A
Power consumption (typical): 40 W
Power consumption (max): 165 W
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -25 – 70 °C
Operating relative humidity (H-H): 5 – 85%
Storage relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 274.3 mm
Depth: 172.2 mm
Height: 28.2 mm
Weight: 1.4 kg
