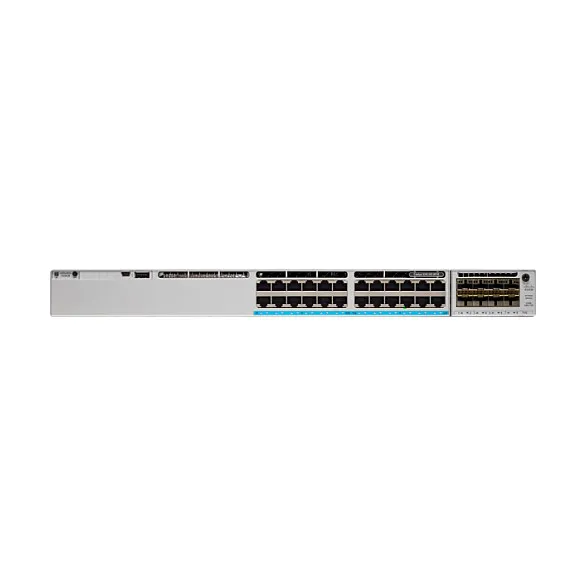

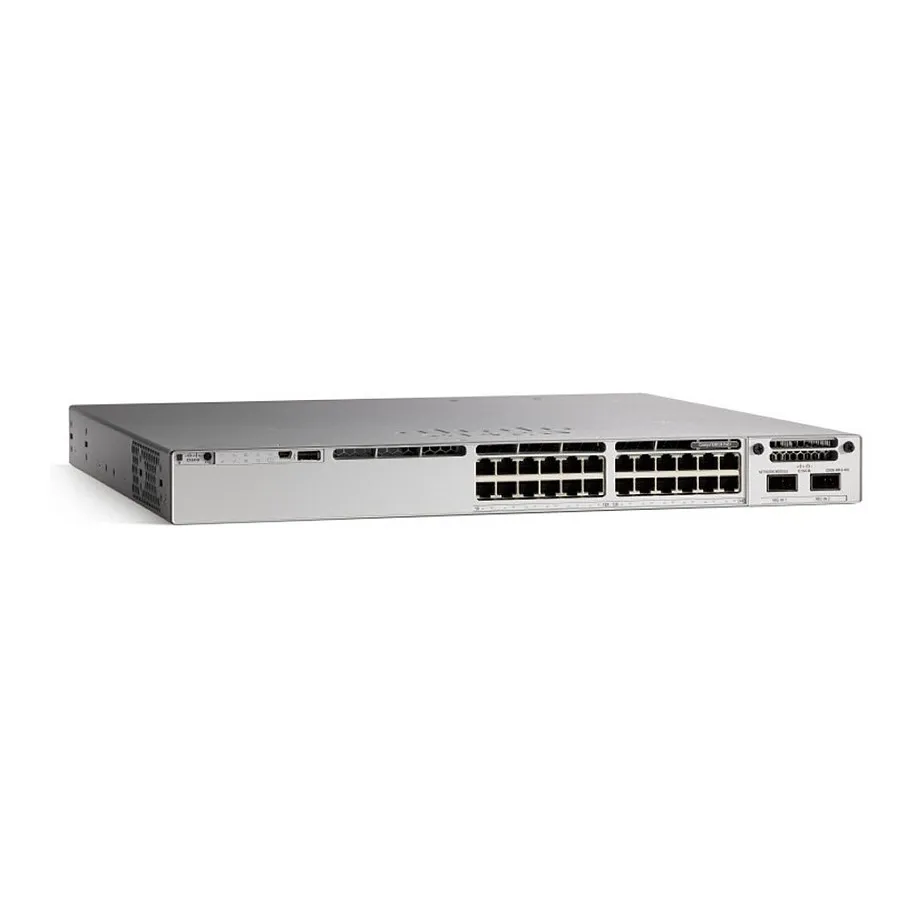

Cisco Catalyst C9300-24UX-A. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1. Full duplex. MAC address table: 32000 entries, Switching capacity: 640 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE…. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
The Catalyst 9300 Series is designed for Cisco StackWise® technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower®, which delivers high-density Cisco Universal Power Over Ethernet (Cisco UPOE®) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access™ Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.
Switch type: Managed
Switch layer: L2/L3
Feature: Quality of Service (QoS) support
Feature: ARP inspection
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
USB 2.0 ports quantity: 1
Network
Feature: 10G support
Cable types supported: Cat5e, Cat6, Cat6a
Feature: Zero Touch Provisioning (ZTP)
Feature: Full duplex
Feature: Flow control support
Feature: Broadcast storm control
Feature: Spanning tree protocol
Feature: Multiprotocol Label Switching (MPLS)
Feature: VLAN support
Virtual LAN features: Private VLAN
Number of VLANs: 4094
Data transmission
Switching capacity: 640 Gbit/s
Forwarding rate: 476.19 Mpps
MAC address table: 32000 entries
Feature: Jumbo frames support
Jumbo frames: 9198
Packet buffer memory: 32 MB
Security
DHCP features: DHCP snooping
Feature: Access Control List (ACL)
Security algorithms: 128-bit AES, 256-bit AES
Multicast features
Feature: Multicast support
IPv4 multicast entries: 32000
IPv6 multicast entries: 16000
Protocols
Feature: Virtual Router Redundancy Protocol (VRRP)
Routing protocols: BGP, EIGRP, HSRP, IS-IS, OSPF, RIP
Design
Feature: Rack mounting
Feature: Stackable
Form factor: 1U
Product colour: Grey
LED indicators: Yes
Safety: UL 60950-1, CAN/CSA-C222.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, IEEE 802.3
Performance
Feature: Built-in processor
Flash memory: 16000 MB
Feature: Firmware upgradeable
Feature: Plug and Play
Mean time between failures (MTBF): 214760 h
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 560 W
Operational conditions
Operating temperature (T-T): -5 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 5 – 90%
Storage relative humidity (H-H): 5 – 90%
Operating altitude: 0 – 3000 m
Weight & dimensions
Width: 445 mm
Depth: 434 mm
Height: 44 mm
Weight: 8.25 kg
Logistics data
Harmonized System (HS) code: 85176990
