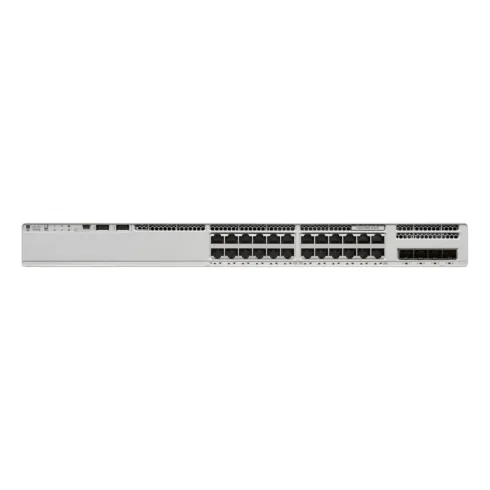

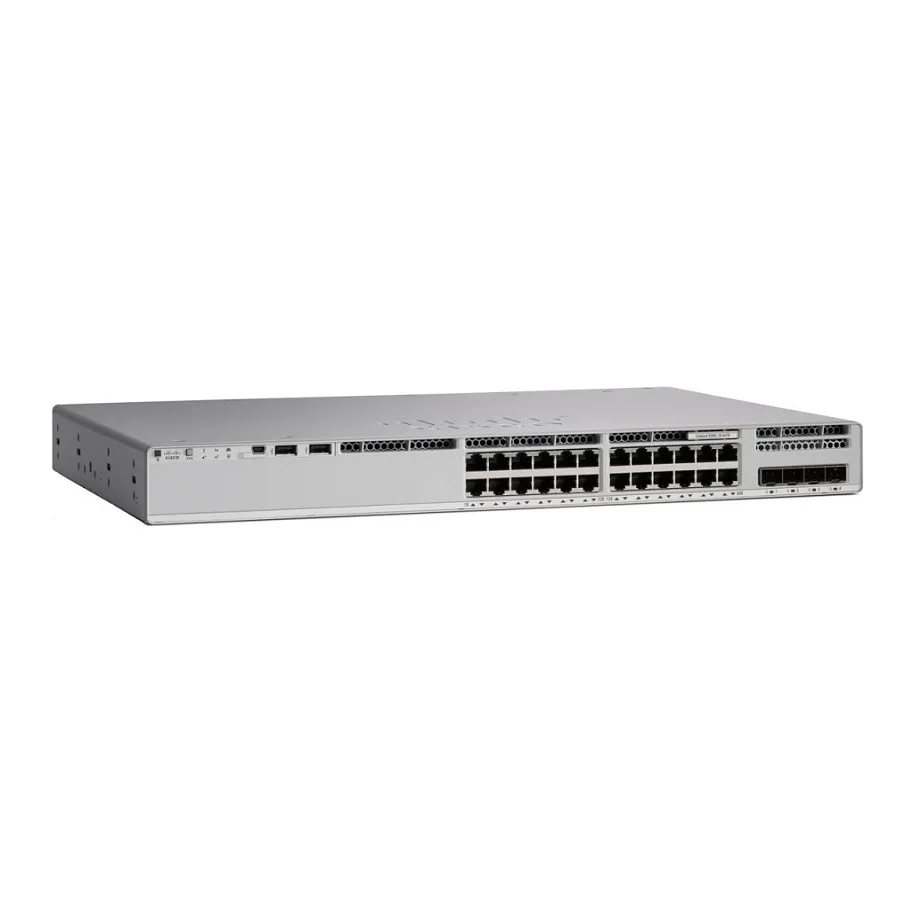

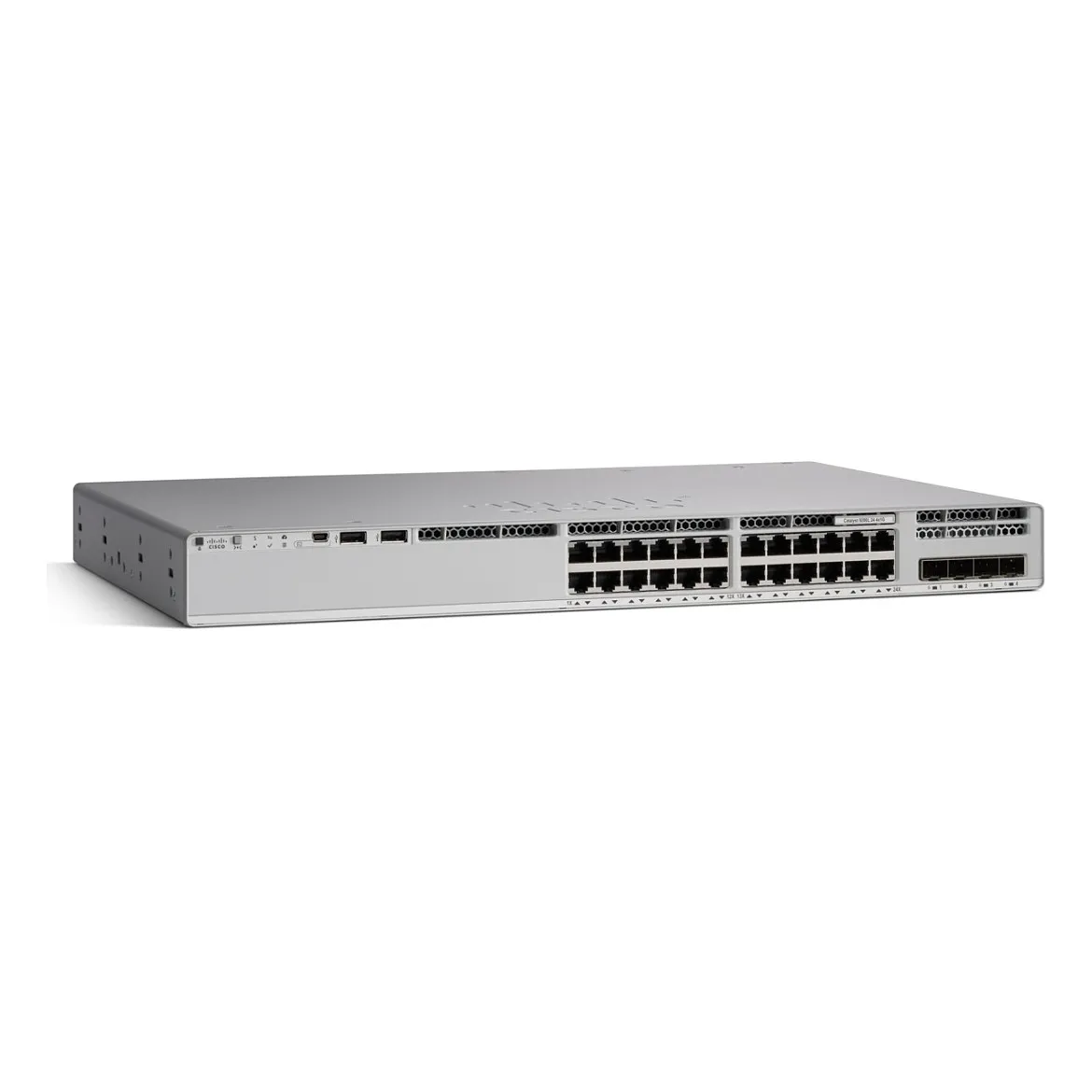

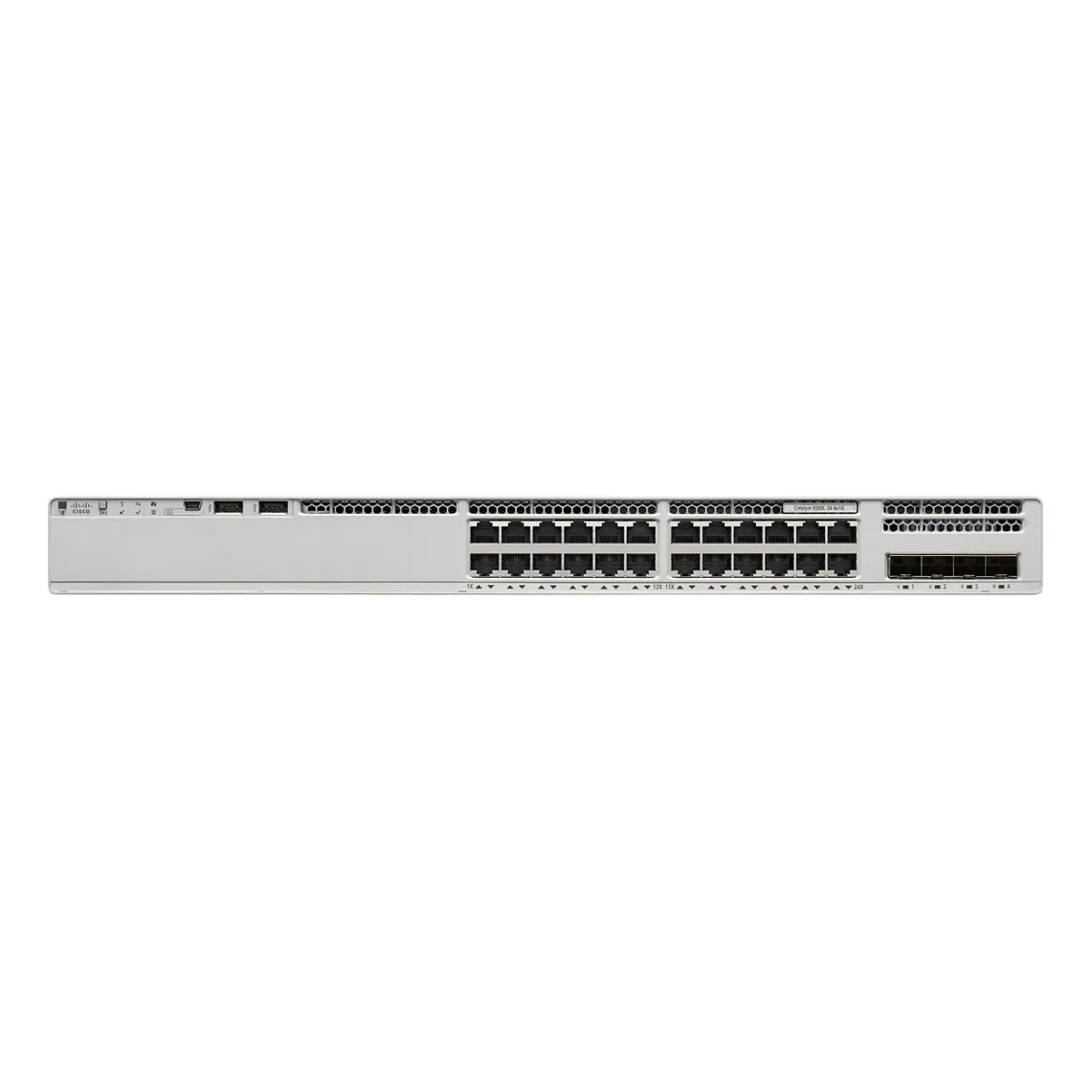

Cisco Catalyst C9200L. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE…. Power connector: AC-in jack
Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.
As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.
Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.
With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry’s unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access.
Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Traffic classification
Feature: ARP inspection
Feature: Configuring Location Settings (CLI)
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Fast Ethernet (copper) ports quantity: 24
Power connector: AC-in jack
Network
Feature: 10G support
Copper ethernet cabling technology: 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
Feature: Full duplex
Feature: IP routing
Routing entries: 3000
Feature: Flow control support
Feature: Spanning tree protocol
Feature: VLAN support
Number of VLANs: 4096
Data transmission
Switching capacity: 128 Gbit/s
Forwarding rate: 95.23 Mpps
MAC address table: 16000 entries
Feature: Jumbo frames support
Jumbo frames: 9198
Packet buffer memory: 4.1 MB
Security
Feature: Access Control List (ACL)
Security algorithms: 128-bit AES
Multicast features
Feature: Multicast support
Multicast MAC address table: 1000 entries
IPv4 multicast entries: 8000
Protocols
Management protocols: SNMPv1/v2c/v3
Routing protocols: CDP, EIGRP, OSPF, RIP, VRRP
Design
Product colour: Grey
Performance
Memory type: DRAM
Internal memory: 4000 MB
Flash memory: 4000 MB
Power
Feature: Power supply included
Feature: Redundant power supply (RPS) support
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Input current: 12 – 6 A
Operational conditions
Operating temperature (T-T): -5 – 45 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 5 – 90%
Operating altitude: 0 – 3000 m
Weight & dimensions
Width: 445 mm
Depth: 350 mm
Height: 44 mm
Weight: 5 kg
Packaging data
Package type: Box
Logistics data
Harmonized System (HS) code: 85176990
