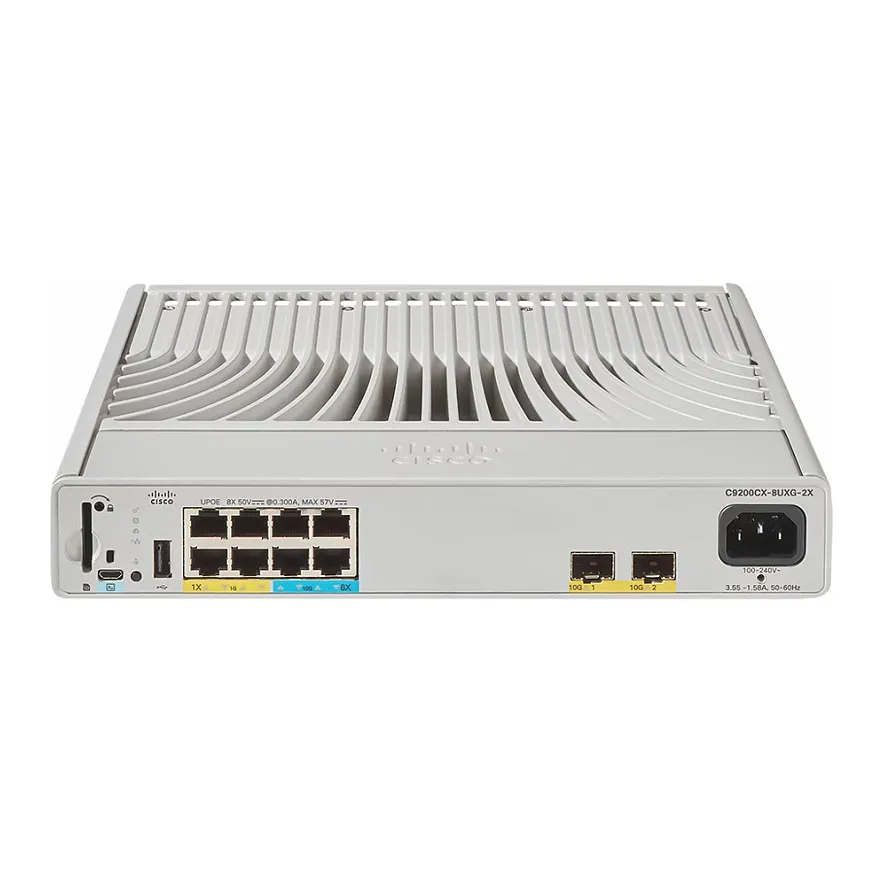

Cisco Catalyst C9200CX-8UXG-2X-E. Switch type: Managed, Switch layer: L2/L3. Installed SFP+ modules quantity: 2, USB 2.0 ports quantity: 1. Full duplex. MAC address table: 32000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE…. Power over Ethernet (PoE). Rack mounting
As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.
Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE® and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.
With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry’s unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access. Catalyst 9200 Series switches also provide operational choice of Cisco DNA Center, or cloud monitoring for Catalyst on Meraki dashboard.
Switch type: Managed
Switch layer: L2/L3
Feature: Quality of Service (QoS) support
MIB support: Y
Ports & interfaces
Installed SFP+ modules quantity: 2
USB 2.0 ports quantity: 1
Compatible memory cards: SD
Network
Feature: 10G support
Feature: Full duplex
Feature: VLAN support
Number of VLANs: 4096
Data transmission
Switching capacity: 128 Gbit/s
Forwarding rate: 95.23 Mpps
MAC address table: 32000 entries
Feature: Jumbo frames support
Jumbo frames: 9198
Packet buffer memory: 6 MB
Security
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: 256-bit AES
Multicast features
Feature: Multicast support
Design
Feature: Rack mounting
Feature: Stackable
Product colour: Grey
LED indicators: Yes
Performance
Memory type: DRAM
Internal memory: 4000 MB
Flash memory: 8000 MB
Feature: Fanless
Power
Power source: AC
Feature: Power supply included
AC input voltage: 115 – 230 V
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Weight & dimensions
Width: 269 mm
Depth: 244 mm
Height: 44 mm
Weight: 3.18 kg
