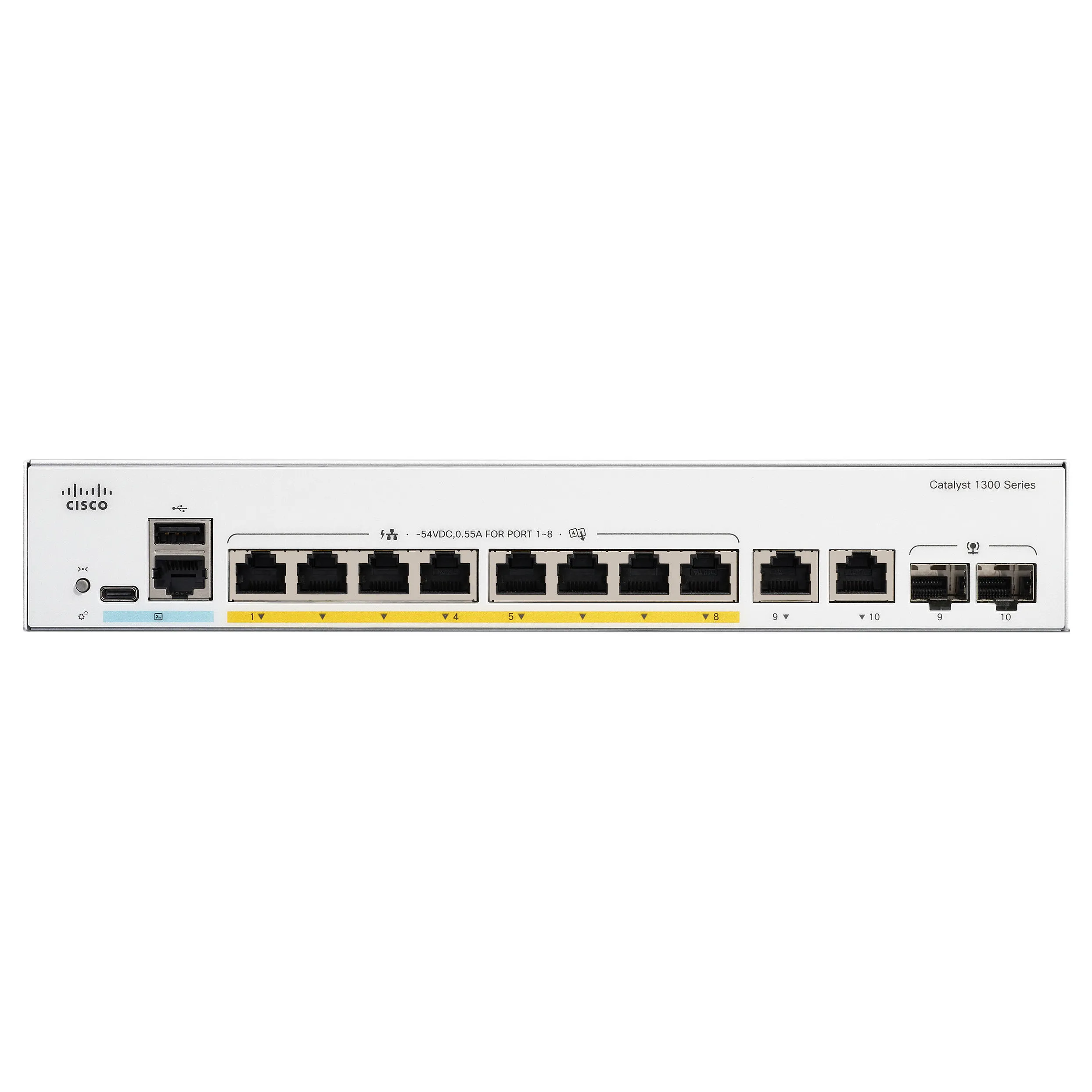

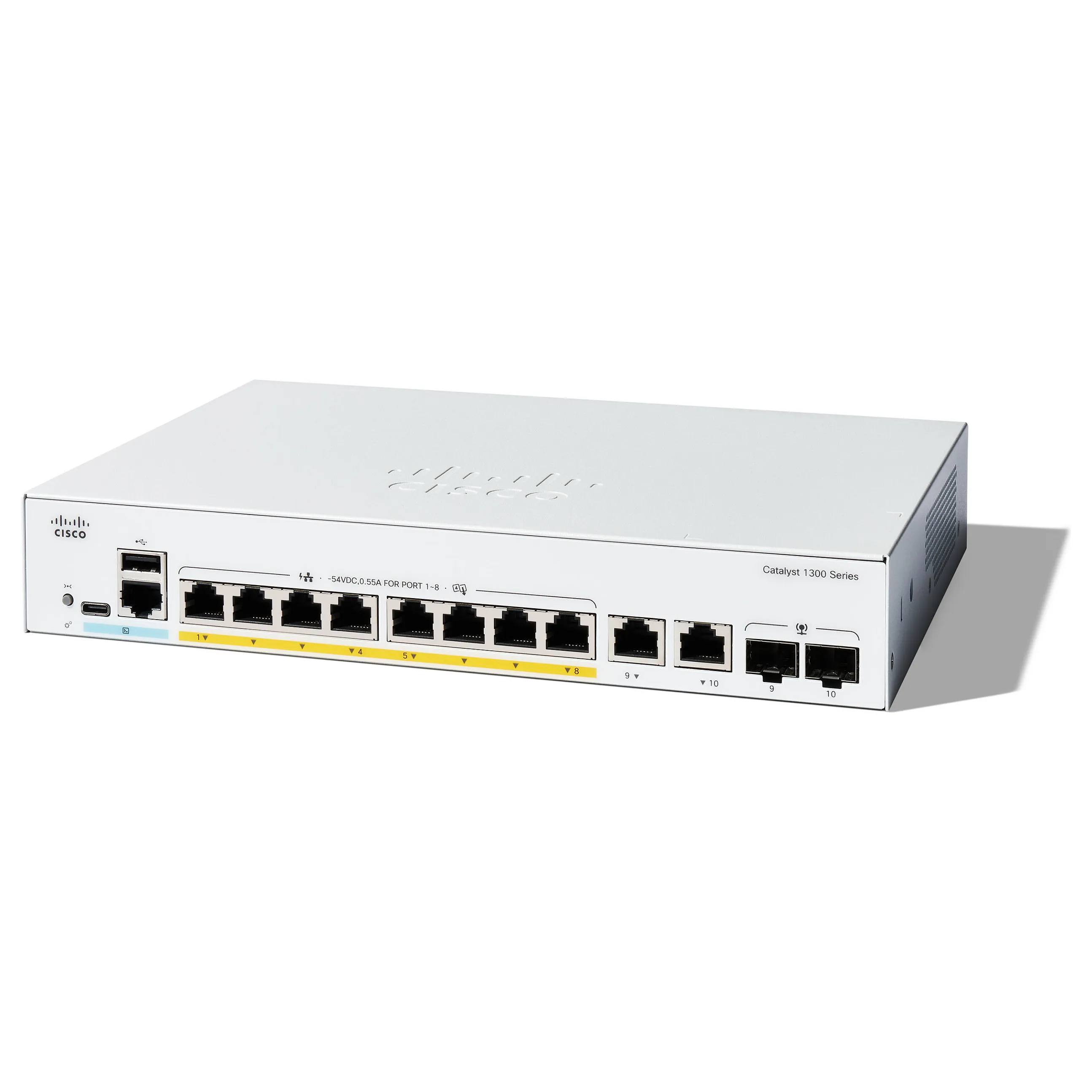

Cisco Catalyst 1300-8P-E-2G Managed Switch, 8 Port GE, PoE, Ext PS, 2x1GE Combo, Limited Lifetime Protection (C1300-8P-E-2G). Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45/USB Type-C. MAC address table: 16000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE…. Power over Ethernet (PoE). Rack mounting
The Cisco Catalyst 1300-8P-E-2G switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, an intuitive web dashboard, advanced networking features and PoE+ support.
Management features
Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Configuring Location Settings (CLI)
MIB support: Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 2
Console port: RJ-45/USB Type-C
Network
Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: Port mirroring
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Spanning tree protocol
Feature: VLAN support
Number of VLANs: 4093
Data transmission
Switching capacity: 20 Gbit/s
Forwarding rate: 14.88 Mpps
MAC address table: 16000 entries
Feature: Static route
Number of static routes: 990
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 1.5 MB
Security
DHCP features: DHCP Option 82, DHCP client, DHCP server
Feature: Access Control List (ACL)
Feature: IGMP snooping
IGMP entries: 2000
Feature: SSH/SSL support
Feature: Loop protection
Authentication: MAC-based authentication, Web-based authentication
Authentication type: RADIUS
Multicast features
Feature: Multicast support
Design
Feature: Rack mounting
Product colour: Grey
LED indicators: Yes
Performance
Mean time between failures (MTBF): 1706649 h
Power
Power source: AC
AC input voltage: 110 – 220 V
AC input frequency: 50/60 Hz
Power consumption (max): 80.86 W
Power plug type: Type C
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 60 W
Other features
Packaging content: Switch, power cable, USB Type C cable and mounting hardware
Operational conditions
Operating temperature (T-T): -5 – 50 °C
Storage temperature (T-T): -25 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 10 – 90%
Heat dissipation: 275.91 BTU/h
Weight & dimensions
Width: 184.9 mm
Depth: 268.2 mm
Height: 43.9 mm
Weight: 1.53 kg
Packaging data
Package width: 299 mm
Package depth: 544.8 mm
Package height: 103.9 mm
Package weight: 3.07 kg
Logistics data
Country of origin: China
Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Configuring Location Settings (CLI)
MIB support: Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 2
Console port: RJ-45/USB Type-C
Network
Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: Port mirroring
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Spanning tree protocol
Feature: VLAN support
Number of VLANs: 4093
Data transmission
Switching capacity: 20 Gbit/s
Forwarding rate: 14.88 Mpps
MAC address table: 16000 entries
Feature: Static route
Number of static routes: 990
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 1.5 MB
Security
DHCP features: DHCP Option 82, DHCP client, DHCP server
Feature: Access Control List (ACL)
Feature: IGMP snooping
IGMP entries: 2000
Feature: SSH/SSL support
Feature: Loop protection
Authentication: MAC-based authentication, Web-based authentication
Authentication type: RADIUS
Multicast features
Feature: Multicast support
Design
Feature: Rack mounting
Product colour: Grey
LED indicators: Yes
Performance
Mean time between failures (MTBF): 1706649 h
Power
Power source: AC
AC input voltage: 110 – 220 V
AC input frequency: 50/60 Hz
Power consumption (max): 80.86 W
Power plug type: Type C
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 60 W
Other features
Packaging content: Switch, power cable, USB Type C cable and mounting hardware
Operational conditions
Operating temperature (T-T): -5 – 50 °C
Storage temperature (T-T): -25 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 10 – 90%
Heat dissipation: 275.91 BTU/h
Weight & dimensions
Width: 184.9 mm
Depth: 268.2 mm
Height: 43.9 mm
Weight: 1.53 kg
Packaging data
Package width: 299 mm
Package depth: 544.8 mm
Package height: 103.9 mm
Package weight: 3.07 kg
Logistics data
Country of origin: China
