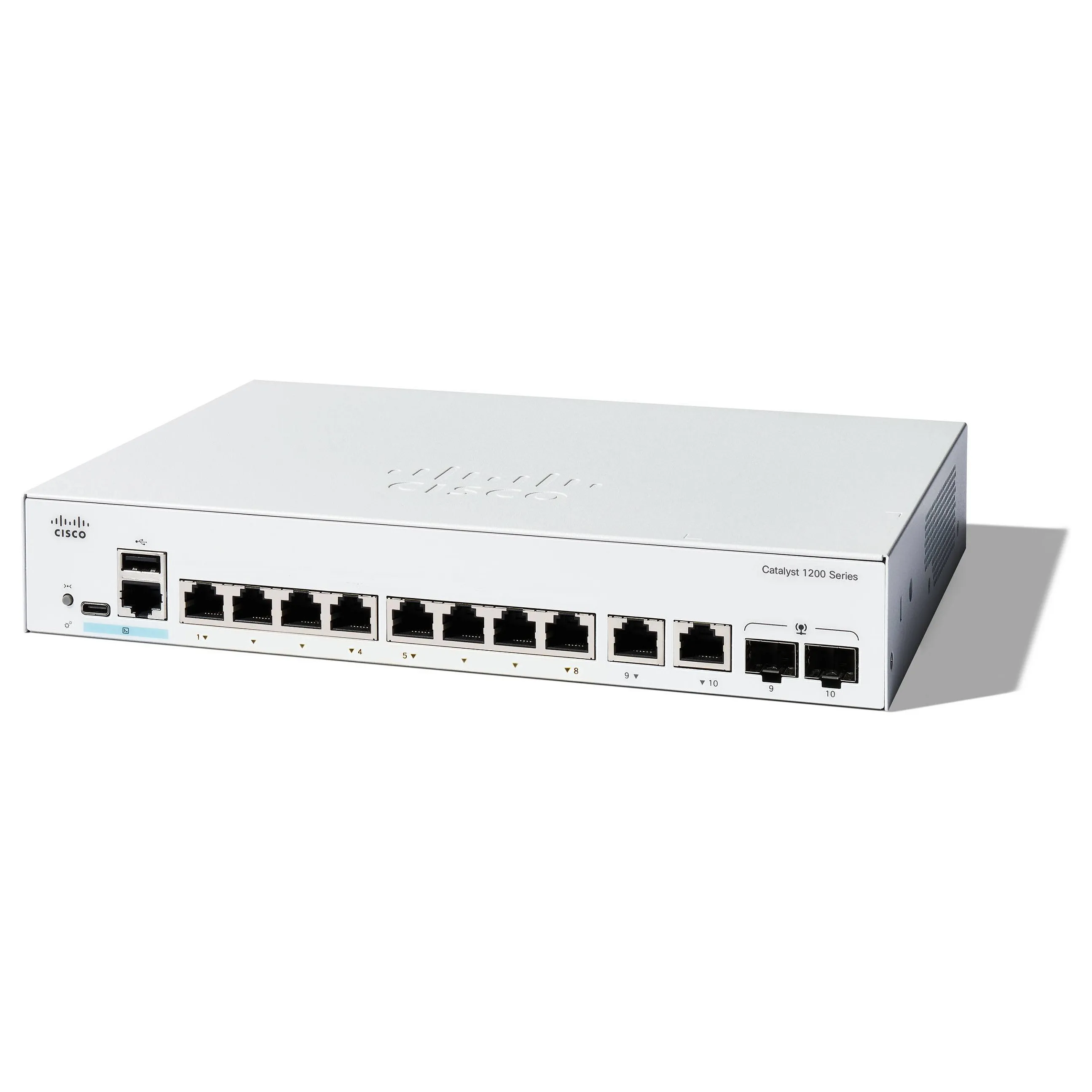

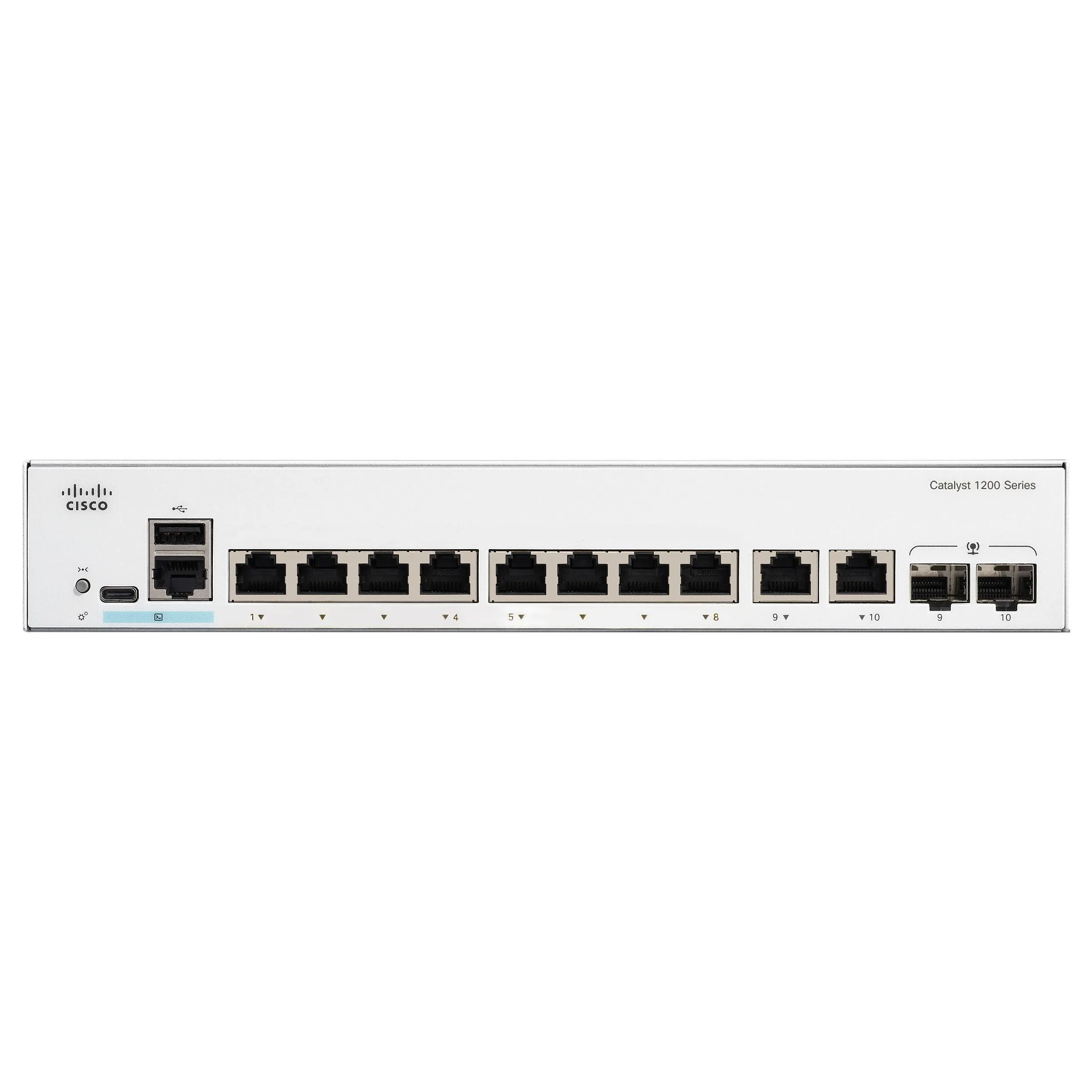

Cisco Catalyst 1200-8T-E-2G Smart Switch, 8 Port GE, Ext PS, 2x1GE Combo, Limited Lifetime Protection (C1200-8T-E-2G). Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10, Console port: RJ-45/USB Type-C. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE…. Rack mounting, Form factor: 1U
The Cisco Catalyst 1200-8T-E-2G switch is the next generation of affordable, smart switches that combine powerful network performance, security and reliability with a comprehensive suite of network features you need for a solid small business network.
Management features
Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Configuring Location Settings (CLI)
MIB support: Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 10
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2
Console port: RJ-45/USB Type-C
Network
Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az
Feature: Port mirroring
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Spanning tree protocol
Feature: Head-of-line (HOL) blocking
Feature: VLAN support
Number of VLANs: 255
Data transmission
Switching capacity: 20 Gbit/s
Forwarding rate: 14.88 Mpps
MAC address table: 8000 entries
Number of queues: 8
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 1.5 MB
Security
Access Control List (ACL) rules: 512
Security algorithms: 802.1x RADIUS
Feature: Loop protection
Feature: DoS attack prevention
Queue scheduling algorithms: Weighted Round Robin (WRR)
Multicast features
Feature: Multicast support
Protocols
Feature: GARP VLAN Registration Protocol (GVRP)
Design
Feature: Rack mounting
Form factor: 1U
Product colour: White
Feature: Reset button
LED indicators: Yes
Performance
Feature: Built-in processor
Processor frequency: 1.4 MHz
Memory type: DDR4-SDRAM
Internal memory: 1000 MB
Flash memory: 512 MB
Feature: Firmware upgradeable
Mean time between failures (MTBF): 2171669 h
Power
Power source: AC
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power consumption (typical): 10.65 W
Power plug type: Type C
Other features
Packaging content: Switch, power cable, USB Type C cable and mounting hardware
Operational conditions
Operating temperature (T-T): -5 – 50 °C
Storage temperature (T-T): -25 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 184.9 mm
Depth: 268.2 mm
Height: 43.9 mm
Weight: 1.39 kg
Packaging data
Package width: 299 mm
Package depth: 544.8 mm
Package height: 103.9 mm
Package weight: 2.45 kg
Certificates
Certification: UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Logistics data
Country of origin: China
Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Configuring Location Settings (CLI)
MIB support: Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 10
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2
Console port: RJ-45/USB Type-C
Network
Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az
Feature: Port mirroring
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Spanning tree protocol
Feature: Head-of-line (HOL) blocking
Feature: VLAN support
Number of VLANs: 255
Data transmission
Switching capacity: 20 Gbit/s
Forwarding rate: 14.88 Mpps
MAC address table: 8000 entries
Number of queues: 8
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 1.5 MB
Security
Access Control List (ACL) rules: 512
Security algorithms: 802.1x RADIUS
Feature: Loop protection
Feature: DoS attack prevention
Queue scheduling algorithms: Weighted Round Robin (WRR)
Multicast features
Feature: Multicast support
Protocols
Feature: GARP VLAN Registration Protocol (GVRP)
Design
Feature: Rack mounting
Form factor: 1U
Product colour: White
Feature: Reset button
LED indicators: Yes
Performance
Feature: Built-in processor
Processor frequency: 1.4 MHz
Memory type: DDR4-SDRAM
Internal memory: 1000 MB
Flash memory: 512 MB
Feature: Firmware upgradeable
Mean time between failures (MTBF): 2171669 h
Power
Power source: AC
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power consumption (typical): 10.65 W
Power plug type: Type C
Other features
Packaging content: Switch, power cable, USB Type C cable and mounting hardware
Operational conditions
Operating temperature (T-T): -5 – 50 °C
Storage temperature (T-T): -25 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 184.9 mm
Depth: 268.2 mm
Height: 43.9 mm
Weight: 1.39 kg
Packaging data
Package width: 299 mm
Package depth: 544.8 mm
Package height: 103.9 mm
Package weight: 2.45 kg
Certificates
Certification: UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Logistics data
Country of origin: China
