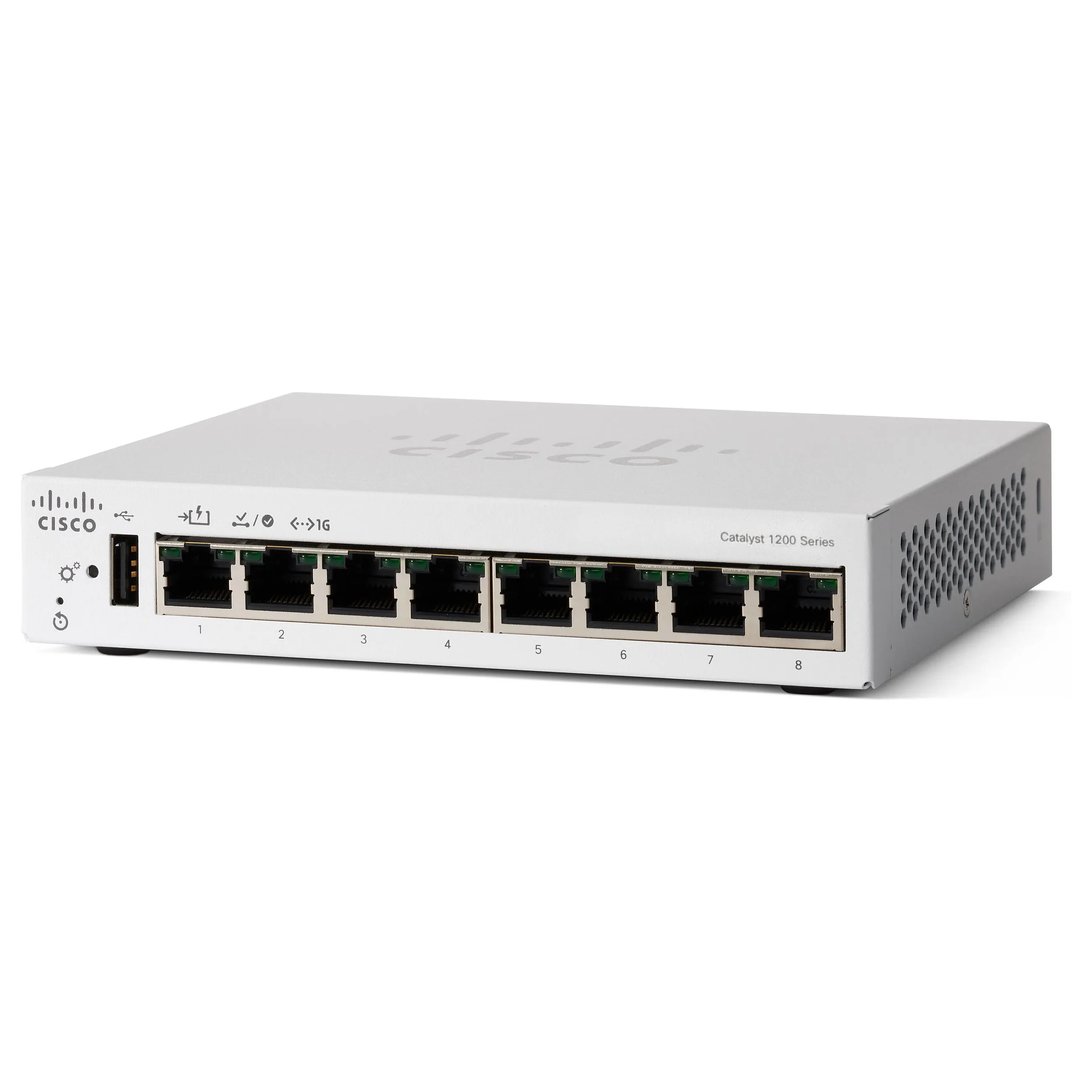

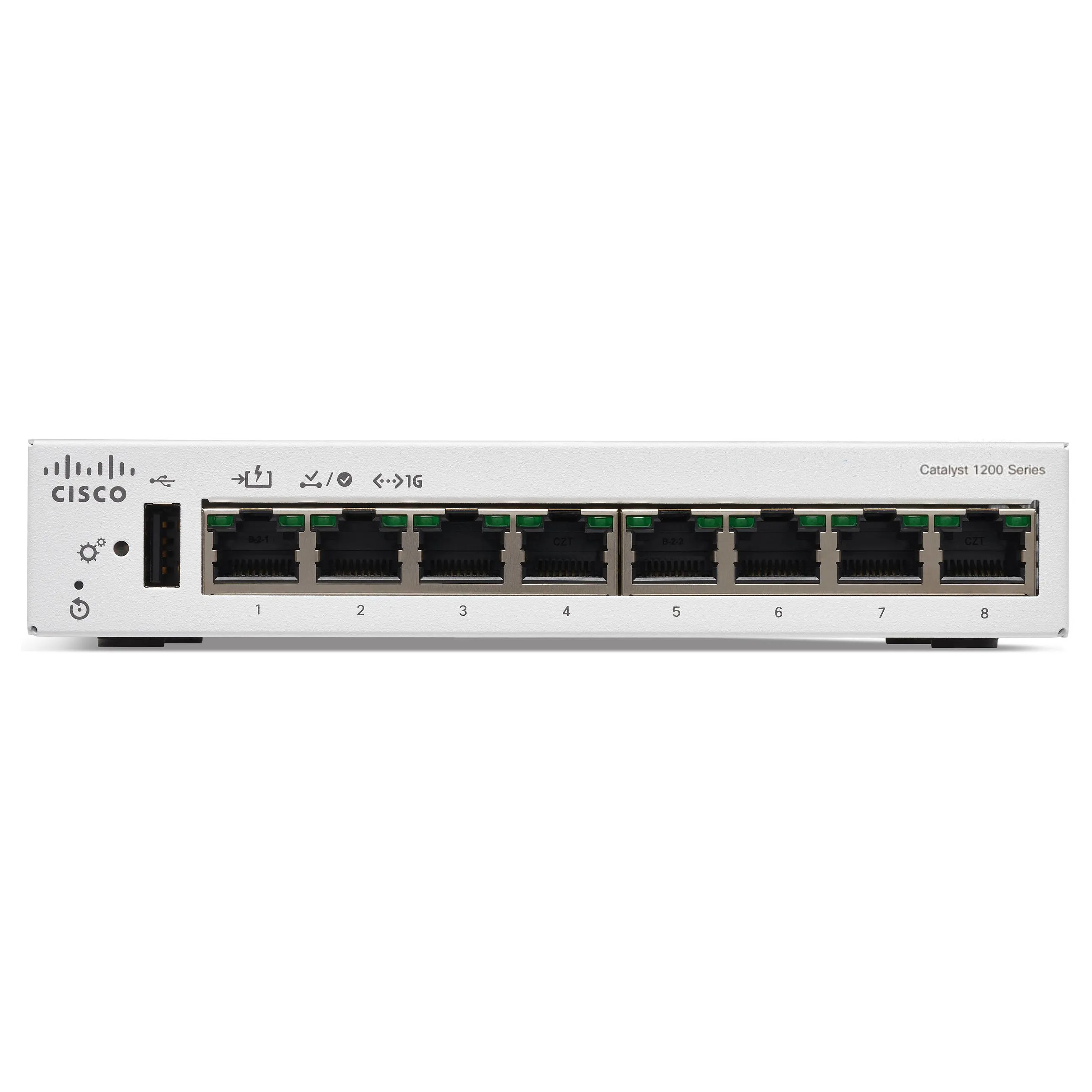

Cisco Catalyst 1200-8T-D Smart Switch, 8 Port GE, Ext PS, Desktop, Limited Lifetime Protection (C1200-8T-D). Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE…
The Cisco Catalyst 1200-8T-D switch is the next generation of affordable, smart switches that combine powerful network performance, security and reliability with a comprehensive suite of network features you need for a solid small business network.
Management features
Switch type: Managed
Switch layer: L2/L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: ARP inspection
Feature: Configuring Location Settings (CLI)
MIB support: Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: Port mirroring
Feature: Flow control support
Feature: Broadcast storm control
Feature: Spanning tree protocol
Feature: Head-of-line (HOL) blocking
Ethernet LAN data rates: 1000 Mbit/s
Feature: VLAN support
Data transmission
Feature: Static route
Feature: Jumbo frames support
Jumbo frames: 9000
Security
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: HTTPS, SSH, SSL/TLS
Feature: MAC address filtering
Feature: SSH/SSL support
Multicast features
Feature: Multicast support
Design
Product colour: White
Housing material: Metal
Feature: Reset button
LED indicators: Yes
Performance
Processor frequency: 1400 MHz
Internal memory: 1024 MB
Flash memory: 512 MB
Power
Power source: AC
Feature: Power supply included
Power plug type: Type C
Other features
Packaging content: Switch, power cable, USB Type C cable and mounting hardware
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -25 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 141.5 mm
Depth: 176.8 mm
Height: 30 mm
Packaging data
Package width: 213.9 mm
Package depth: 307.8 mm
Package height: 54.9 mm
Package weight: 1.07 kg
Logistics data
Country of origin: China
