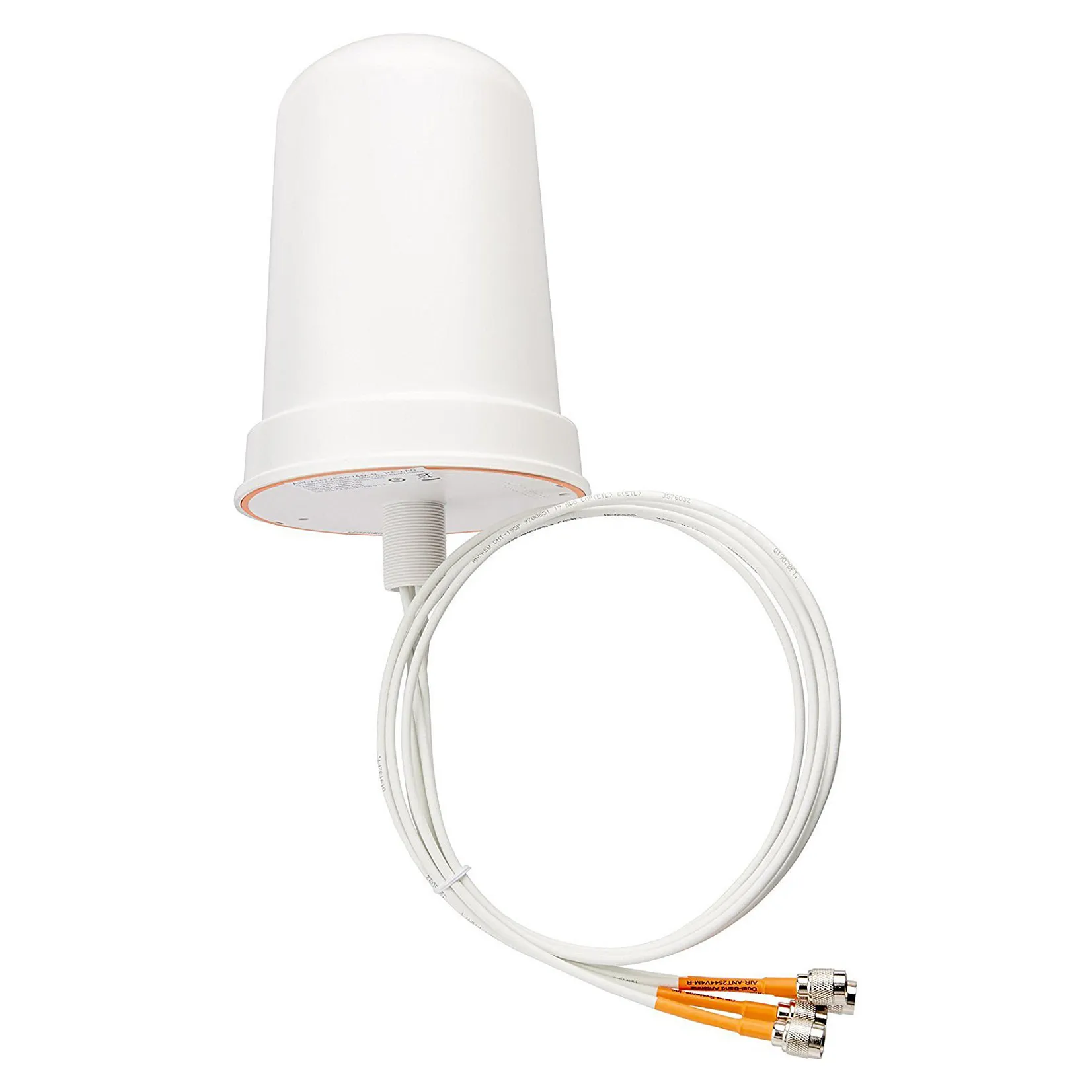

Cisco Aironet Dual-Band Omnidirectional Wi-Fi Antenna, 4 dBi (2.4 GHz)/4 dBi (5 GHz), 4 Ports, Wall/Mast Mount, 1-Year Limited Hardware Warranty (AIR-ANT2544V4M-RS=). Antenna gain level (max): 4 dBi, Frequency band: 2.4/5 GHz, Networking standards: IEEE 802.11n. Antenna type: Omni-directional antenna, Antenna connector type: RP-TNC, Connector gender: Male. Package width: 215.9 mm, Package depth: 387.4 mm, Package height: 215.9 mm. Quantity per pack: 1 pc(s). Country of origin: Malaysia
The Cisco Aironet AIR-ANT2544V4M-RS= Dual-Band Omnidirectional Wi-Fi Antenna is designed with improved performance in mind. It provides a 360-degree radiation pattern and is intended for deployment when coverage in all directions is required. This FCC-approved omnidirectional antenna includes circuitry to enable self-identification of the antenna by the Cisco Catalyst 9100 Access Points.
Performance
Frequency band: 2.4/5 GHz
Networking standards: IEEE 802.11n
Antenna gain (2.4 GHz): 4 dBi
Antenna gain (5 GHz): 4 dBi
Impedance: 50 Ω
Antenna gain level (max): 4 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: RP-TNC
Connector gender: Male
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): < 2:1
Product colour: White
Cable length: 2.4 m
Mounting: Wall/Pole
Purpose: Indoor & outdoor
Compatible products: Cisco Aironet 1600e, 2600e, 3600e
Operational conditions
Operating temperature (T-T): -30 – 70 °C
Packaging data
Package width: 215.9 mm
Package depth: 387.4 mm
Package height: 215.9 mm
Package weight: 1.41 kg
Packaging content
Quantity per pack: 1 pc(s)
Feature: Mounting kit
Feature: Quick installation guide
Feature: Manual
Logistics data
Harmonized System (HS) code: 85177100
Country of origin: Malaysia
