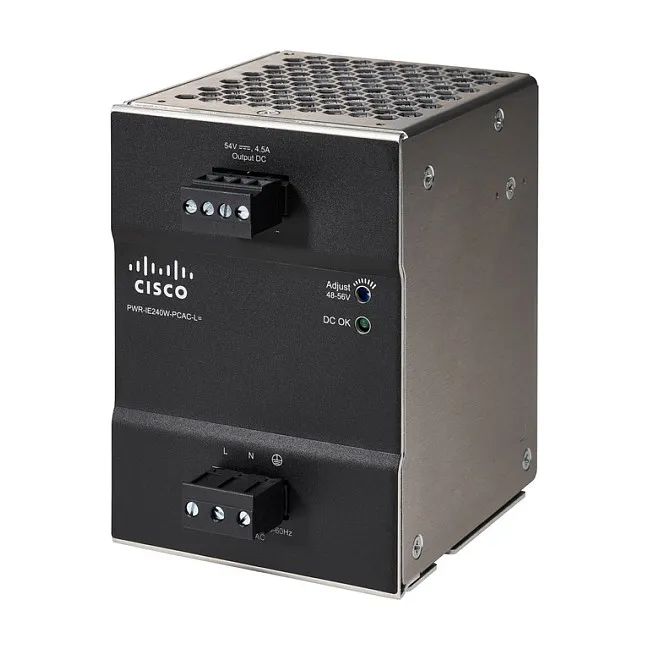

Cisco 240W AC P/S LITE. Product type: Power supply, Product colour: Black, Mean time between failures (MTBF): 1058750 h. Total power: 240 W, AC input voltage: 90 – 264 V, AC input frequency: 50 / 60 Hz. Safety: IP20, Certification: SIQ Bauart to EN 60950-1 UL/cUL UL 60950-1 / CSA C22.2 No. 60950-1 UL/cUL UL 62368-1 / CSA C22.2…. Width: 85 mm, Depth: 121 mm, Height: 124.1 mm
The Cisco industrial din-rail power supplies offer a variety of rugged, reliable, and compact AC and DC power supply options to power Cisco’s industrial Ethernet switches, industrial routers (including industrial gateways), and industrial computing products. Some key features include:
– Power supply options from 50W to 480W
– Operating temperatures ranging between -40°C and +85°C
– Din-rail mountable options
– Enablement of high capacity Power over Ethernet (PoE)
– Conformal coating options
– Power supply options from 50W to 480W
– Operating temperatures ranging between -40°C and +85°C
– Din-rail mountable options
– Enablement of high capacity Power over Ethernet (PoE)
– Conformal coating options
Features
Product type: Power supply
Product colour: Black
Feature: Internal
Mean time between failures (MTBF): 1058750 h
Power
Total power: 240 W
AC input voltage: 90 – 264 V
AC input frequency: 50 / 60 Hz
Maximum current: 3.5 A
Inrush current: 35 A
DC output voltage: 54 V
Certificates
Safety: IP20
Operational conditions
Operating temperature (T-T): -40 – 80 °C
Storage temperature (T-T): -40 – 85 °C
Operating relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 85 mm
Depth: 121 mm
Height: 124.1 mm
Weight: 960 g
Logistics data
Harmonized System (HS) code: 85177900
Product type: Power supply
Product colour: Black
Feature: Internal
Mean time between failures (MTBF): 1058750 h
Power
Total power: 240 W
AC input voltage: 90 – 264 V
AC input frequency: 50 / 60 Hz
Maximum current: 3.5 A
Inrush current: 35 A
DC output voltage: 54 V
Certificates
Safety: IP20
Operational conditions
Operating temperature (T-T): -40 – 80 °C
Storage temperature (T-T): -40 – 85 °C
Operating relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 85 mm
Depth: 121 mm
Height: 124.1 mm
Weight: 960 g
Logistics data
Harmonized System (HS) code: 85177900
