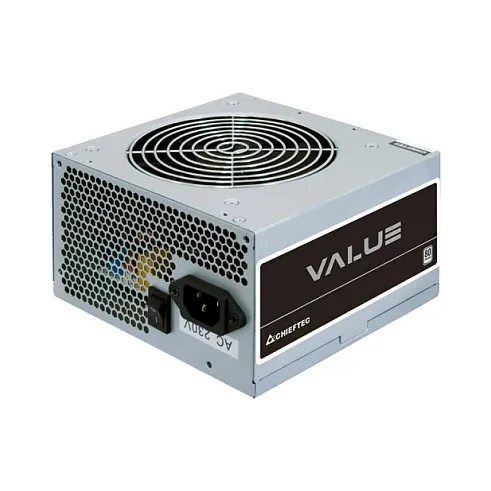

Chieftec Value APB-700B8. Total power: 700 W, AC input voltage: 200 – 240 V, AC input frequency: 47 – 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 150,550 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CE, Certification: CE, CB, EAC, TÜV
The new VALUE SERIES offers both quality and 80 PLUS® 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, TÜV and amongst many others, it’s the VALUE choice!
Power
Total power: 700 W
AC input voltage: 200 – 240 V
AC input frequency: 47 – 63 Hz
Input current: 5 A
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 130 W
Combined power (+12V): 648 W
Combined power (+5V): 130 W
Max output current (+3.3V): 22 A
Max output current (+12V1): 54 A
Max output current (+5V): 22 A
Power protection features: Over voltage, Overheating, Overload, Short circuit, Under power, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 4
SATA power cable length: 150,550 mm
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 150,500 mm
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 2
PCI Express power cable length: 50 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 50 cm
Floppy drive power connector: 1
Feature: Floppy disk drive connector
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS
Purpose: PC/Server
Power supply unit (PSU) form factor: ATX
ATX version: 2.3
Design
Product colour: Silver
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Certificates
Compliance certificates: CE
Certification: CE, CB, EAC, TÜV
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 87 mm
Weight: 1.42 kg
Packaging data
Package weight: 1.57 kg
Technical details
Feature: Sustainability compliance
Logistics data
Harmonized System (HS) code: 84733020
Total power: 700 W
AC input voltage: 200 – 240 V
AC input frequency: 47 – 63 Hz
Input current: 5 A
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 130 W
Combined power (+12V): 648 W
Combined power (+5V): 130 W
Max output current (+3.3V): 22 A
Max output current (+12V1): 54 A
Max output current (+5V): 22 A
Power protection features: Over voltage, Overheating, Overload, Short circuit, Under power, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 4
SATA power cable length: 150,550 mm
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 150,500 mm
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 2
PCI Express power cable length: 50 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 50 cm
Floppy drive power connector: 1
Feature: Floppy disk drive connector
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS
Purpose: PC/Server
Power supply unit (PSU) form factor: ATX
ATX version: 2.3
Design
Product colour: Silver
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Certificates
Compliance certificates: CE
Certification: CE, CB, EAC, TÜV
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 87 mm
Weight: 1.42 kg
Packaging data
Package weight: 1.57 kg
Technical details
Feature: Sustainability compliance
Logistics data
Harmonized System (HS) code: 84733020
