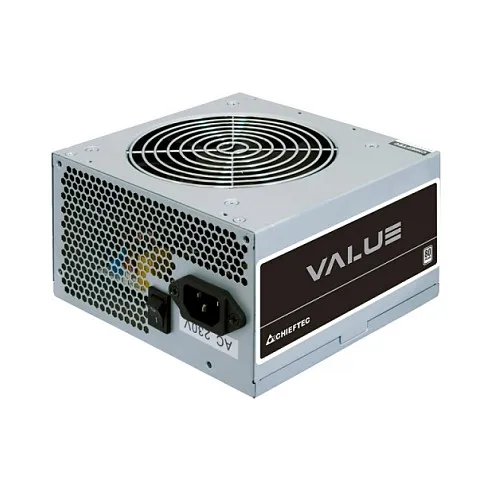

Chieftec Value APB-600B8. Total power: 600 W, AC input voltage: 200 – 240 V, Peak power: 600 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Steel, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CE, RoHS
The new VALUE SERIES offers both quality and 80 PLUS 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, TÜV and amongst many others, it’s the VALUE choice!
Power
Total power: 600 W
Peak power: 600 W
AC input voltage: 200 – 240 V
AC input frequency: 47 – 63 Hz
Maximum input current (@220V): 4.5 A
Combined power (+3.3V): 120 W
Combined power (+12V): 552 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V1): 46 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 4
SATA power cable length: 150,500 mm
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 150,500 mm
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 2
Feature: Floppy disk drive connector
Floppy disk drive cable length: 15 cm
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.3
Design
Product colour: Steel
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch
Certificates
Compliance certificates: CE, RoHS
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 87 mm
Weight: 1.42 kg
Packaging data
Package weight: 1.56 kg
Logistics data
Harmonized System (HS) code: 84733020
