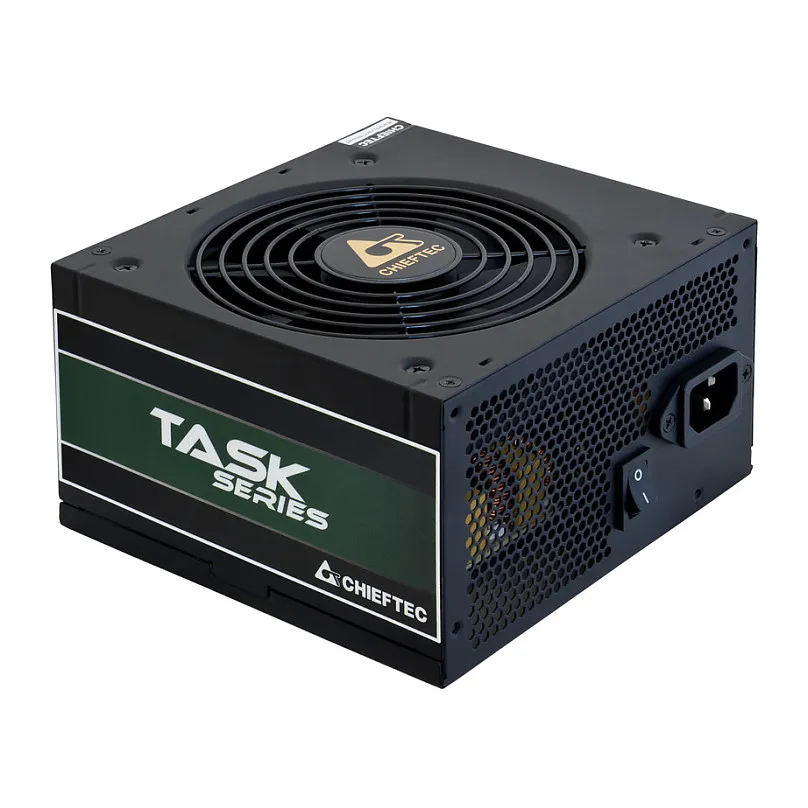

Chieftec Task TPS-600S. Total power: 600 W, AC input voltage: 100 – 240 V, AC input frequency: 47 – 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Compliance certificates: RoHS, Certification: ErP, CE, CB, EAC, TUV
The CHIEFTEC Task Series PSU’s are true to their name, and take on any task they are required for without any trouble. With certified 80PLUS Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.
Total power: 600 W
AC input voltage: 100 – 240 V
AC input frequency: 47 – 63 Hz
Input current: 9 A
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Combined power (+12V): 552 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 19 A
Max output current (+12V): 46 A
Max output current (+5V): 17 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Power protection features: Over voltage, Overheating, Overload, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 65 cm
Number of SATA power connectors: 5
SATA power cable length: 150,500 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 150,500 mm
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 2
PCI Express power cable length: 50 cm
Feature: ATX power connector (20+4 pin)
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Bronze
Supported motherboard form factors: ATX
Purpose: PC
Power supply unit (PSU) form factor: ATX
Design
Product colour: Black

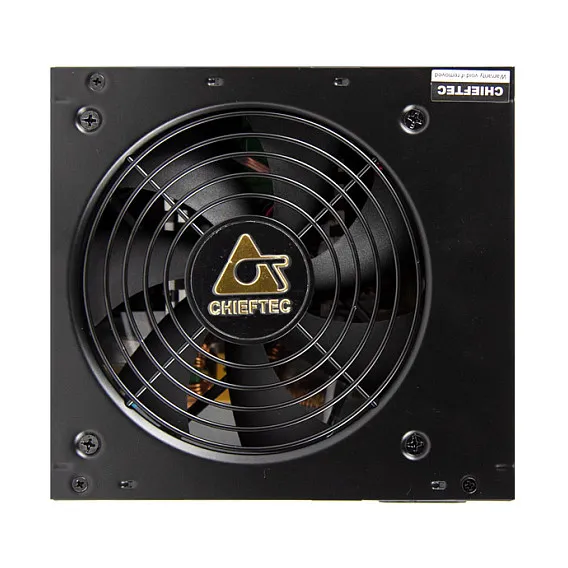

Fan diameter: 12 cm
Number of fans: 1 fan(s)
Certificates
Compliance certificates: RoHS
Certification: ErP, CE, CB, EAC, TUV
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 87 mm
Weight: 1.67 kg
Packaging data
Package weight: 2.08 kg
Package type: Box
Logistics data
Harmonized System (HS) code: 84733020
Other features
EPS cable length: 65 cm
