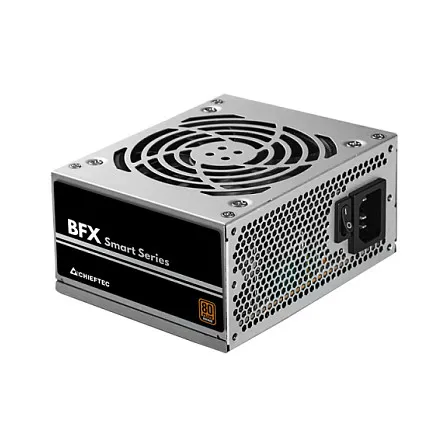

Chieftec Smart 450W. Total power: 450 W, AC input voltage: 100 – 240 V, AC input frequency: 47 – 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 35 cm, SATA power cable length: 250 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Silver, Cooling type: Active, Fan diameter: 9 cm. Width: 125 mm, Depth: 100 mm, Height: 64 mm

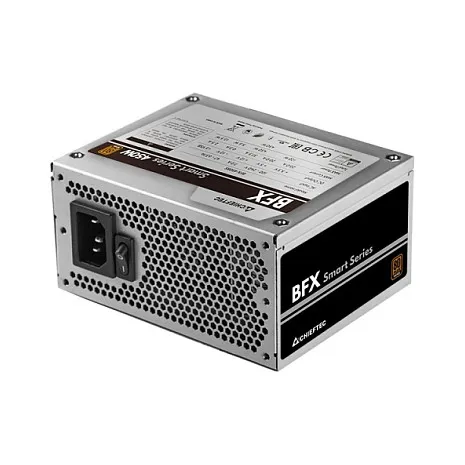

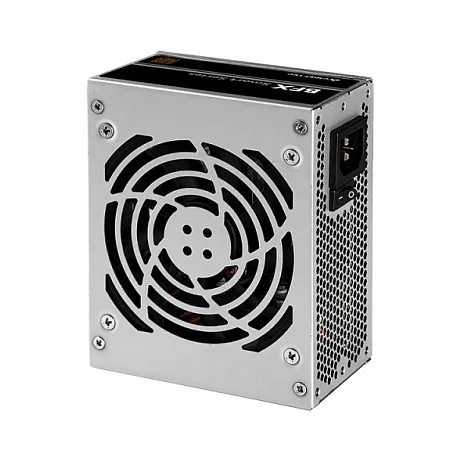

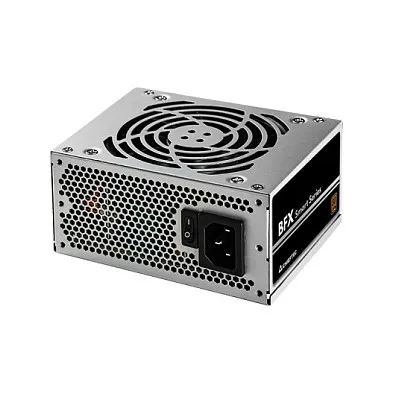

The BFX Series combines an 80PLUS Bronze efciency and a modern technical platform based on DC-DC technology into a compact SFX form factor that ensured reliability and high performance. With the inclusion of a 9cm fan, while keeping the total length of the PSU to 10cm, the BFX Series stays very compact, while beneftting from a quiet fan operation. All modern protection mechanisms are included for peace of mind.
Power
Total power: 450 W
AC input voltage: 100 – 240 V
AC input frequency: 47 – 63 Hz
Input current: 7 A
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+12V): 450 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V): 37.5 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Power protection features: Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 35 cm
Number of SATA power connectors: 3
SATA power cable length: 250 mm
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 150 mm
EPS power connector (4+4 pin): Yes
PCI Express power connectors (6+2 pin): 2
PCI Express power cable length: 35 cm
Floppy drive power connector: 1
Floppy disk drive cable length: 15 cm
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.3
Design
Product colour: Black, Silver
Cooling type: Active
Fan diameter: 9 cm
Weight & dimensions
Width: 125 mm
Depth: 100 mm
Height: 64 mm
Weight: 1.5 kg
Logistics data
Harmonized System (HS) code: 84733020
