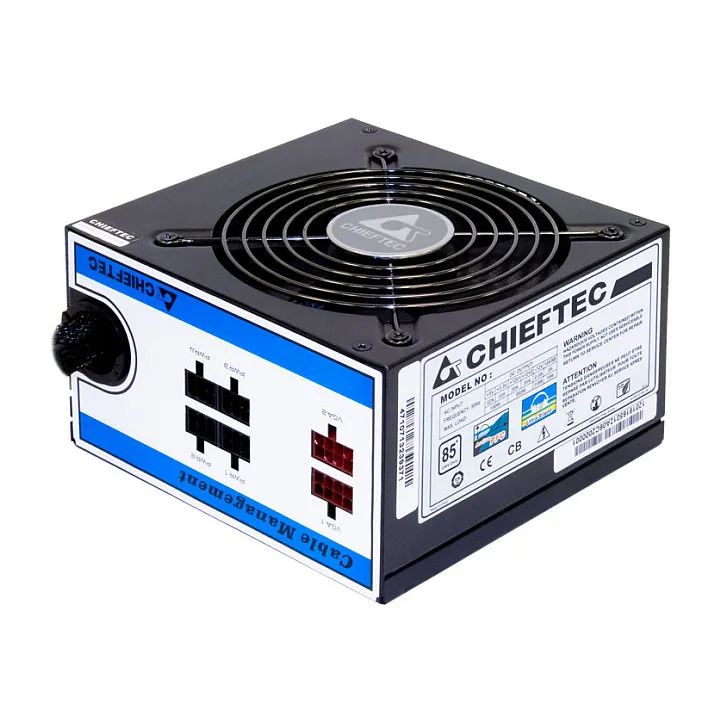

Chieftec CTG-550C. Total power: 550 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Semi-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS, Certification: CE, CB, FCC
this popular PSU series is now extended by new models featuring cable management. With many awards granted, these PSUs are perfectly suited for cost aware users, who pay attention to both good price and high efficiency.
Power
Total power: 550 W
AC input voltage: 230 V
AC input frequency: 50 Hz
Input current: 6 A
Maximum input current (@110V): +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 130 W
Combined power (+12V): 456 W
Combined power (+5V): 130 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 25 A
Max output current (+12V1): 25 A
Max output current (+12V2): 25 A
Max output current (+5V): 22 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Efficiency: 85%
Power protection features: Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 4
Feature: EPS power connector (8-pin)
PCI Express power connectors (6+2 pin): 2
CPU P4 connector (4-pin): 1
Floppy drive power connector: 2
Cabling type: Semi-Modular
Performance
80 PLUS certification: 80 PLUS
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.3
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
Certificates
Compliance certificates: RoHS
Certification: CE, CB, FCC
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 87 mm
Packaging data
Package type: Box
Logistics data
Harmonized System (HS) code: 84733020
Other features
Parallel processing technology support: 2-Way CrossFireX, 2-Way SLI
Total power: 550 W
AC input voltage: 230 V
AC input frequency: 50 Hz
Input current: 6 A
Maximum input current (@110V): +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 130 W
Combined power (+12V): 456 W
Combined power (+5V): 130 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 25 A
Max output current (+12V1): 25 A
Max output current (+12V2): 25 A
Max output current (+5V): 22 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Efficiency: 85%
Power protection features: Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 4
Feature: EPS power connector (8-pin)
PCI Express power connectors (6+2 pin): 2
CPU P4 connector (4-pin): 1
Floppy drive power connector: 2
Cabling type: Semi-Modular
Performance
80 PLUS certification: 80 PLUS
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.3
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
Certificates
Compliance certificates: RoHS
Certification: CE, CB, FCC
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 87 mm
Packaging data
Package type: Box
Logistics data
Harmonized System (HS) code: 84733020
Other features
Parallel processing technology support: 2-Way CrossFireX, 2-Way SLI
