Broadcom 9660-16i. Host interface: PCIe, Output interface: SAS, SATA, SFF-8654, Expansion card form factor: Low-profile. Product colour: Black, Green, Silver, Mean time between failures (MTBF): 3000000 h, Certification: Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class…. RAID levels: 0, 1, 5, 6, 10, 50, 60. Power consumption (typical): 20 W. Server operating systems supported: SUSE Linux Enterprise Server, Other operating systems supported: VMware vSphere ESXi

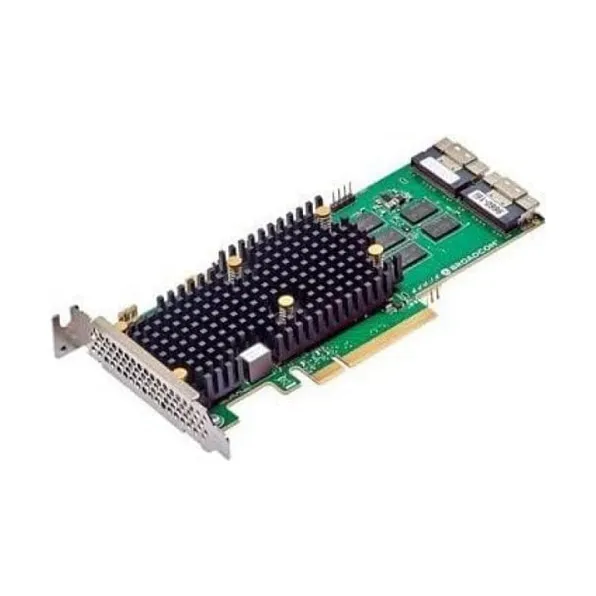

The MegaRAID 9660-16i adapter, based on the SAS4116 RAID-on-Chip (RoC), is the highest performing x8 PCIe Gen 4.0 storage adapter available to meet the ever-increasing demands of the data center. The low power MegaRAID 9660-16i allows users to seamlessly transition their existing storage infrastructure to get breakthrough SSD performance with minimal airflow and cooling requirements.
Host interface: PCIe
Output interface: SAS, SATA, SFF-8654
Expansion card form factor: Low-profile
Expansion card standard: PCIe 4.0
Feature: NVMe
Internal mini-SAS ports: 2
Design
Feature: Internal
Product colour: Black, Green, Silver
Mean time between failures (MTBF): 3000000 h
Features
Feature: S.M.A.R.T. support
RAID levels: 0, 1, 5, 6, 10, 50, 60
Power
Power consumption (typical): 20 W
Operational conditions
Operating temperature (T-T): 0 – 55 °C
Operating relative humidity (H-H): 5 – 90%
System requirements
Windows operating systems supported: Yes
Linux operating systems supported: Yes
Server operating systems supported: SUSE Linux Enterprise Server
Other operating systems supported: VMware vSphere ESXi
Technical details
Feature: Sustainability compliance
Warranty period: 3 year(s)
Compliance certificates: RoHS, WEEE
Weight & dimensions
Width: 155.5 mm
Depth: 68.8 mm
Packaging data
Quantity per pack: 1 pc(s)
