be quiet! Straight Power 12. Total power: 750 W, AC input voltage: 110 – 240 V, Peak power: 820 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 550,700,850,1000 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: CPU, SATA

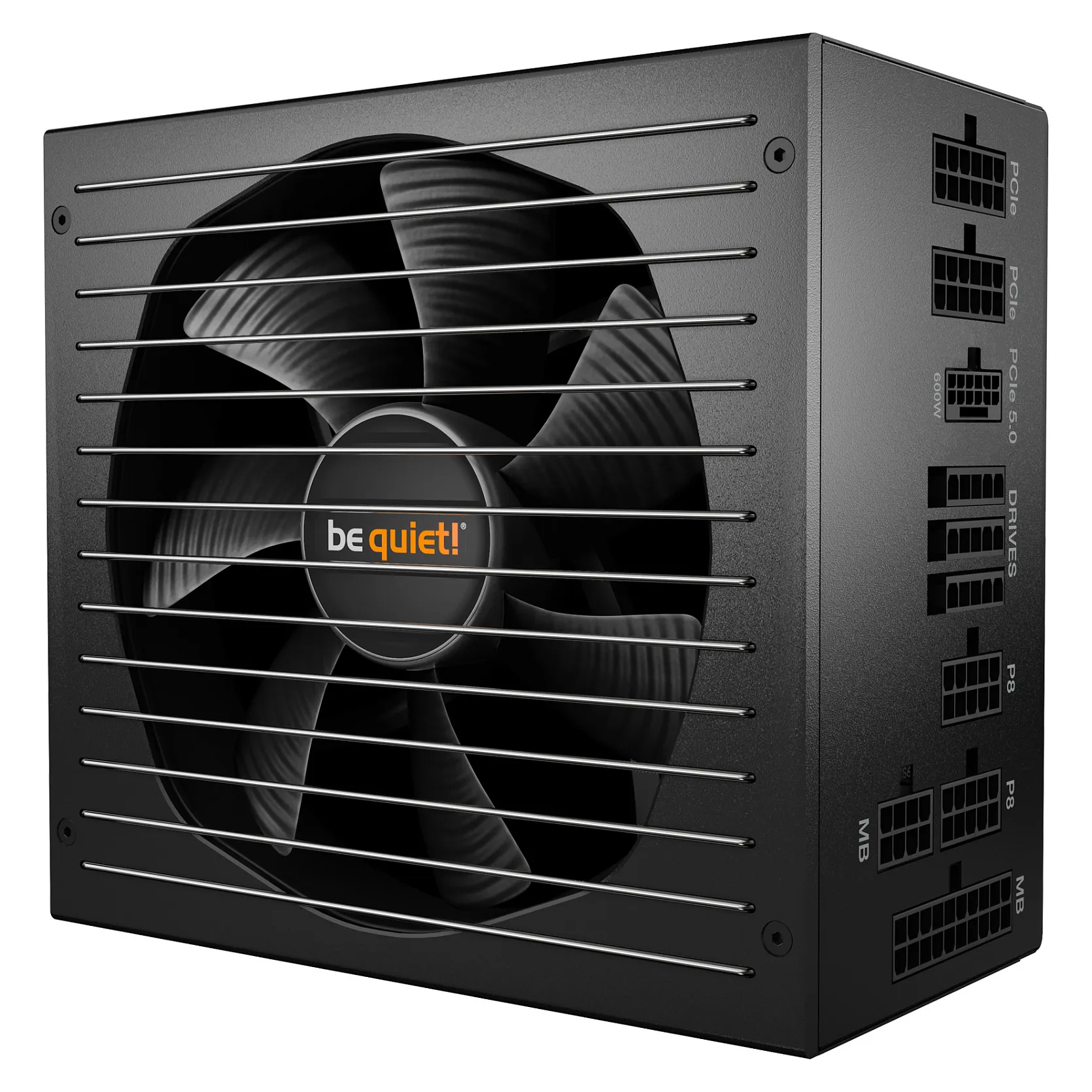

Straight Power 12 is a future-proof ATX 3.1 power supply with 80 PLUS® Platinum certification and virtually inaudible operation.
80 PLUS® PLATINUM CERTIFIED
Highly efficient operation
Straight Power 12 1500W is certified with 80 PLUS Platinum and an energy efficiency rating of up to 93.9%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation.
FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.1 specifications
Straight Power 12 1500W is an ATX 3.1 PSU and comes with both native integration of 12V-2×6 connectors for next-generation PCIe 5.1 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.
THE NEW STANDARD OF POWER
For massive transient loads
Straight Power 12 offers 1500W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Straight Power 12 1500W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

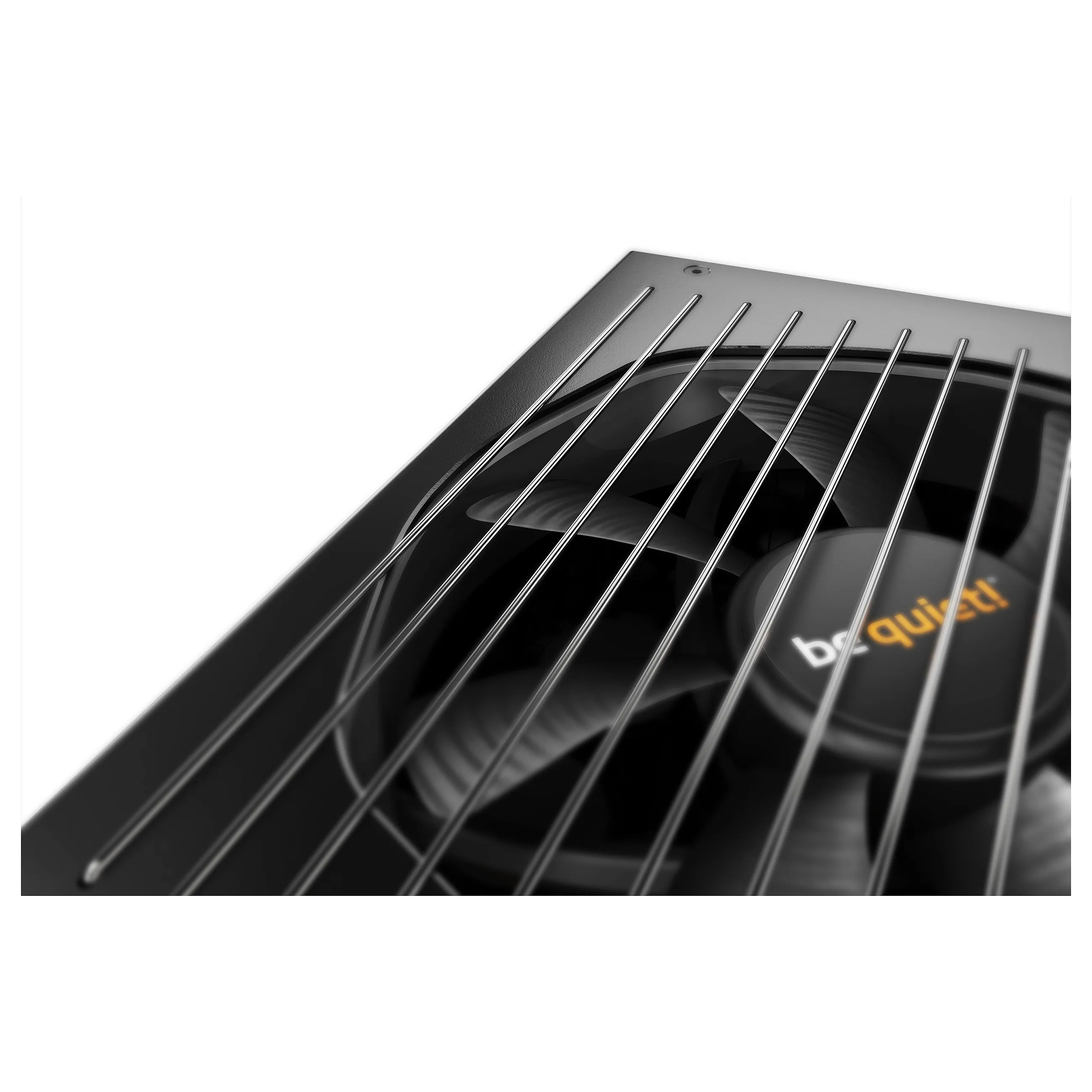

SILENT WINGS FAN
Provides virtually inaudible operation
The high-end Silent Wings fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal
power consumption.
FLAWLESS COOLING CONCEPT
For a longer lifespan

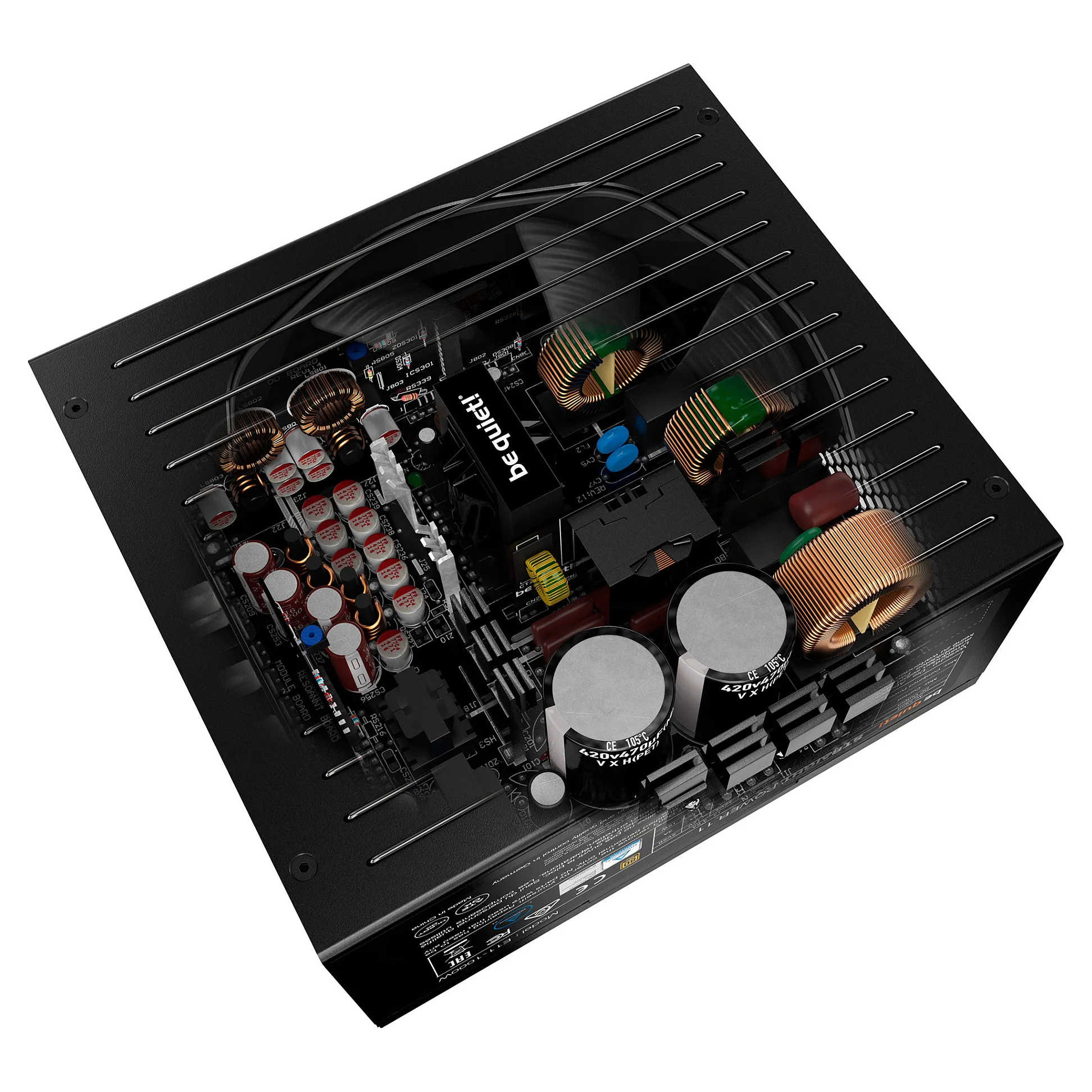

The funnel-shaped fan inlet of the Straight Power 12 1500W increases airflow while reducing unwanted turbulence for a higher cooling performance. The wire-free design inside allows the cool air to reach all components which ultimately leads to a longer lifespan.
STATE-OF-THE-ART TECHNOLOGIES
Rock-steady signal stability and efficiency
With full bridge LLC Straight Power 12 1500W offers advanced technologies, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.
JAPANESE 105°C CAPACITORS
A testament to high quality
Only premium components are used in Straight Power 12 1500W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105°C for stability, reliability, and a long operating life.
CONVENIENCE AND CONNECTIVITY
Maximum utility

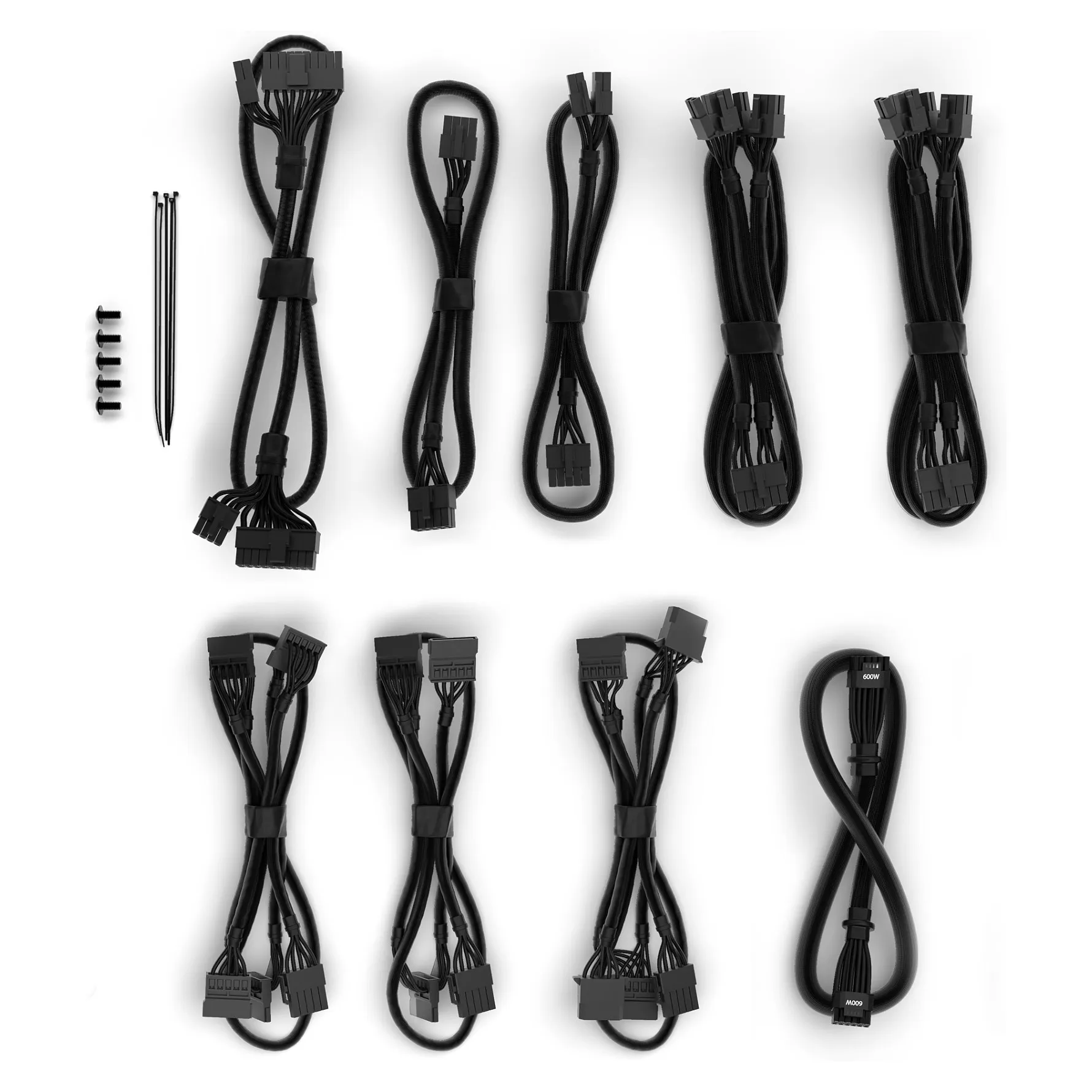

Modular, sleeved cables of up to 100cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling – even in the largest PC cases.
Total power: 750 W
Peak power: 820 W
AC input voltage: 110 – 240 V
AC input frequency: 50/60 Hz
Input current: 10/5 A
Power factor: 0.99
Combined power (+3.3V): 130 W
Combined power (+12V): 750 W
Combined power (+5V): 130 W
Max output current (+3.3V): 25 A
Max output current (+12V): 62.5 A
Max output current (+5V): 25 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 24.8 ms
Efficiency: 92.9%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

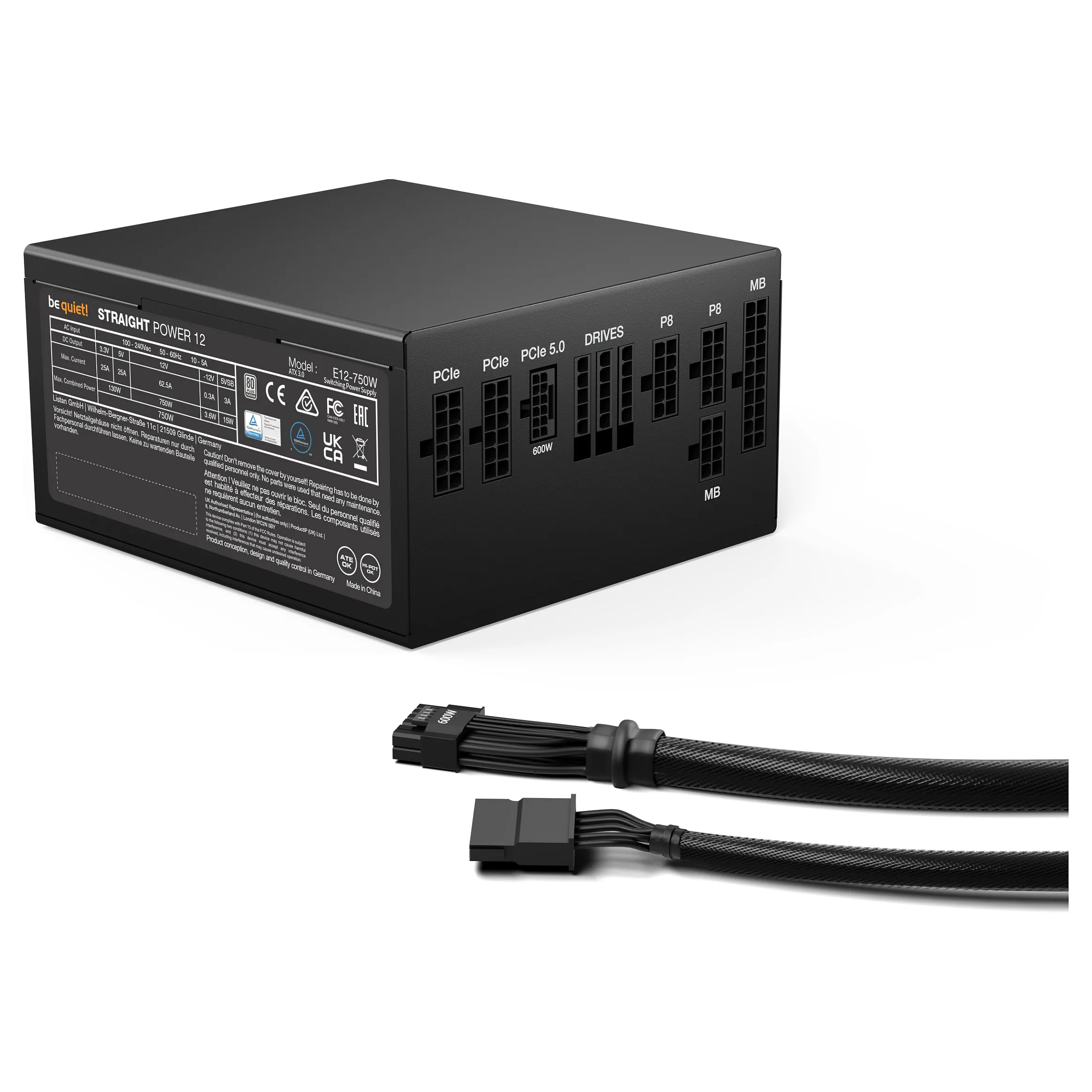

Ports & interfaces

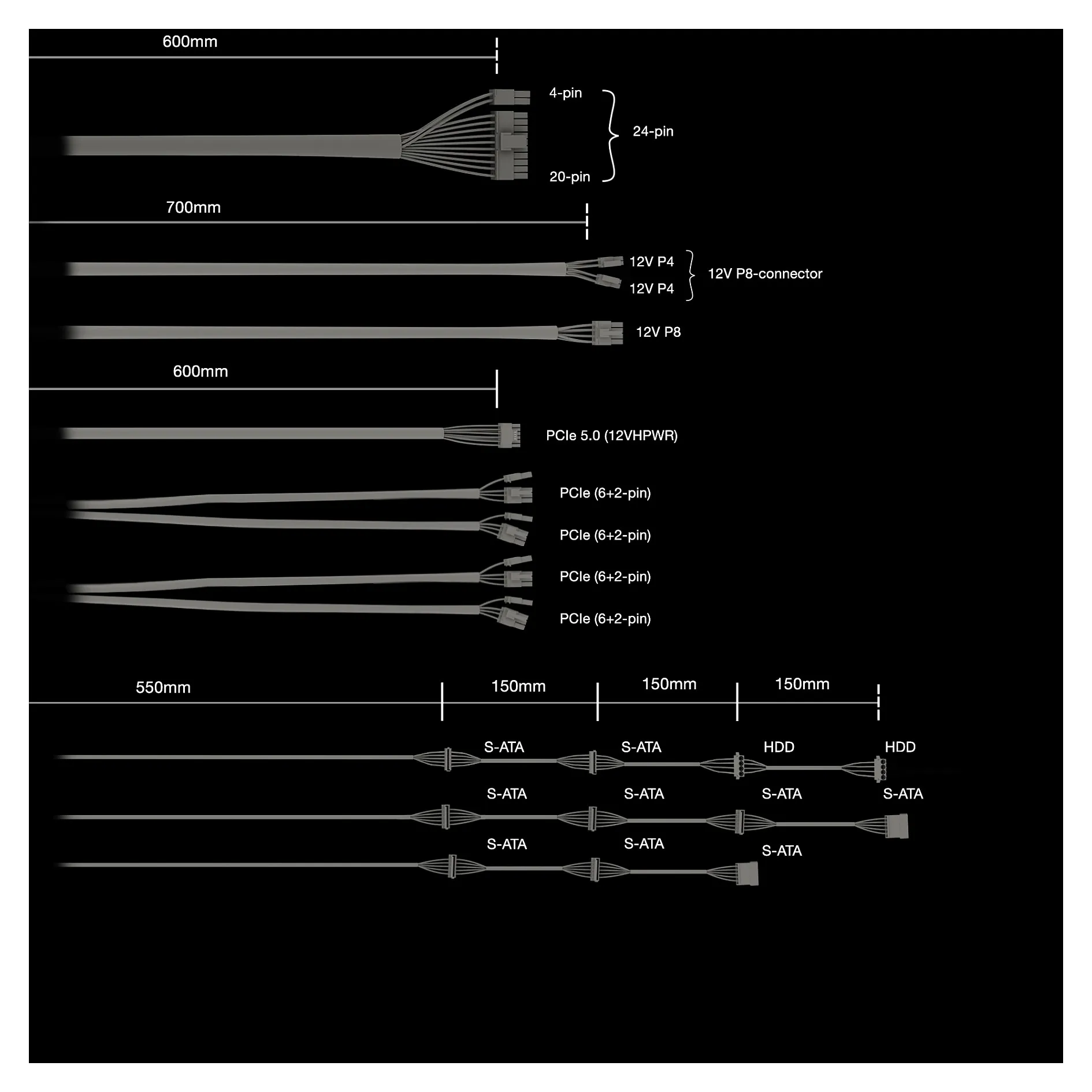

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 9
Number of PATA power connectors: 2
SATA power cable length: 550,700,850,1000 mm
Peripheral (Molex) power cable length: 1000,850 mm
Feature: EPS power connector (8-pin)
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 4
PCI Express power connectors (16-pin): 1
PCI Express power cable length: 60 cm
CPU power cable length: 70 cm
Feature: PCI Express connector
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Platinum
Supported motherboard form factors: ATX, micro ATX, Mini-ATX
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
EPS version: 2.92

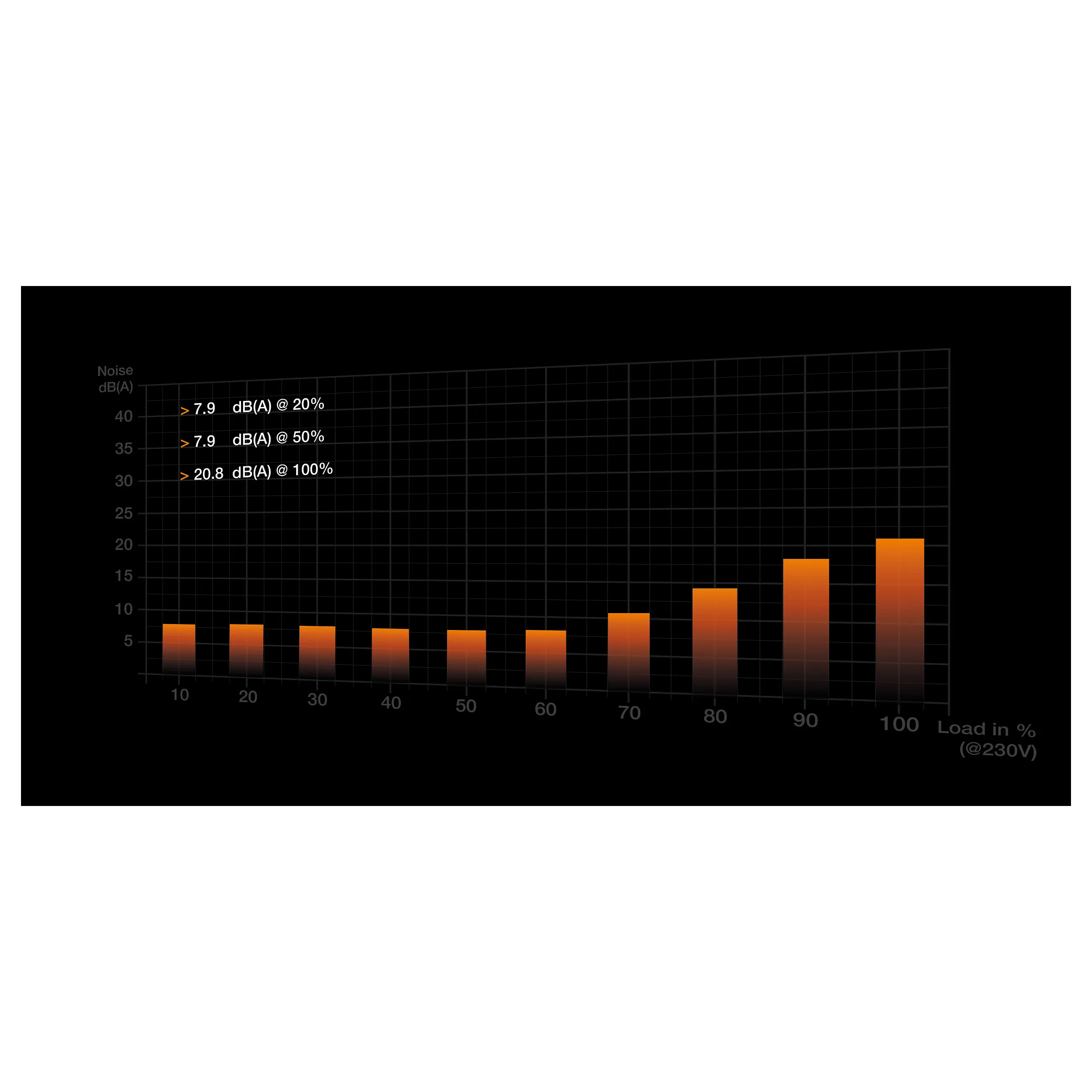

Noise level: 20.8 dB
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Fan speed: 0 – 1800 RPM

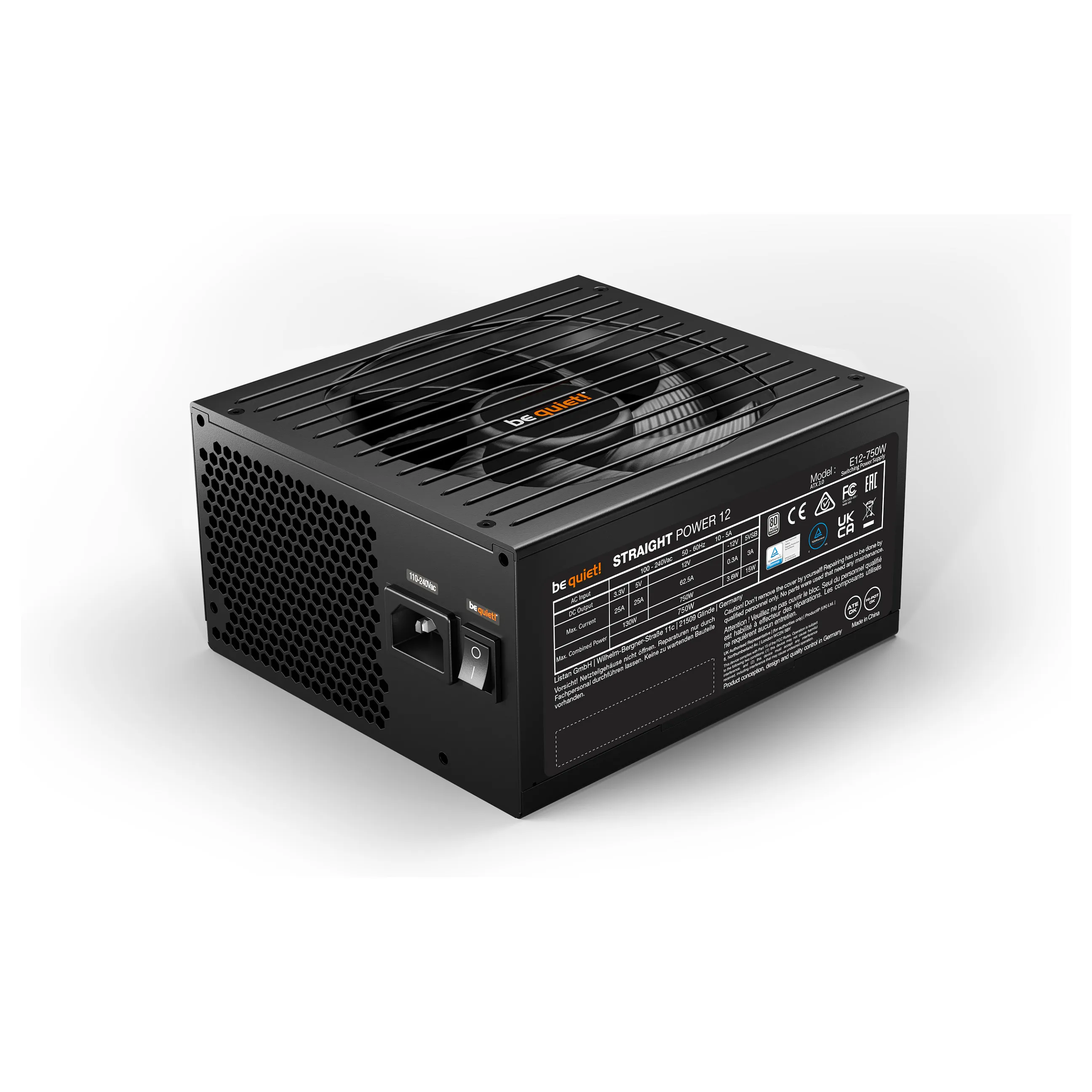

Feature: On/off switch
Operational conditions
Operating temperature (T-T): 0 – 40 °C

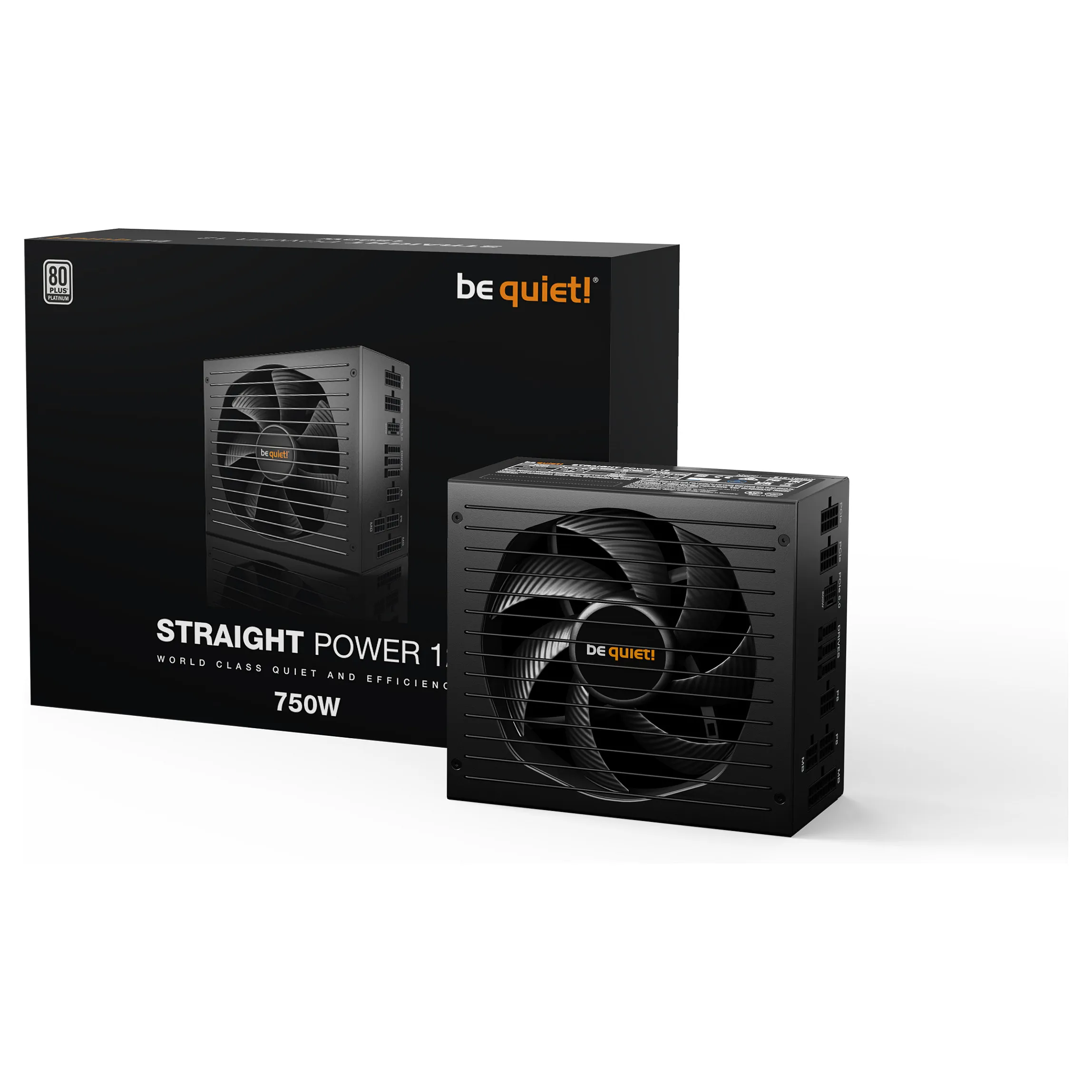

Packaging content
Cables included: CPU, SATA
Feature: Cable tie(s) included
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE
Weight & dimensions
Width: 150 mm
Depth: 160 mm
Height: 86 mm
Weight: 1.76 kg
Packaging data
Package width: 248 mm
Package depth: 328 mm
Package height: 102 mm
Package weight: 3.47 kg
Package type: Box
Technical details
Feature: Sustainability compliance
Logistics data
Shipping (inner) case length: 65.1 cm
Shipping (inner) case width: 28.2 cm
Shipping (inner) case height: 34.6 cm
Shipping (inner) case net weight: 22.4 kg
Products per shipping (inner) case: 6 pc(s)
Warranty period: 10 year(s)
