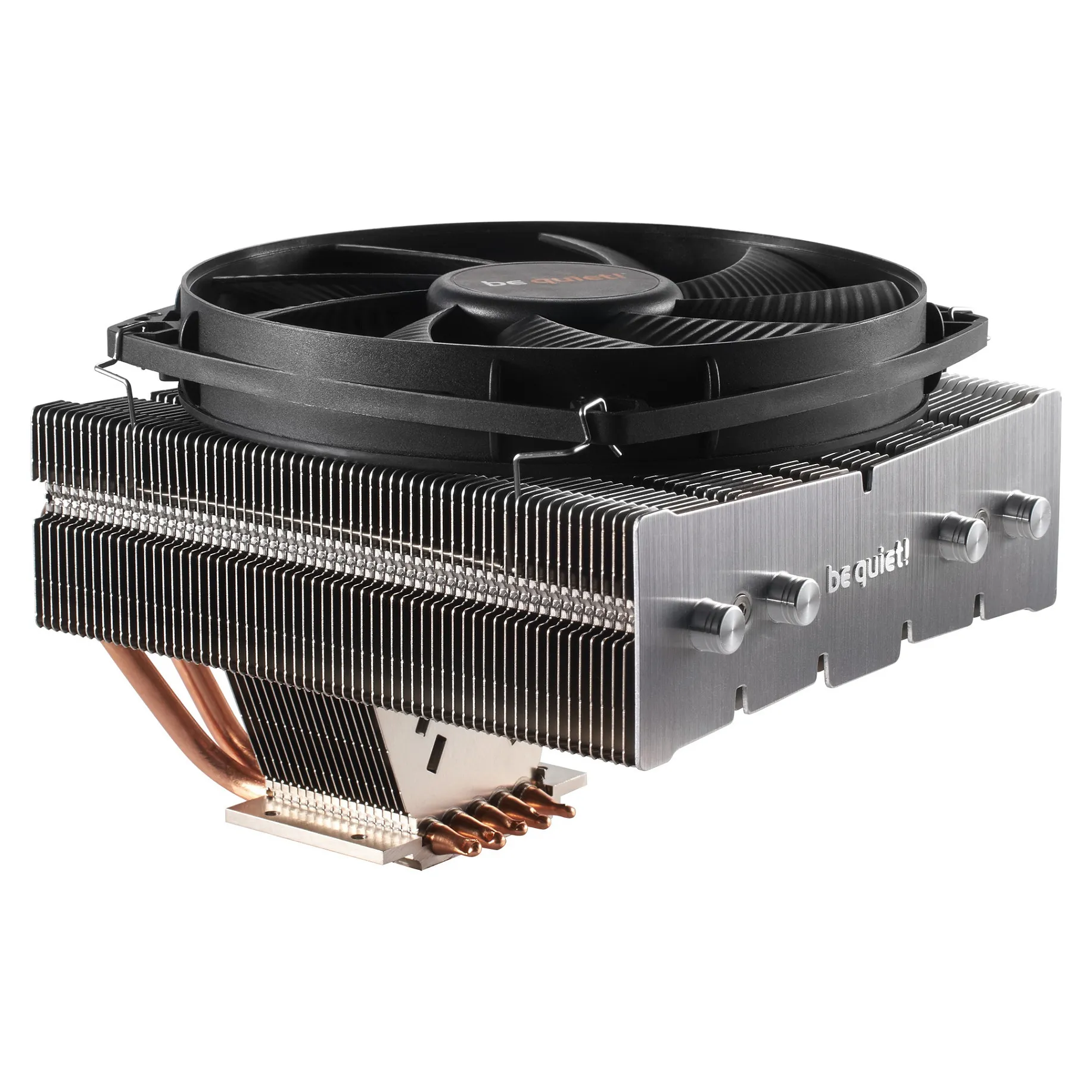

be quiet! Shadow Rock TF 2. Type: Cooler, Fan diameter: 13.5 cm, Rotational speed (min): 1400 RPM, Rotational speed (max): 2000 RPM, Airflow: 113.8 m³/h, Maximum air pressure: 2.1 mmH2O, Bearing type: Rifle bearing. Width: 137 mm, Depth: 165 mm, Height: 112 mm. Product colour: Black, Copper, Silver
Compact Cooling, Significantly Quiet
Shadow Rock TF 2 is the perfect cooler for PC systems with restricted space. It offers the best mix of performance and price in the premium compact CPU cooler segment.
HIGH-PERFORMANCE HEATPIPES
Offering the system an impressive cooling performance

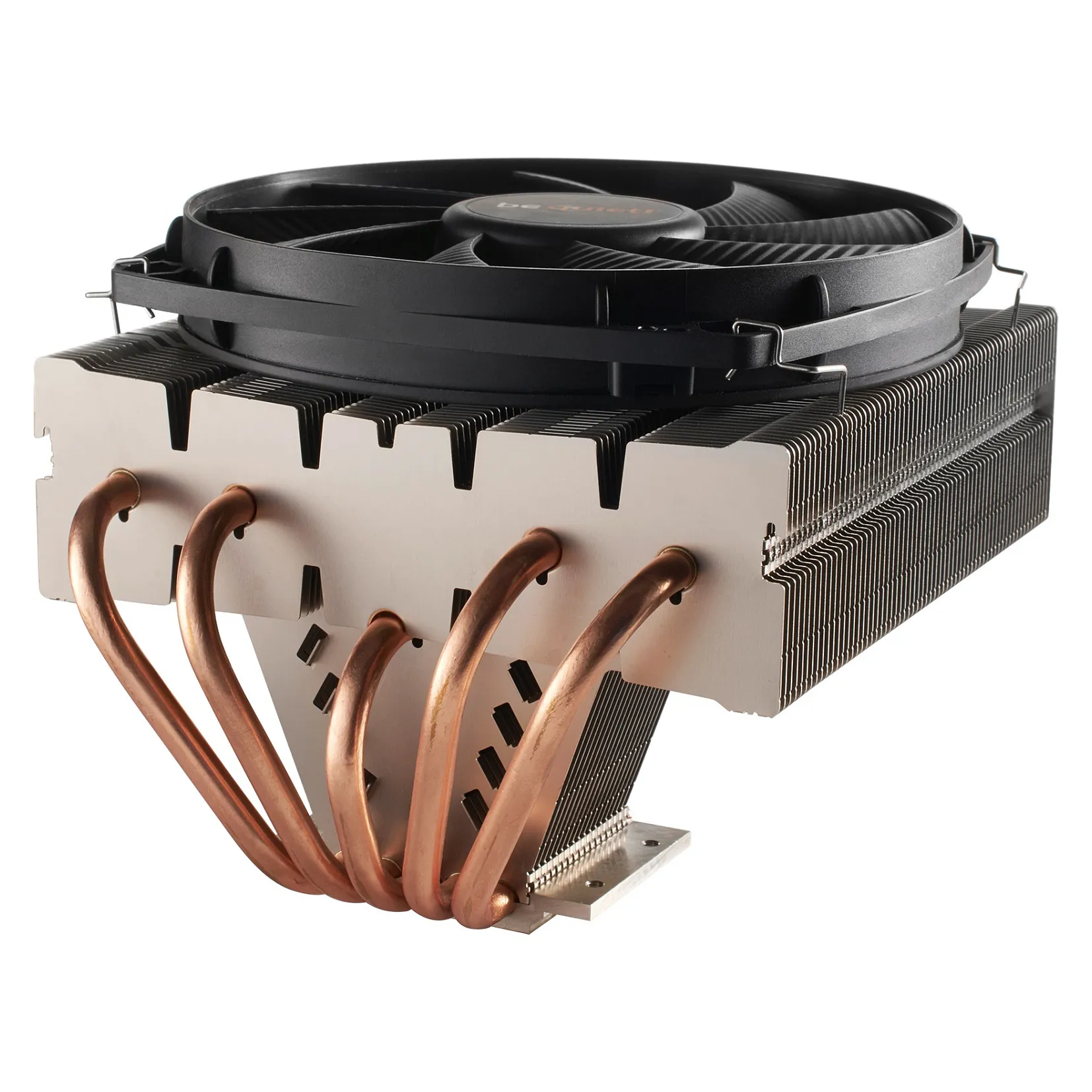

Shadow Rock TF 2 is equipped with five 6mm heat pipes. They carry the heat straight to optimal locations on the cooling fins and provide the system with a remarkable compact cooling capacity of 160W TDP.
DIRECT CONNECTION OF BASE PLATE AND FINS
For highly effective cooling power
An ingenious cooling concept: The baseplate and the cooling fins of Shadow Rock TF 2 are directly connected. This ensures fast heat transfer and optimum cooling efficiency.
EXTREMELY SILENCE-OPTIMIZED OPERATION
Even at 100% fan speed the overall noise is merely 24.4dB(A)
Silent operation typical for be quiet! products is achieved by the silence-optimized 135mm be quiet! fan. Delivering the best balance between cooling performance and quietness its smooth operation is thanks to the 9 airflow-optimized fan blades and durable rifle-bearing technology.
SMALL, DIAGONALLY ARRANGED FINS
Produce the perfect airflow
The small diagonal fins on the back of the cooler direct the airflow to guarantee efficient cooling for the CPU as well as components around the Intel® or AMD™ socket.
SPACE-SAVING TOP-FLOW DESIGN
Benefit from this highly functional concept
The top-flow design is perfect for anyone who has to cope with limited space restrictions when building a system. Shadow Rock TF 2 more than solves this problem
Suitable location: Processor
Type: Cooler
Fan diameter: 13.5 cm
Rotational speed (min): 1400 RPM
Rotational speed (max): 2000 RPM
Noise level (low speed): 11.9 dB
Noise level (high speed): 24.4 dB
Maximum airflow: 67.8 cfm
Airflow: 113.8 m³/h
Maximum air pressure: 2.1 mmH2O
Feature: Pulse-width modulation (PWM) support
Bearing type: Rifle bearing
Design
Product colour: Black, Copper, Silver
Material: Aluminium, Copper
Number of fans: 1 fan(s)
Number of fan blades: 9
Number of fins: 57
Fins material: Aluminium
Number of heat pipes: 5
Fan connector: 4-pin
Display type: Not applicable
Power
Power supply: 1.32 W
Rated voltage: 12 V
Rated current: 0.11 A
Weight & dimensions
Width: 137 mm
Depth: 165 mm
Height: 112 mm
Weight: 680 g
Fan dimensions (W x D x H): 135 x 135 x 22 mm
Heat pipes diameter: 6 mm
Cable length: 0.2 m
Package width: 178 mm
Package depth: 203 mm
Package height: 130 mm
Package weight: 1.09 kg
Packaging content

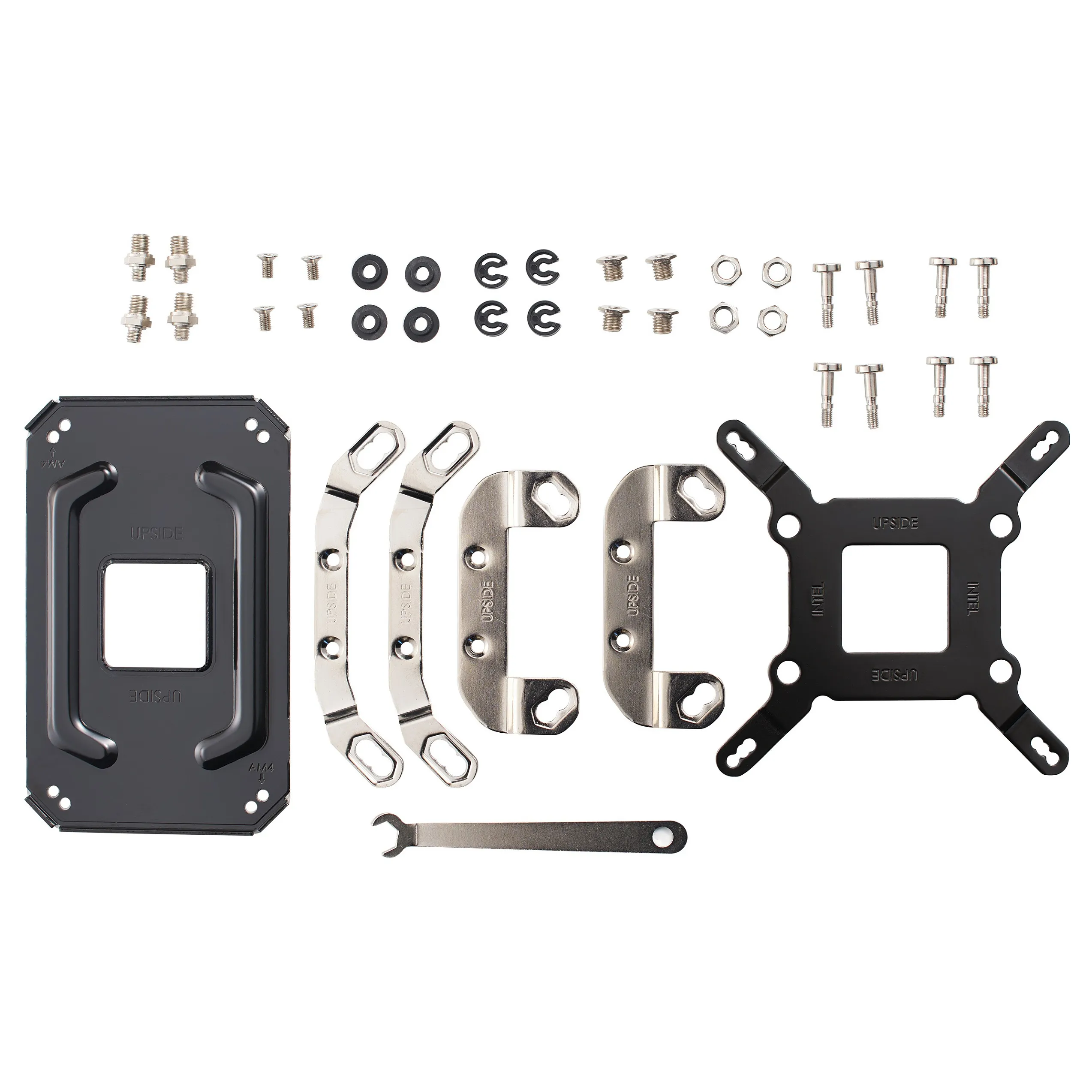

Feature: Screws included
Feature: Thermal pad included
Other features
Heatsink dimensions (W x D x H): 165 x 137 x 87 mm
Logistics data
Harmonized System (HS) code: 84733080
