Axis 02370-001. Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.1x, IEEE 802.3at, Cabling technology: 10/100Base-T(X). Connectivity technology: Wired. Product type: Network bridge, Mounting type: Shelf/wall-mounted, Product colour: Black. Power source type: DC, PoE, DC input voltage: 8 – 28 V, Power consumption (typical): 1.85 W. Certification: CISPR 35, CISPR 32 Class B, EAC, EN 55035, EN 55032 Class B, EN 61000-6-1, EN 61000-6-2, FCC Part…

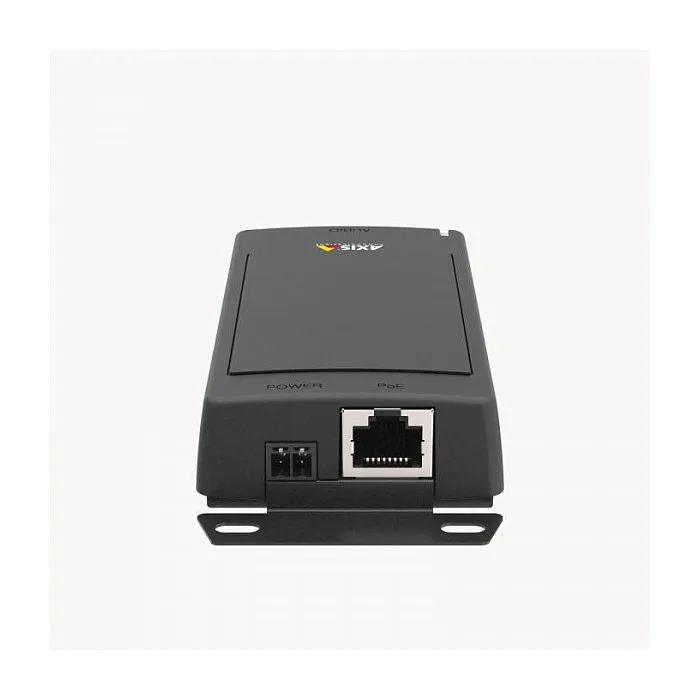

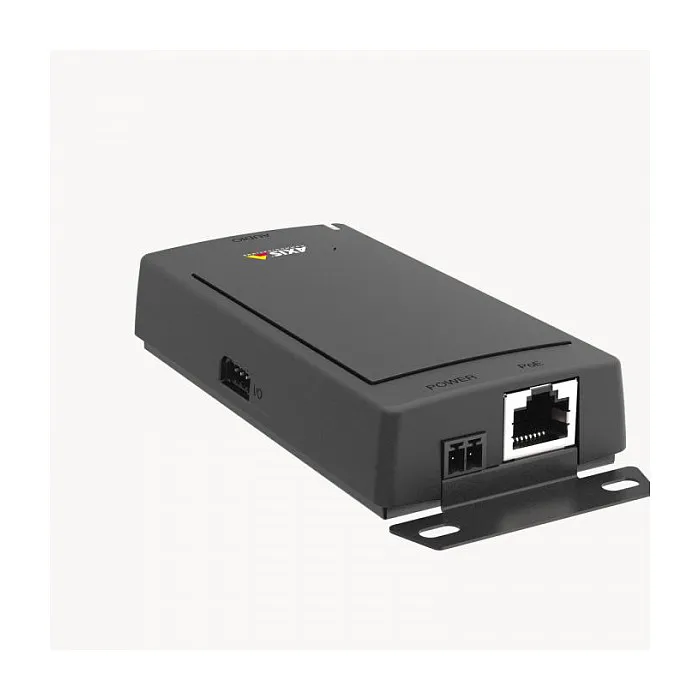

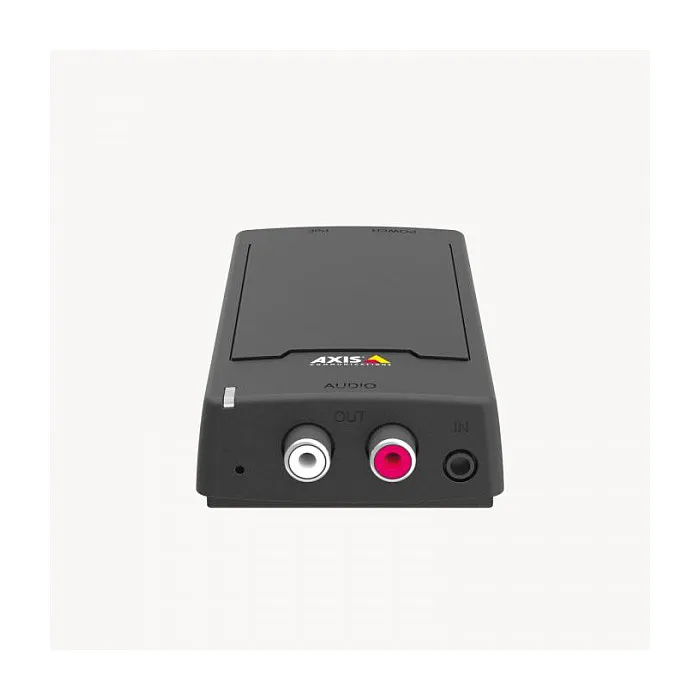

AXIS C8110 Network Audio Bridge is a smart solution based on open standards for connecting and combining analog and digital audio systems. Thanks to the built-in AXIS Audio Manager Edge application you can get functionalities like zone management and content scheduling in existing analog systems. With SIP support it is possible to connect an IP telephony system for callouts in analog speakers. With analog audio input you can easily integrate your intercom system or music streaming box with network speakers from Axis.
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100 Mbit/s
Networking standards: IEEE 802.1x, IEEE 802.3at
Cabling technology: 10/100Base-T(X)
Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack
Features
Product type: Network bridge
Mounting type: Shelf/wall-mounted
Product colour: Black
LED indicators: Yes
Power
Power source type: DC, PoE
DC input voltage: 8 – 28 V
Power consumption (typical): 1.85 W
Power consumption (max): 4 W
Operational conditions
Operating temperature (T-T): -20 – 50 °C
Operating relative humidity (H-H): 10 – 85%
Storage temperature (T-T): -40 – 65 °C
Storage relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 128 mm
Depth: 56 mm
Height: 24 mm
Weight: 107 g
Packaging content
Feature: Quick installation guide
Other features
Warranty period: 5 year(s)
Packaging data
Quantity per pack: 1 pc(s)
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100 Mbit/s
Networking standards: IEEE 802.1x, IEEE 802.3at
Cabling technology: 10/100Base-T(X)
Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack
Features
Product type: Network bridge
Mounting type: Shelf/wall-mounted
Product colour: Black
LED indicators: Yes
Power
Power source type: DC, PoE
DC input voltage: 8 – 28 V
Power consumption (typical): 1.85 W
Power consumption (max): 4 W
Operational conditions
Operating temperature (T-T): -20 – 50 °C
Operating relative humidity (H-H): 10 – 85%
Storage temperature (T-T): -40 – 65 °C
Storage relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 128 mm
Depth: 56 mm
Height: 24 mm
Weight: 107 g
Packaging content
Feature: Quick installation guide
Other features
Warranty period: 5 year(s)
Packaging data
Quantity per pack: 1 pc(s)
