ATEN 4-port USB 3.0 Peripheral Sharing Device. Maximum data transfer rate: 5 Gbit/s, Power connector: Micro-USB Type-B, Product colour: Black. Width: 36.6 mm, Depth: 93.7 mm, Height: 26.8 mm. Package depth: 163 mm, Package width: 70 mm, Package height: 195 mm. Products per master (outer) case: 10 pc(s), Master (outer) case gross weight: 6.46 kg, Master (outer) case length: 405 mm

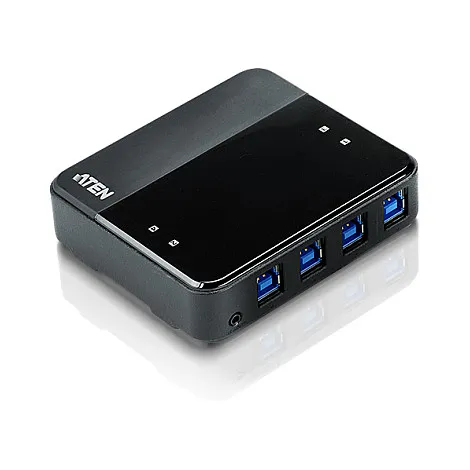

ATEN US434 is a 4-port USB 3.2 Gen1 peripheral sharing device that allows users to share four USB devices between 4 different computers. US434 is USB 3.2 Gen1 compliant, which can support data transfer rate up to 5Gbps and backwards compatible with USB 2.0 and USB1.1. It is perfect for high-bandwidth devices, such as USB docking stations or HD cameras.
1x US434 4 x 4 USB 3.2 Gen1 Peripheral Sharing Switch
2x LIN6-11C1-E11G USB 3.2 Gen1 Type-B to Type-A Cables (1,2m)
2x LIN6-11C1-E12G USB 3.2 Gen1 Type-B to Type-A Cables (1,8m)
1x Remote Port Selector
1x User Instructions
1x US434 4 x 4 USB 3.2 Gen1 Peripheral Sharing Switch
2x LIN6-11C1-E11G USB 3.2 Gen1 Type-B to Type-A Cables (1,2m)
2x LIN6-11C1-E12G USB 3.2 Gen1 Type-B to Type-A Cables (1,8m)
1x Remote Port Selector
1x User Instructions
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 4
Feature: DC-in jack
Performance
Maximum data transfer rate: 5 Gbit/s
Feature: Remote control function
LED indicators: Yes
Power connector: Micro-USB Type-B
Product colour: Black
Housing material: Plastic
Technical details
Compliance certificates: RoHS
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 0 – 80%
Weight & dimensions
Width: 36.6 mm
Depth: 93.7 mm
Height: 26.8 mm
Weight: 439 g
Packaging data
Package depth: 163 mm
Package width: 70 mm
Package height: 195 mm
Package weight: 576 g
Logistics data
Products per master (outer) case: 10 pc(s)
Master (outer) case gross weight: 6.46 kg
Master (outer) case length: 405 mm
Master (outer) case width: 395 mm
Master (outer) case height: 182 mm
Master (outer) case net weight: 4.39 kg
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 4
Feature: DC-in jack
Performance
Maximum data transfer rate: 5 Gbit/s
Feature: Remote control function
LED indicators: Yes
Power connector: Micro-USB Type-B
Product colour: Black
Housing material: Plastic
Technical details
Compliance certificates: RoHS
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 0 – 80%
Weight & dimensions
Width: 36.6 mm
Depth: 93.7 mm
Height: 26.8 mm
Weight: 439 g
Packaging data
Package depth: 163 mm
Package width: 70 mm
Package height: 195 mm
Package weight: 576 g
Logistics data
Products per master (outer) case: 10 pc(s)
Master (outer) case gross weight: 6.46 kg
Master (outer) case length: 405 mm
Master (outer) case width: 395 mm
Master (outer) case height: 182 mm
Master (outer) case net weight: 4.39 kg
