ATEN 1U 16A 12Port Basic PDU. PDU types: Basic, Rack capacity: 1U, Type: Single-phase. AC outlets quantity: 12 AC outlet(s), AC outlet types: C13 coupler, Power plug: C20 coupler. Nominal input voltage: 100 – 240 V, Maximum current: 16 A, AC input frequency: 50 / 60 Hz. Compliance certificates: RoHS. Width: 488 mm, Depth: 44 mm, Height: 45 mm

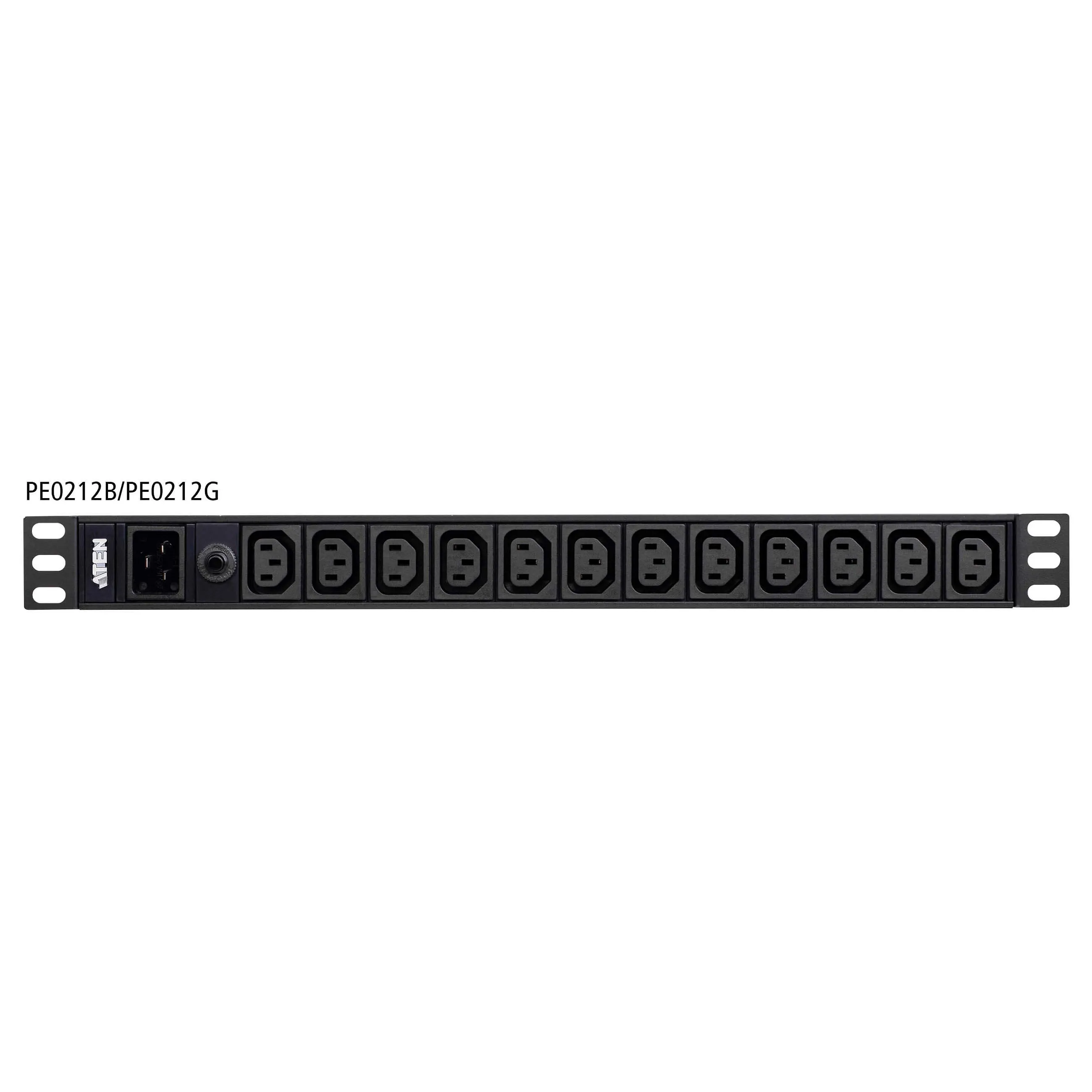

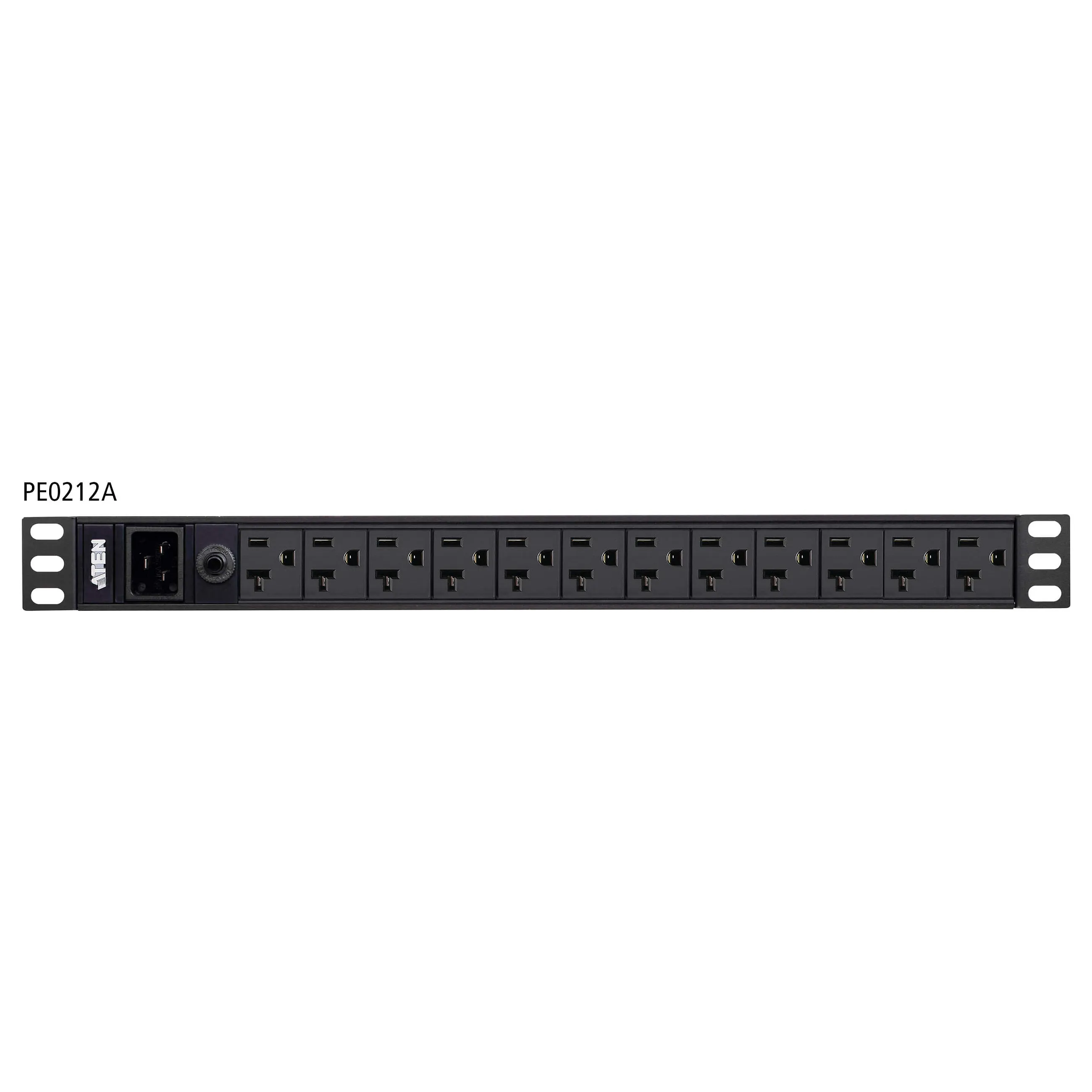

The PE0212 series Basic PDU contains 12 AC outlets and is available in IEC or NEMA socket configurations. The PE0212 series Basic PDU features a space-saving 1U design that allows it to be mounted vertically on the outside of a rack, resulting in a more effi cient use of space in the server room, while providing 12 AC outlets.
1x Basic PDU
1x LIN2-314K-P42G Power cord
1x User Instructions
1x Basic PDU
1x LIN2-314K-P42G Power cord
1x User Instructions
Design
PDU types: Basic
Type: Single-phase
Rack capacity: 1U
Housing material: Aluminium
Product colour: Black
Ports & interfaces
AC outlets quantity: 12 AC outlet(s)
Power plug: C20 coupler
AC outlet types: C13 coupler
Power
Nominal input voltage: 100 – 240 V
AC input frequency: 50 / 60 Hz
Maximum current: 16 A
Load capacity: 3840 VA
Power protection features: Over current
Certificates
Compliance certificates: RoHS
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Operating altitude: 0 – 3000 m
Weight & dimensions
Width: 488 mm
Depth: 44 mm
Height: 45 mm
Weight: 1.3 kg
Packaging data
Package weight: 1.49 kg
Package width: 112 mm
Package depth: 697 mm
Package height: 82 mm
Logistics data
Master (outer) case net weight: 13 kg
Master (outer) case width: 595 mm
Master (outer) case length: 710 mm
Master (outer) case height: 188 mm
Master (outer) case gross weight: 14.9 kg
Products per master (outer) case: 10 pc(s)
PDU types: Basic
Type: Single-phase
Rack capacity: 1U
Housing material: Aluminium
Product colour: Black
Ports & interfaces
AC outlets quantity: 12 AC outlet(s)
Power plug: C20 coupler
AC outlet types: C13 coupler
Power
Nominal input voltage: 100 – 240 V
AC input frequency: 50 / 60 Hz
Maximum current: 16 A
Load capacity: 3840 VA
Power protection features: Over current
Certificates
Compliance certificates: RoHS
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Operating altitude: 0 – 3000 m
Weight & dimensions
Width: 488 mm
Depth: 44 mm
Height: 45 mm
Weight: 1.3 kg
Packaging data
Package weight: 1.49 kg
Package width: 112 mm
Package depth: 697 mm
Package height: 82 mm
Logistics data
Master (outer) case net weight: 13 kg
Master (outer) case width: 595 mm
Master (outer) case length: 710 mm
Master (outer) case height: 188 mm
Master (outer) case gross weight: 14.9 kg
Products per master (outer) case: 10 pc(s)
