ATEN 2-Port USB – PS/2 VGA KVM Switch (KVM Cables included). Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Video bandwidth: 60 Hz. Product colour: Light grey, Housing material: Metal. Power source: DC, Input voltage: 5 V, Power consumption (typical): 0.72 W. Width: 88 mm, Depth: 140 mm, Height: 55.5 mm

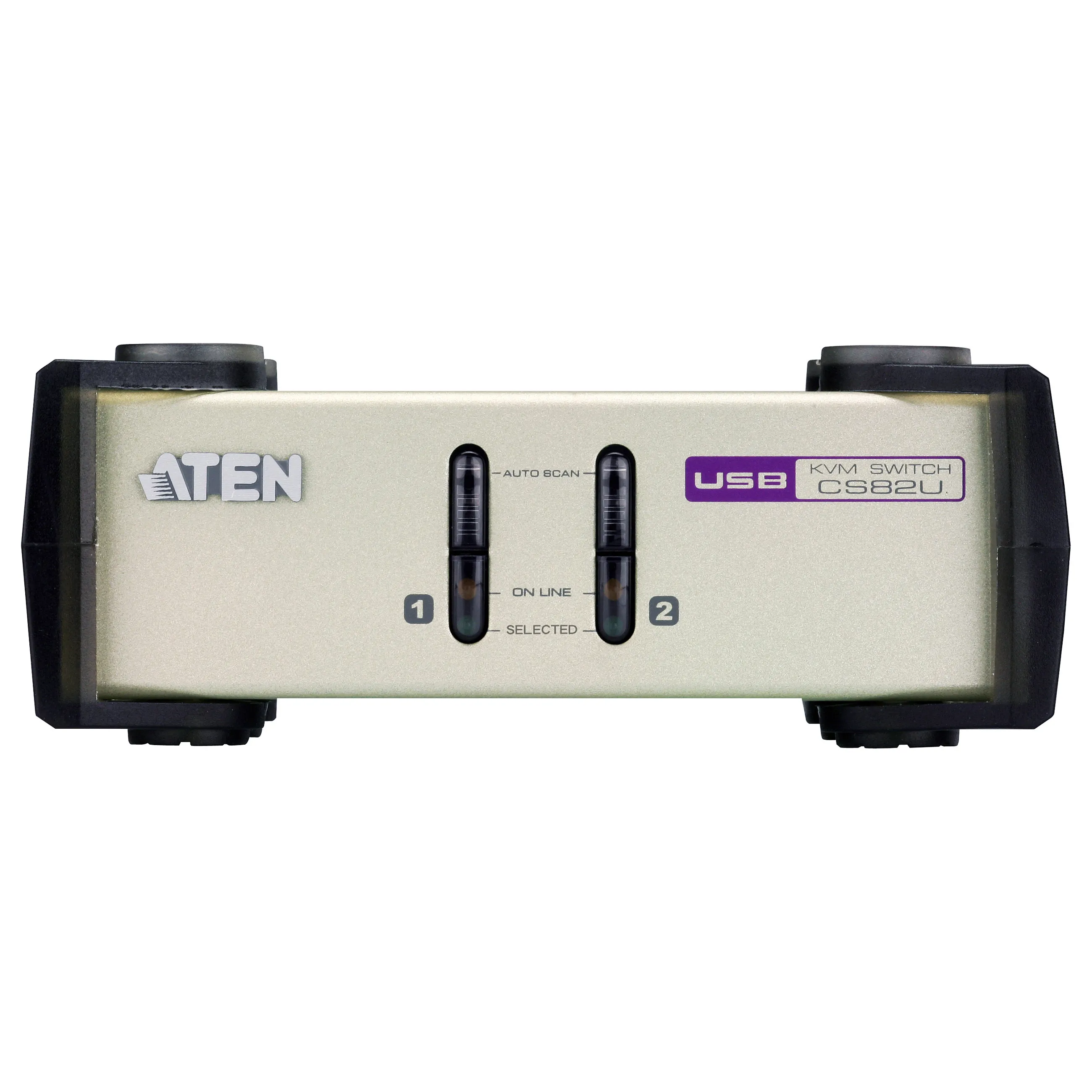

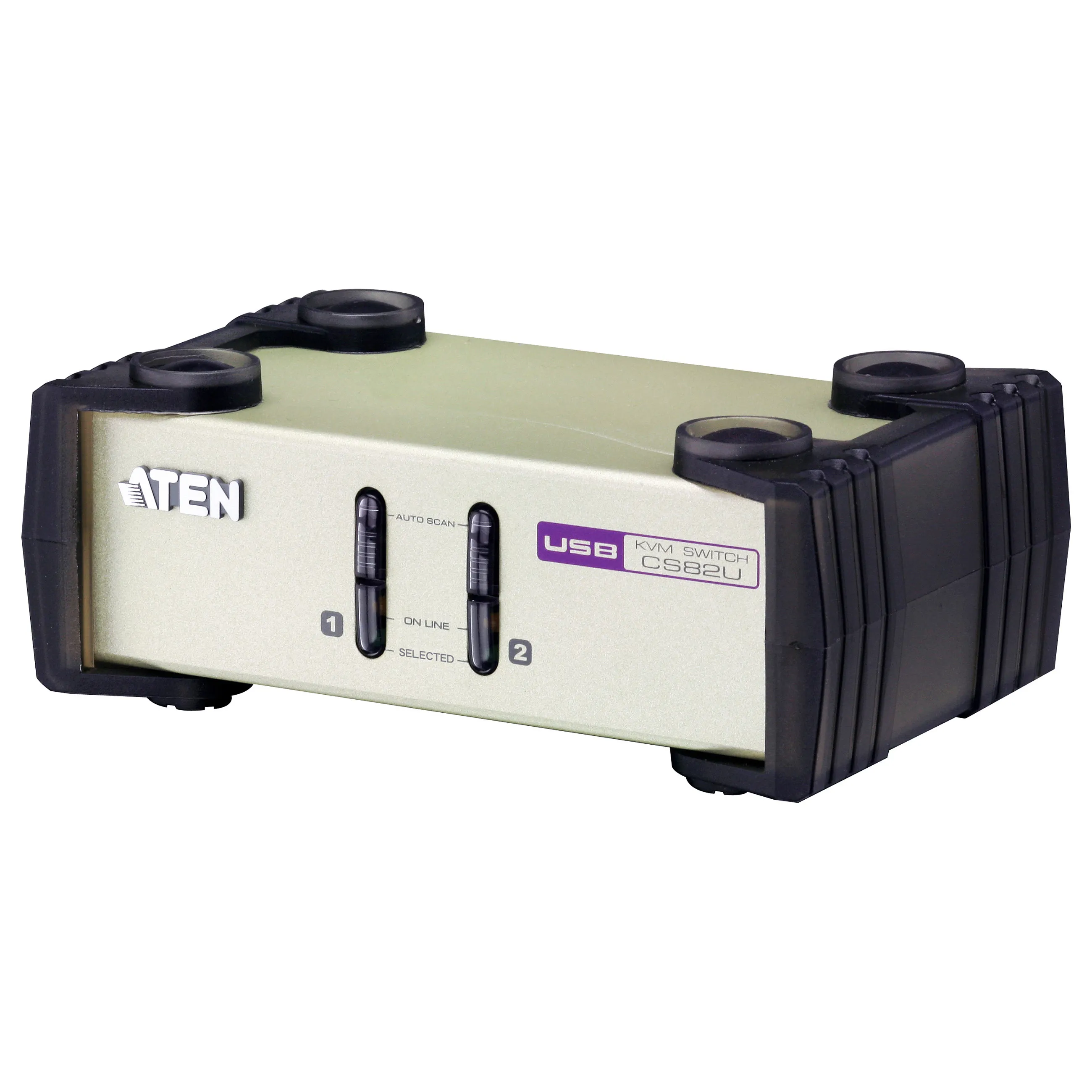

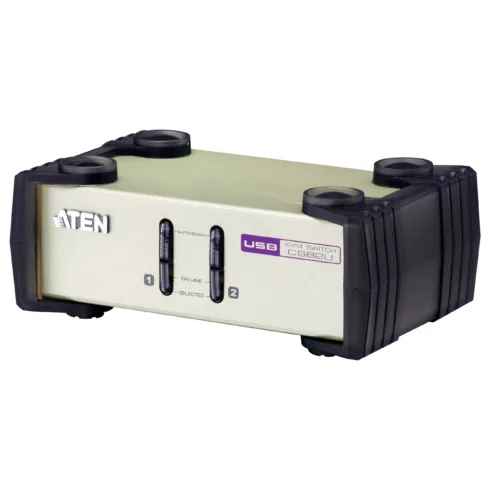

The CS82U PS/2-USB KVM Switch is a desktop control unit that allows users to access two computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS82U comes with ATEN’s new Video DynaSync™ technology, which eliminates boot-up display problems and optimizes resolution.
1x CS82U PS/2-USB KVM Switch
2x 2L-5302UP PS/2 USB KVM Cables
1x User Instructions
1x CS82U PS/2-USB KVM Switch
2x 2L-5302UP PS/2 USB KVM Cables
1x User Instructions
Ports & interfaces
Number of computers controlled: 2
Keyboard port type: USB
Mouse port type: USB
Video port type: VGA
VGA (D-Sub) ports quantity: 2
Console ports: USB A, VGA (D-Sub)
Console USB ports quantity: 2
Feature: DC-in jack
Performance
HD type: QXGA
Maximum resolution: 2048 x 1536 pixels
Video bandwidth: 60 Hz
Scan interval: 3,5,10,20 s
Feature: DDC2B support
Design
Product colour: Light grey
Housing material: Metal
LED indicators: Yes
Feature: Push button
Feature: Hot keys
Power
Power source: DC
Input voltage: 5 V
Power consumption (typical): 0.72 W
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 0 – 80%
Storage relative humidity (H-H): 0 – 80%
Weight & dimensions
Width: 88 mm
Depth: 140 mm
Height: 55.5 mm
Weight: 869 g
Packaging data
Package width: 59 mm
Package depth: 239 mm
Package height: 175 mm
Package weight: 981 g
Packaging content
Feature: Quick installation guide
Feature: Manual
Logistics data
Master (outer) case net weight: 8.69 kg
Harmonized System (HS) code: 85176200
Master (outer) case width: 328 mm
Master (outer) case length: 497 mm
Master (outer) case height: 196 mm
Master (outer) case gross weight: 10.4 kg
Products per master (outer) case: 10 pc(s)
Number of computers controlled: 2
Keyboard port type: USB
Mouse port type: USB
Video port type: VGA
VGA (D-Sub) ports quantity: 2
Console ports: USB A, VGA (D-Sub)
Console USB ports quantity: 2
Feature: DC-in jack
Performance
HD type: QXGA
Maximum resolution: 2048 x 1536 pixels
Video bandwidth: 60 Hz
Scan interval: 3,5,10,20 s
Feature: DDC2B support
Design
Product colour: Light grey
Housing material: Metal
LED indicators: Yes
Feature: Push button
Feature: Hot keys
Power
Power source: DC
Input voltage: 5 V
Power consumption (typical): 0.72 W
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 0 – 80%
Storage relative humidity (H-H): 0 – 80%
Weight & dimensions
Width: 88 mm
Depth: 140 mm
Height: 55.5 mm
Weight: 869 g
Packaging data
Package width: 59 mm
Package depth: 239 mm
Package height: 175 mm
Package weight: 981 g
Packaging content
Feature: Quick installation guide
Feature: Manual
Logistics data
Master (outer) case net weight: 8.69 kg
Harmonized System (HS) code: 85176200
Master (outer) case width: 328 mm
Master (outer) case length: 497 mm
Master (outer) case height: 196 mm
Master (outer) case gross weight: 10.4 kg
Products per master (outer) case: 10 pc(s)
