ATEN 4-Port USB 3.0 4K DisplayPort MST KVMP Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal, Plastic. Power source: DC, Input voltage: 5 V, Power consumption (typical): 4.89 W. Width: 270 mm, Depth: 88 mm, Height: 55.5 mm

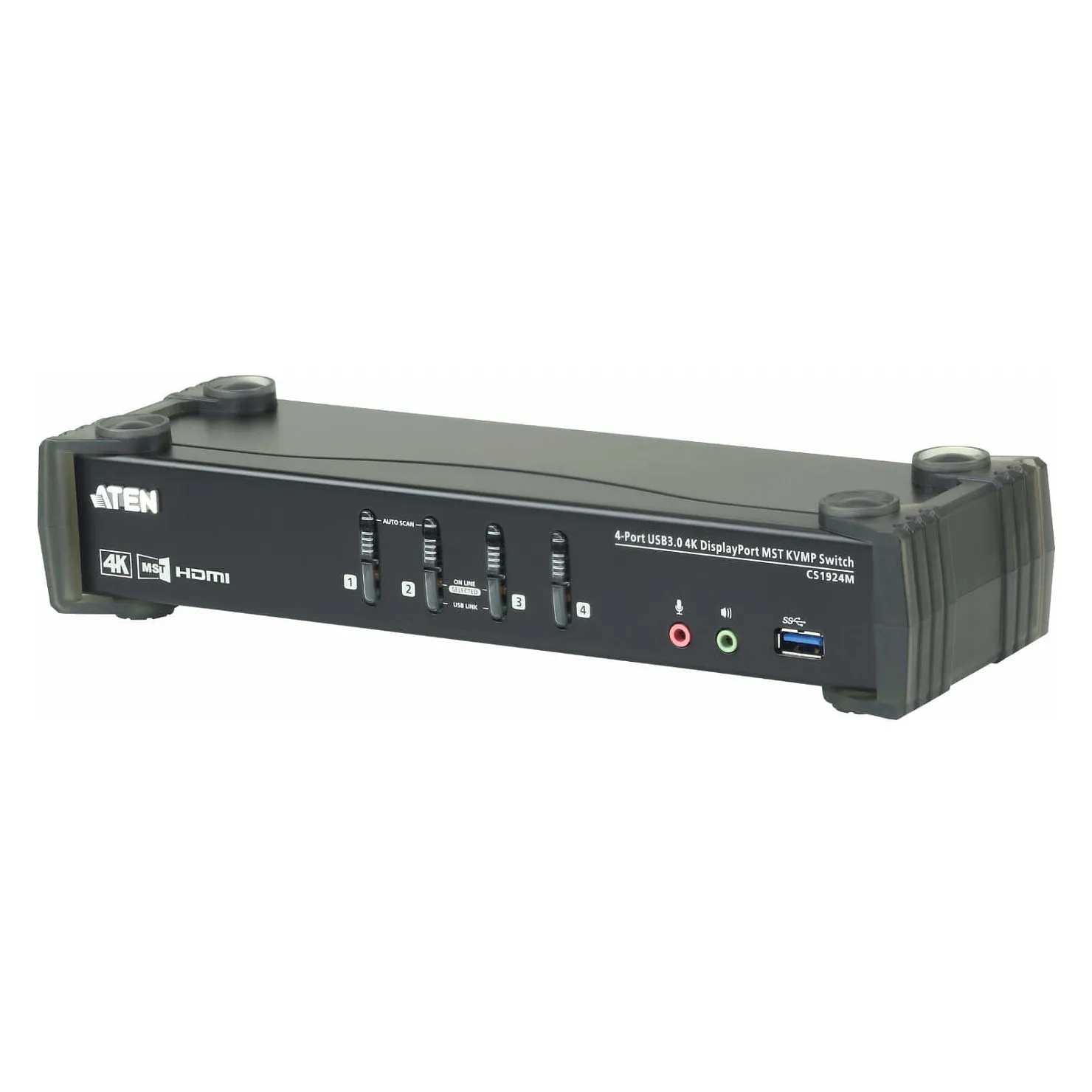

Incorporating the latest Multi-Stream Transport (MST) technology, the CS1924M 4-Port USB 3.0 4K DisplayPort MST KVMP™ Switch is the world’s first DisplayPort KVM switch with a built-in MST hub. The CS1924M enables users to adopt two console displays from a single DisplayPort 1.2 video source, providing an extended desktop mode and splitter mode at resolutions up to 4K for multitasking across two displays while reducing bulky cable connections.

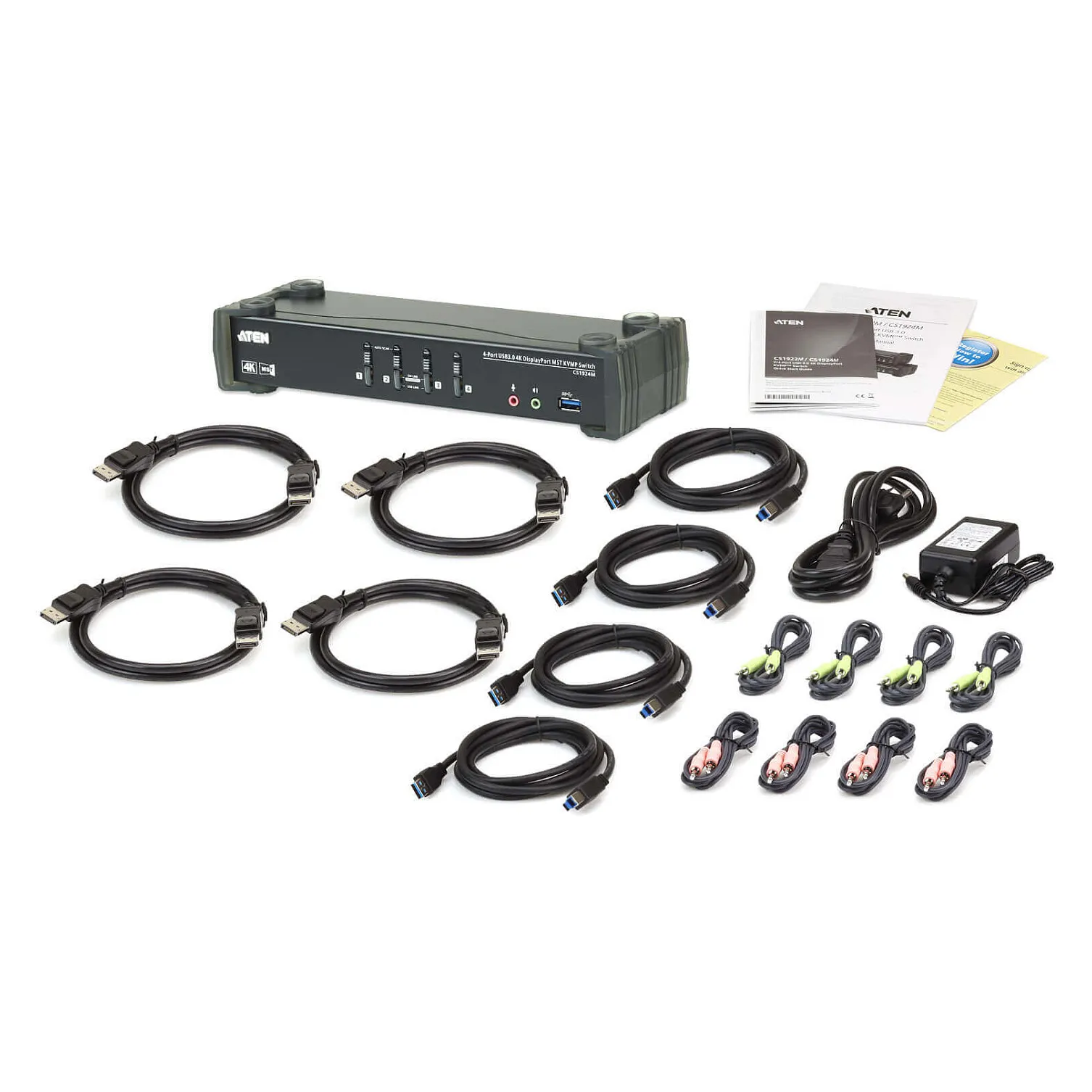

1x 4-Port USB 3.0 4K DisplayPort MST KVMP™ Switch
4x LIN5-20K1-K13G DisplayPort 1.2 Cables (1.5m/5ft)
4x LIN6-11C1-E12G USB Cables (USB 3.0-A to USB 3.0-B; 1.8m/6ft)
8x LIN5-0205-21DG/CD Audio Cables (1.8m/6ft)
1x LIN2-418K-E12G / 0AD8-8005-40MG Power Adapter
1x User Instructions
1x 4-Port USB 3.0 4K DisplayPort MST KVMP™ Switch
4x LIN5-20K1-K13G DisplayPort 1.2 Cables (1.5m/5ft)
4x LIN6-11C1-E12G USB Cables (USB 3.0-A to USB 3.0-B; 1.8m/6ft)
8x LIN5-0205-21DG/CD Audio Cables (1.8m/6ft)
1x LIN2-418K-E12G / 0AD8-8005-40MG Power Adapter
1x User Instructions
Ports & interfaces
Number of computers controlled: 4
Keyboard port type: USB
Mouse port type: USB
Video port type: HDMI
DisplayPorts quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 2
Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A
Console USB ports quantity: 2
Feature: USB hub
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
USB connector type: USB Type-A, USB Type-B
Feature: Audio connections
Headphone outputs: 6
Number of microphone inputs: 6
Feature: DC-in jack
Performance
HD type: 4K Ultra HD
Maximum resolution: 4096 x 2160 pixels
Video bandwidth: 60 Hz
Scan interval: 1,5,99 s
Design
Product colour: Black
Housing material: Metal, Plastic
LED indicators: Yes
Feature: Push button
Feature: Hot keys
Power
Power source: DC
Input voltage: 5 V
Power consumption (typical): 4.89 W
System requirements
Windows operating systems supported: Yes
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 0 – 80%
Storage relative humidity (H-H): 0 – 80%
Weight & dimensions
Width: 270 mm
Depth: 88 mm
Height: 55.5 mm
Weight: 2.01 kg
Packaging data
Package width: 98 mm
Package depth: 325 mm
Package height: 210 mm
Package weight: 2.56 kg
Packaging content
Feature: Quick installation guide
Feature: Manual
Logistics data
Master (outer) case net weight: 10.1 kg
Harmonized System (HS) code: 85176200
Master (outer) case width: 342 mm
Master (outer) case length: 512 mm
Master (outer) case height: 232 mm
Master (outer) case gross weight: 13.7 kg
Products per master (outer) case: 5 pc(s)
