ATEN 16-Port USB – PS/2 VGA KVM Over IP Switch with USB Peripheral port. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. Security algorithms: 128-bit RC4, SSL/TLS. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Video bandwidth: 60 Hz. Product colour: Black, Rack capacity: 1U, Housing material: Metal. Power source: DC, Input voltage: 5.3 V, Power consumption (typical): 11 W

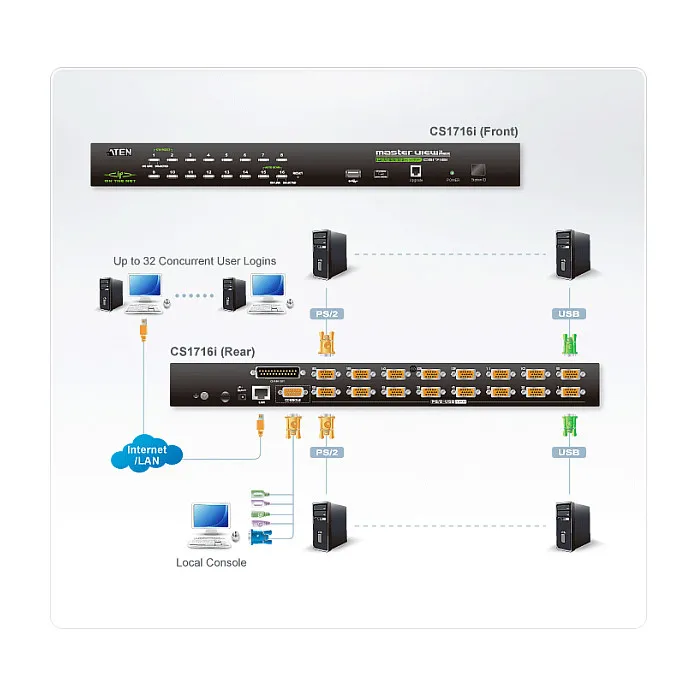

The special KVM cables and the Aten feature “Video DynaSync”, makes sure that an optimal video resolution can be maintained. In addition it’s easy to expand the KVM installation. By using Daisy Chain cables the number of accessible servers can be increased up to 256.
1x CS1716i KVM over IP Switch
1x 2L-5202P PS/2 KVM Cable
1x 2L-5202U USB KVM Cable
1x LIN5-27X6-U21G Console Cable
1x Firmware Upgrade Cable
1x Mounting Kit
1x Foot Pad Set (4 pcs)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
Number of computers controlled: 256
Keyboard port type: USB, PS/2
Mouse port type: USB, PS/2
Video port type: VGA
VGA (D-Sub) ports quantity: 16
Console ports: USB A, VGA (D-Sub)
Console USB ports quantity: 1
Network
Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Security algorithms: 128-bit RC4, SSL/TLS
Performance
HD type: QXGA
Maximum resolution: 2048 x 1536 pixels
Video bandwidth: 60 Hz
Scan interval: 1,255 s
Feature: DDC2B support
Feature: HDCP
Feature: Hot-Plug support
Feature: Daisy chain
Number of users: 32 user(s)
Feature: Firmware upgradeable
Design
Feature: Rack mounting
Rack capacity: 1U
Product colour: Black
Housing material: Metal
LED indicators: Yes
Feature: Push button
Feature: Hot keys
Display
Feature: On Screen Display (OSD)
Power
Power source: DC
Input voltage: 5.3 V
Power consumption (typical): 11 W
System requirements
Windows operating systems supported: Yes
Linux operating systems supported: Yes
Mac operating systems supported: Yes
Sustainability
Compliance certificates: RoHS
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 0 – 80%
Weight & dimensions
Width: 437.2 mm
Depth: 159.6 mm
Height: 44 mm
Weight: 3.59 kg
Packaging data
Package width: 116 mm
Package depth: 540 mm
Package height: 233 mm
Package weight: 3.98 kg
Packaging content
Cables included: DC, KVM
Feature: Quick installation guide
Feature: Manual
Feature: AC adapter included
Feature: Software included
Feature: Rack mount kit
Logistics data
Master (outer) case net weight: 10.8 kg
Harmonized System (HS) code: 85176200
Master (outer) case width: 375 mm
Master (outer) case length: 565 mm
Master (outer) case height: 258 mm
Master (outer) case gross weight: 12.6 kg
Products per master (outer) case: 3 pc(s)
