ATEN 16-Port USB – PS/2 VGA KVM Switch with USB Peripheral port. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Scan interval: 1,255 s. Product colour: Black, Rack capacity: 1U, Housing material: Metal. Power source: DC, Input voltage: 5.3 V, Power consumption (typical): 6.6 W. Compliance certificates: RoHS

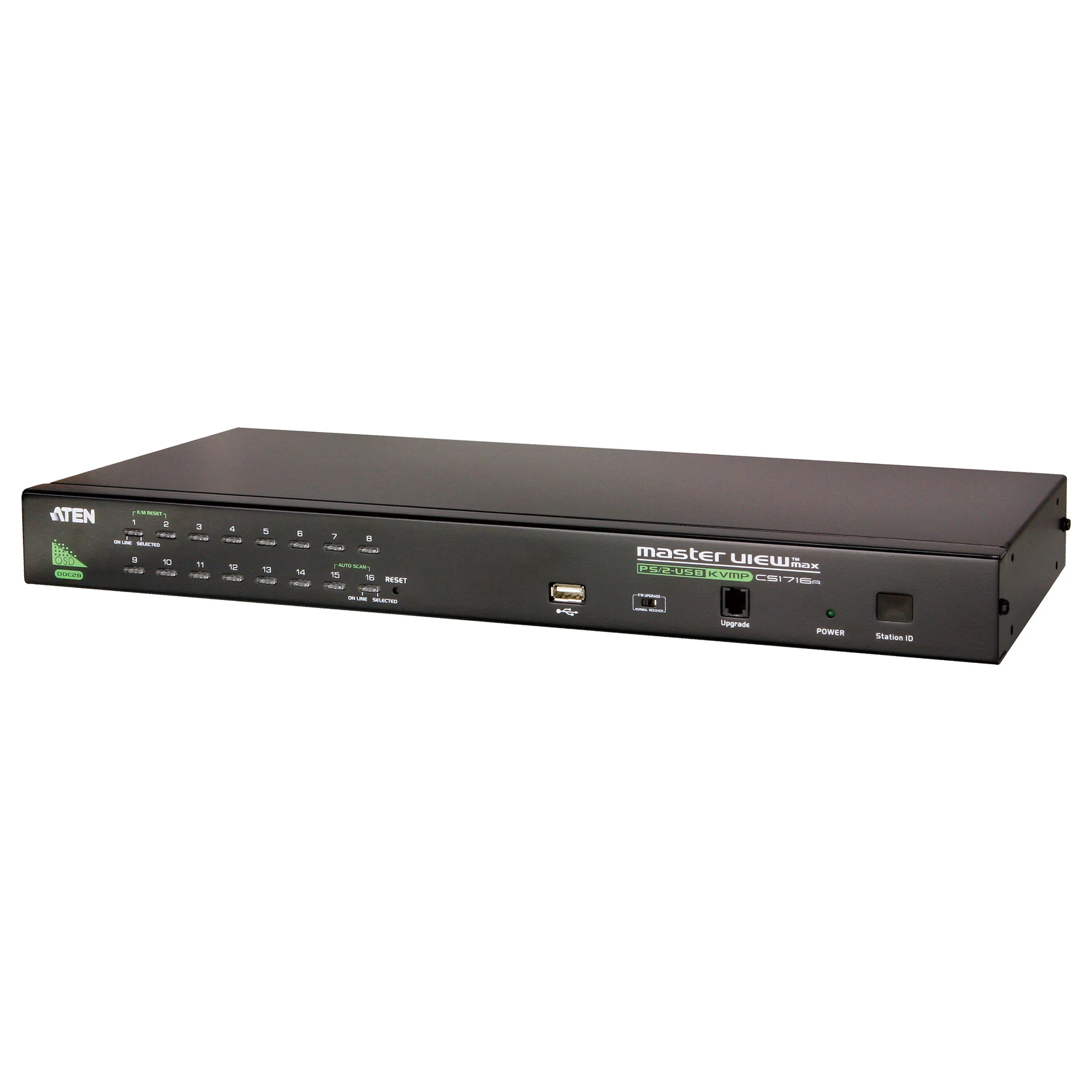

The CS1716A KVM switch is a control unit that allows access to multiple computers from a single PS/2 or USB console (keyboard, mouse, and monitor). A single CS1716A can control up to 16 computers. As many as 31 additional switches can be daisy-chained to each other, so that up to 512 computers can all be controlled from a single keyboard-monitor-mouse console. Additionally, a front panel USB port is available for each computer to access any peripherals connected to it on a one-at-a-time basis.
1x KVM Switch with Standard Rack Mounting Kit
1x 2L-5202P PS/2 KVM Cable
1x 2L-5202U USB KVM Cable
1x LIN5-27X6-U21G Console Cable
1x Firmware Upgrade Cable
1x Foot Pad Set(4 PCS)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
1x KVM Switch with Standard Rack Mounting Kit
1x 2L-5202P PS/2 KVM Cable
1x 2L-5202U USB KVM Cable
1x LIN5-27X6-U21G Console Cable
1x Firmware Upgrade Cable
1x Foot Pad Set(4 PCS)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
Ports & interfaces
Number of computers controlled: 512
Keyboard port type: USB, PS/2
Mouse port type: USB, PS/2
Video port type: VGA
VGA (D-Sub) ports quantity: 17
Console ports: USB A, VGA (D-Sub)
Console USB ports quantity: 1
Feature: DC-in jack
Performance
HD type: QXGA
Maximum resolution: 2048 x 1536 pixels
Scan interval: 1,255 s
Feature: DDC2B support
Feature: Hot-Plug support
Feature: Daisy chain
Feature: Firmware upgradeable
Design
Feature: Rack mounting
Rack capacity: 1U
Product colour: Black
Housing material: Metal
LED indicators: Yes
Feature: Push button
Feature: Hot keys
Display
Feature: On Screen Display (OSD)
Power
Power source: DC
Input voltage: 5.3 V
Power consumption (typical): 6.6 W
System requirements
Windows operating systems supported: Yes
Linux operating systems supported: Yes
Mac operating systems supported: Yes
Sustainability
Compliance certificates: RoHS
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 0 – 80%
Weight & dimensions
Width: 437.2 mm
Depth: 159.9 mm
Height: 44 mm
Weight: 3.61 kg
Packaging data
Package width: 116 mm
Package depth: 540 mm
Package height: 233 mm
Package weight: 4 kg
Packaging content
Cables included: KVM
Feature: Quick installation guide
Feature: AC adapter included
Feature: Rack mount kit
Logistics data
Master (outer) case net weight: 10.8 kg
Harmonized System (HS) code: 85176200
Master (outer) case width: 375 mm
Master (outer) case length: 565 mm
Master (outer) case height: 258 mm
Master (outer) case gross weight: 12.6 kg
Products per master (outer) case: 3 pc(s)
Number of computers controlled: 512
Keyboard port type: USB, PS/2
Mouse port type: USB, PS/2
Video port type: VGA
VGA (D-Sub) ports quantity: 17
Console ports: USB A, VGA (D-Sub)
Console USB ports quantity: 1
Feature: DC-in jack
Performance
HD type: QXGA
Maximum resolution: 2048 x 1536 pixels
Scan interval: 1,255 s
Feature: DDC2B support
Feature: Hot-Plug support
Feature: Daisy chain
Feature: Firmware upgradeable
Design
Feature: Rack mounting
Rack capacity: 1U
Product colour: Black
Housing material: Metal
LED indicators: Yes
Feature: Push button
Feature: Hot keys
Display
Feature: On Screen Display (OSD)
Power
Power source: DC
Input voltage: 5.3 V
Power consumption (typical): 6.6 W
System requirements
Windows operating systems supported: Yes
Linux operating systems supported: Yes
Mac operating systems supported: Yes
Sustainability
Compliance certificates: RoHS
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 0 – 80%
Weight & dimensions
Width: 437.2 mm
Depth: 159.9 mm
Height: 44 mm
Weight: 3.61 kg
Packaging data
Package width: 116 mm
Package depth: 540 mm
Package height: 233 mm
Package weight: 4 kg
Packaging content
Cables included: KVM
Feature: Quick installation guide
Feature: AC adapter included
Feature: Rack mount kit
Logistics data
Master (outer) case net weight: 10.8 kg
Harmonized System (HS) code: 85176200
Master (outer) case width: 375 mm
Master (outer) case length: 565 mm
Master (outer) case height: 258 mm
Master (outer) case gross weight: 12.6 kg
Products per master (outer) case: 3 pc(s)
