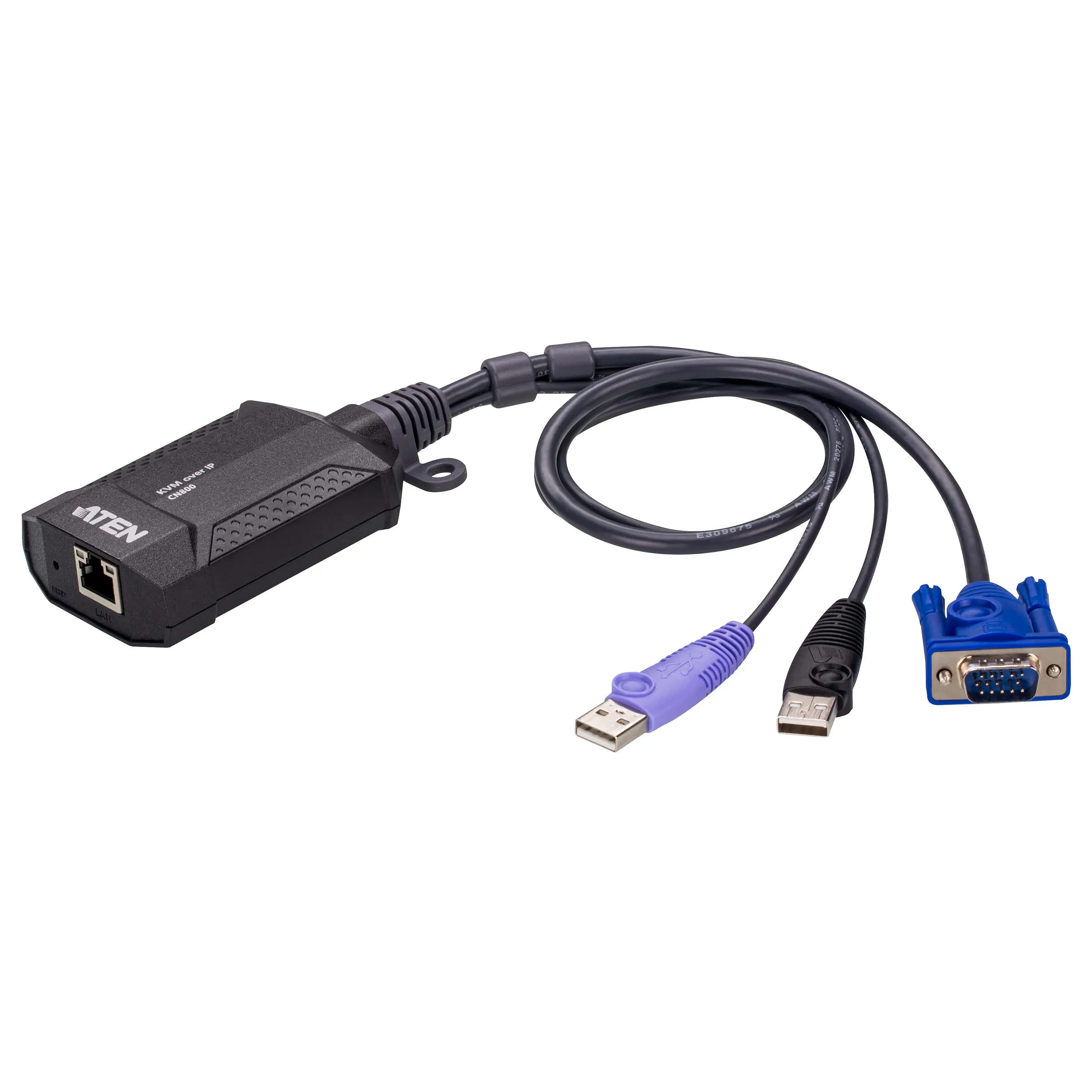

ATEN USB VGA KVM over IP Mini. Keyboard port type: USB, Mouse port type: USB. Maximum resolution: 1920 x 1200 pixels. Product colour: Black, Purple, Housing material: Plastic. Power source: DC, Power consumption (typical): 3.47 W. Width: 56.6 mm, Depth: 93.2 mm, Height: 24.4 mm

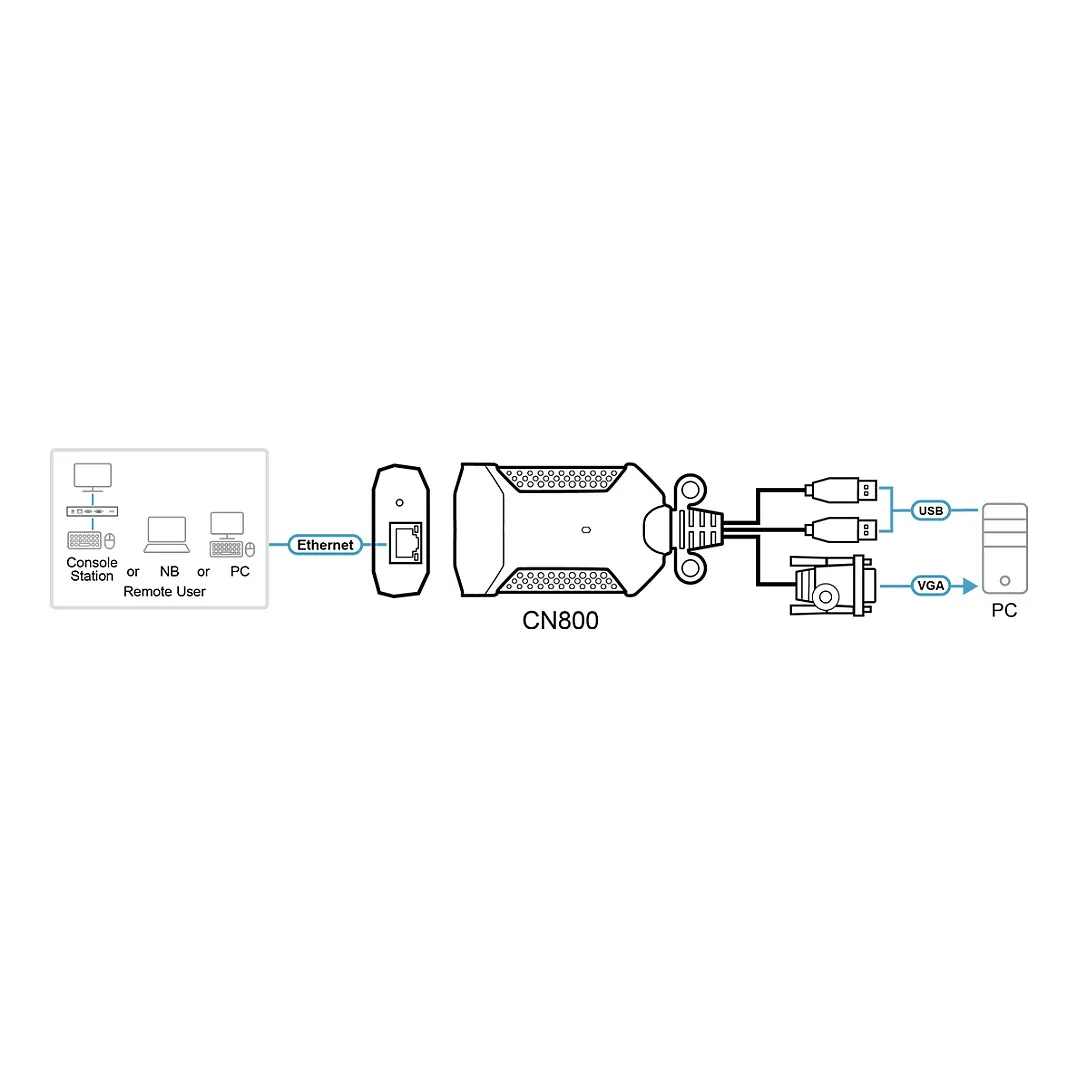

The ATEN CN800 offers superior video quality with HD resolutions up to 1920 x 1200 @ 60 Hz, facilitating easier KVM access. The CN800 USB VGA KVM over IP Mini provides „over-IP” access control for conventional KVM switches lacking built-in over-IP functionality. It enables system operators to monitor and access computers remotely using Windows and Java-based application programs. The CN800 connects to an intranet, either LAN or WAN simply by using an industry-standard Cat 5e/6 cable and to a target computer or server. WinClient and JavaClient are available for remote access, enabling IP connection and login from anywhere over the internet.
The ATEN CN800 uses the standard TCP/IP protocols for communication. It allows the connected server or computer to be accessed from any computer over the internet – whether that computer is located down the hall, in other areas of the country, or branch offices in other parts of the world. The CN800 provides a fast, reliable, and cost-effective way to remotely access and manage widely distributed multiple computer installations.
Ports & interfaces
Keyboard port type: USB
Mouse port type: USB
Network
Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Performance
Maximum resolution: 1920 x 1200 pixels
Design
Product colour: Black, Purple
Housing material: Plastic
LED indicators: Yes
Power
Power source: DC
Power consumption (typical): 3.47 W
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 0 – 80%
Weight & dimensions
Width: 56.6 mm
Depth: 93.2 mm
Height: 24.4 mm
Weight: 170 g
Logistics data
Harmonized System (HS) code: 84718000
Country of origin: Taiwan
Keyboard port type: USB
Mouse port type: USB
Network
Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Performance
Maximum resolution: 1920 x 1200 pixels
Design
Product colour: Black, Purple
Housing material: Plastic
LED indicators: Yes
Power
Power source: DC
Power consumption (typical): 3.47 W
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 0 – 80%
Weight & dimensions
Width: 56.6 mm
Depth: 93.2 mm
Height: 24.4 mm
Weight: 170 g
Logistics data
Harmonized System (HS) code: 84718000
Country of origin: Taiwan
