Name: ATEN CE840-AT-G KVM extender
Brand: ATEN
SKU: K-CE840
Price: 1248.60 EUR
Availability: InStock

ATEN CE840-AT-G KVM extender

Produkto kodas: K-CE840

Barkodas: 4710469348792

1248,60 €

Atsiėmimas parduotuvėje – 8 d.d.

Pristatymas kurjeriu – 12 d.d.

Garantija – 24 mėn.

Pridėkite likusią sumą (300,00 €) ir pristatysime nemokamai!

ATEN CE840-AT-G. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 100 m. Transmitter video port type: HDMI, Transmitter local video port type: HDMI. Receiver local video port type: HDMI. USB port type: USB Type-B. Power consumption (transmitter) (max): 7.36 W, Power consumption (receiver) (max): 7.37 W, DC voltage: 12 V

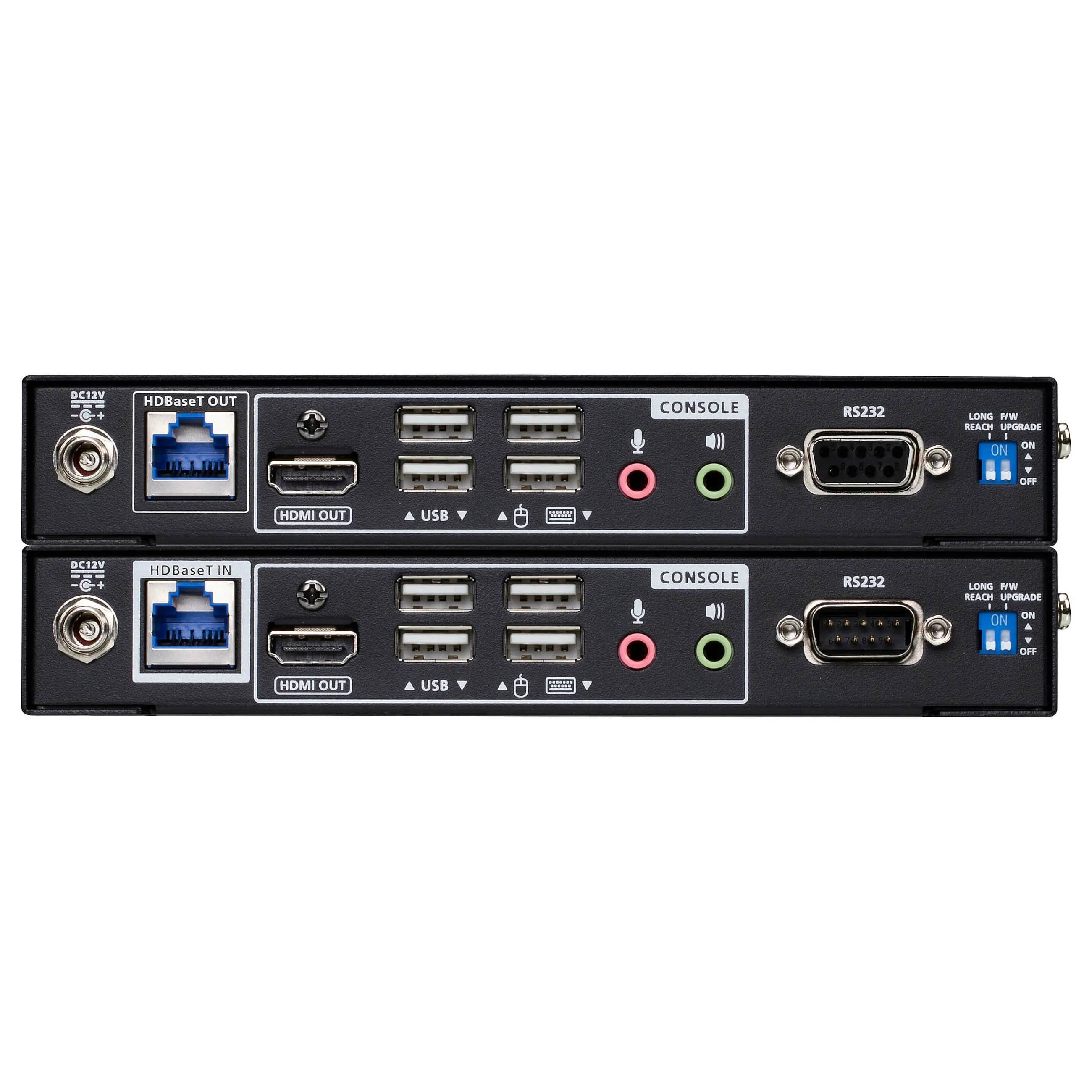

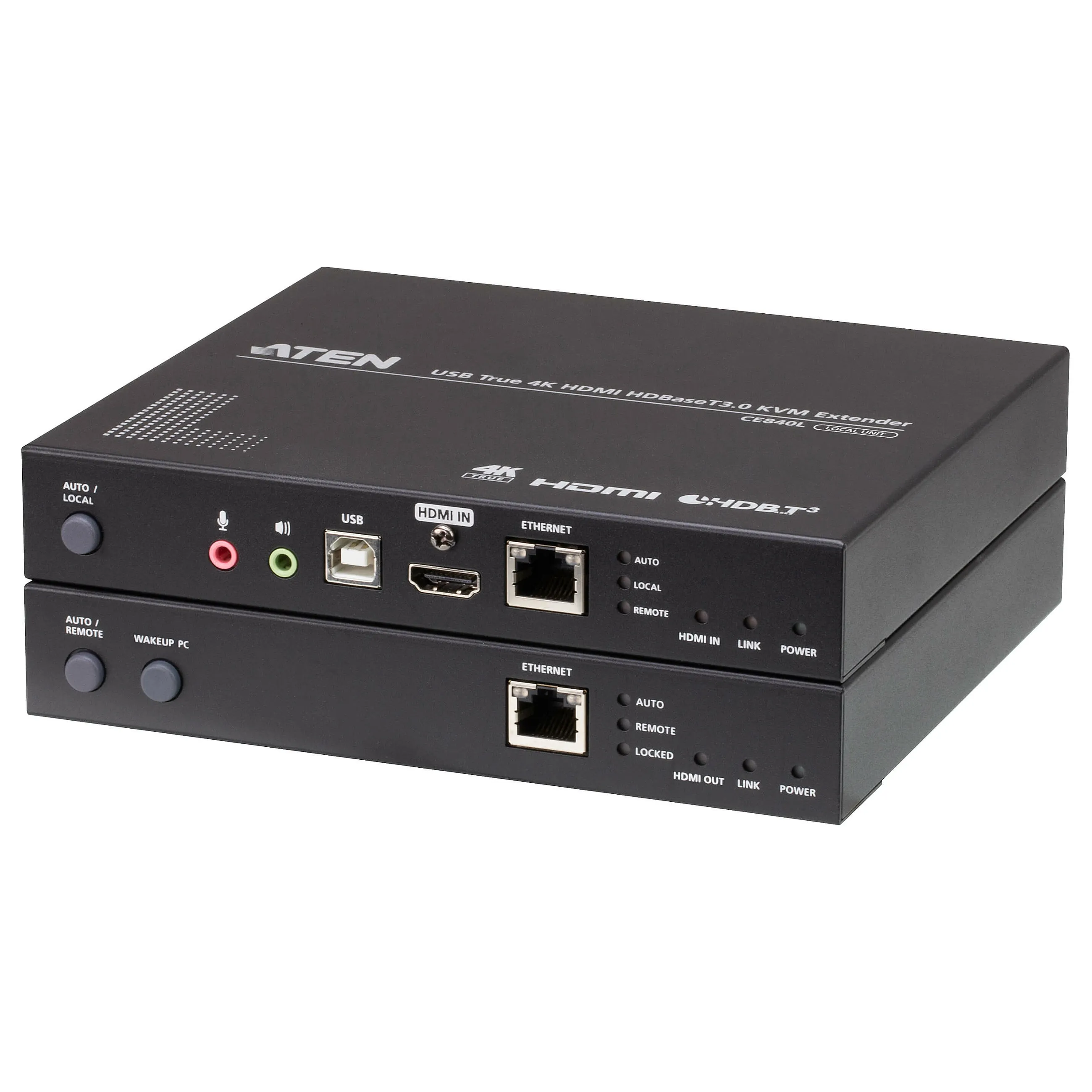

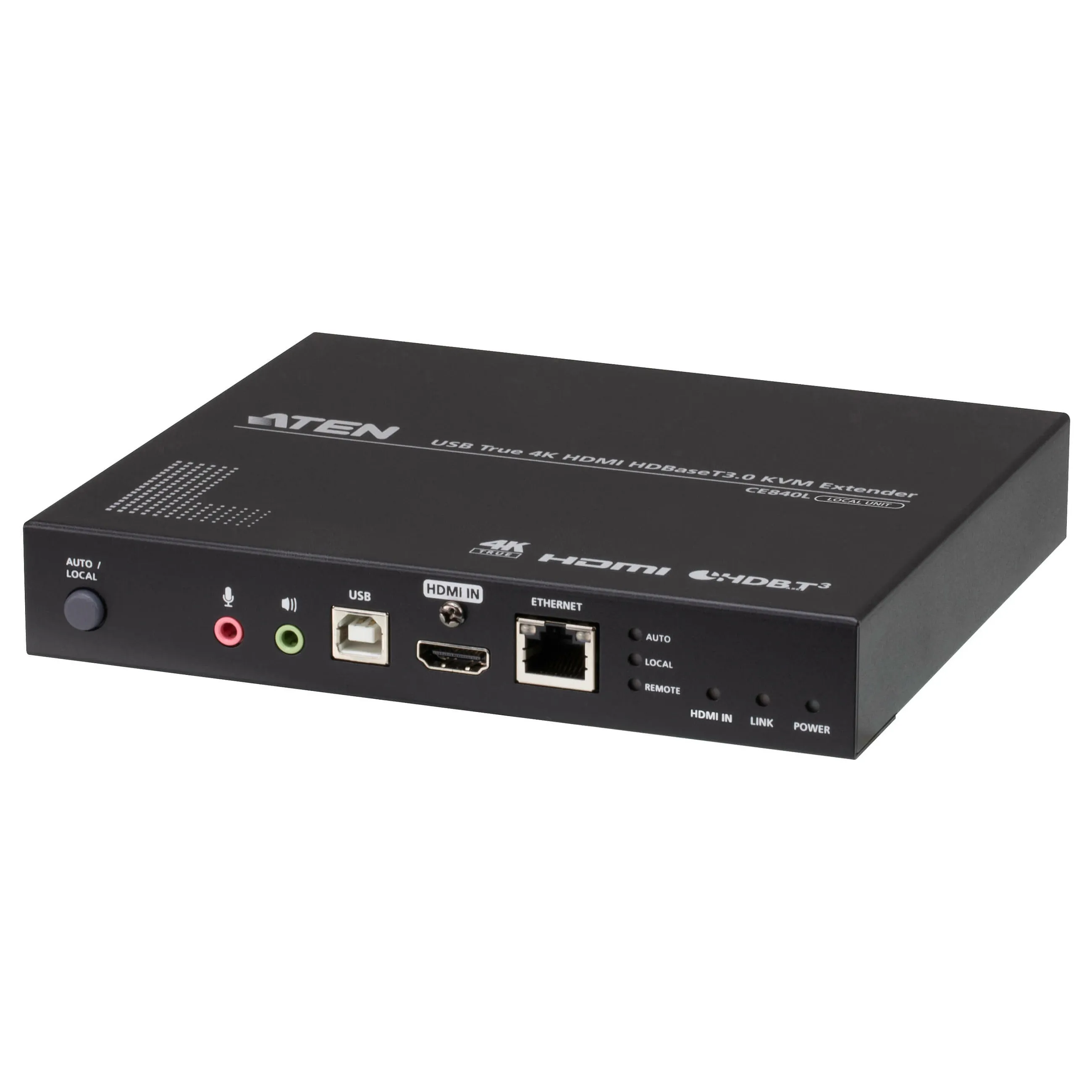

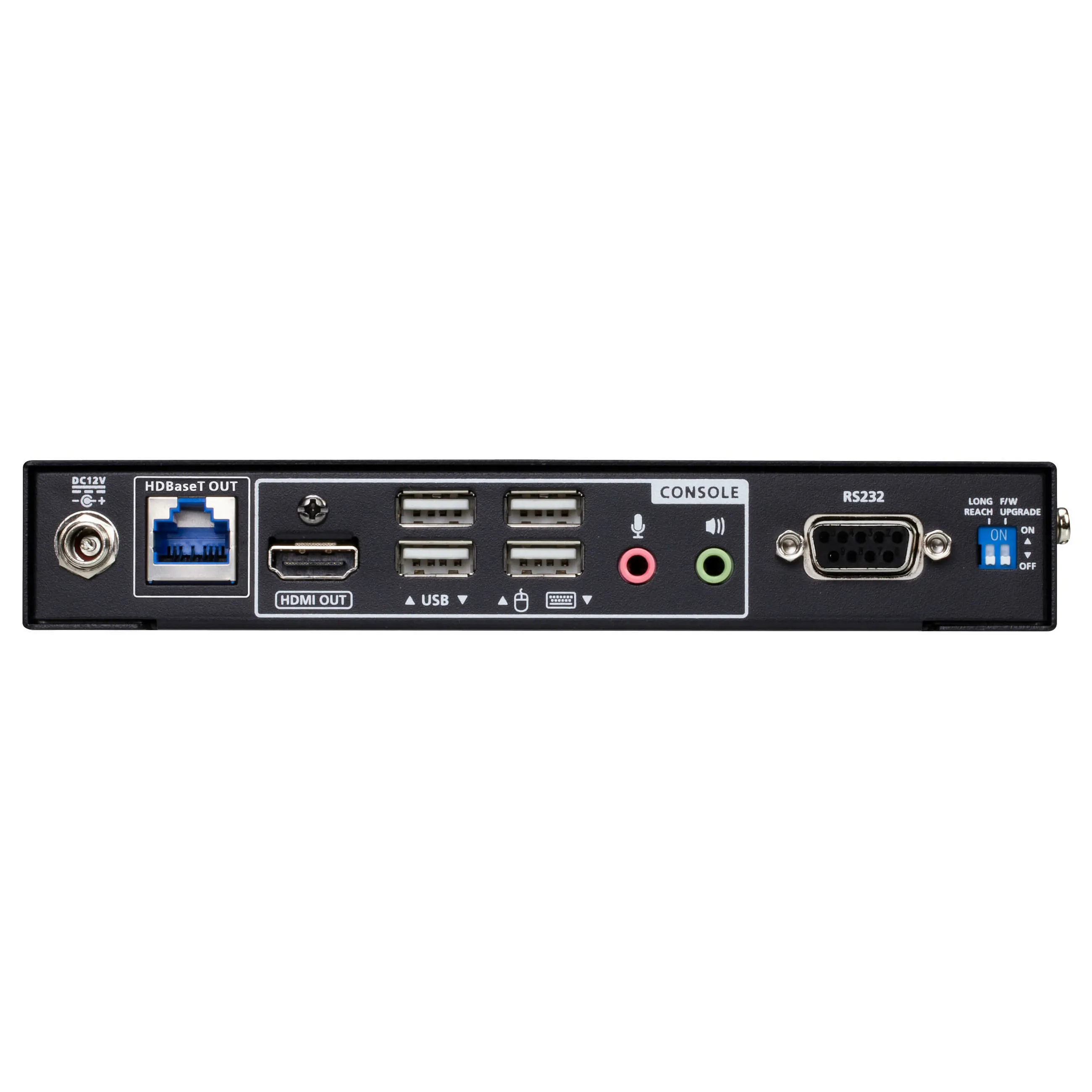

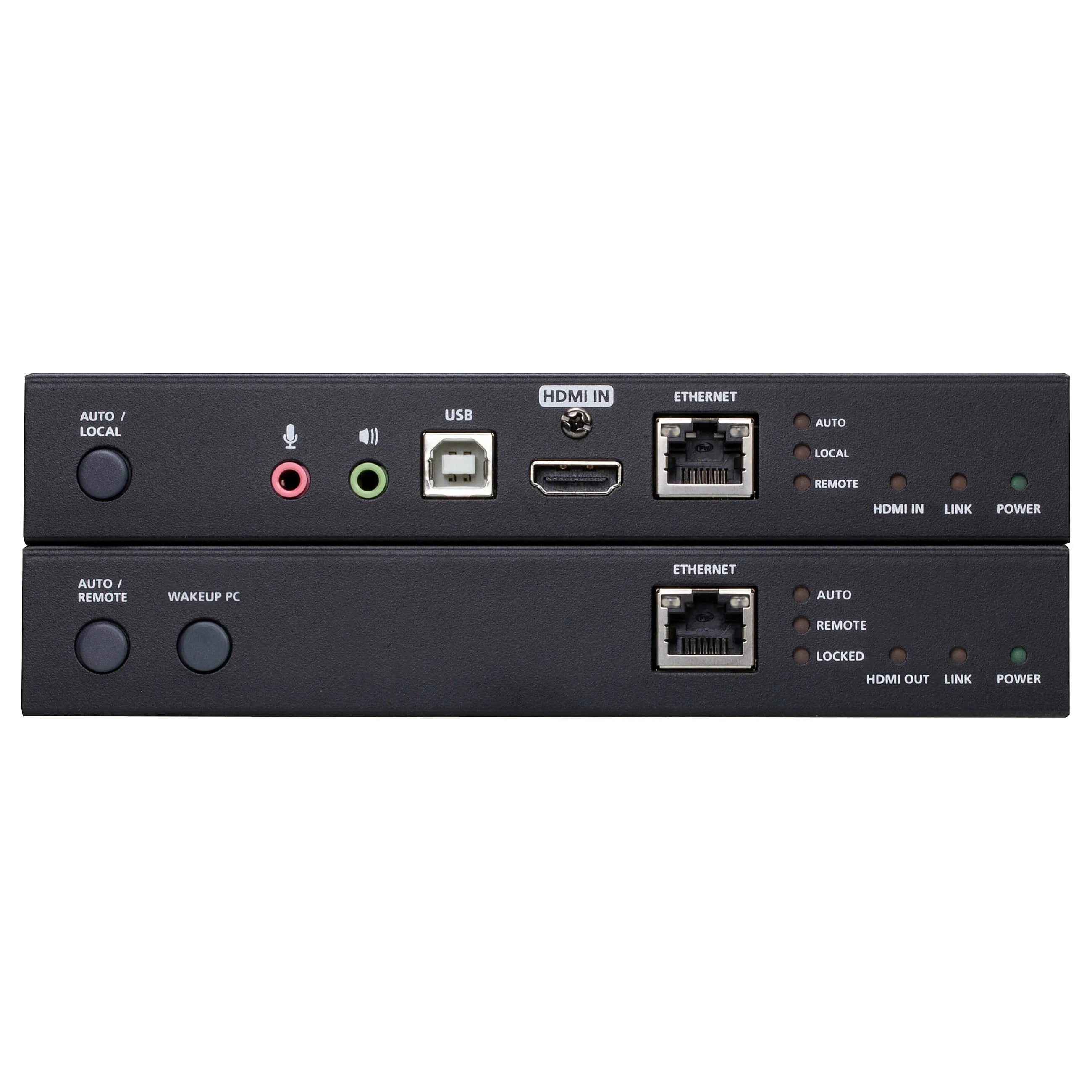

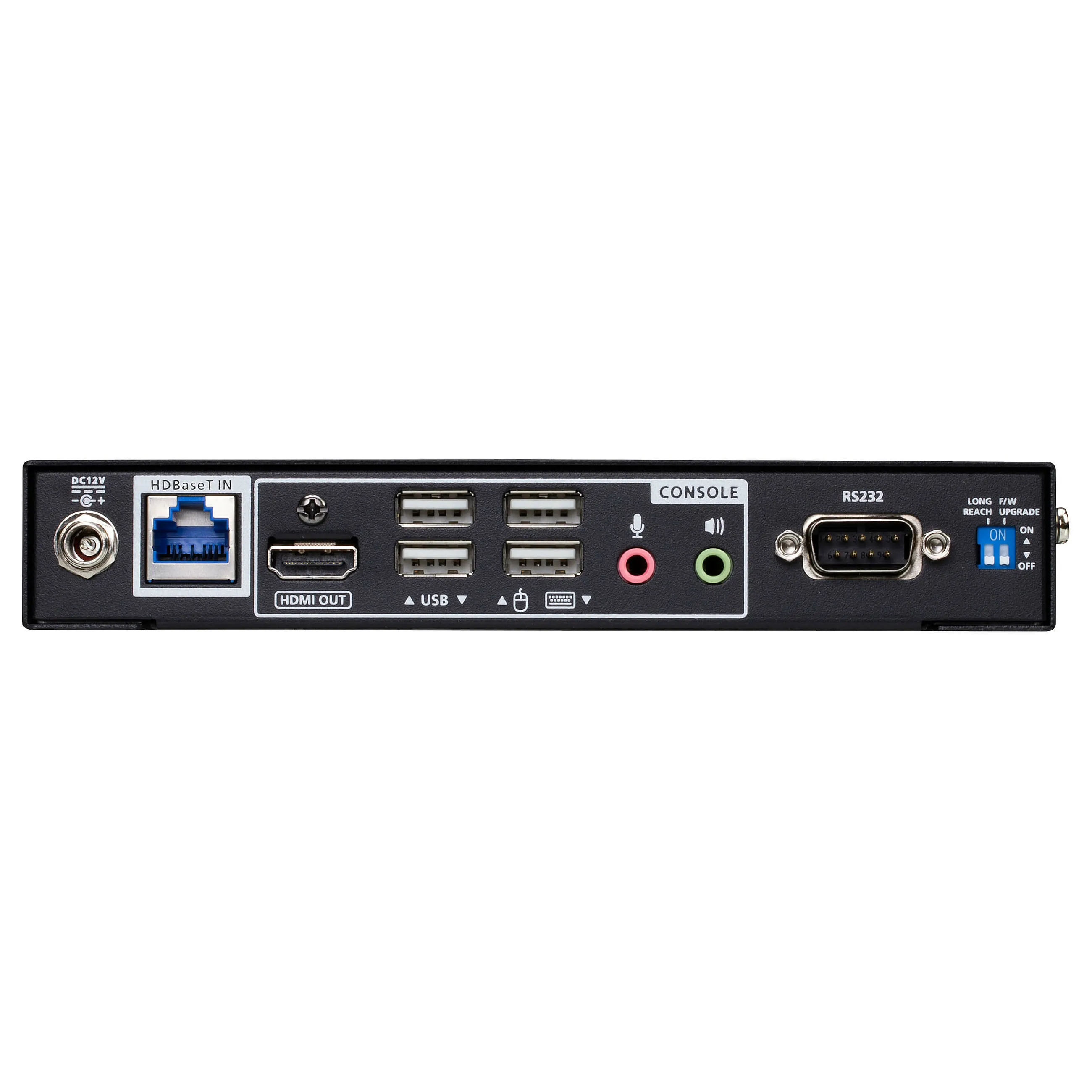

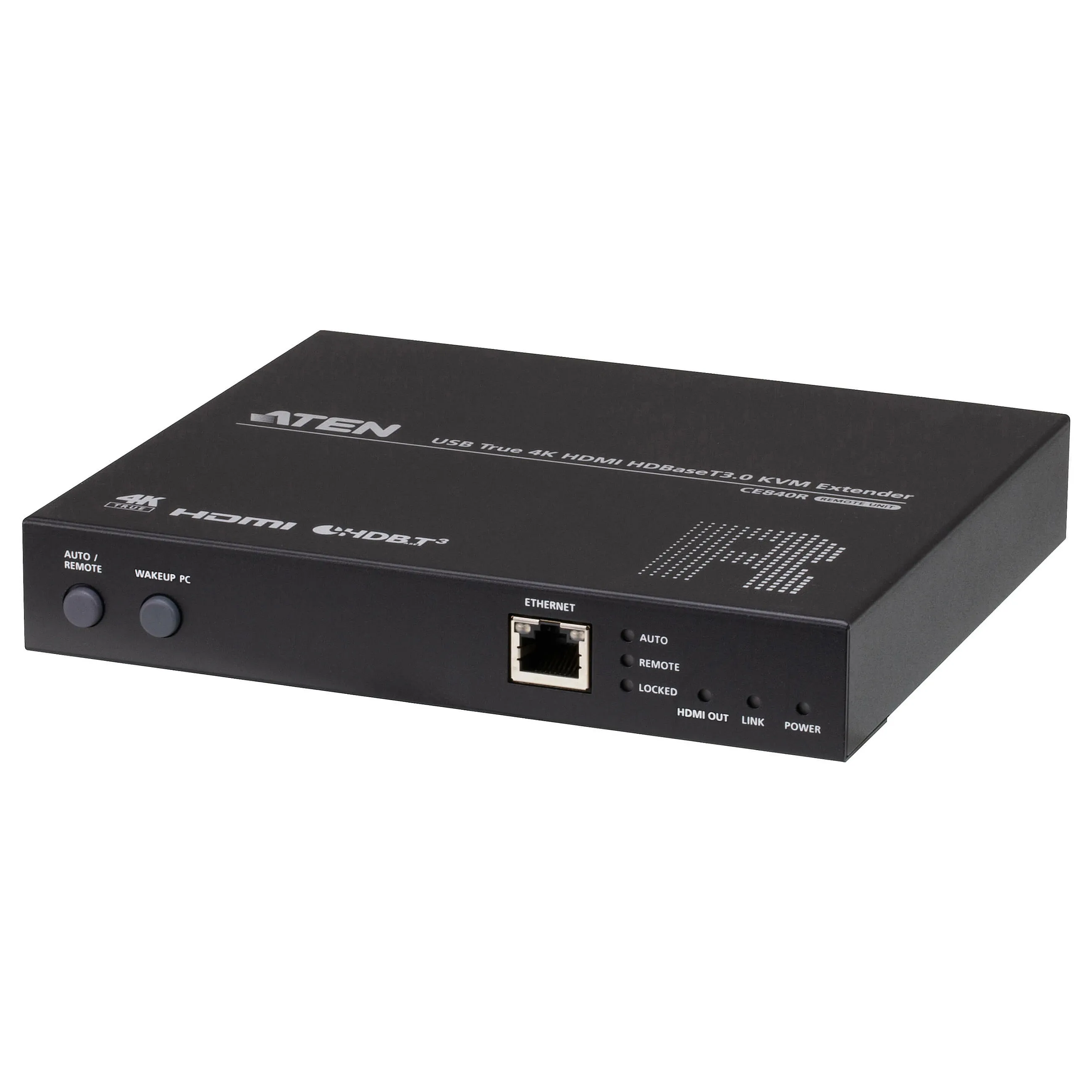

Adopting the latest HDBaseT 3.0 technology, CE840 USB True 4K HDMI HDBaseT 3.0 KVM Extender consists of a local unit and a remote unit, enabling uncompressed True 4K HDMI, audio, RS232, Ethernet, and USB signal transmission across 100m over a single Cat 6A cable (ATEN 2L-2920 Cat 6A Cable recommended) or above. Installation is made easy, neat, and cost-efficient with no compromises on high quality distribution of AV content. The CE840 allows for dual console operation via the two USB ports for USB keyboard and mouse connection and the pushbuttons for switching USB control console between the remote and local end. LEDs on the front panel help indicate which USB control mode that is currently on. Moreover, each unit contains an HDMI output port for local control and the other two USB 2.0 ports for USB peripheral connection. Consequently, operators can acquire data and manage equipment in one location, even from a distance.

The CE840 showcases excellent AV performance with no compression and zero latency. In addition to the support for HDR 10+, the extender is also capable of delivering video signals at up to True 4K (3840 x 2160 @ 60 Hz 4:4:4 and 4096 x 2160 @ 60 Hz 4:4:4) over 100 m. The extender also supports individual stereo audio and HDMI audio formats including LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio.

CE840 is an ideal solution for medium to large size applications that require uncompressed AV and control signal extension and remote access and control, including factories, warehouses, data centers, as well as medical and healthcare applications where precise visualization and accurate representation are essential.

Features
Type: Transmitter & receiver
Connectivity technology: Wired
Maximum transfer distance: 100 m
Maximum digital resolution: 4096 x 2160 pixels
Supported resolutions: 4096 x 21603840 x 2160
Product colour: Black
Material: Metal
LED indicators: Yes
Transmitter
Transmitter video port type: HDMI
Feature: Transmitter local video port
Transmitter local video port type: HDMI
RJ-45 ports quantity (transmitter): 1
Transmitter USB Type-B ports quantity: 1
Receiver
Receiver local video port type: HDMI
RJ-45 ports quantity (receiver): 1
Ports & interfaces
USB port type: USB Type-B
RS-232 ports: 1
Power
Power consumption (transmitter) (max): 7.36 W
Power consumption (receiver) (max): 7.37 W
Feature: DC-in jack
DC voltage: 12 V
Weight & dimensions
Transmitter width: 15.6 cm
Transmitter depth: 17.8 cm
Transmitter height: 2.88 cm
Transmitter weight: 820 g
Receiver width: 15.6 cm
Receiver depth: 17.8 cm
Receiver height: 2.88 cm
Receiver weight: 810 g
Packaging data
Package width: 131 mm
Package depth: 540 mm
Package height: 233 mm
Package weight: 2.98 kg
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 0 – 80%
Other features
Feature: HDCP
HDCP version: 2.3
Bandwidth: 600 MHz
Supported video modes: 480p, 600p, 768p, 800p, 900p, 1024p, 1080i, 1080p, 1440p, 2160p
Bandwidth: 18 Gbit/s
Logistics data
Country of origin: Taiwan
Harmonized System (HS) code: 85176200
Master (outer) case width: 247 mm
Master (outer) case length: 556 mm
Master (outer) case height: 153 mm
Master (outer) case gross weight: 3.54 kg
