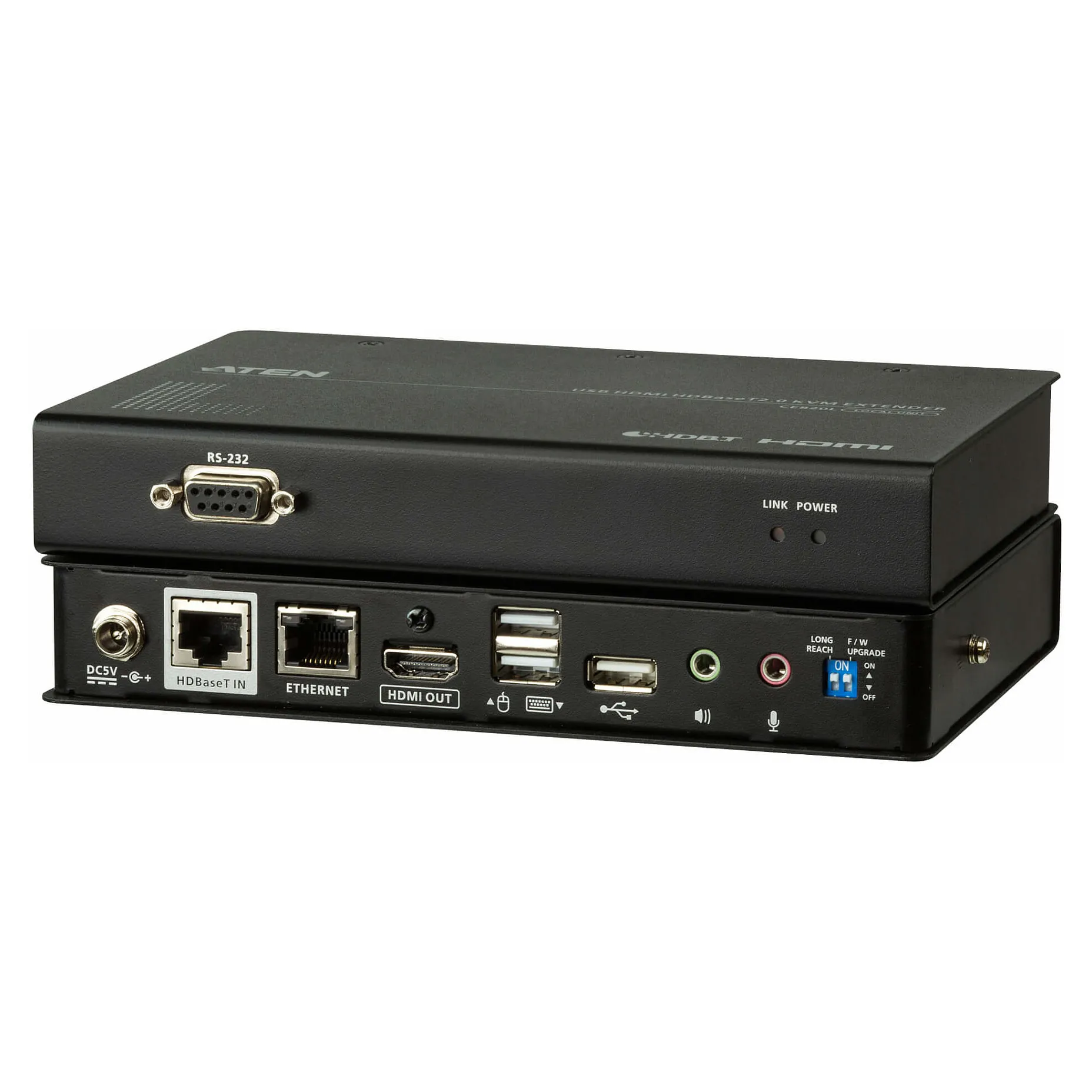

ATEN CE820-ATA-G. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 150 m. Transmitter video port type: HDMI, Transmitter local video port type: HDMI, Transmitter local keyboard/mouse port type: USB. Receiver local video port type: HDMI, Receiver local keyboard/mouse port type: USB. AC adapter output voltage: 5 V, Power consumption (transmitter) (max): 2.87 W, Power consumption (receiver) (max): 5.37 W. Transmitter width: 18.2 cm, Transmitter depth: 12.2 cm, Transmitter height: 2.87 cm
The ATEN CE820 USB HDMI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE820 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.

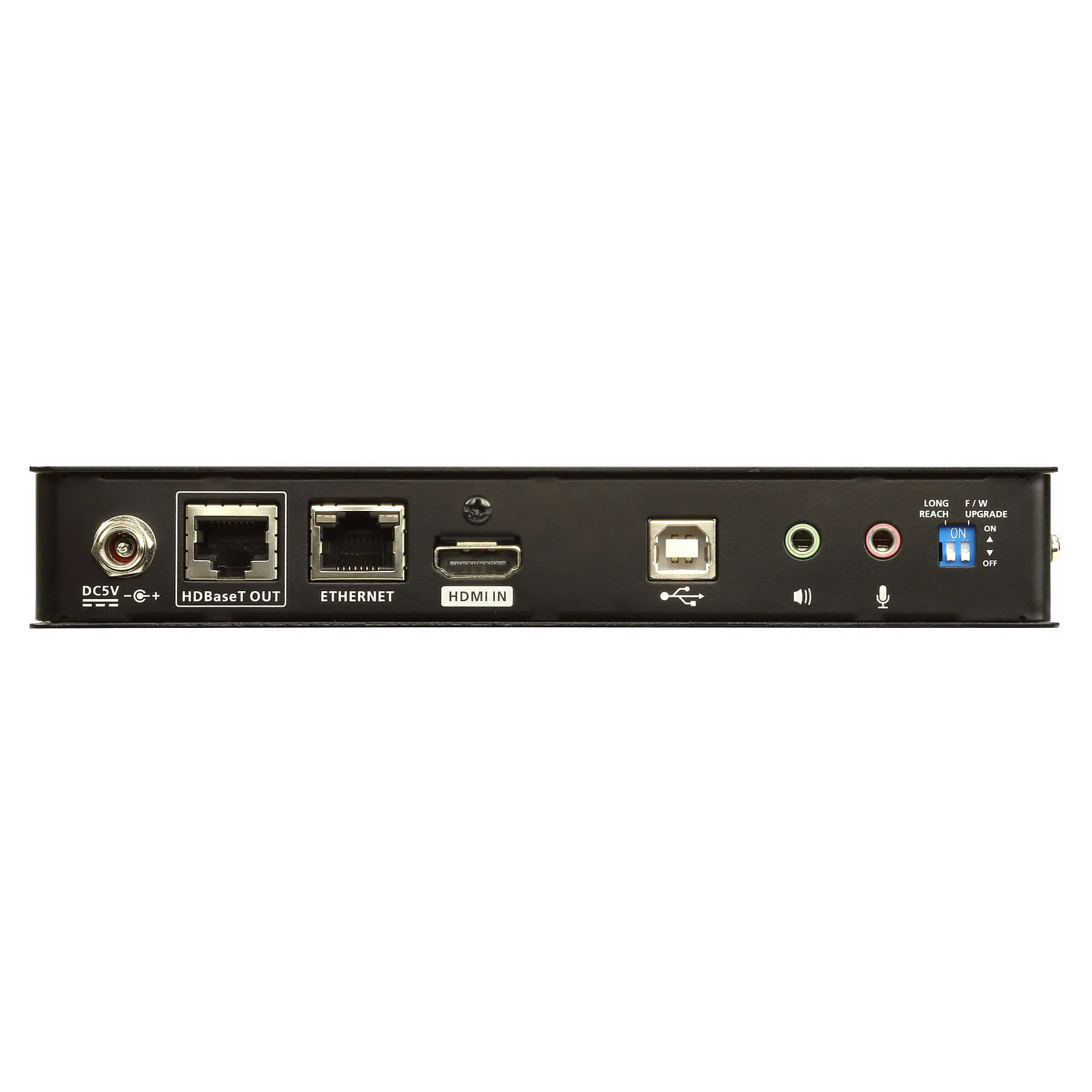

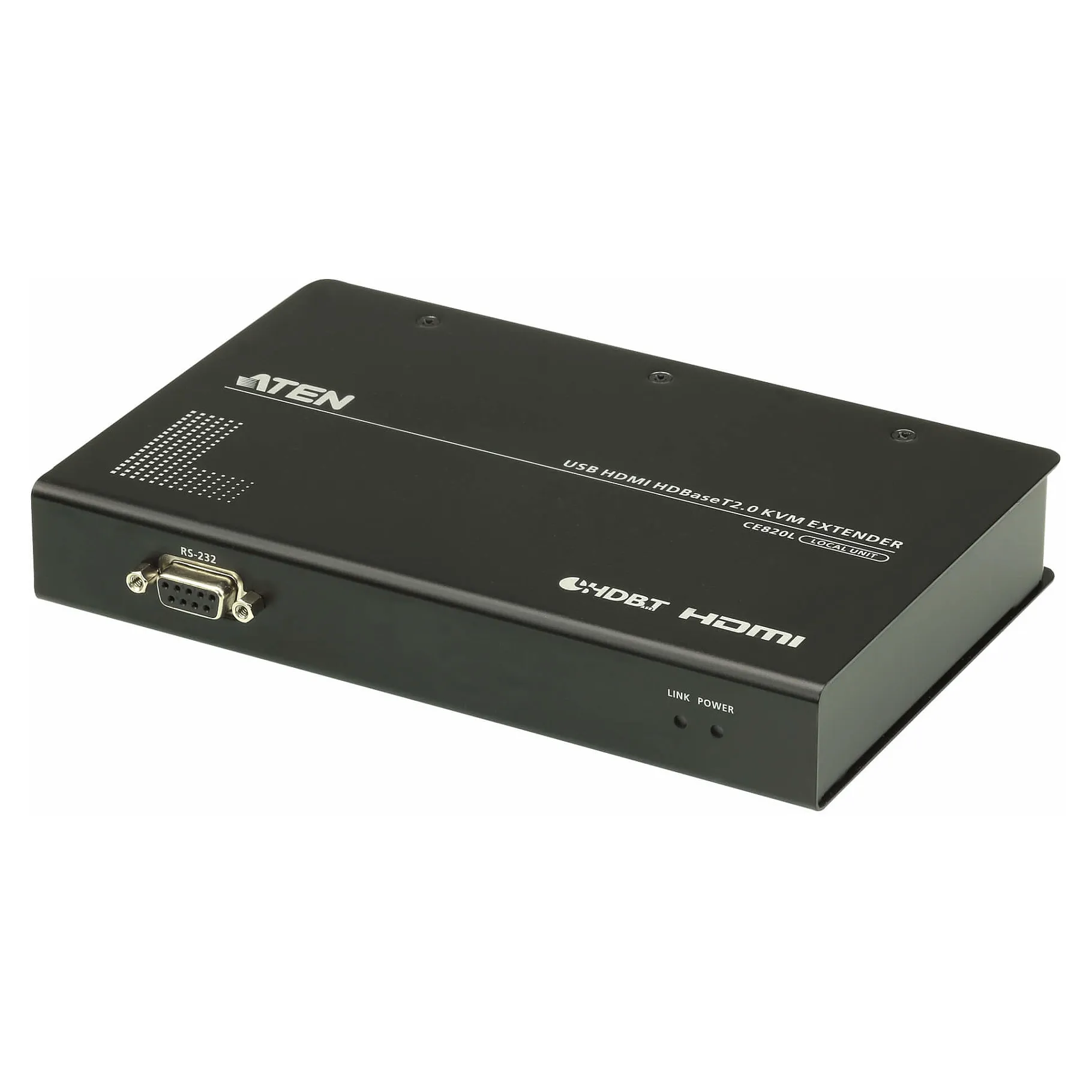

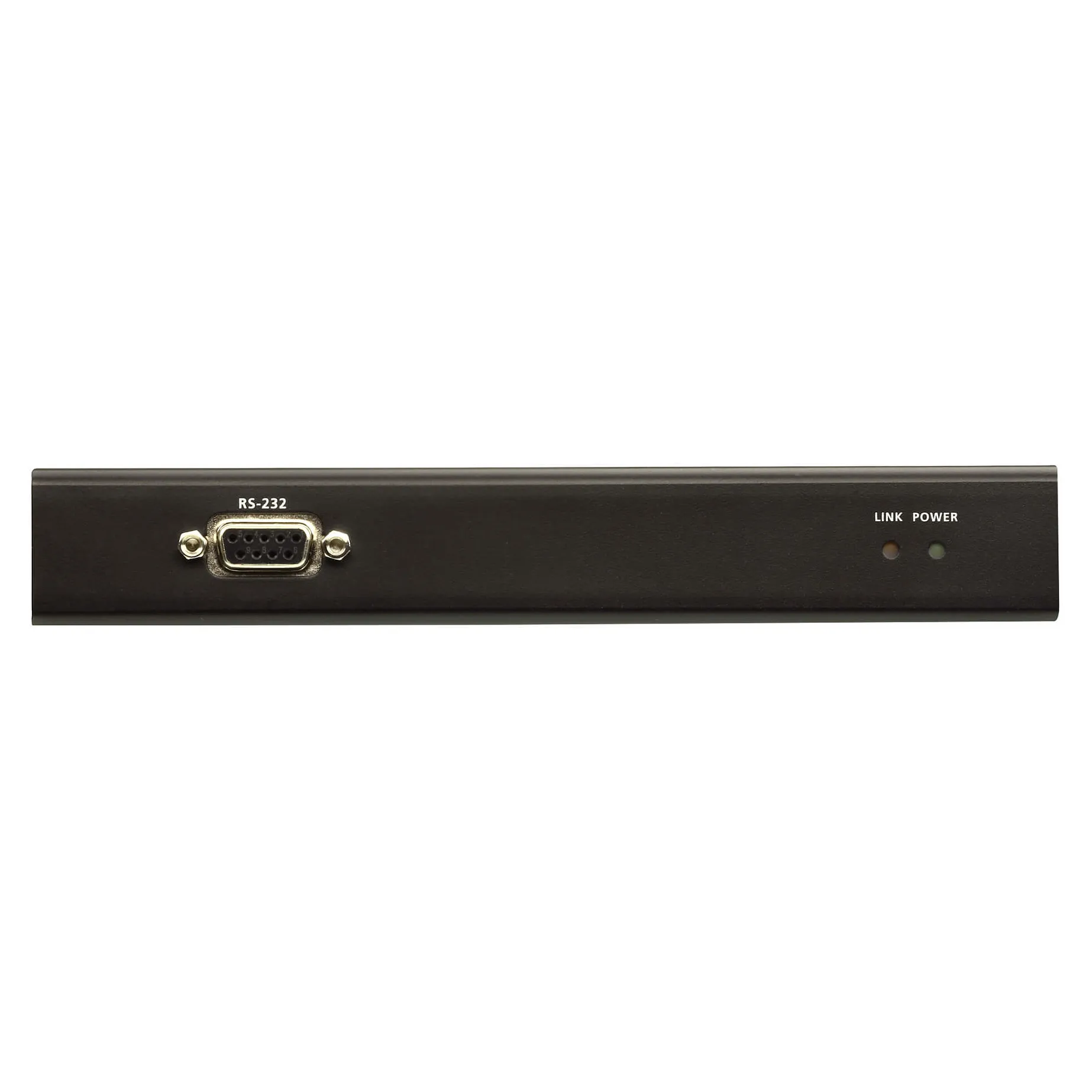

1x CE820L USB HDMI HDBaseT 2.0 KVM Extender (Local Unit)

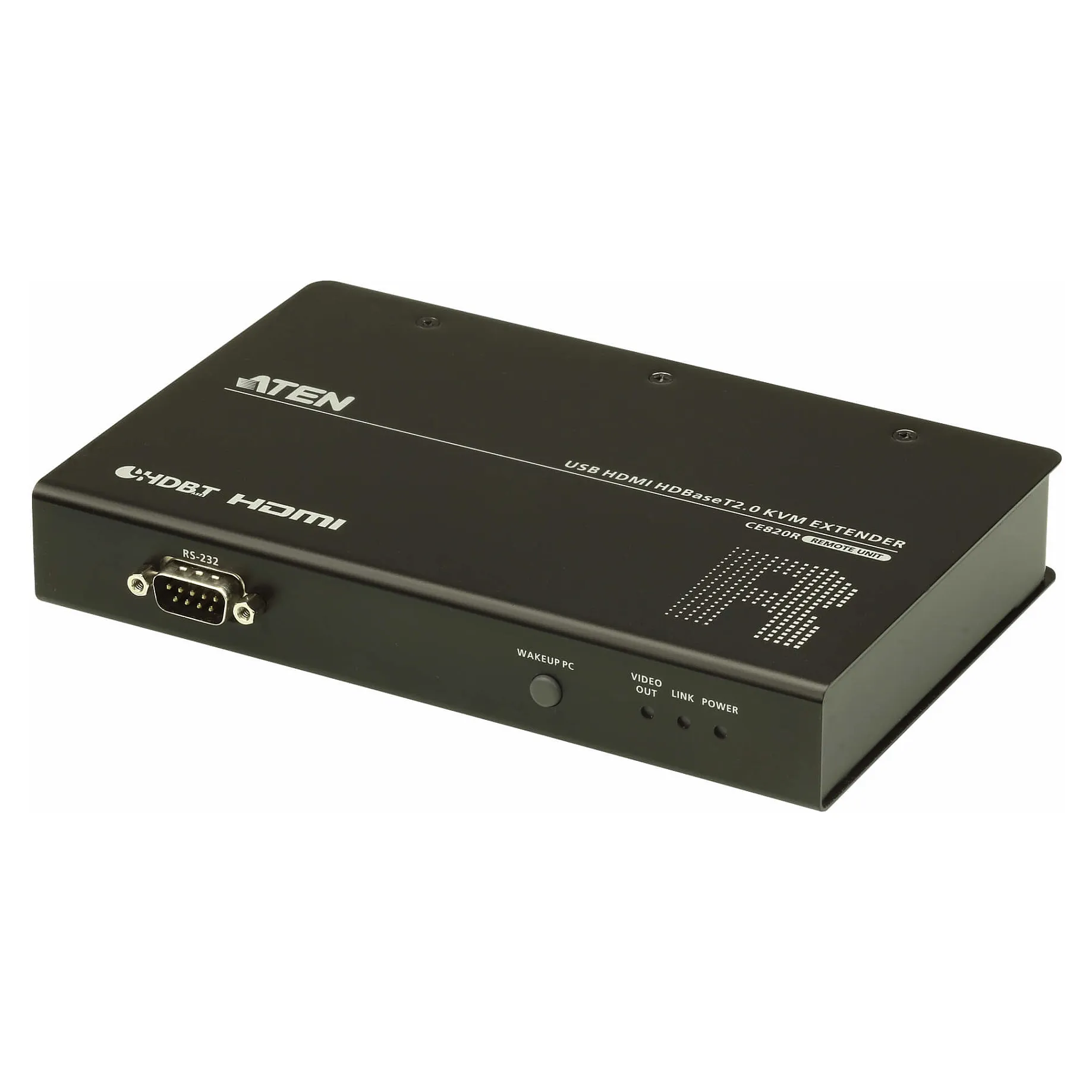

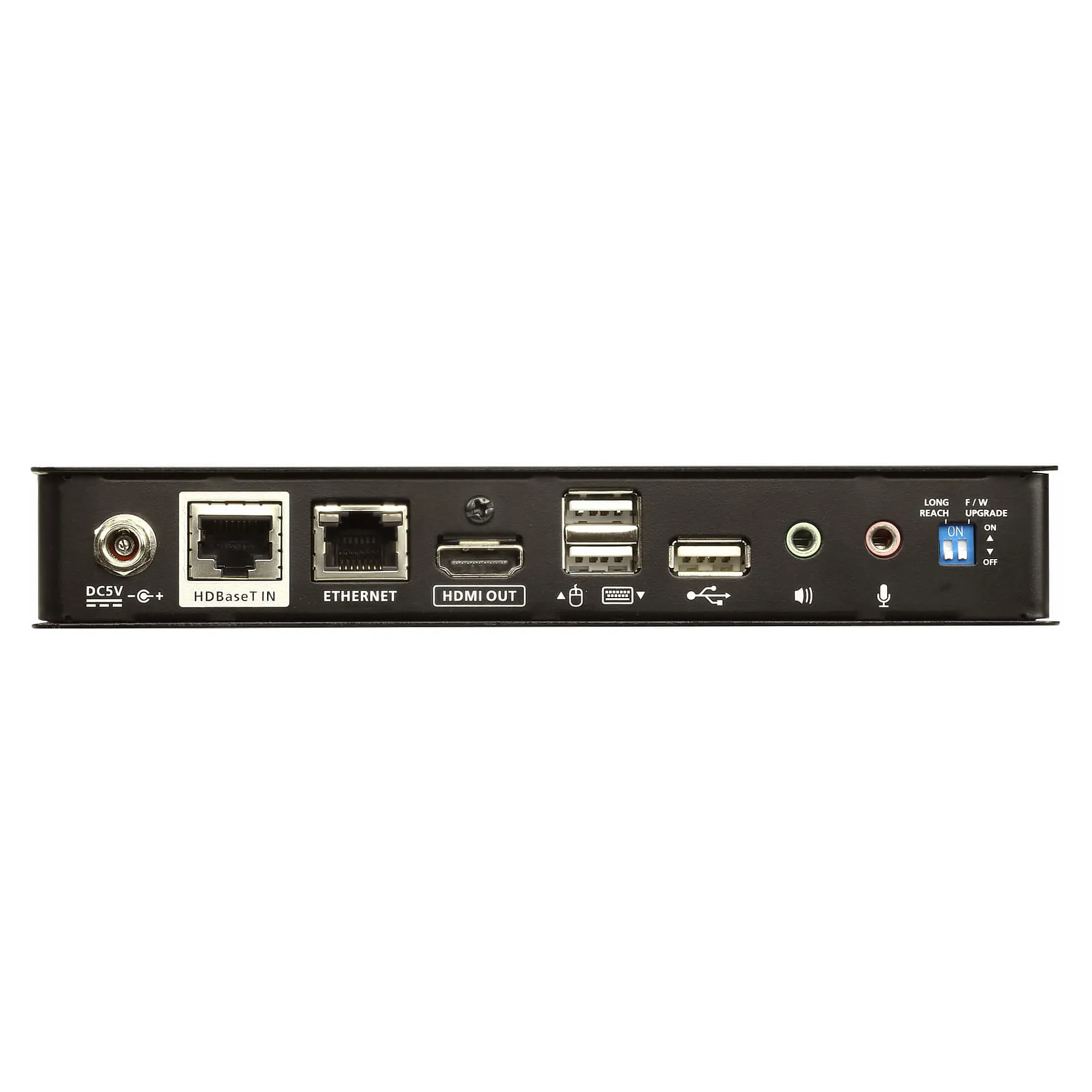

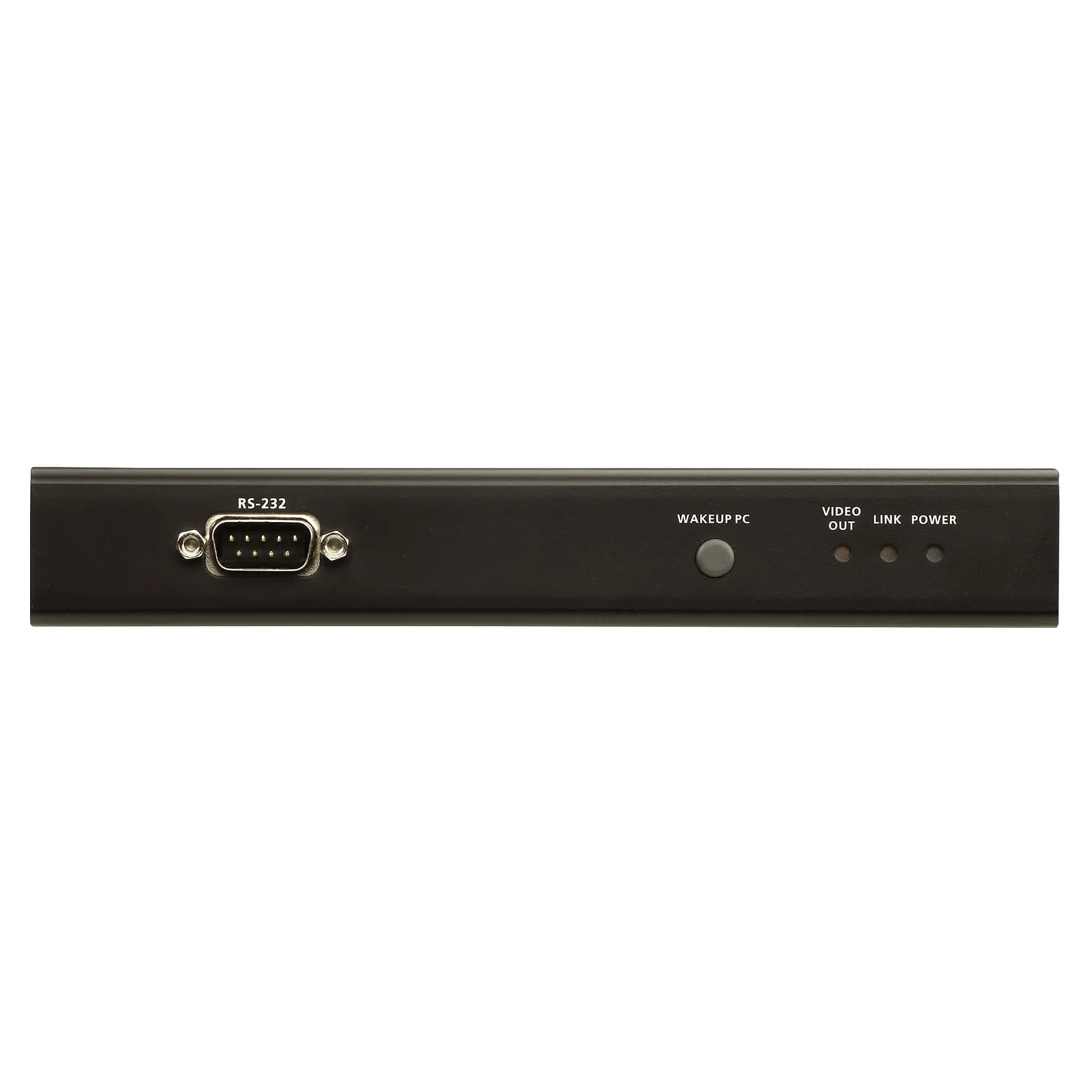

1x CE820R USB HDMI HDBaseT 2.0 KVM Extender (Remote Unit)
1x LIN5-28V1-V11G HDMI KVM Cable Set (HDMI, USB, Audio; 1.8m/6ft)
2x 0AD6-1F05-26EG Power Adapters
2x Mounting Kits
1x User Instructions
1x CE820L USB HDMI HDBaseT 2.0 KVM Extender (Local Unit)
1x CE820R USB HDMI HDBaseT 2.0 KVM Extender (Remote Unit)
1x LIN5-28V1-V11G HDMI KVM Cable Set (HDMI, USB, Audio; 1.8m/6ft)
2x 0AD6-1F05-26EG Power Adapters
2x Mounting Kits
1x User Instructions
Features
Type: Transmitter & receiver
Connectivity technology: Wired
Maximum transfer distance: 150 m
Cable types supported: Cat5e, Cat6, Cat6a
Feature: Rack mounting
Maximum digital resolution: 4096 x 2160 pixels
Product colour: Black
Material: Metal
LED indicators: Link, Power, Video
Transmitter
Transmitter video port type: HDMI
Feature: Transmitter local video port
Transmitter local video port type: HDMI
Transmitter local keyboard/mouse port type: USB
RJ-45 ports quantity (transmitter): 1
Receiver
Receiver local video port type: HDMI
Receiver local keyboard/mouse port type: USB
RJ-45 ports quantity (receiver): 1
Ports & interfaces
USB 2.0 ports quantity: 4
Feature: PC Audio in
Feature: PC Audio out
Power
AC adapter output voltage: 5 V
Power consumption (transmitter) (max): 2.87 W
Power consumption (receiver) (max): 5.37 W
Weight & dimensions
Transmitter width: 18.2 cm
Transmitter depth: 12.2 cm
Transmitter height: 2.87 cm
Transmitter weight: 630 g
Receiver width: 18.2 cm
Receiver depth: 12.2 cm
Receiver height: 2.87 cm
Receiver weight: 650 g
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 0 – 80%
Type: Transmitter & receiver
Connectivity technology: Wired
Maximum transfer distance: 150 m
Cable types supported: Cat5e, Cat6, Cat6a
Feature: Rack mounting
Maximum digital resolution: 4096 x 2160 pixels
Product colour: Black
Material: Metal
LED indicators: Link, Power, Video
Transmitter
Transmitter video port type: HDMI
Feature: Transmitter local video port
Transmitter local video port type: HDMI
Transmitter local keyboard/mouse port type: USB
RJ-45 ports quantity (transmitter): 1
Receiver
Receiver local video port type: HDMI
Receiver local keyboard/mouse port type: USB
RJ-45 ports quantity (receiver): 1
Ports & interfaces
USB 2.0 ports quantity: 4
Feature: PC Audio in
Feature: PC Audio out
Power
AC adapter output voltage: 5 V
Power consumption (transmitter) (max): 2.87 W
Power consumption (receiver) (max): 5.37 W
Weight & dimensions
Transmitter width: 18.2 cm
Transmitter depth: 12.2 cm
Transmitter height: 2.87 cm
Transmitter weight: 630 g
Receiver width: 18.2 cm
Receiver depth: 12.2 cm
Receiver height: 2.87 cm
Receiver weight: 650 g
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 0 – 80%
