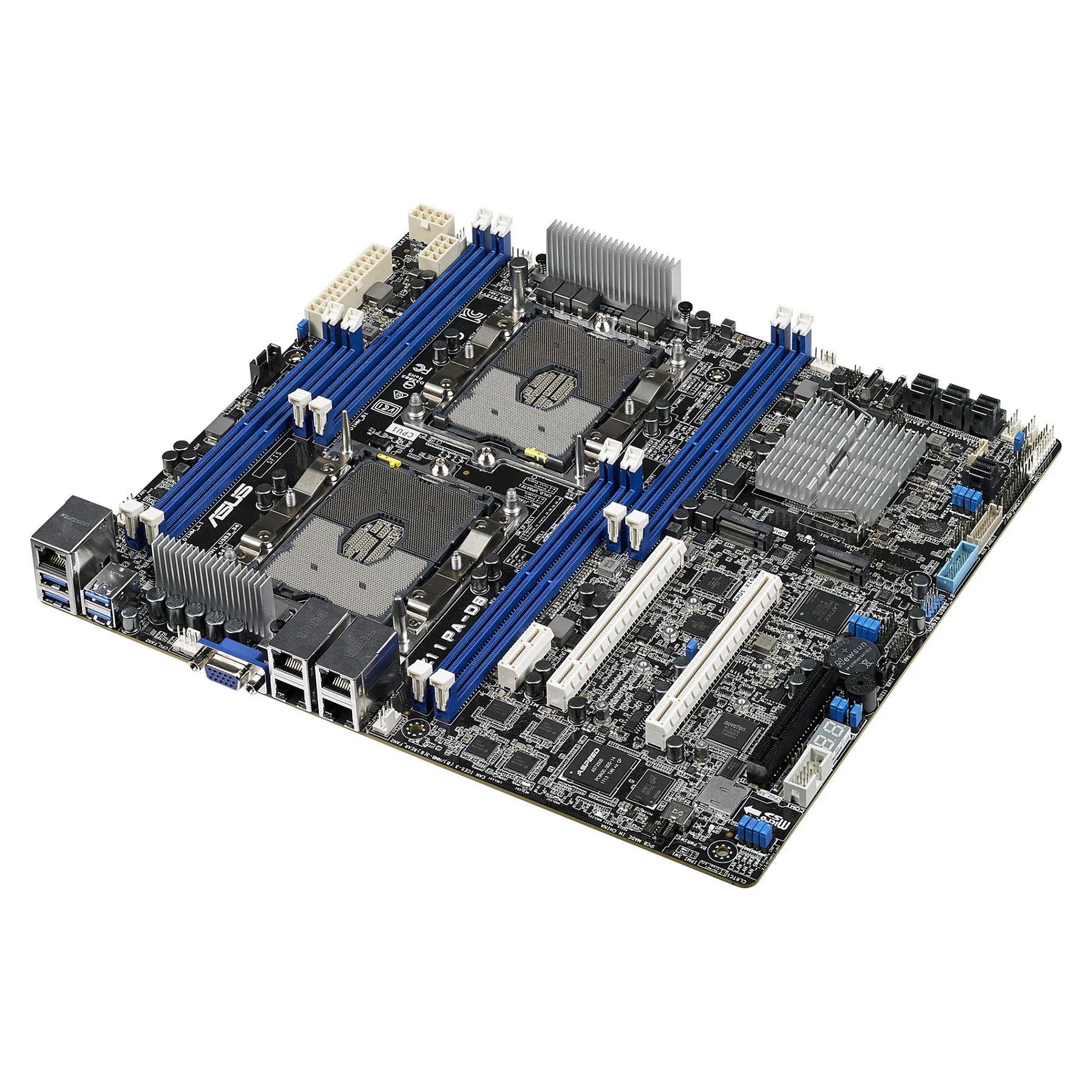

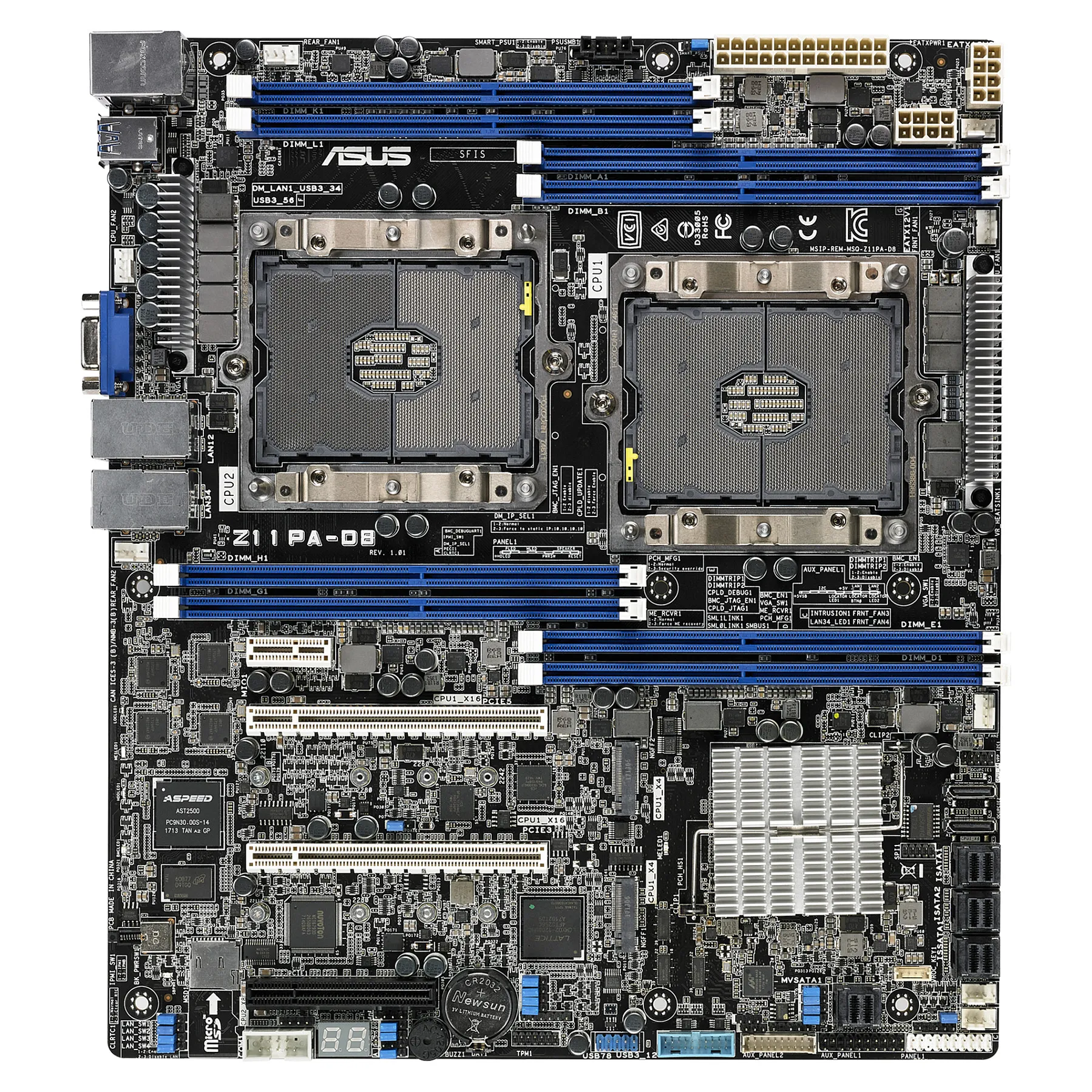

ASUS Z11PA-D8. Processor manufacturer: Intel, Processor socket: LGA 3647 (Socket P). Supported memory types: DDR4-SDRAM, Maximum internal memory: 1 TB, Memory voltage: 1.2 V. Supported storage drive interfaces: SATA III, RAID levels: 0, 1, 5, 10. On-board graphics card model: Aspeed AST2500, On-board graphics card memory: 64 MB. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel® I210-AT
Z11PA-D8 is built on the Intel Xeon Scalable Platform to deliver higher per-core performance and four memory channels that provide 50% more memory bandwidth and capacity for 1.65X faster average system-level performance compared to previous-generation processors. The Intel Xeon Scalable platform also delivers better virtualization performance, enabling 4.2X more virtual machines (VMs) per system.
Increased performance or data redundancy with dual M.2 SSDs in RAID mode
Dual M.2 SATA SSDs enable top performance or data redundancy in RAID mode
In performance-maximizing RAID 0 configurations with dual M.2 SSDs, write speeds are up to 40% faster than a single M.2 SSD drive setup and read operations are an astonishing 84% faster. Or, for total reassurance, pair your M.2 devices into a RAID 1 configuration for instant data redundancy. Z11PA-D8 comes with an optional Virtual RAID on CPU (VROC) enabling connector to support NVMe SSDs with Intel® Volume Management Device technology. The NVMe SSDs are directly connected to the CPU, enabling latency reduction and increased bandwidth, while reducing power consumption by 15W compared to traditional hardware RAID cards.
High-speed storage interface support with dual OCuLink for NVMe
Dual OCuLink for efficient connections to NVMe devices
Z11PA-D8 features dual onboard OCuLink to provide efficient port-to-port connection with most OCuLink-supported NVMe devices, eliminating the need for PCIe transaction cards.
Connect up to 16 SATA 6Gb/s storage devices
Z11PA-D8 comes with four mini-SAS HD connectors that support up to 16 SATA ports each for high-speed 6Gb/s connectivity with external devices and cleaner cable routing.
Comprehensive IT infrastructure management software
Z11PA-D8 features an embedded iKVM module and is bundled with ASUS Control Center software to provide comprehensive in-band and out-of-band management features for small and mid-size businesses:
ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
The embedded ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics — even if the operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers.
Onboard MicroSD card slot for easy maintenance
Z11PA-D8 includes a microSD card slot to provide additional storage for video and log files, as well as ISO files for OS recovery via the web-based ASMB9-iKVM user interface. This additional storage option enables users to view their files on other devices and keep their data backed up.
Quick initialization guidance for faster BIOS tracking enhancement
Z11PA-D8 features quick initialization guidance that enables users to realize the system initialization state in seconds. It provides instant system information including the BMC firmware version, system series number, memory error messages and any unusual diagnostic results for improved and more efficient IT operation.
– Progress bar displays current boot status
– Two-digit POST code messages provide users comprehensive information about the startup process and clearly indicate the boot status for easy troubleshooting
Processor manufacturer: Intel
Processor socket: LGA 3647 (Socket P)
Memory
Supported memory types: DDR4-SDRAM
Number of memory slots: 8
Memory voltage: 1.2 V
Supported memory clock speeds: 2133,2400,2666 MHz
Maximum internal memory: 1 TB
Maximum RDIMM memory: 256 GB
Storage controllers
Supported storage drive interfaces: SATA III
Feature: RAID support
RAID levels: 0, 1, 5, 10
Graphics
On-board graphics card model: Aspeed AST2500
On-board graphics card memory: 64 MB
Internal I/O
USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 16
Feature: CPU fan connector
Feature: Chassis intrusion connector
Feature: TPM connector
Serial port headers: 1

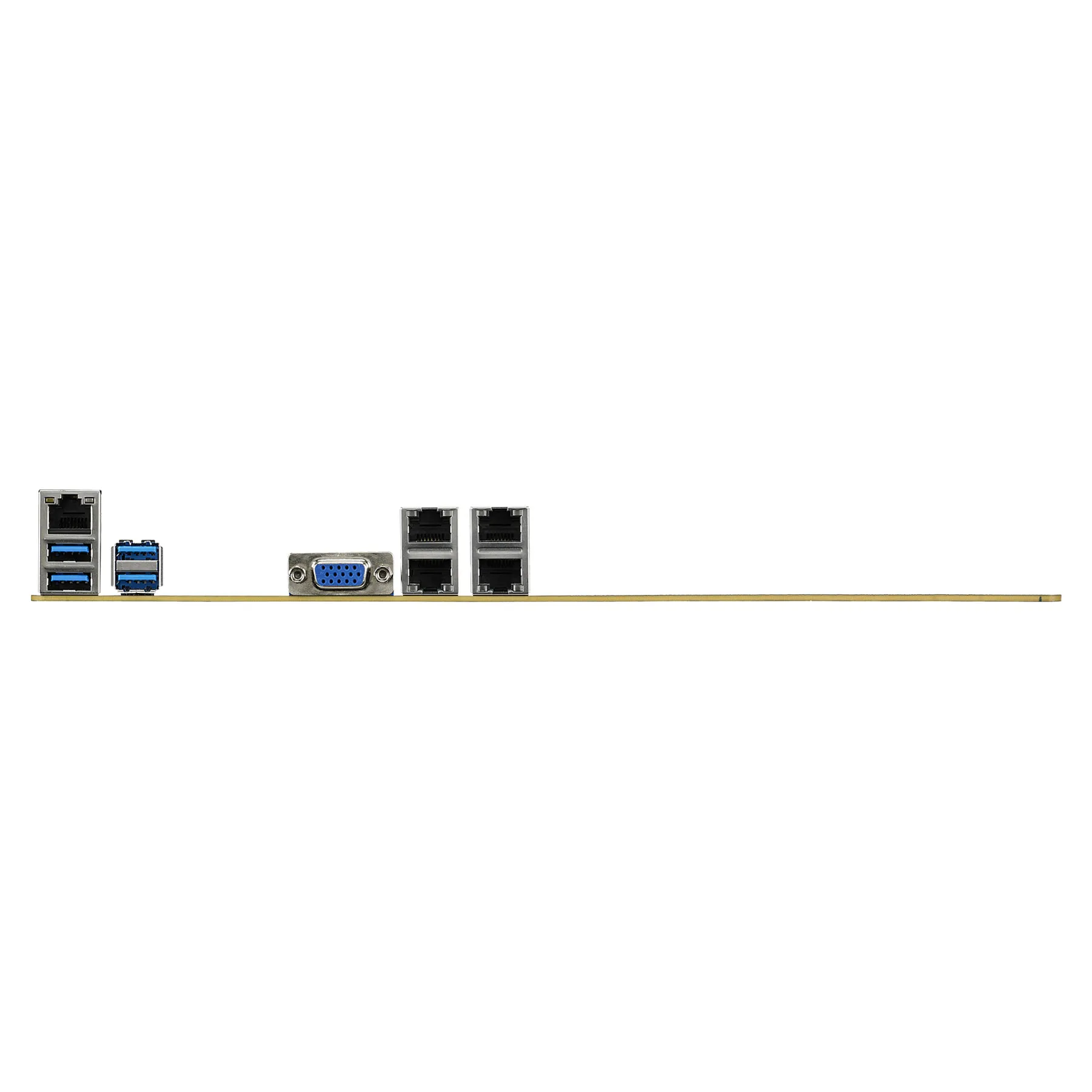

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 4
VGA (D-Sub) ports quantity: 1
Network
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
LAN controller: Intel® I210-AT
Features
Motherboard form factor: SSI CEB
Expansion slots
PCI Express x8 slots: 1
PCI Express x16 slots: 2
Operational conditions
Storage temperature (T-T): -40 – 70 °C
Operating temperature (T-T): 10 – 35 °C
Storage relative humidity (H-H): 20 – 90%
Logistics data
Harmonized System (HS) code: 84733020
Packaging data
Package weight: 2.32 kg
Weight & dimensions
Width: 305 mm
Depth: 267 mm
Other features
Supported LRDIMM module capacity: 32GB, 64GB
Maximum LRDIMM memory: 512 GB
Supported RDIMM module capacity: 4GB, 8GB, 16GB, 32GB
Weight: 1.24 kg
Number of DIMM slots: 8
Number of processors supported: 2
