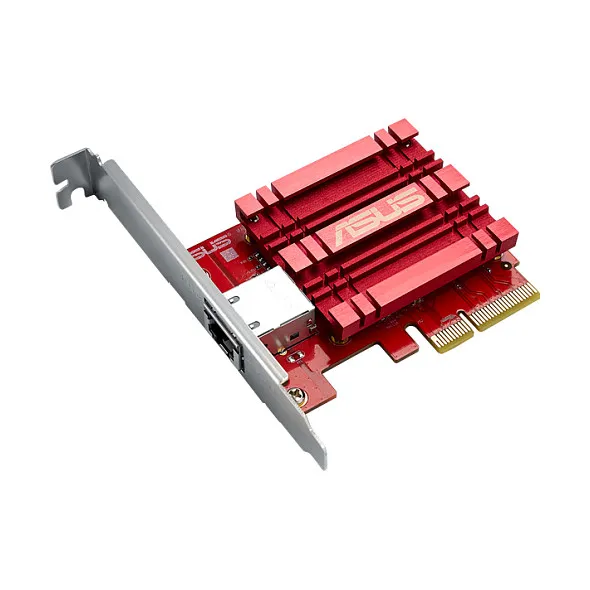

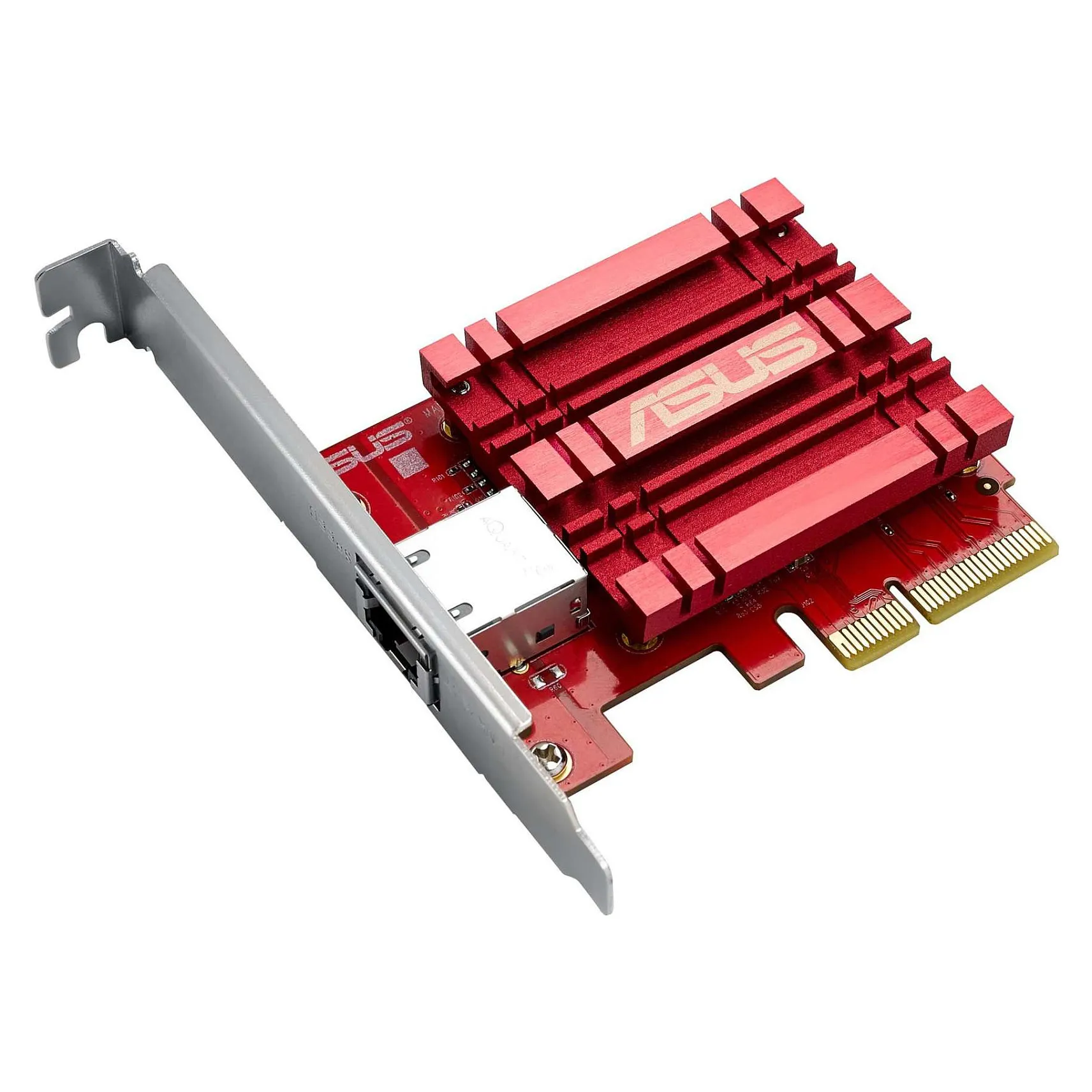

ASUS XG-C100C V3. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 10000 Mbit/s. Product colour: Red
Hyper-fast 10Gbps Networking
XG-C100C uses next-generation 10GBase-T (10G) networking technology to deliver speeds of up to 10Gbps –10X faster than standard gigabit Ethernet. It enables ultra-fast 10Gbps network access for desktop PCs, so you can easily handle the most data-intensive tasks in your office or at home.
*Minimum Category 5e network cables (within 30m range) required for 10Gbps operation according to ASUS testing result.
XG-C100C uses next-generation 10GBase-T (10G) networking technology to deliver speeds of up to 10Gbps –10X faster than standard gigabit Ethernet. It enables ultra-fast 10Gbps network access for desktop PCs, so you can easily handle the most data-intensive tasks in your office or at home.
*Minimum Category 5e network cables (within 30m range) required for 10Gbps operation according to ASUS testing result.
Ports & interfaces
Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
PCI version: 3.0
Network
Maximum data transfer rate: 10000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 100,1000,2500,5000,10000 Mbit/s
VLAN support: Yes
Design
Component for: PC
Product colour: Red
Internal: Yes
LED indicators: Link, Speed
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 85 °C
Weight & dimensions
Width: 120.5 mm
Depth: 95.3 mm
Height: 21.6 mm
Weight: 90 g
Packaging data
Package width: 168 mm
Package depth: 146 mm
Package height: 45 mm
Package weight: 280 g
Packaging content
Mounting brackets included: Yes
Quick installation guide: Yes
Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
PCI version: 3.0
Network
Maximum data transfer rate: 10000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 100,1000,2500,5000,10000 Mbit/s
VLAN support: Yes
Design
Component for: PC
Product colour: Red
Internal: Yes
LED indicators: Link, Speed
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 85 °C
Weight & dimensions
Width: 120.5 mm
Depth: 95.3 mm
Height: 21.6 mm
Weight: 90 g
Packaging data
Package width: 168 mm
Package depth: 146 mm
Package height: 45 mm
Package weight: 280 g
Packaging content
Mounting brackets included: Yes
Quick installation guide: Yes
