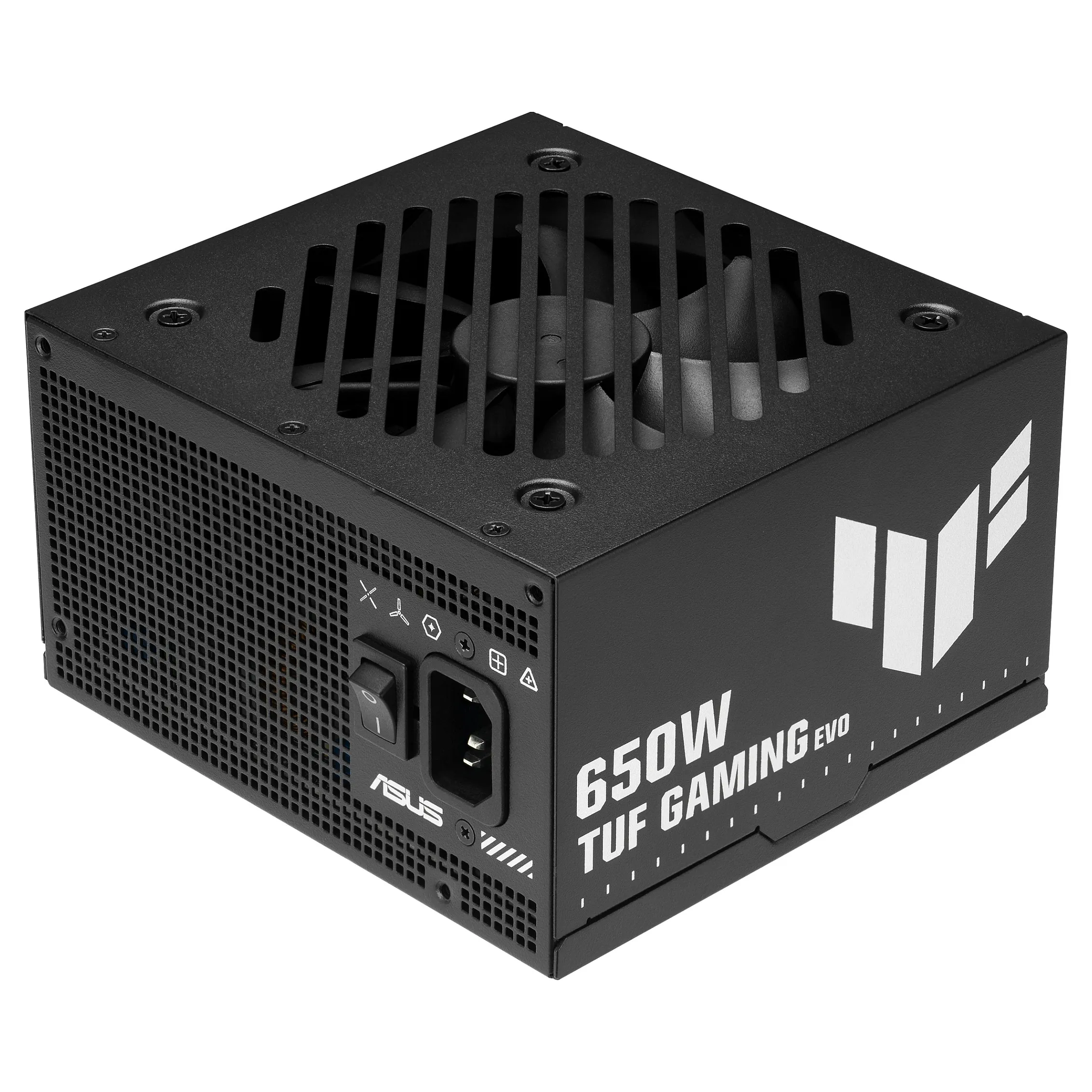

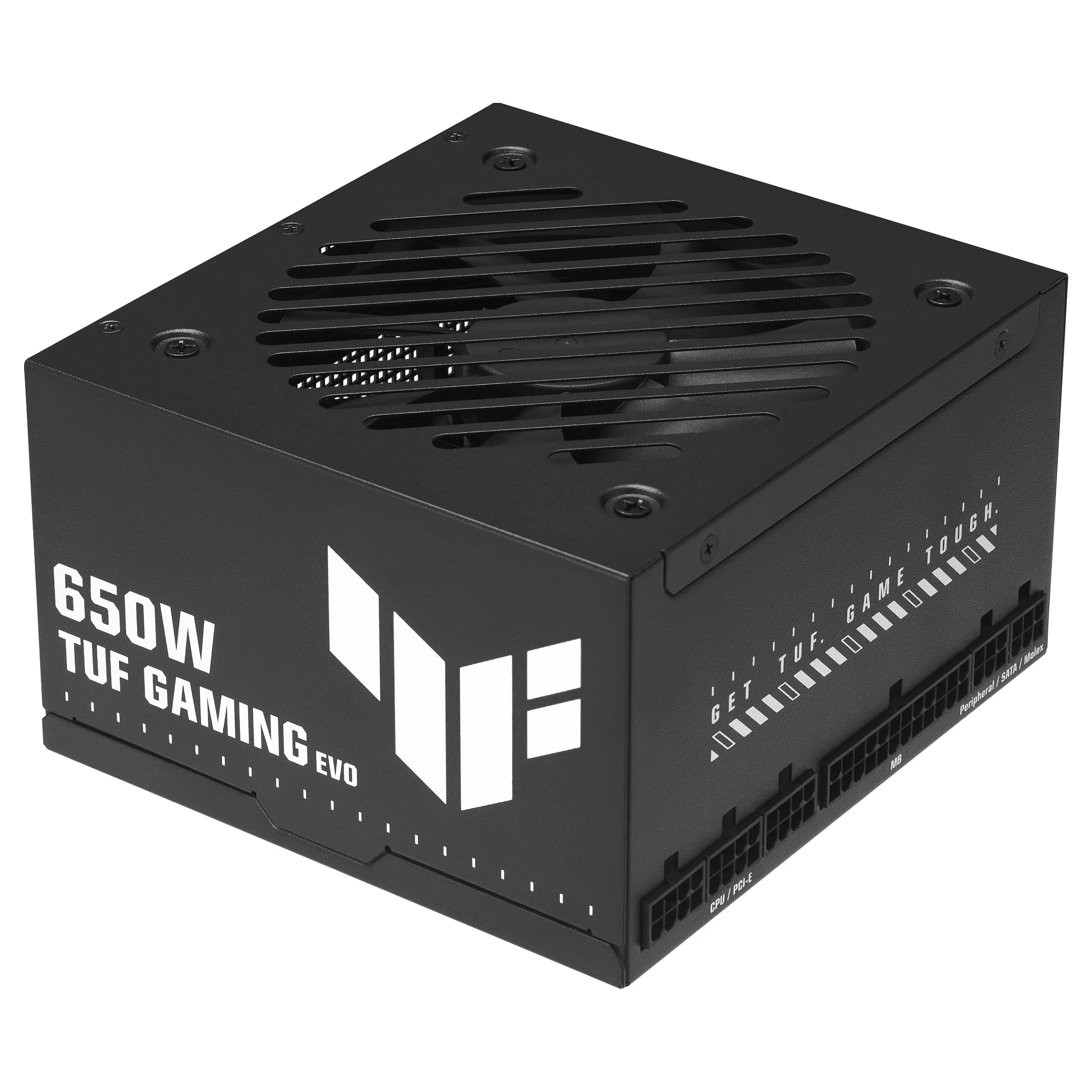

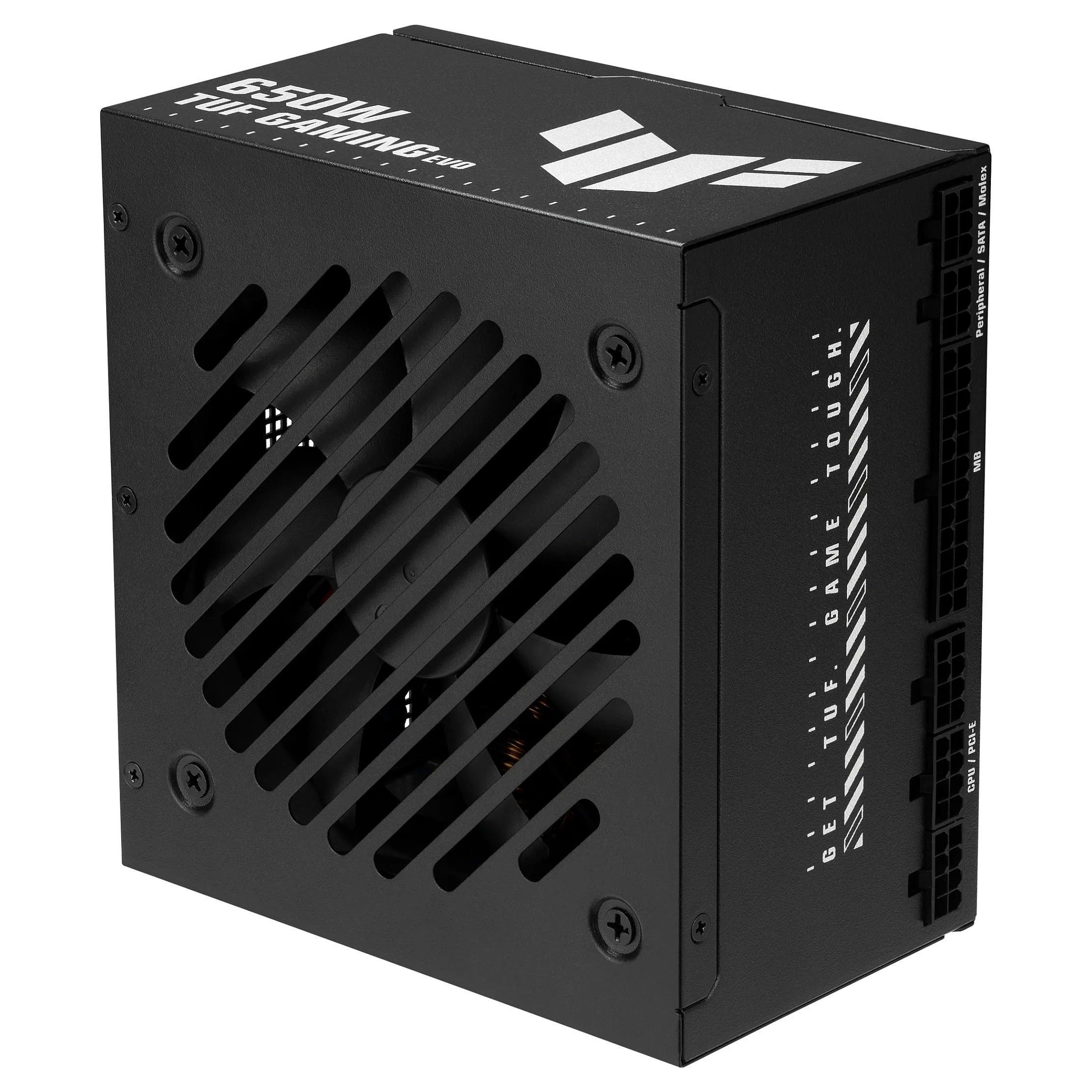

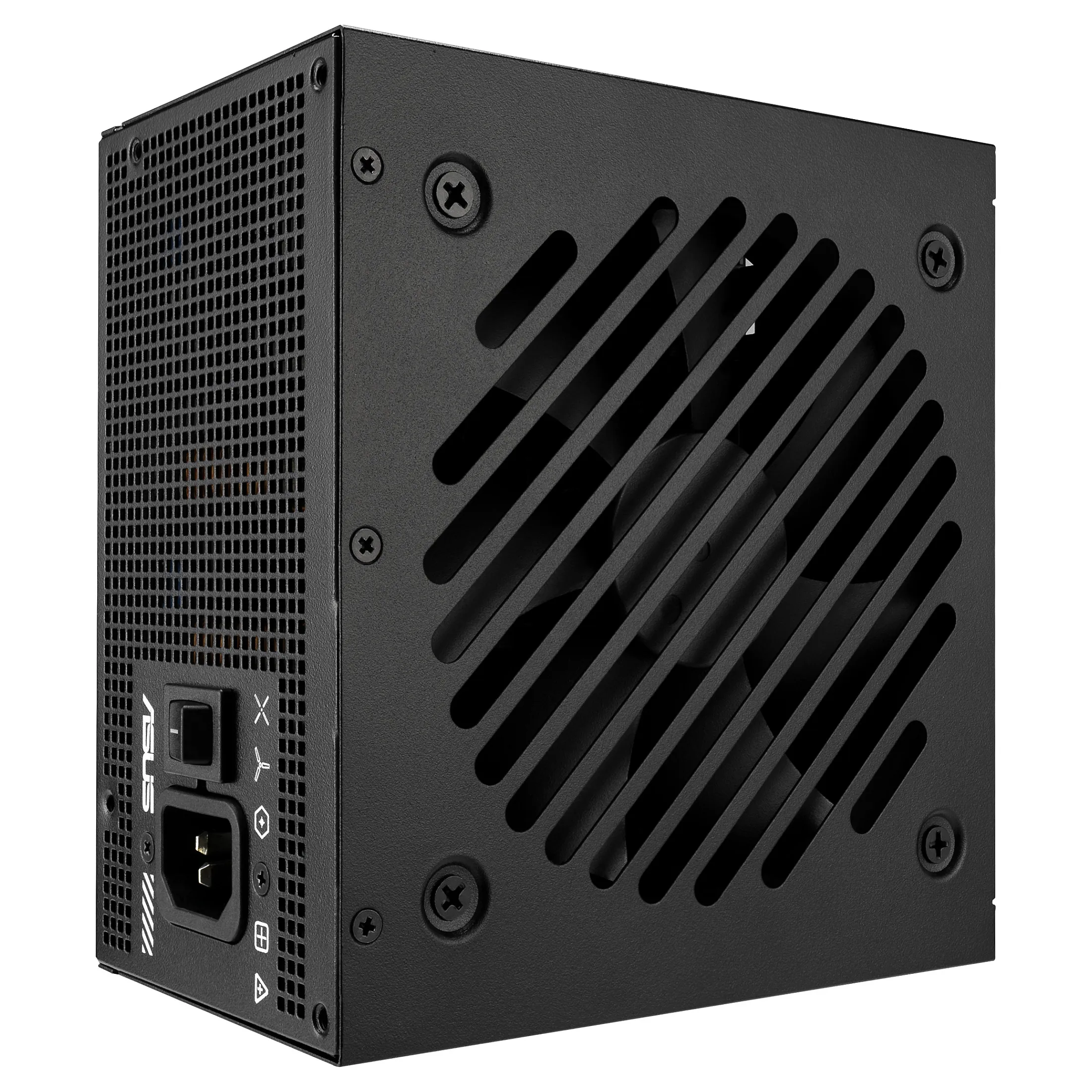

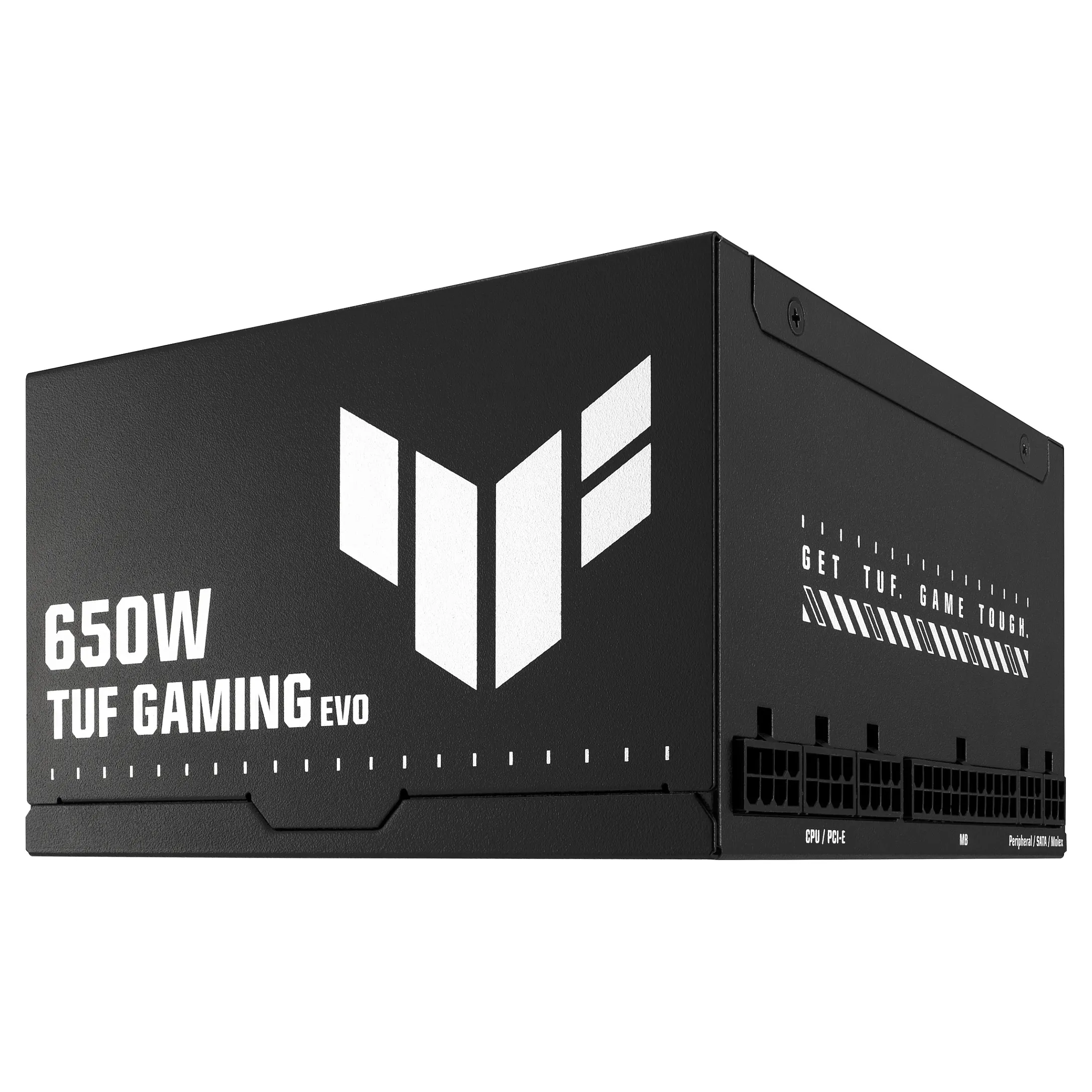

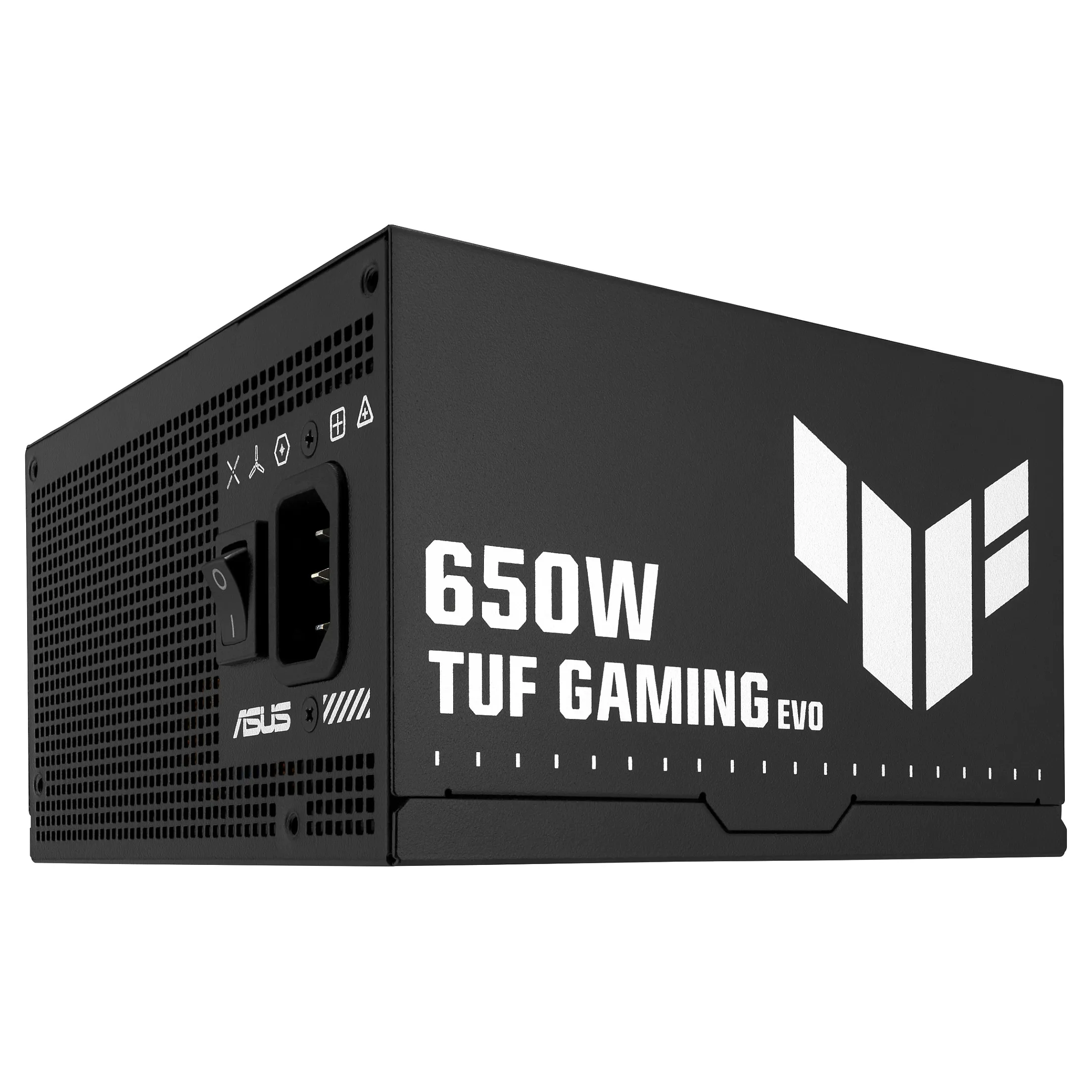

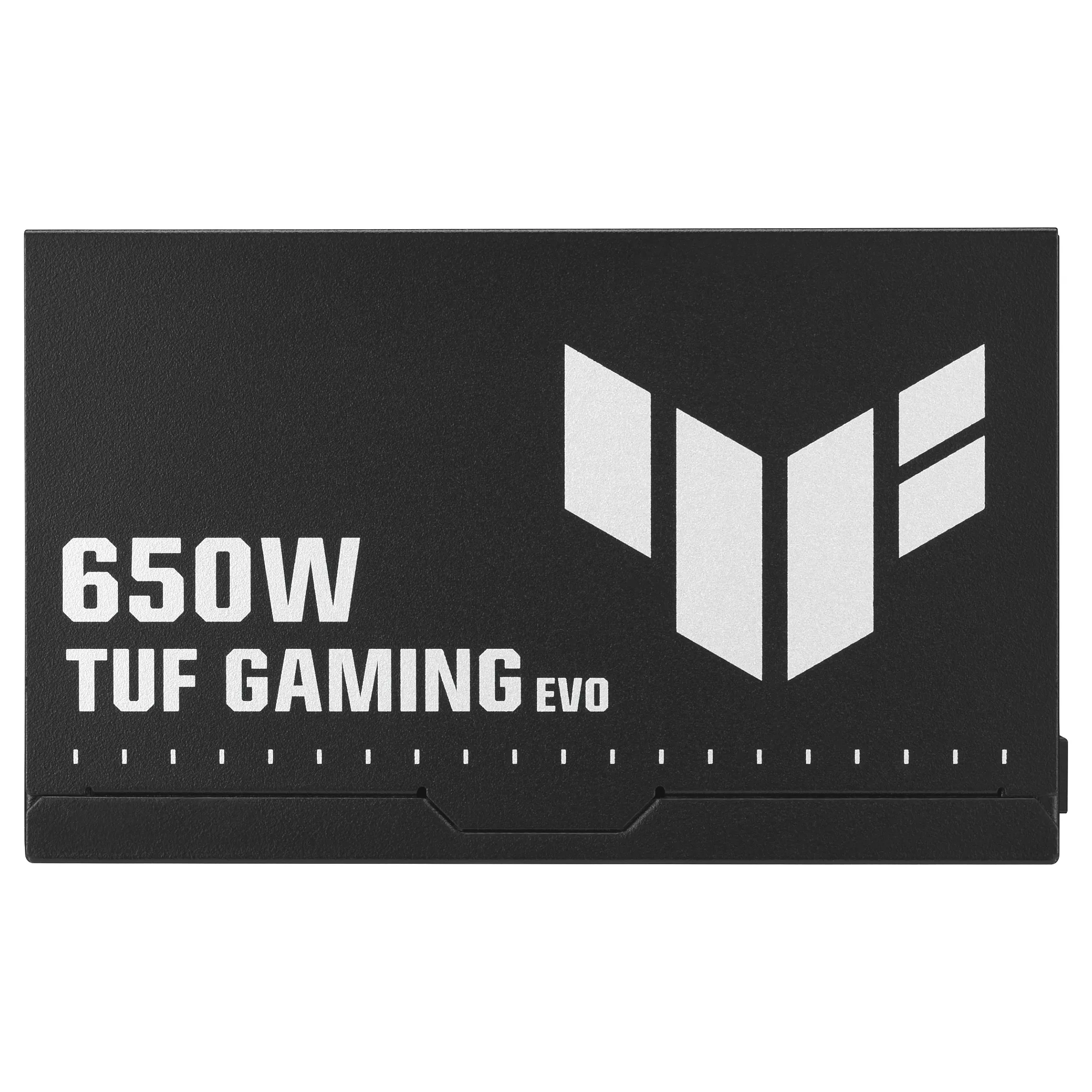

ASUS TUF-GAMING-650B-EVO. Total power: 650 W, AC input voltage: 100 – 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, SATA power cable length: 400,120 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Number of fans: 1 fan(s). Cables included: CPU, PCIe, Peripheral (Molex), SATA
Built For The Long Haul
TUF Gaming Bronze EVO series PSUs deliver dependable power with military-grade components, a robust cooling solution, and ATX 3.1 compatibility. High-quality capacitors and chokes endure rigorous testing to meet military specifications. The dual-ball fan bearings ensure longevity, making this PSU ideal for TUF Gaming rigs or any build designed for years of AAA gaming.
TUF Gaming Bronze EVO series PSUs deliver dependable power with military-grade components, a robust cooling solution, and ATX 3.1 compatibility. High-quality capacitors and chokes endure rigorous testing to meet military specifications. The dual-ball fan bearings ensure longevity, making this PSU ideal for TUF Gaming rigs or any build designed for years of AAA gaming.
Power
Total power: 650 W
AC input voltage: 100 – 240 V
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 80 W
Combined power (+12V): 650 W
Combined power (+5V): 80 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 12 A
Max output current (+12V): 54.16 A
Max output current (+5V): 12 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Overheating, Over current, Over power, Under voltage, Over voltage, Short circuit

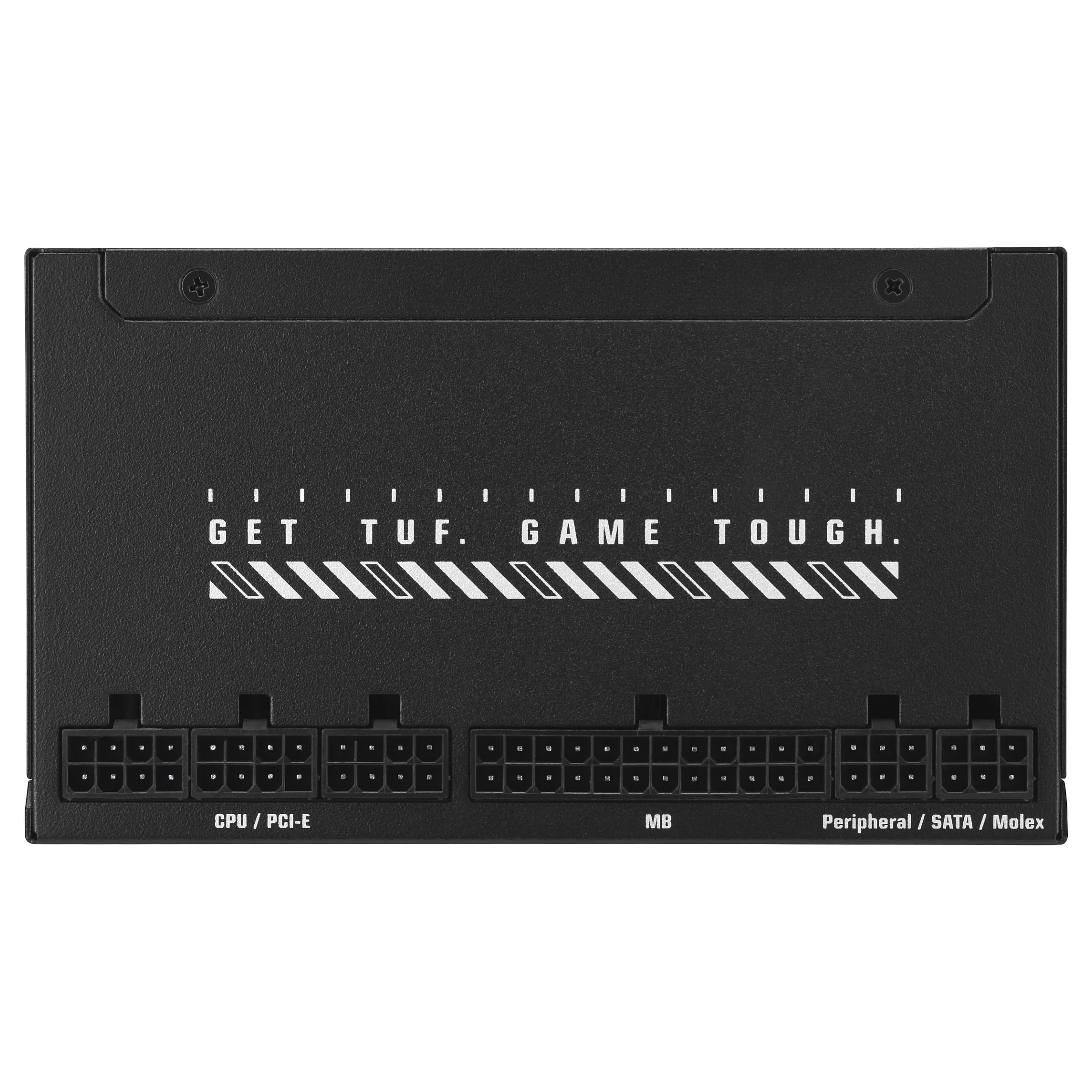

Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 50 cm
Number of SATA power connectors: 4
SATA power cable length: 400,120 mm
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 400,120 mm
PCI Express power connectors (6+2 pin): 2
Feature: CPU power connector (4+4 pin)
CPU power cable length: 65 cm
Feature: PCI Express connector
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: DBB
Mean time between failures (MTBF): 120000 h
Design
Product colour: Black
Cooling type: Active

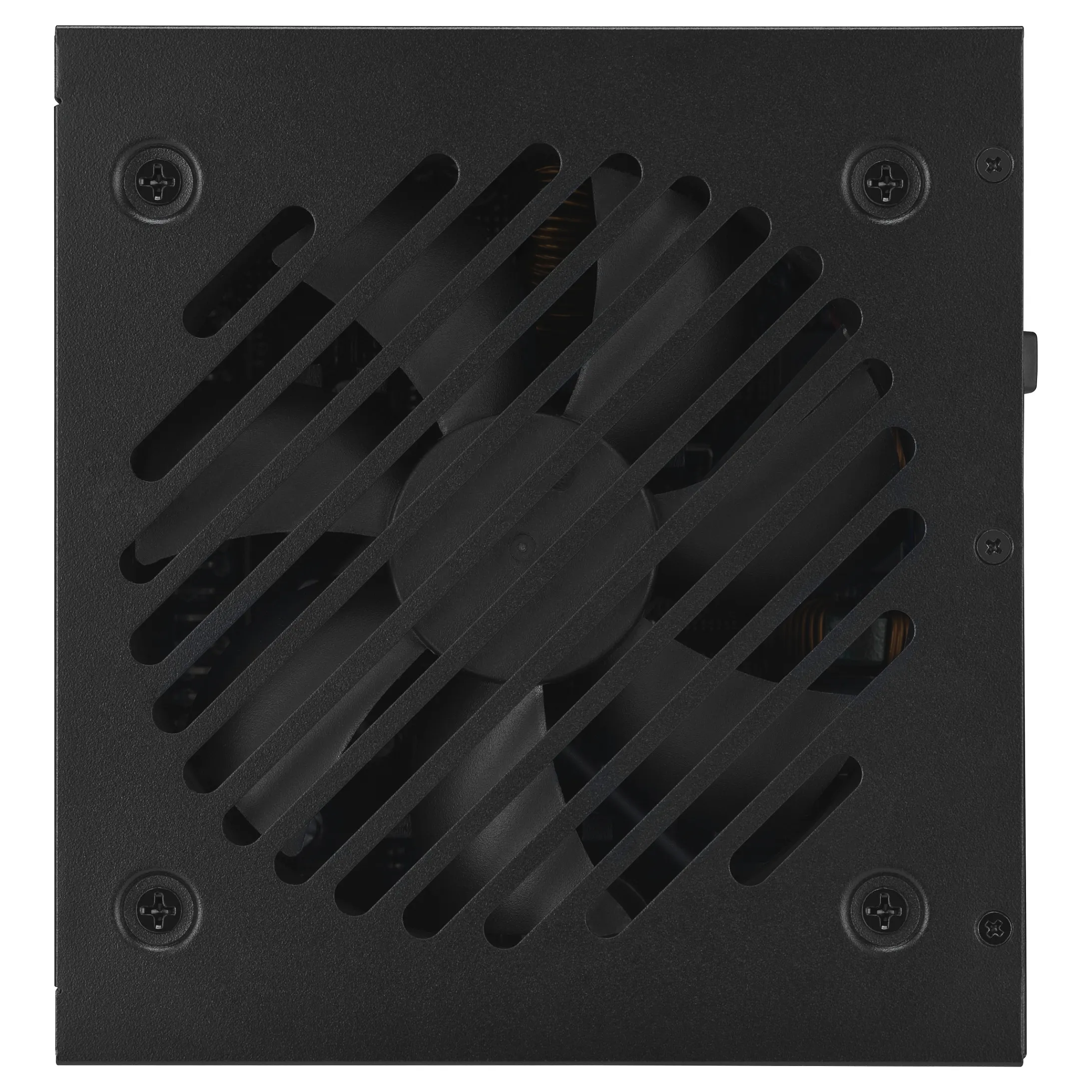

Number of fans: 1 fan(s)
Fan location: Top

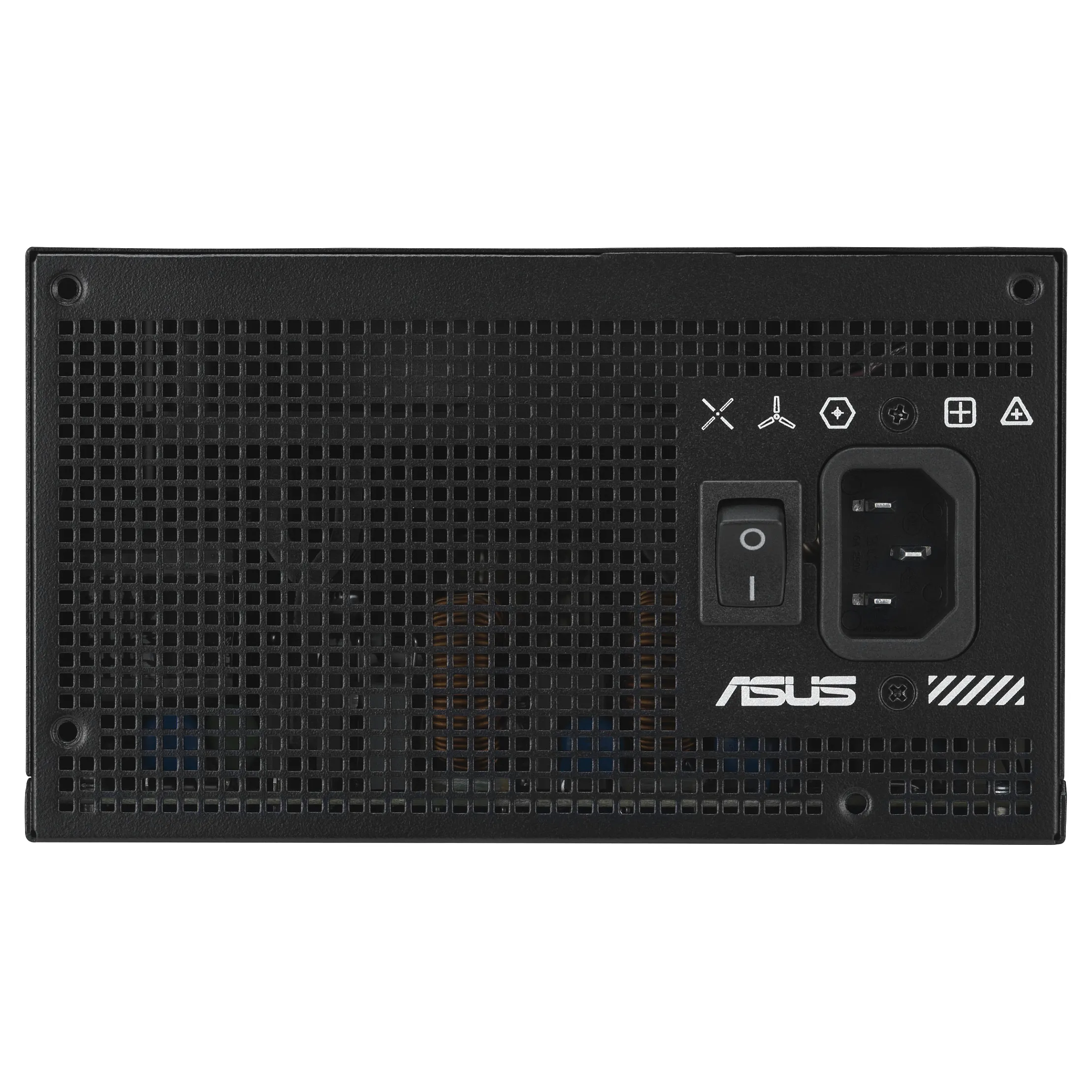

Feature: On/off switch
Packaging content
Cables included: CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Width: 140 mm
Depth: 150 mm
Height: 86 mm
Weight: 1.25 kg
Packaging data
Package width: 282 mm
Package depth: 182 mm
Package height: 127 mm
Package weight: 2.07 kg
Package type: Box
Total power: 650 W
AC input voltage: 100 – 240 V
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 80 W
Combined power (+12V): 650 W
Combined power (+5V): 80 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 12 A
Max output current (+12V): 54.16 A
Max output current (+5V): 12 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Overheating, Over current, Over power, Under voltage, Over voltage, Short circuit
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 50 cm
Number of SATA power connectors: 4
SATA power cable length: 400,120 mm
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 400,120 mm
PCI Express power connectors (6+2 pin): 2
Feature: CPU power connector (4+4 pin)
CPU power cable length: 65 cm
Feature: PCI Express connector
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: DBB
Mean time between failures (MTBF): 120000 h
Design
Product colour: Black
Cooling type: Active
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch
Packaging content
Cables included: CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Width: 140 mm
Depth: 150 mm
Height: 86 mm
Weight: 1.25 kg
Packaging data
Package width: 282 mm
Package depth: 182 mm
Package height: 127 mm
Package weight: 2.07 kg
Package type: Box
