ASUS RS720-E12-RS8G. Processor manufacturer: Intel, Processor family: Intel® Xeon® Scalable, Compatible processor series: Intel® Xeon®. Supported memory types: DDR5-SDRAM, Supported DIMM module capacities: 16GB, 32GB, 64GB, 128GB, 256GB, Maximum internal memory: 4 TB. Storage drive sizes supported: 2.5,M.2, Supported storage drive interfaces: Serial ATA, Serial Attached SCSI (SAS). On-board graphics card model: Aspeed AST2600, On-board graphics card memory: 64 MB. Chassis type: Rack (2U), Product colour: Black, Silver, Cooling type: Active
Intel-based rack server for expansional workloads

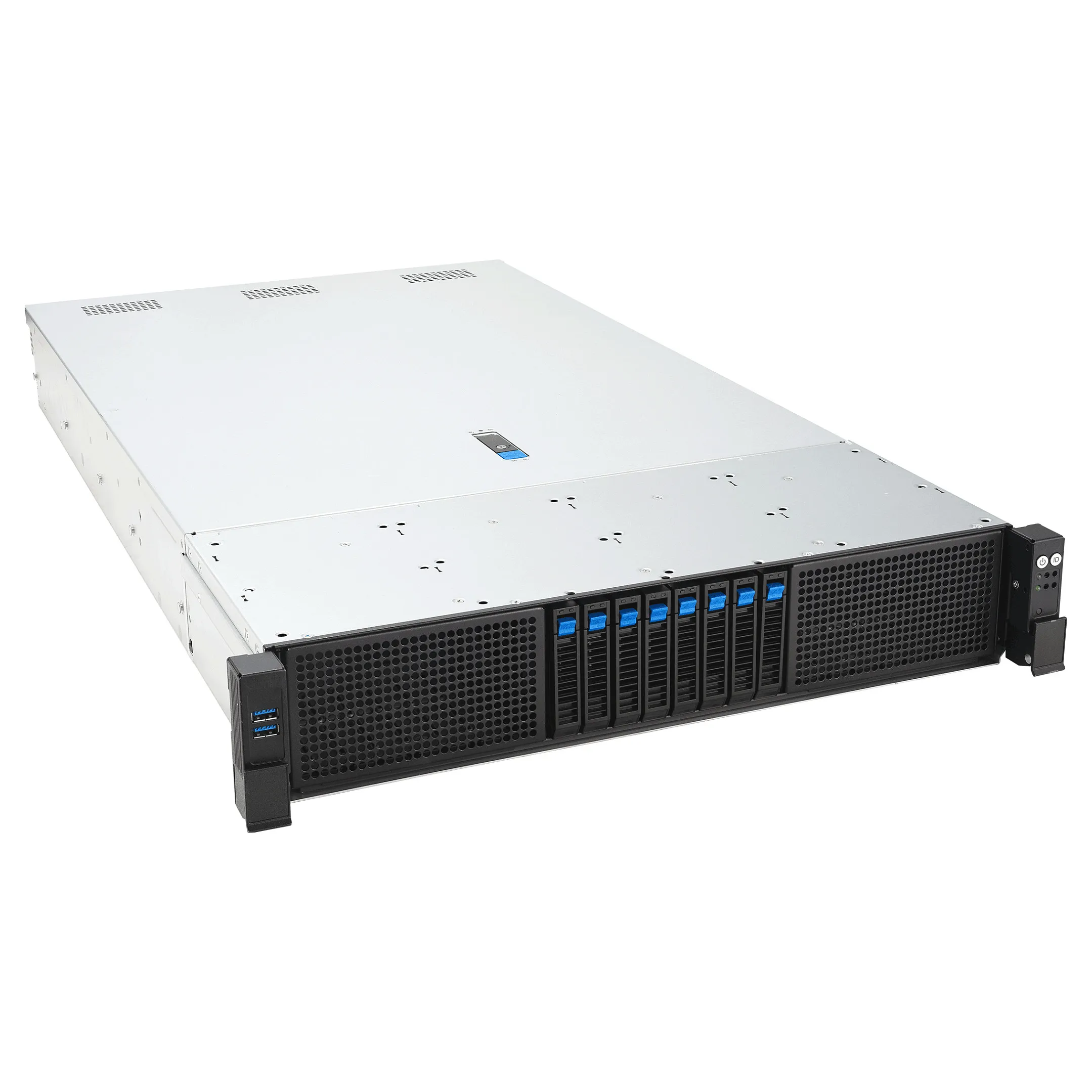

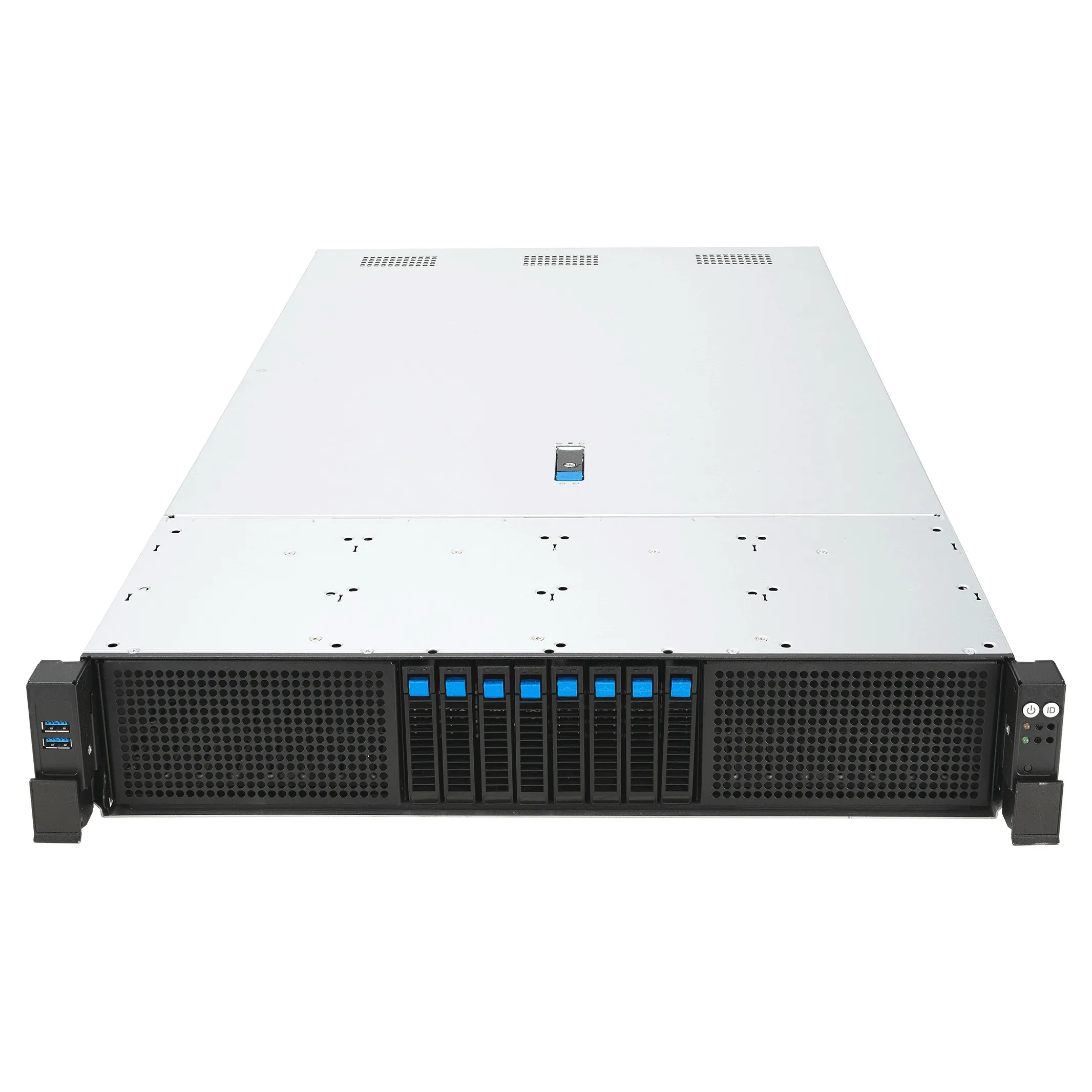

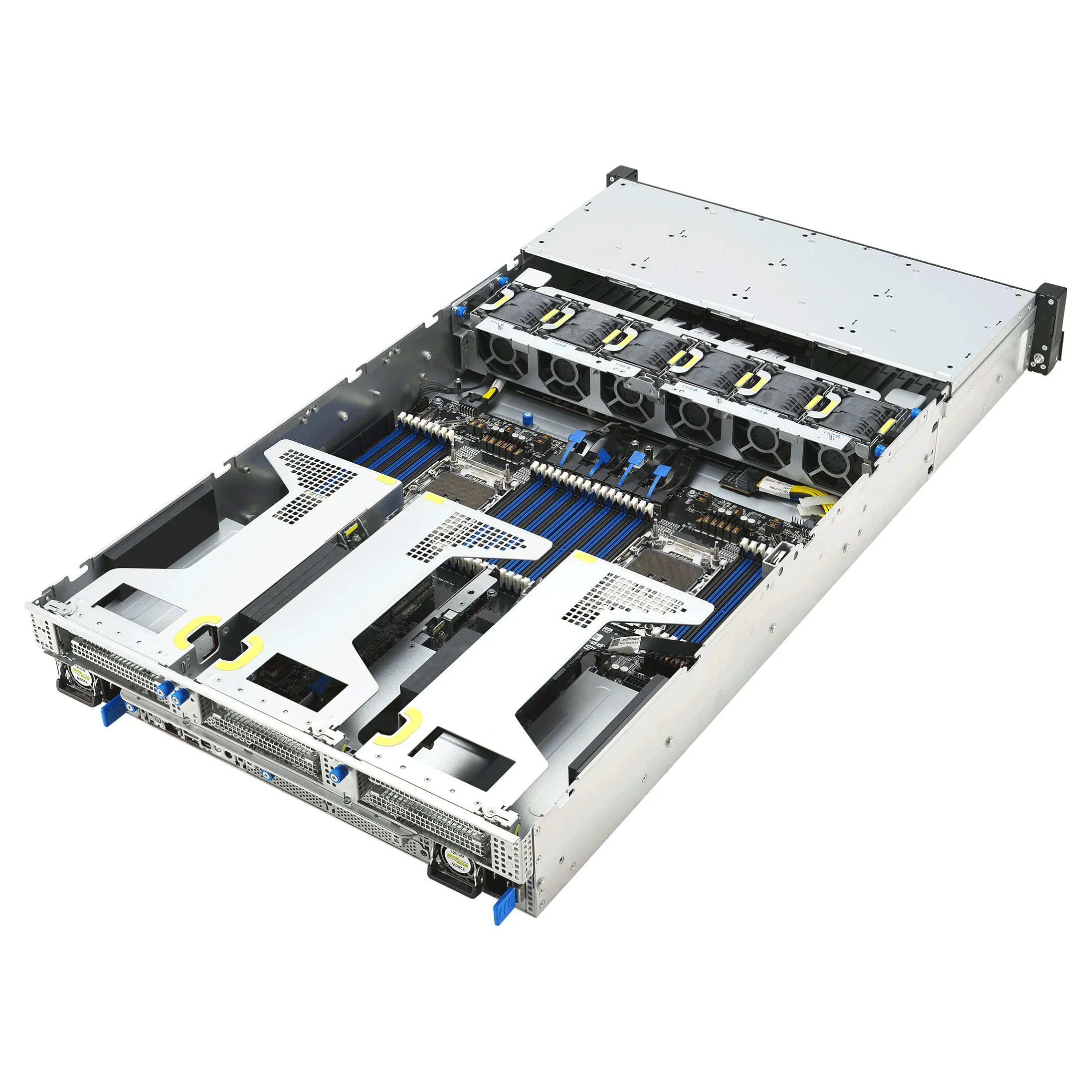

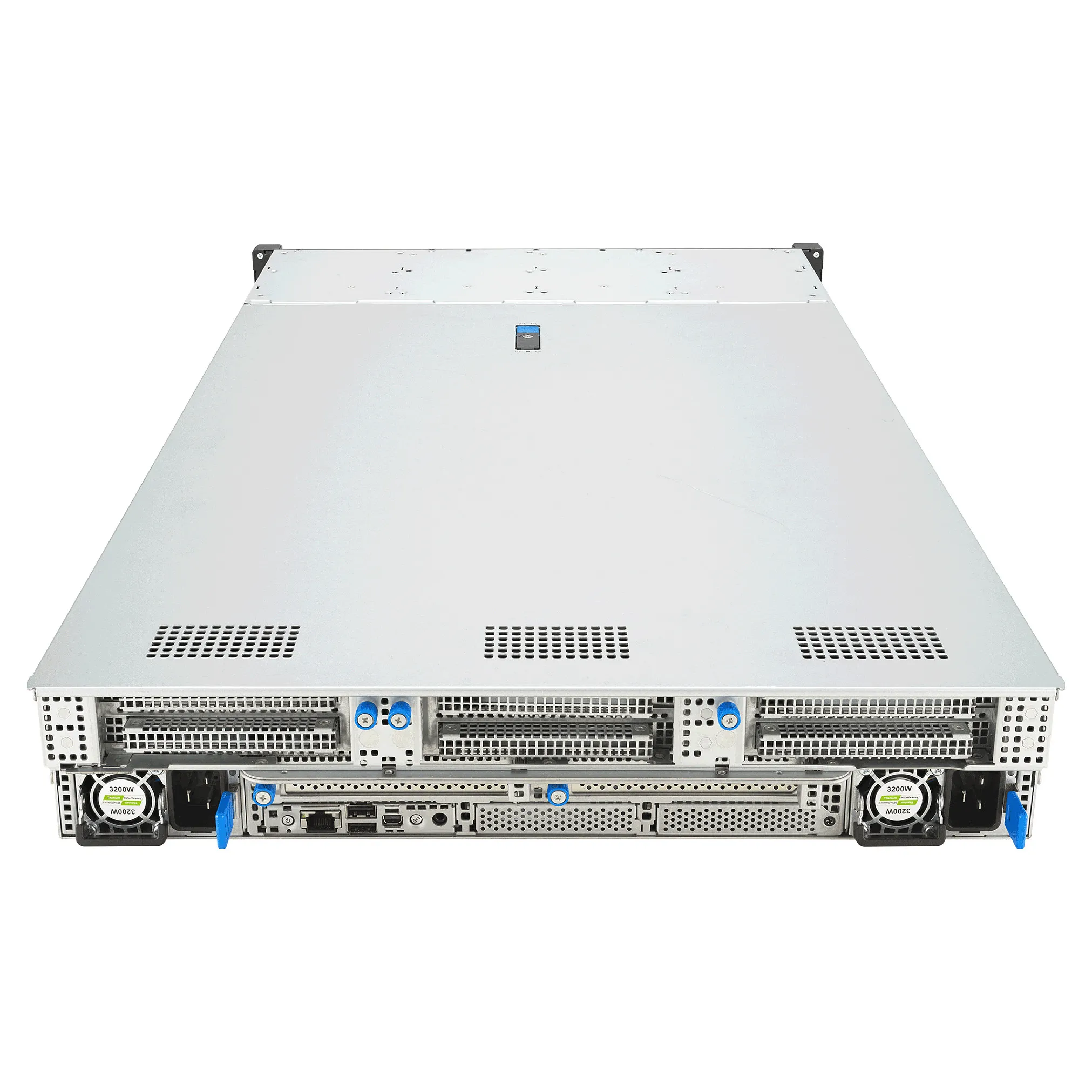

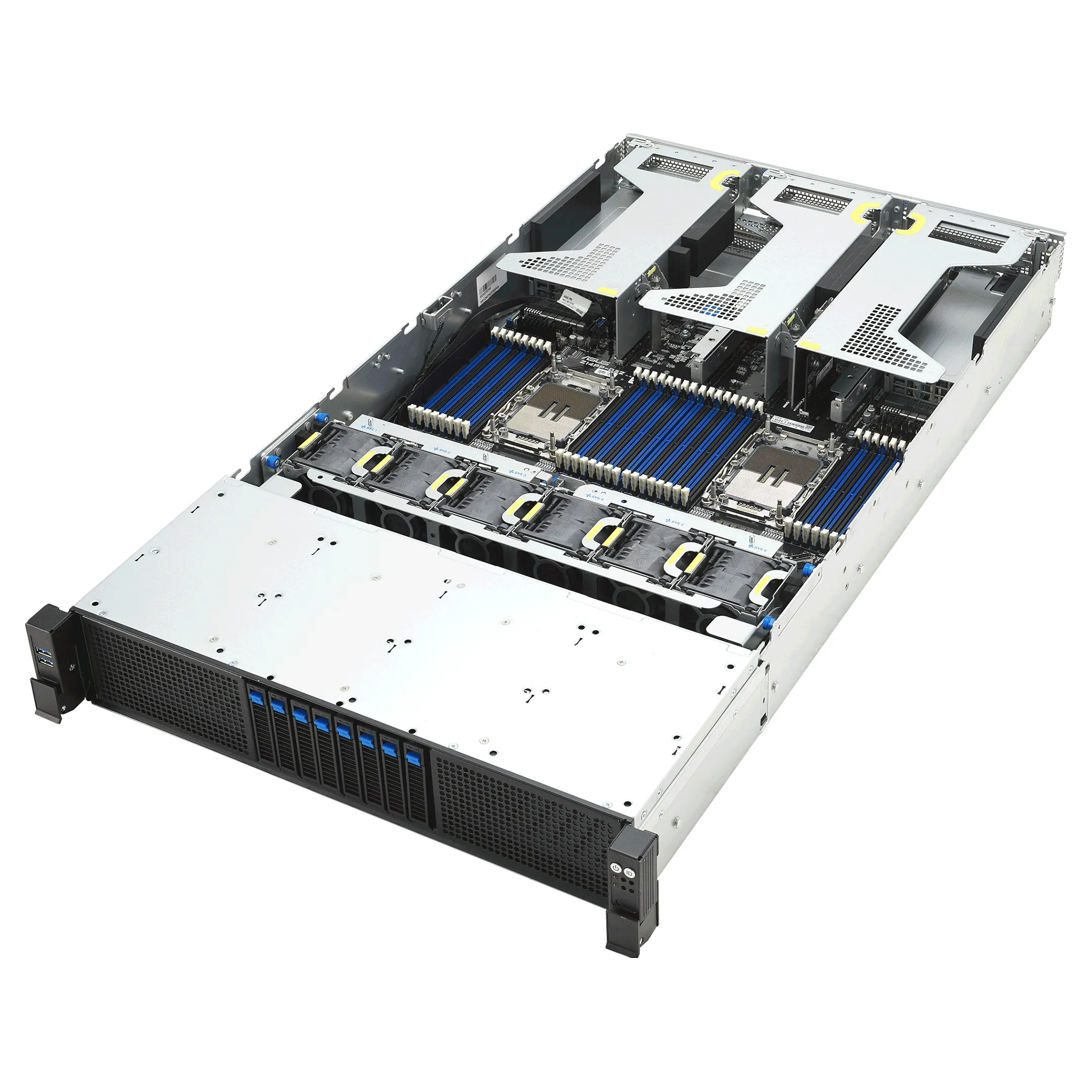

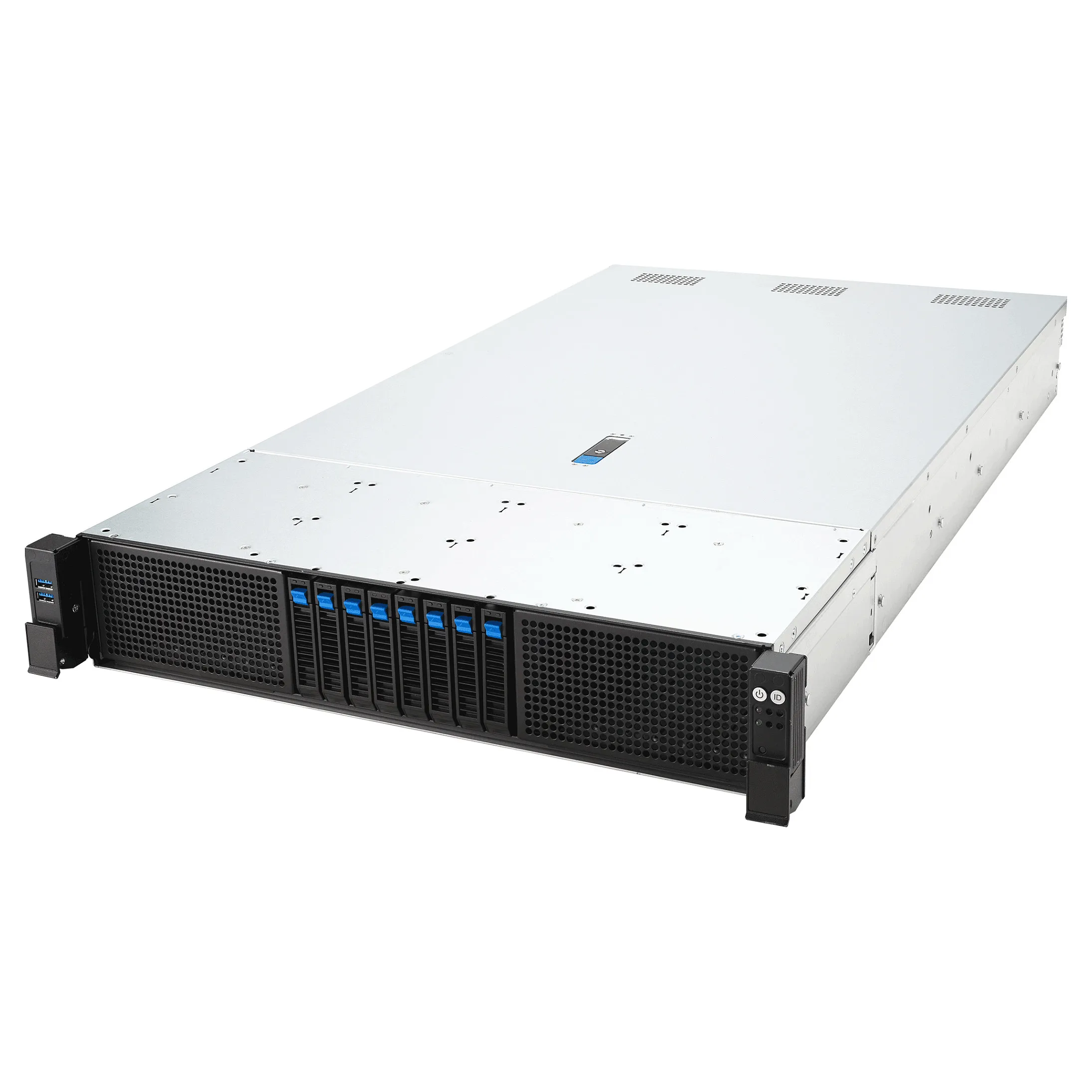

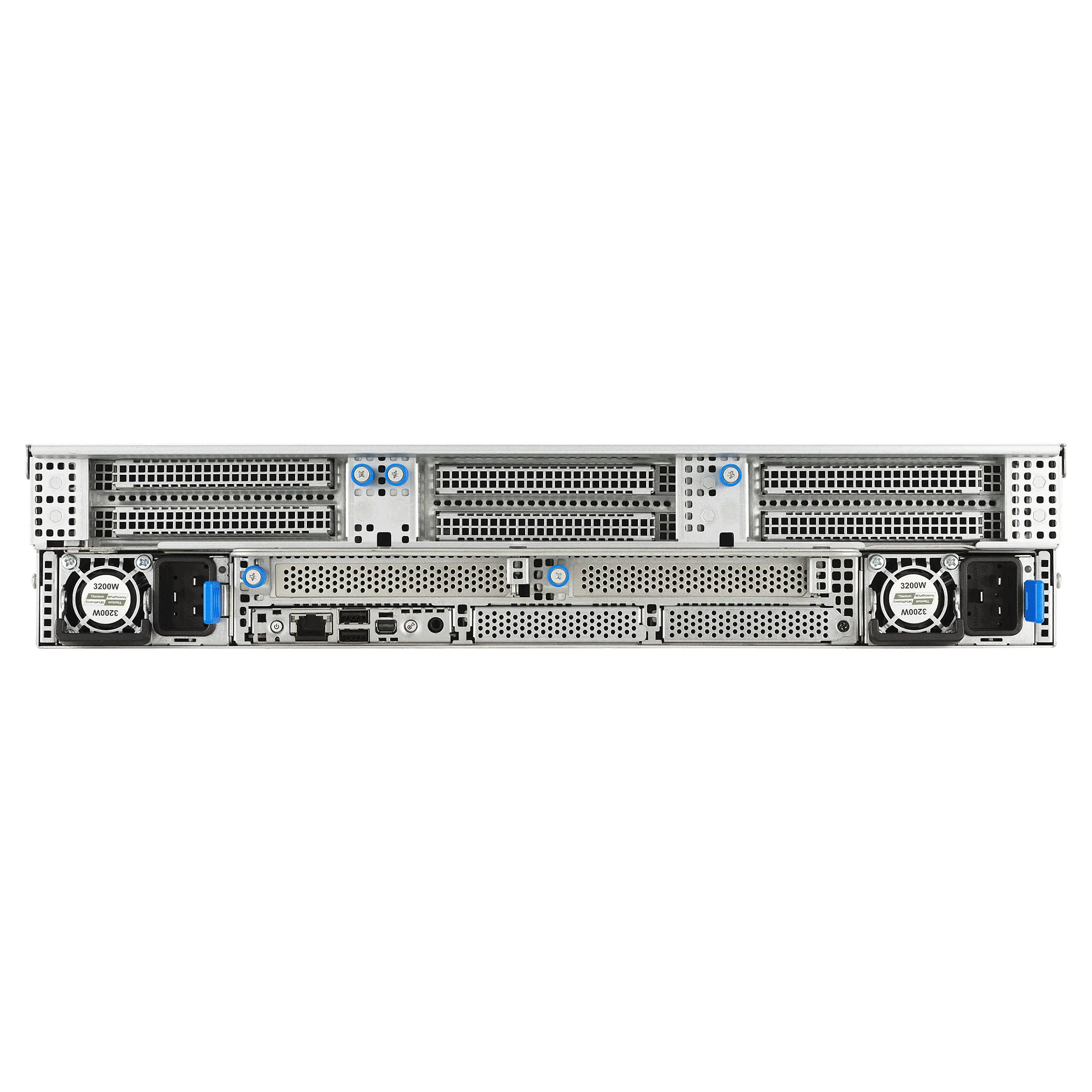

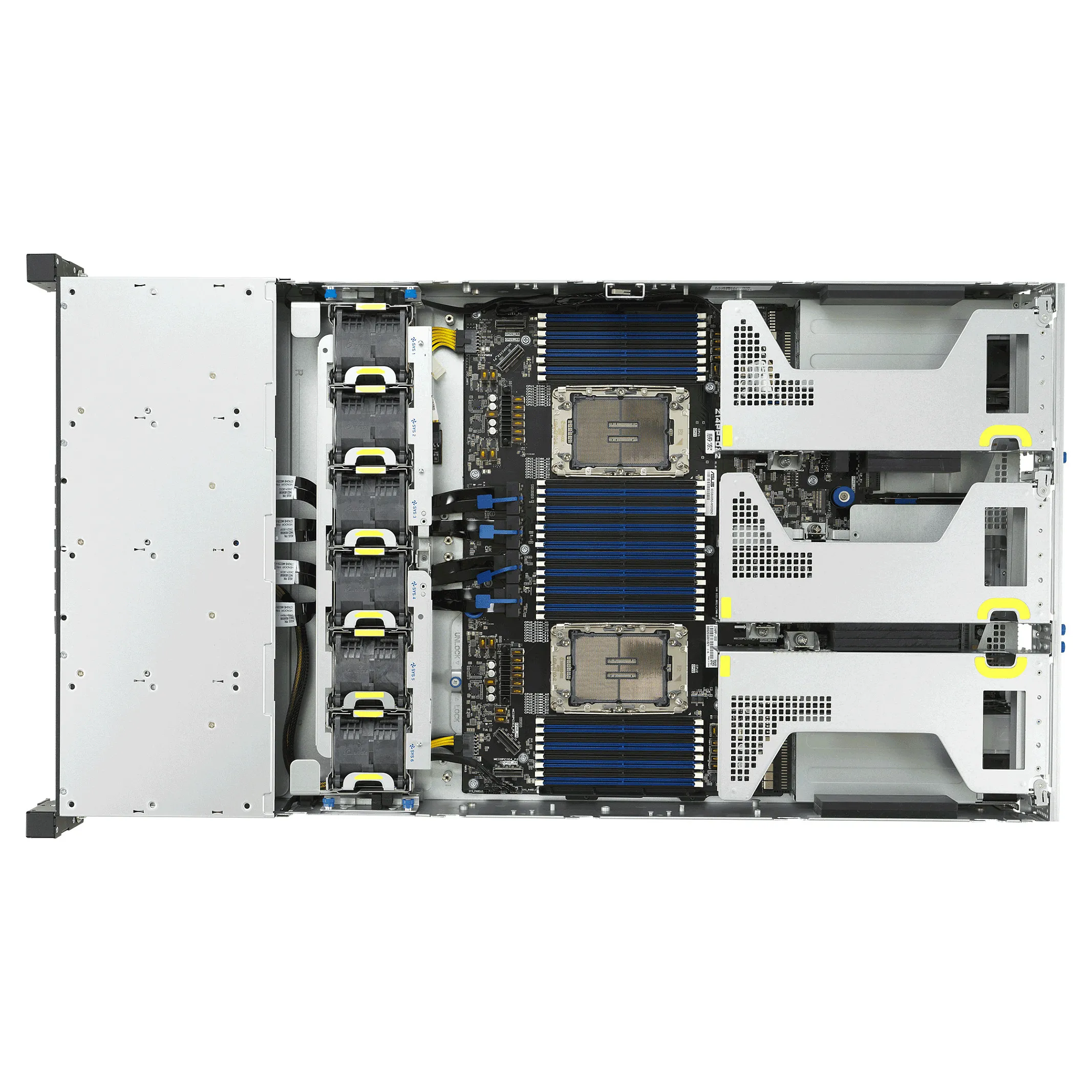

ASUS RS720-E12-RS8G is a versatile and high-performance 2U server powered by dual Intel® Xeon® 6 processors, supporting up to 32 DIMMs for enhanced memory performance maximum up to 4TB and delivering exceptional efficiency across a broad range of workloads. With a modular and scalable DC-MHS architecture, RS720-E12-RS8G provide seamless integration and optimization, making them ideal for modern data centers and diverse IT environments.
ASUS RS720-E12-RS8G is a versatile and high-performance 2U server powered by dual Intel® Xeon® 6 processors, supporting up to 32 DIMMs for enhanced memory performance maximum up to 4TB and delivering exceptional efficiency across a broad range of workloads. With a modular and scalable DC-MHS architecture, RS720-E12-RS8G provide seamless integration and optimization, making them ideal for modern data centers and diverse IT environments.
Processor
Processor manufacturer: Intel
Processor family: Intel® Xeon® Scalable
Number of processors supported: 1
Compatible processor series: Intel® Xeon®
Memory
Number of DIMM slots: 32
Supported memory types: DDR5-SDRAM
Supported DIMM module capacities: 16GB, 32GB, 64GB, 128GB, 256GB
Maximum internal memory: 4 TB
Supported RDIMM clock speeds: 6400 MHz
Storage
Number of storage drives supported: 8
Feature: Hot-swap HDD bays
Storage drive sizes supported: 2.5,M.2
Supported storage drive interfaces: Serial ATA, Serial Attached SCSI (SAS)
Graphics
On-board graphics card model: Aspeed AST2600
On-board graphics card memory: 64 MB
Network
Feature: Ethernet LAN
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
Feature: IPMI LAN (RJ-45) port
Mini DisplayPorts quantity: 1
Expansion slots
PCI Express slots version: 5.0
PCI Express x16 slots: 2
Number of M.2 (M) slots: 2
Features
Feature: Trusted Platform Module (TPM)
Design
Chassis type: Rack (2U)
Product colour: Black, Silver
LED indicators: Yes
Feature: On/off switch
Cooling type: Active
Number of fans: 6 fan(s)
Power
Power supply: 3200 W
Feature: Redundant power supply (RPS) support
Number of redundant power supplies supported: 2
AC input frequency: 50/60 Hz
80 PLUS certification: 80 PLUS Titanium
Operational conditions
Operating temperature (T-T): 10 – 35 °C
Storage temperature (T-T): -40 – 60 °C
Storage relative humidity (H-H): 20 – 90%
Weight & dimensions
Width: 449 mm
Depth: 830 mm
Height: 88 mm
Weight: 17.8 kg
Packaging data
Package weight: 21.3 kg
Processor manufacturer: Intel
Processor family: Intel® Xeon® Scalable
Number of processors supported: 1
Compatible processor series: Intel® Xeon®
Memory
Number of DIMM slots: 32
Supported memory types: DDR5-SDRAM
Supported DIMM module capacities: 16GB, 32GB, 64GB, 128GB, 256GB
Maximum internal memory: 4 TB
Supported RDIMM clock speeds: 6400 MHz
Storage
Number of storage drives supported: 8
Feature: Hot-swap HDD bays
Storage drive sizes supported: 2.5,M.2
Supported storage drive interfaces: Serial ATA, Serial Attached SCSI (SAS)
Graphics
On-board graphics card model: Aspeed AST2600
On-board graphics card memory: 64 MB
Network
Feature: Ethernet LAN
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
Feature: IPMI LAN (RJ-45) port
Mini DisplayPorts quantity: 1
Expansion slots
PCI Express slots version: 5.0
PCI Express x16 slots: 2
Number of M.2 (M) slots: 2
Features
Feature: Trusted Platform Module (TPM)
Design
Chassis type: Rack (2U)
Product colour: Black, Silver
LED indicators: Yes
Feature: On/off switch
Cooling type: Active
Number of fans: 6 fan(s)
Power
Power supply: 3200 W
Feature: Redundant power supply (RPS) support
Number of redundant power supplies supported: 2
AC input frequency: 50/60 Hz
80 PLUS certification: 80 PLUS Titanium
Operational conditions
Operating temperature (T-T): 10 – 35 °C
Storage temperature (T-T): -40 – 60 °C
Storage relative humidity (H-H): 20 – 90%
Weight & dimensions
Width: 449 mm
Depth: 830 mm
Height: 88 mm
Weight: 17.8 kg
Packaging data
Package weight: 21.3 kg
