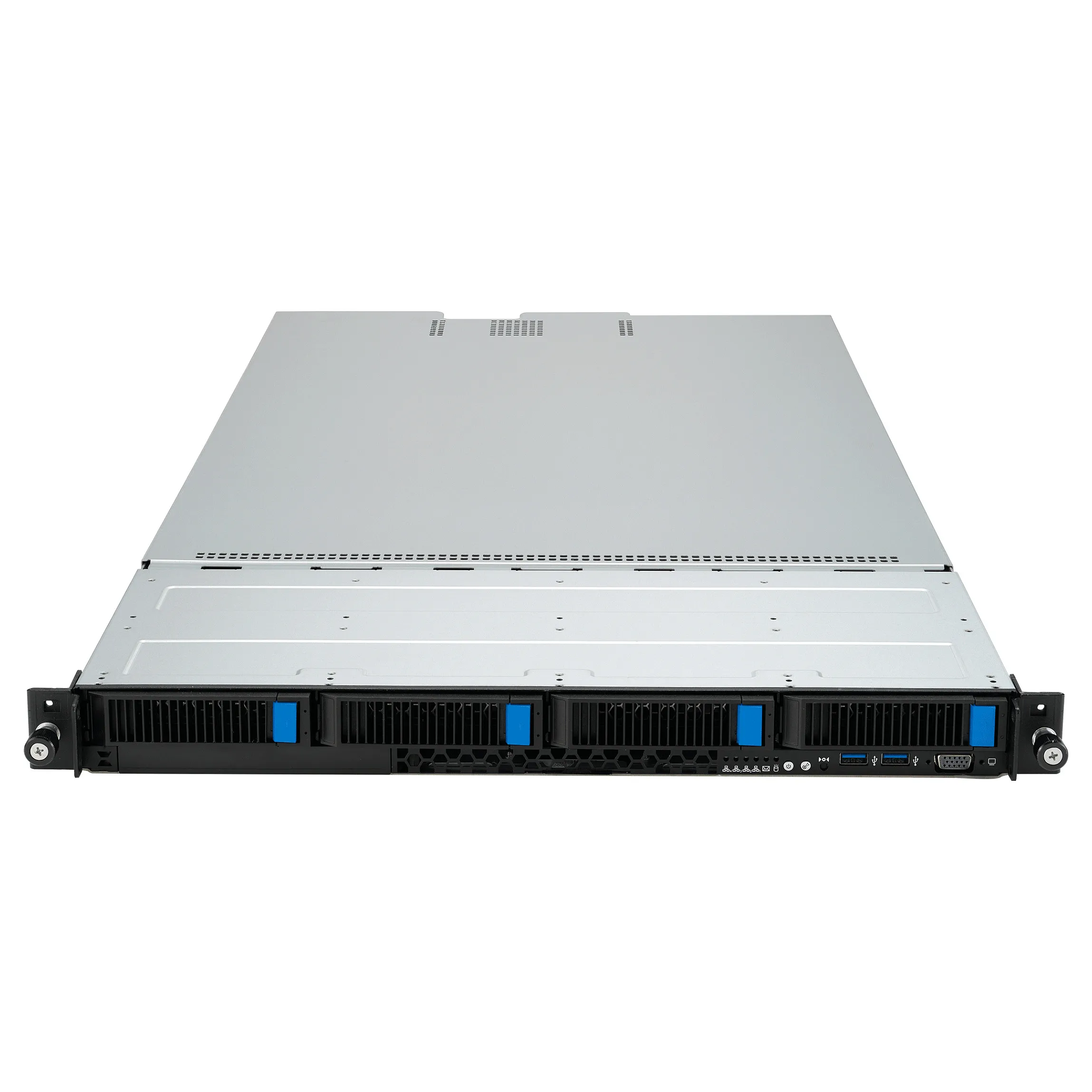

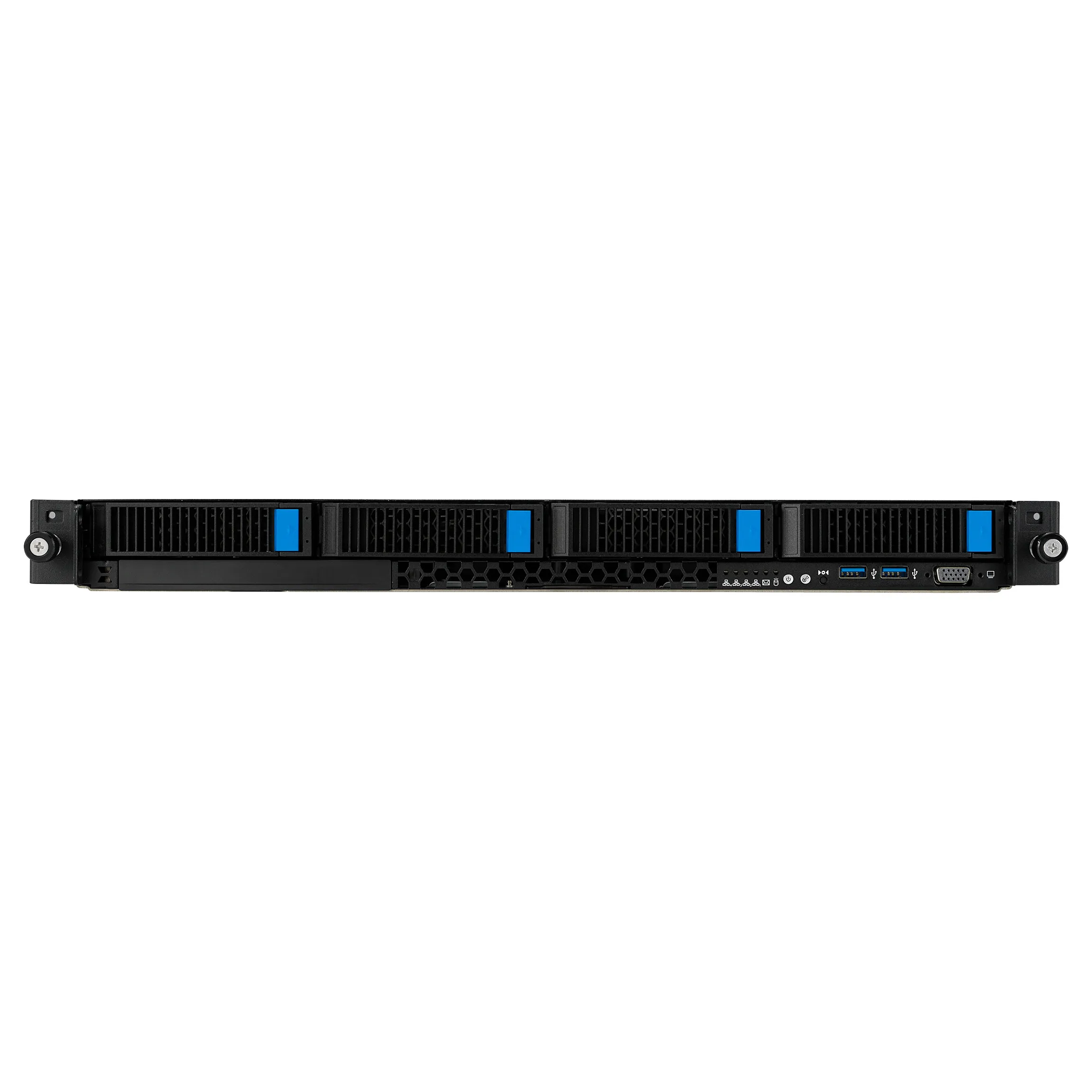

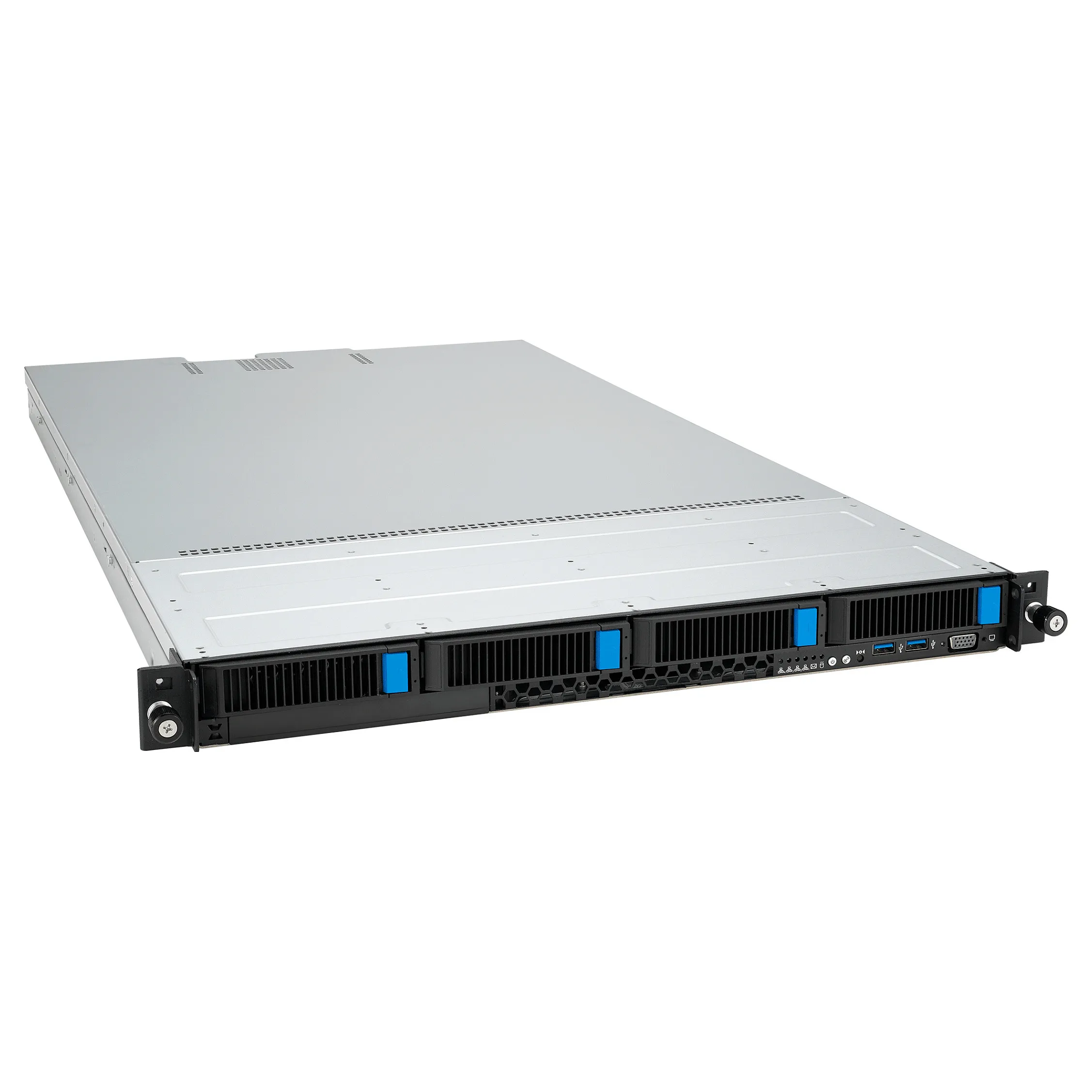

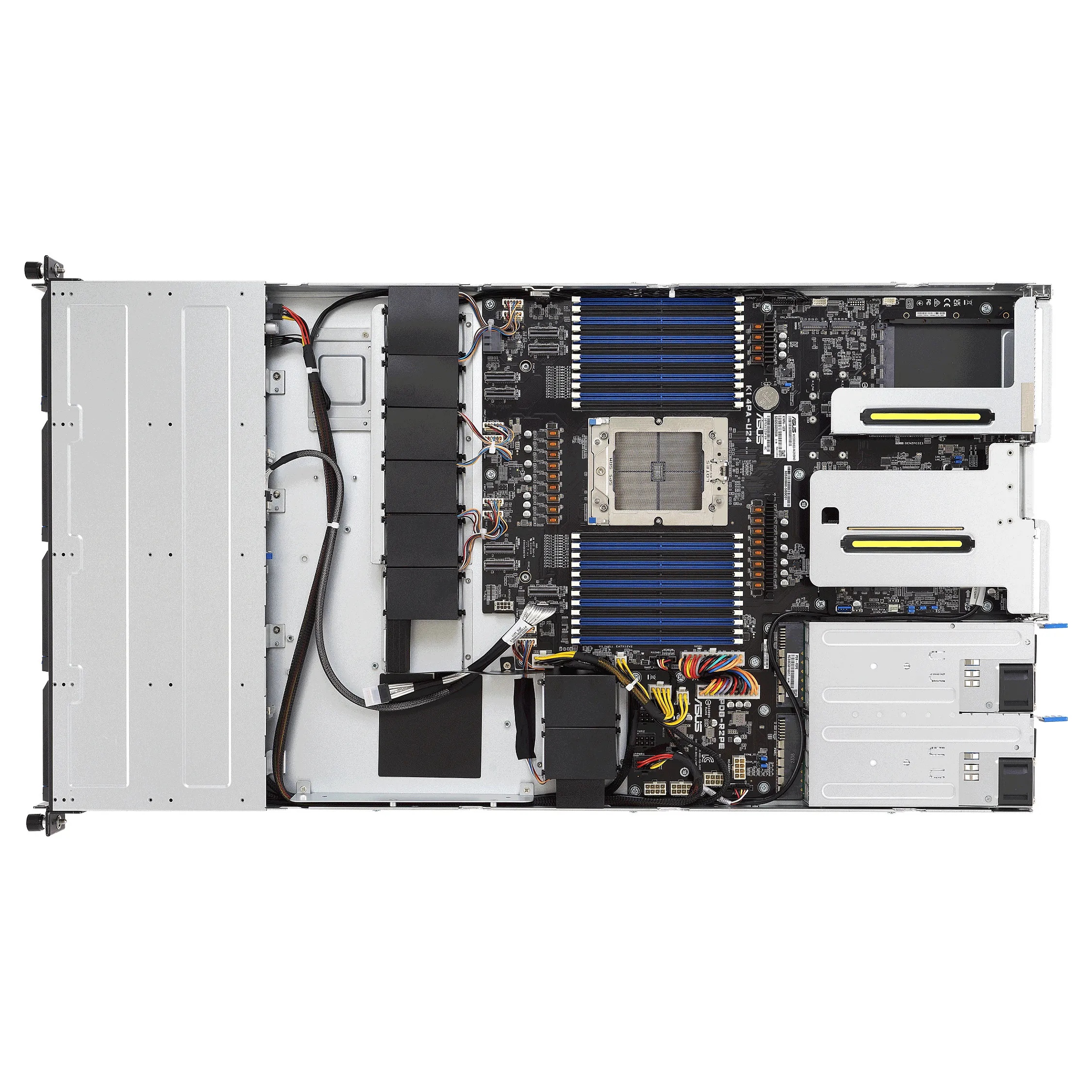

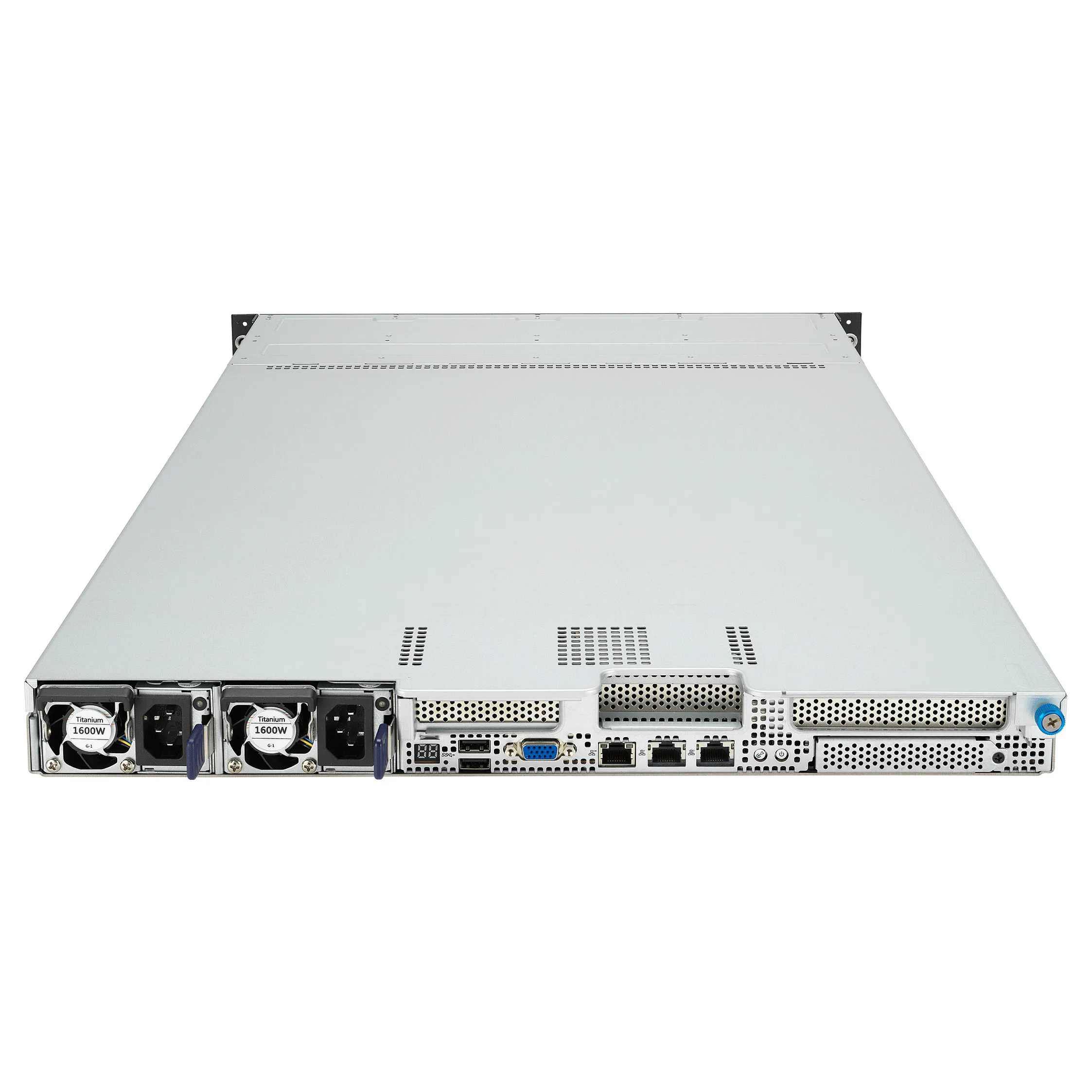

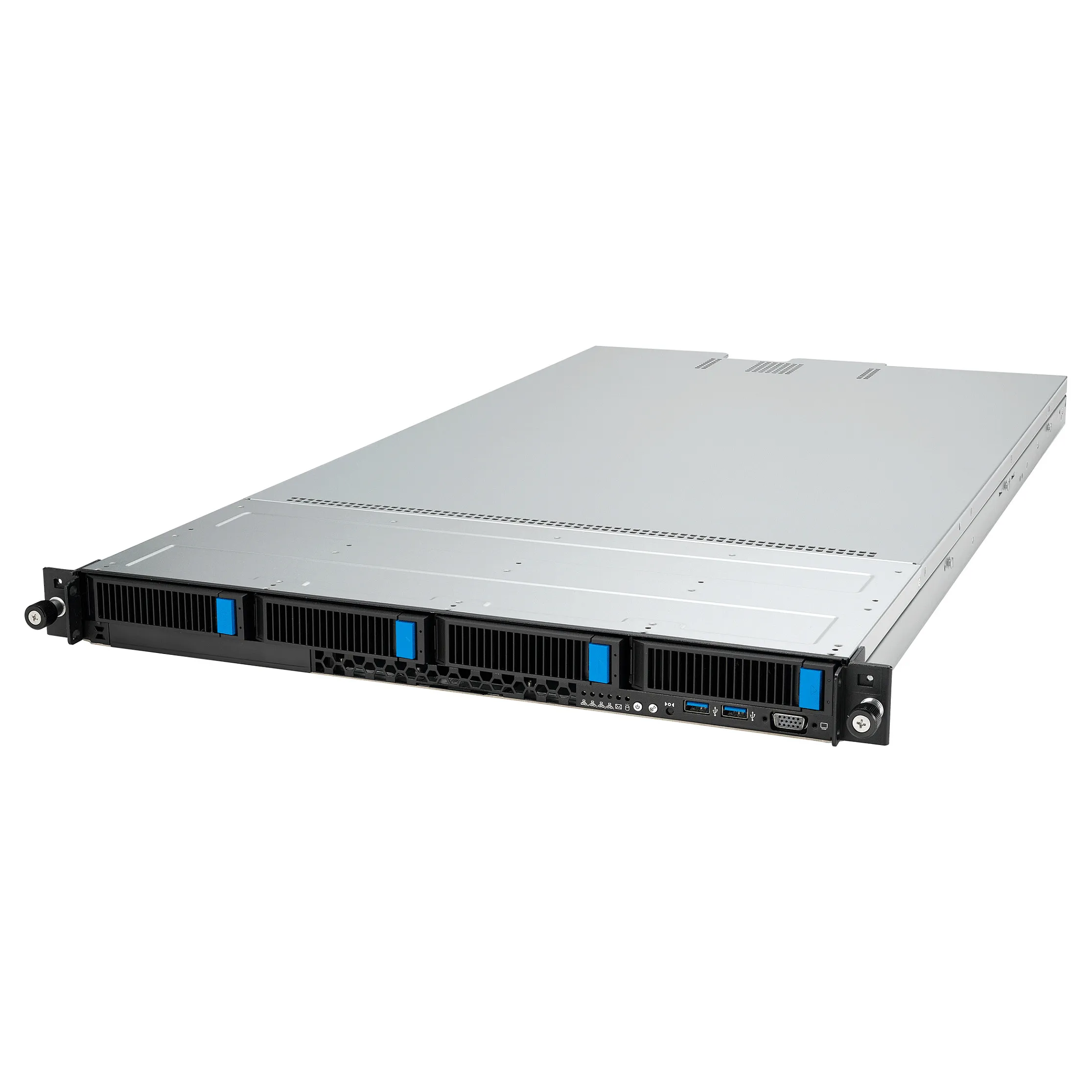

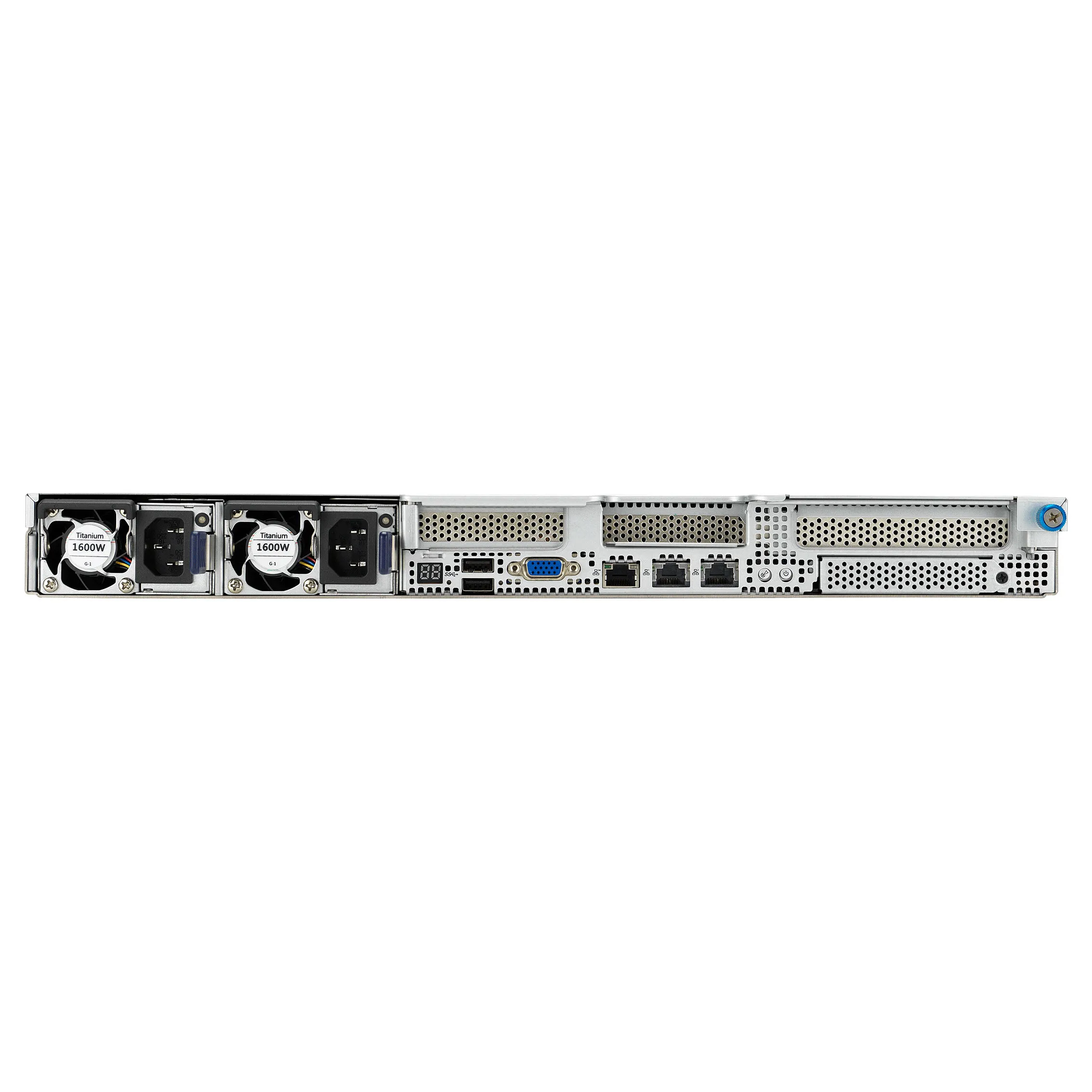

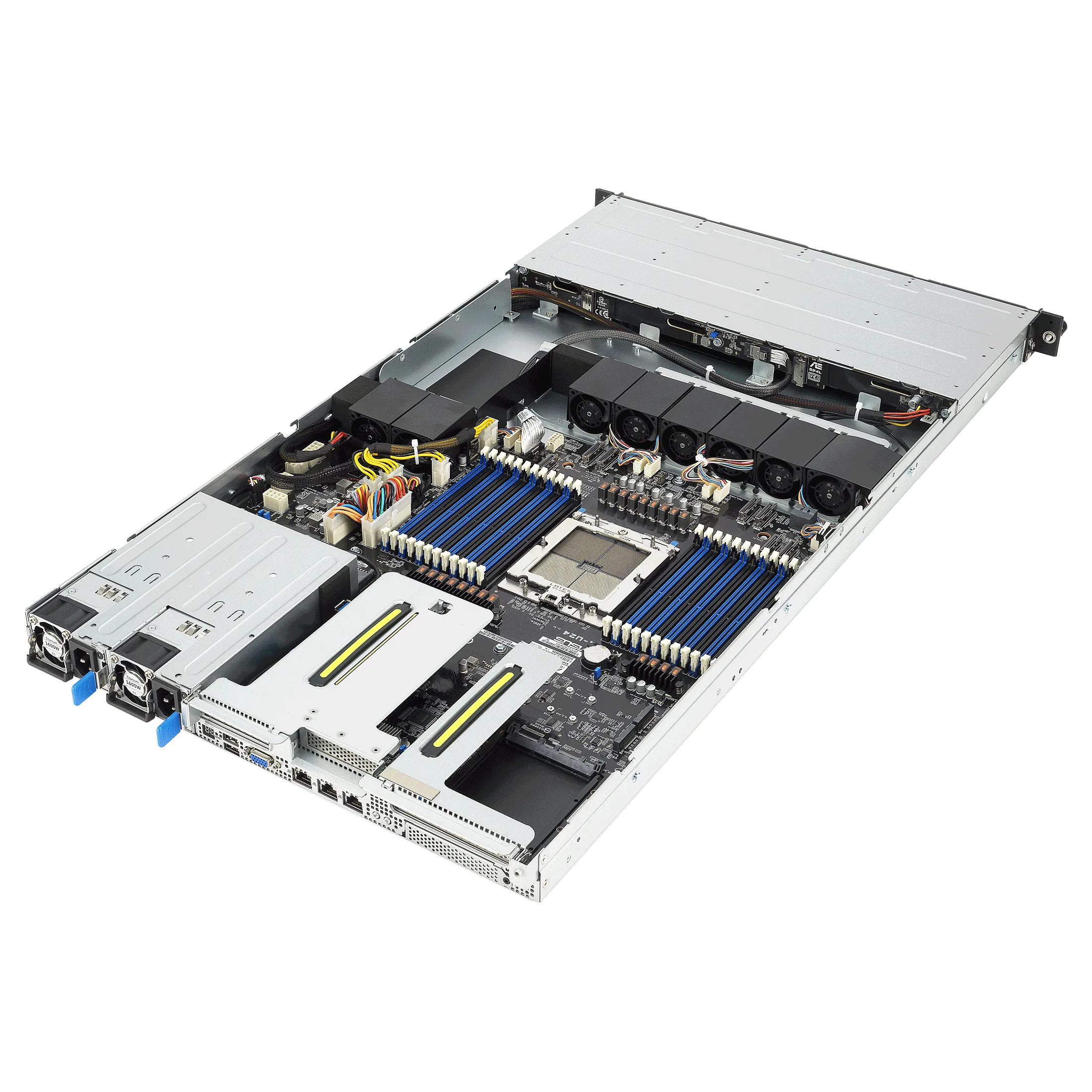

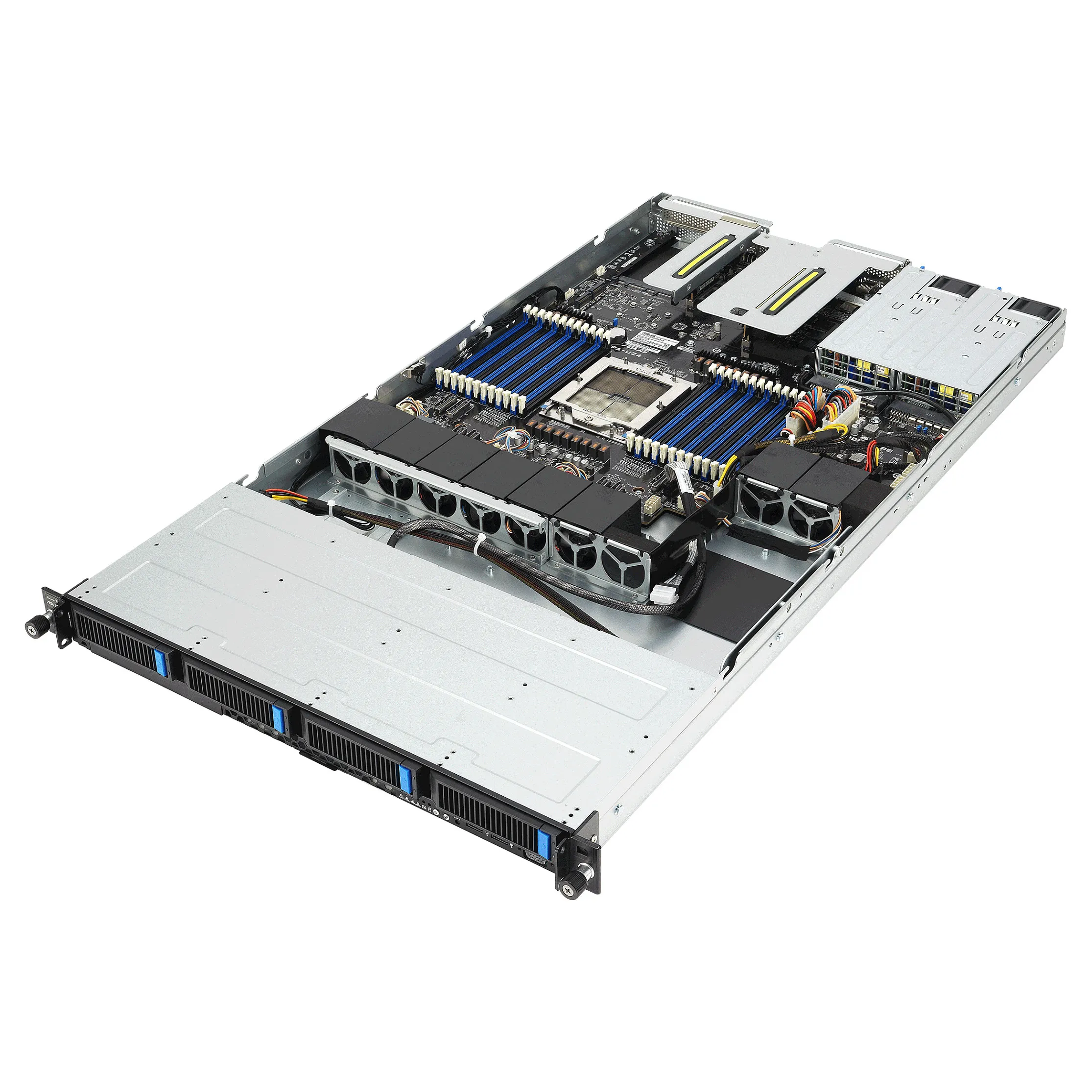

ASUS RS501A-E12-RS4. Processor socket: LGA 6096, Processor manufacturer: AMD, Processor family: AMD EPYC. Supported memory types: DDR5-SDRAM, Maximum internal memory: 3 TB, Supported RDIMM clock speeds: 4800,6400,5600 MHz. Storage drive sizes supported: 3.5,M.2,2.5, Supported storage drive types: HDD & SSD, Supported storage drive interfaces: Serial ATA, Serial Attached SCSI (SAS). Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, LAN controller: Intel® I350-AM2. Chassis type: Rack (1U), Product colour: Black, Silver, Certification: BSMI, CB, CE, RCM, FCC(Class A), ENERGY STAR®
Faster storage, graphics and networking capabilities
PCI Express® (PCIe®) 5.0 delivers 32 GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data centers.
Processor socket: LGA 6096
Processor manufacturer: AMD
Processor family: AMD EPYC
Number of processors supported: 1
Compatible processor series: AMD EPYC 9004
Memory
Number of DIMM slots: 24
Supported memory types: DDR5-SDRAM
Maximum internal memory: 3 TB
Supported RDIMM clock speeds: 4800,6400,5600 MHz
Storage
Number of storage drives supported: 6
Feature: Hot-swap HDD bays
Number of 3.5″ bays: 4
Storage drive sizes supported: 3.5,M.2,2.5
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: Serial ATA, Serial Attached SCSI (SAS)
SSD form factor: M.2
Network
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
LAN controller: Intel® I350-AM2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 2
VGA (D-Sub) ports quantity: 2
Expansion slots
PCI Express x16 (Gen 5.x) slots: 3
Number of M.2 (M) slots: 2
Design
Chassis type: Rack (1U)
Product colour: Black, Silver
LED indicators: Yes
Certification: BSMI, CB, CE, RCM, FCC(Class A), ENERGY STAR®
Power
Power supply: 1600 W
Feature: Redundant power supply (RPS) support
Number of redundant power supplies supported: 2
80 PLUS certification: 80 PLUS Titanium
Operational conditions
Operating temperature (T-T): 10 – 35 °C
Storage temperature (T-T): -40 – 70 °C
Storage relative humidity (H-H): 20 – 90%
Weight & dimensions
Width: 842.5 mm
Depth: 449 mm
Height: 43.9 mm
Weight: 13.2 kg
Packaging data
Package weight: 18.1 kg
