ASUS ROG STRIX B850-E GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 7680 x 4320 pixels. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be)

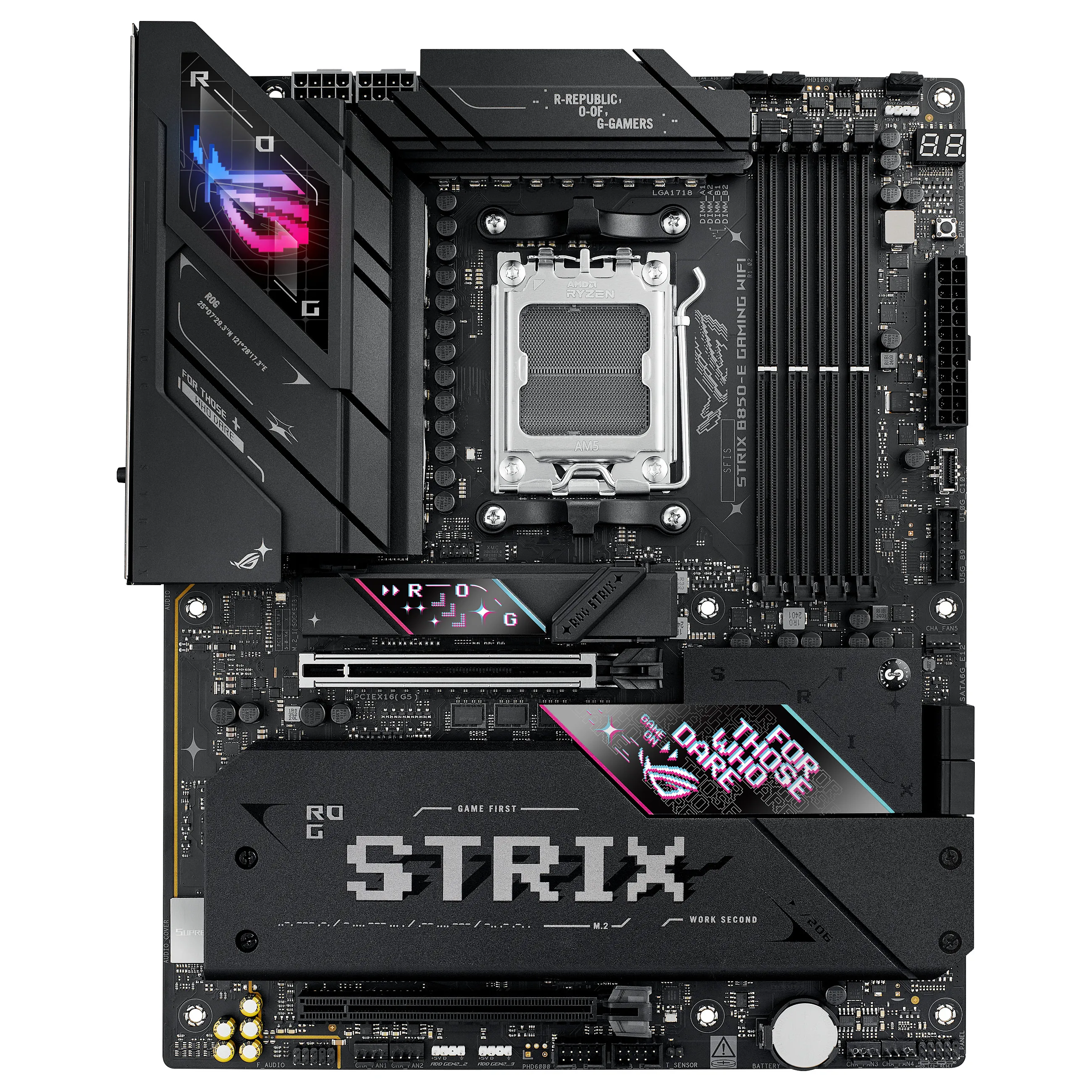

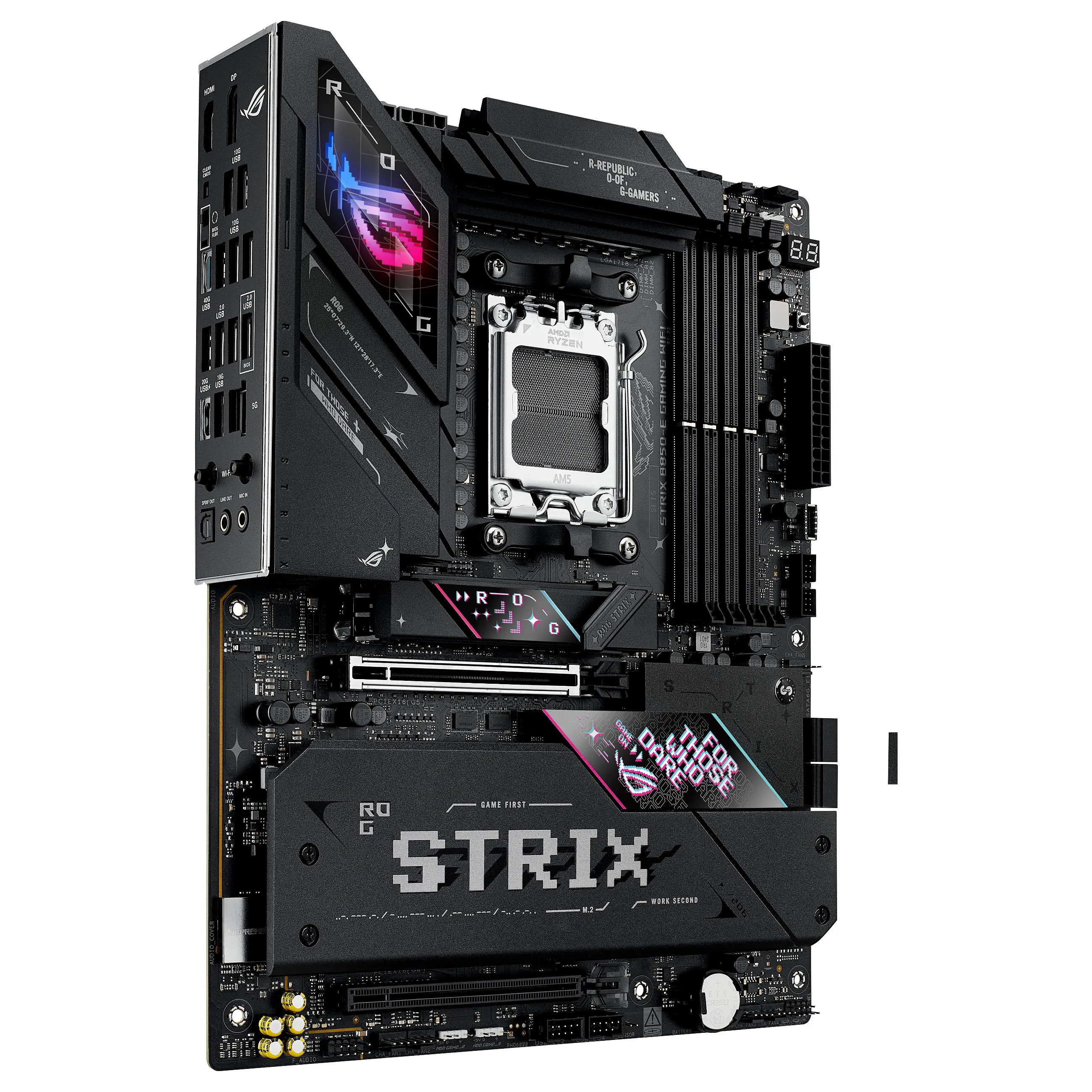

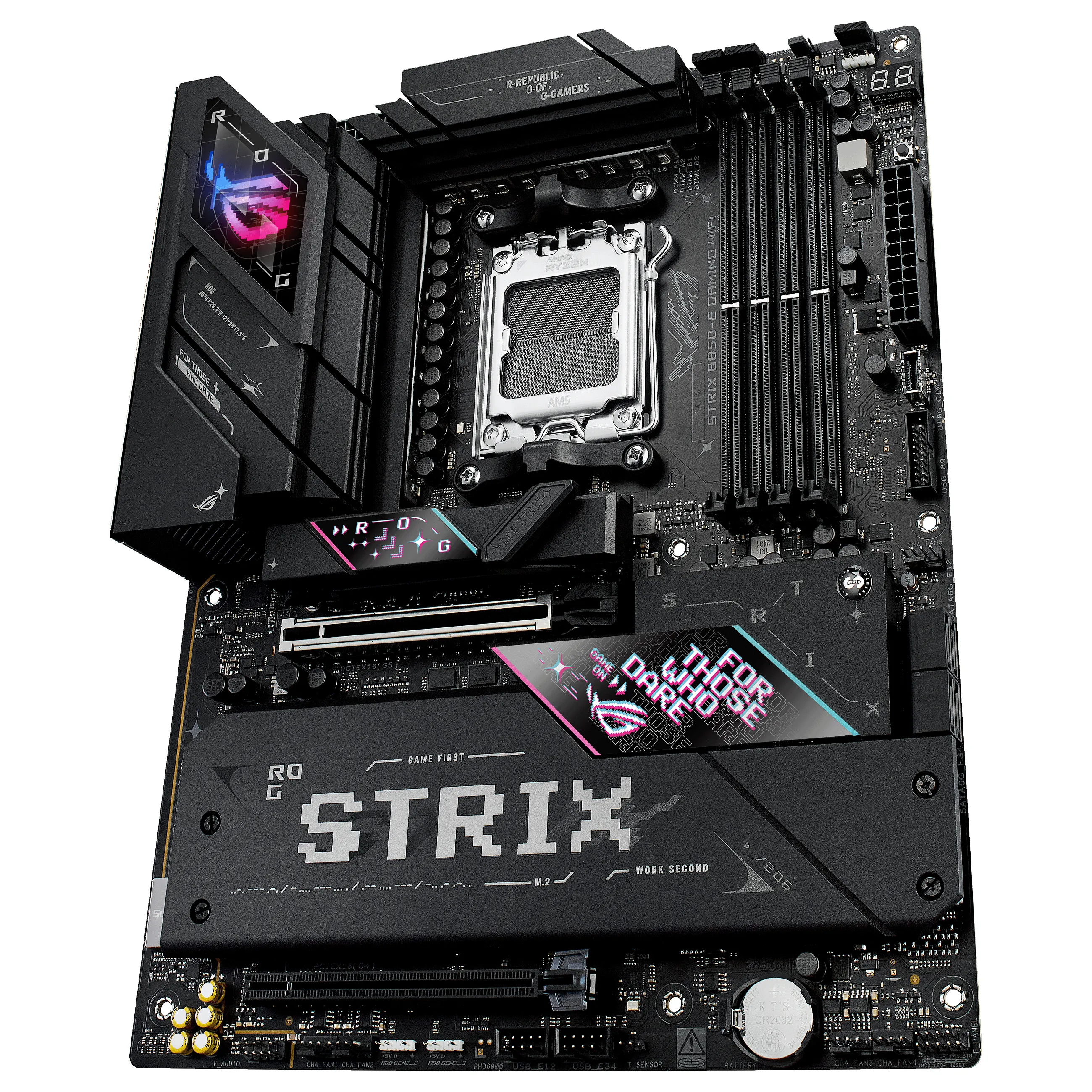

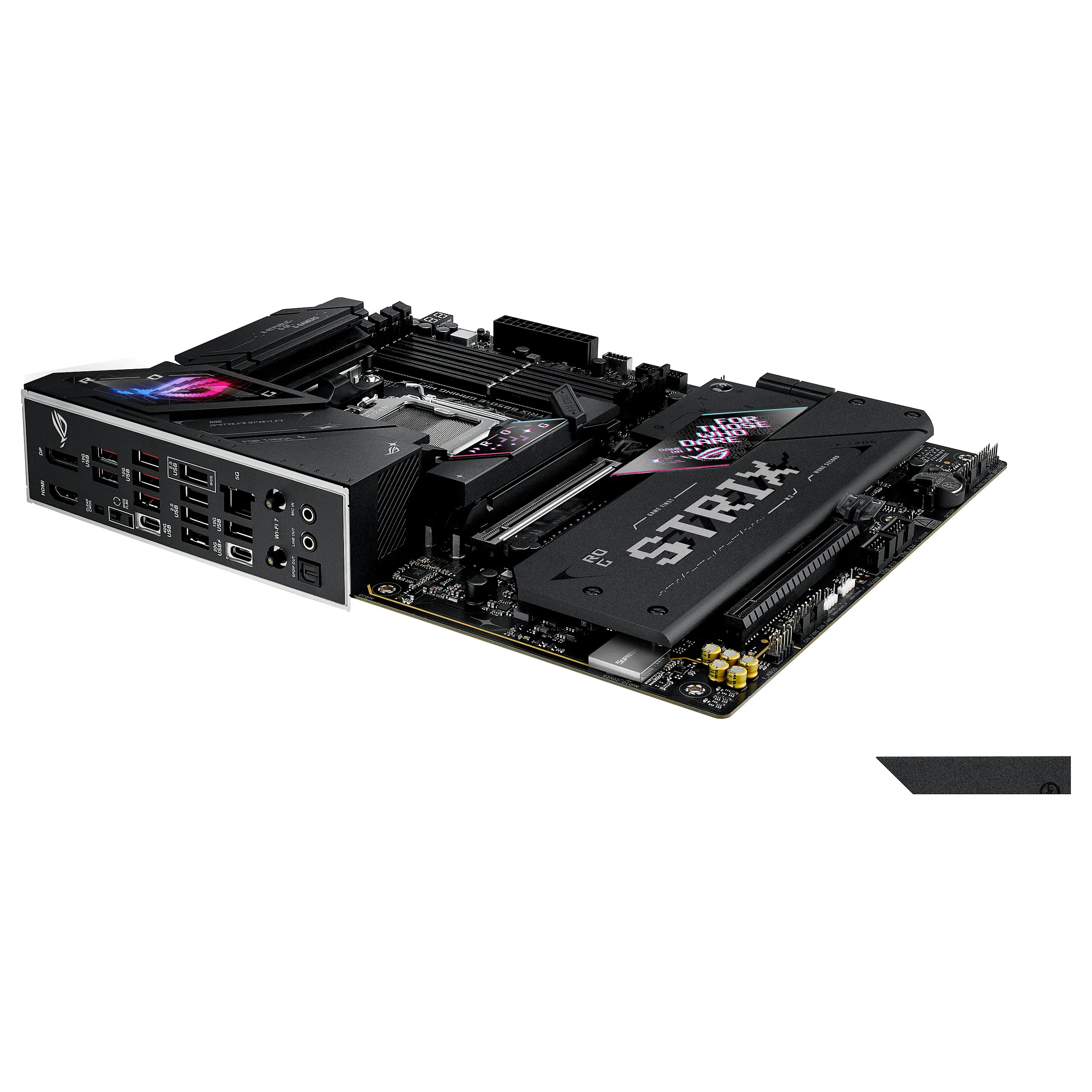

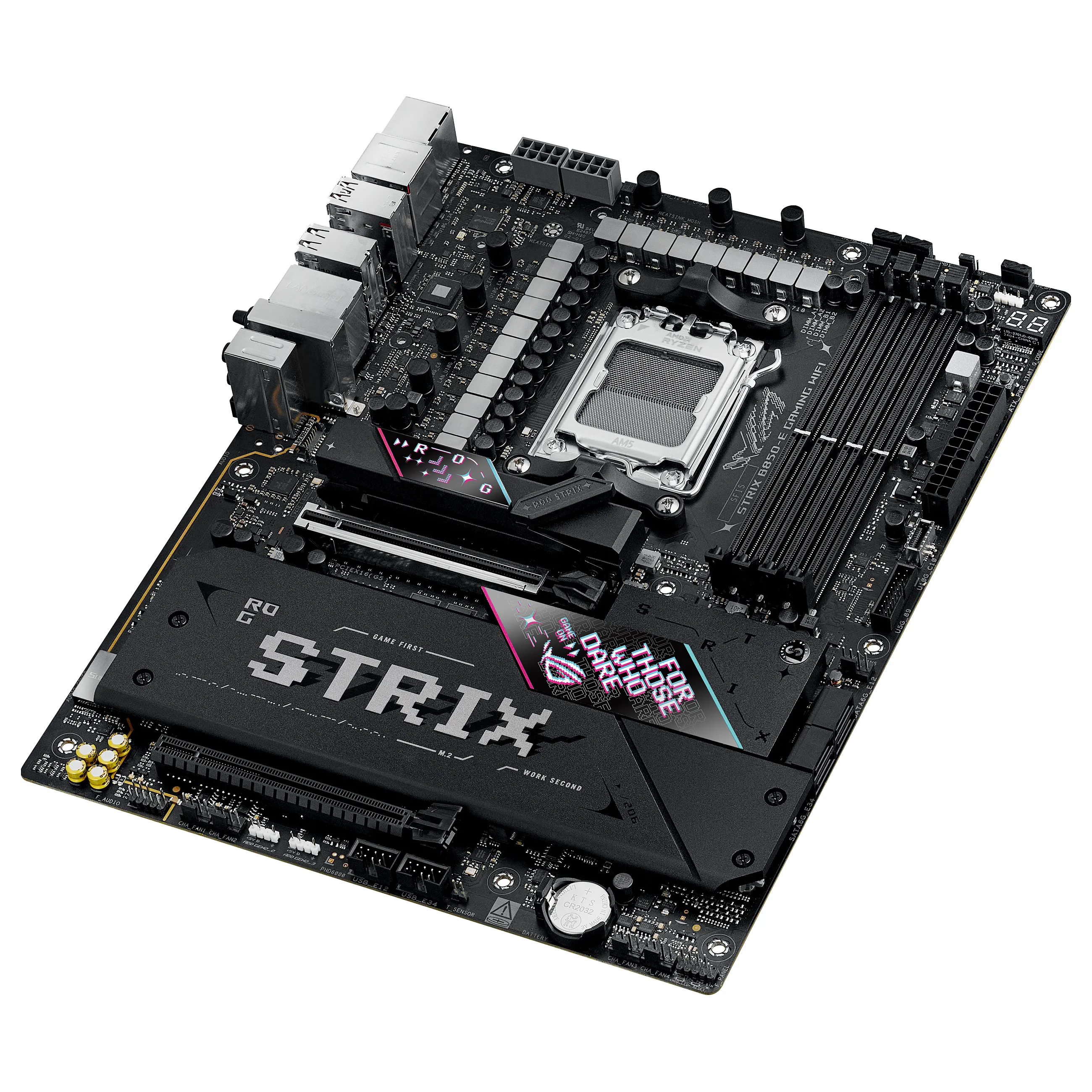

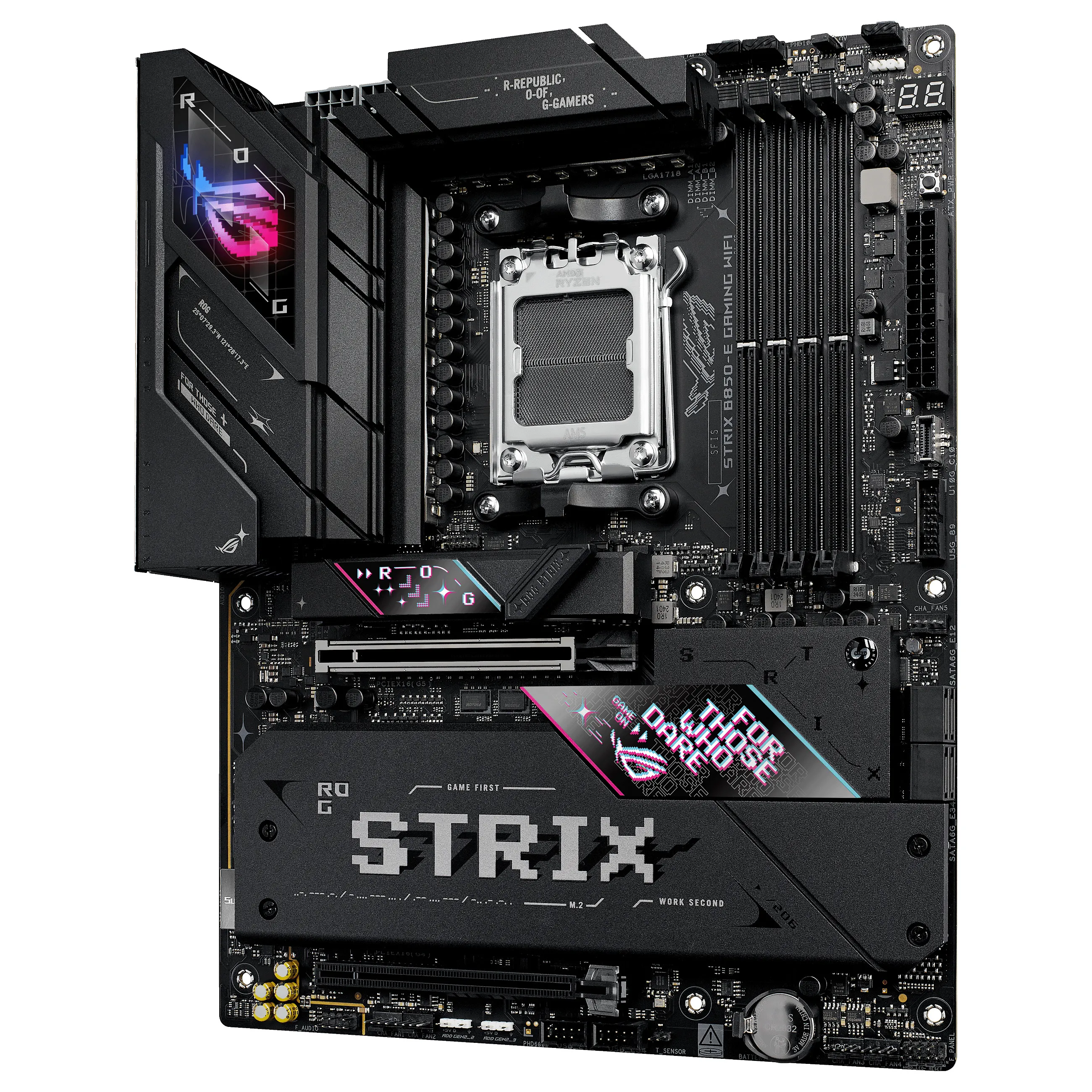

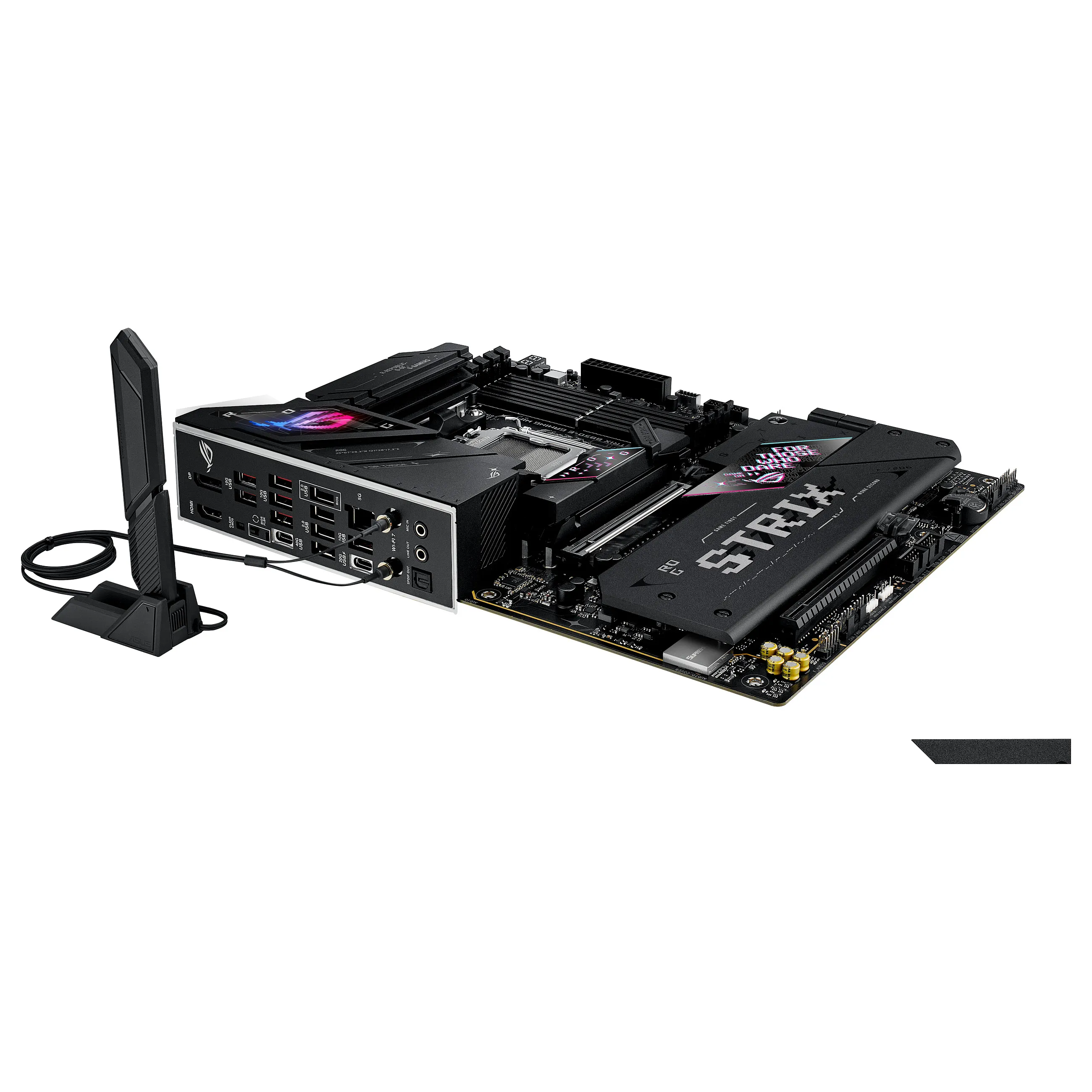

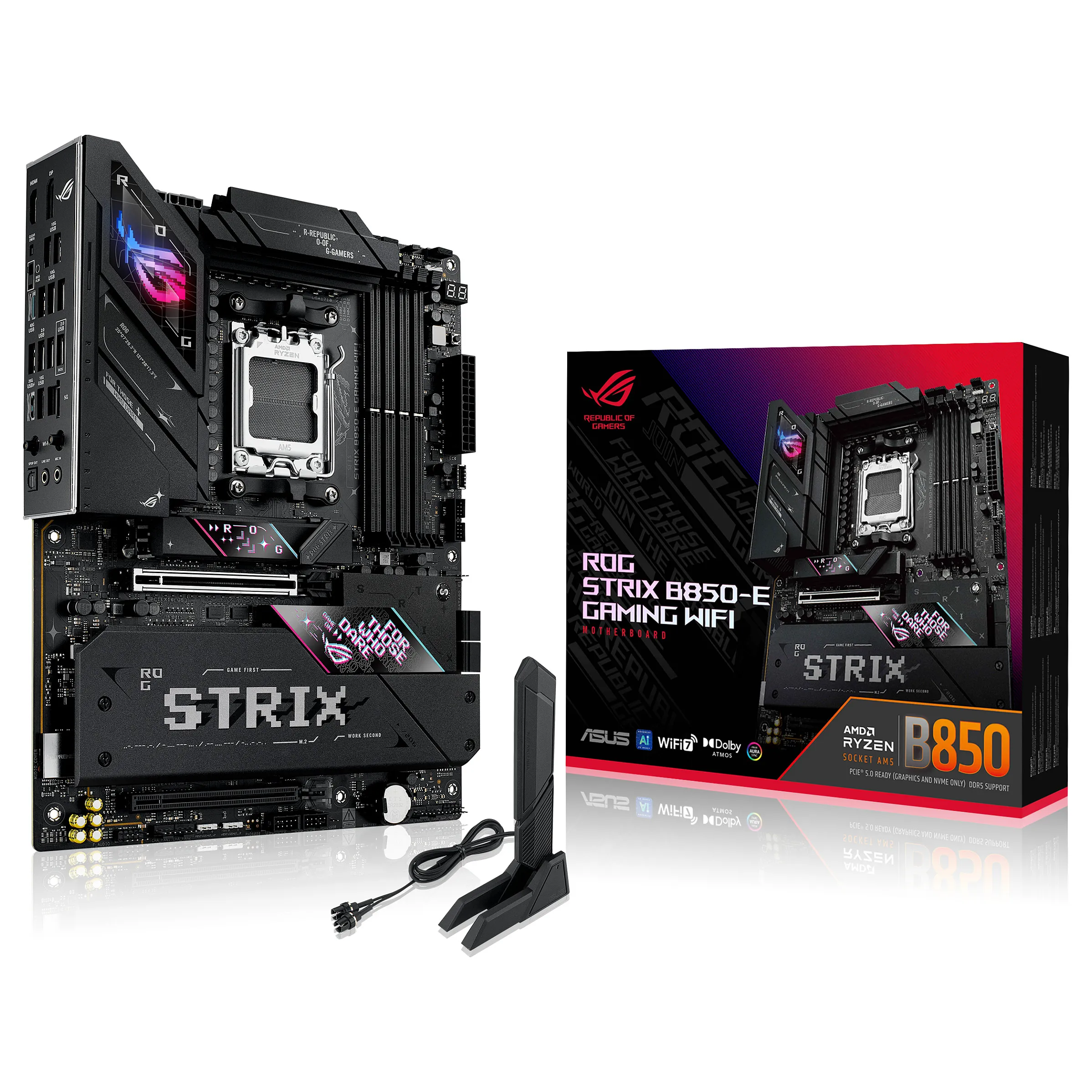

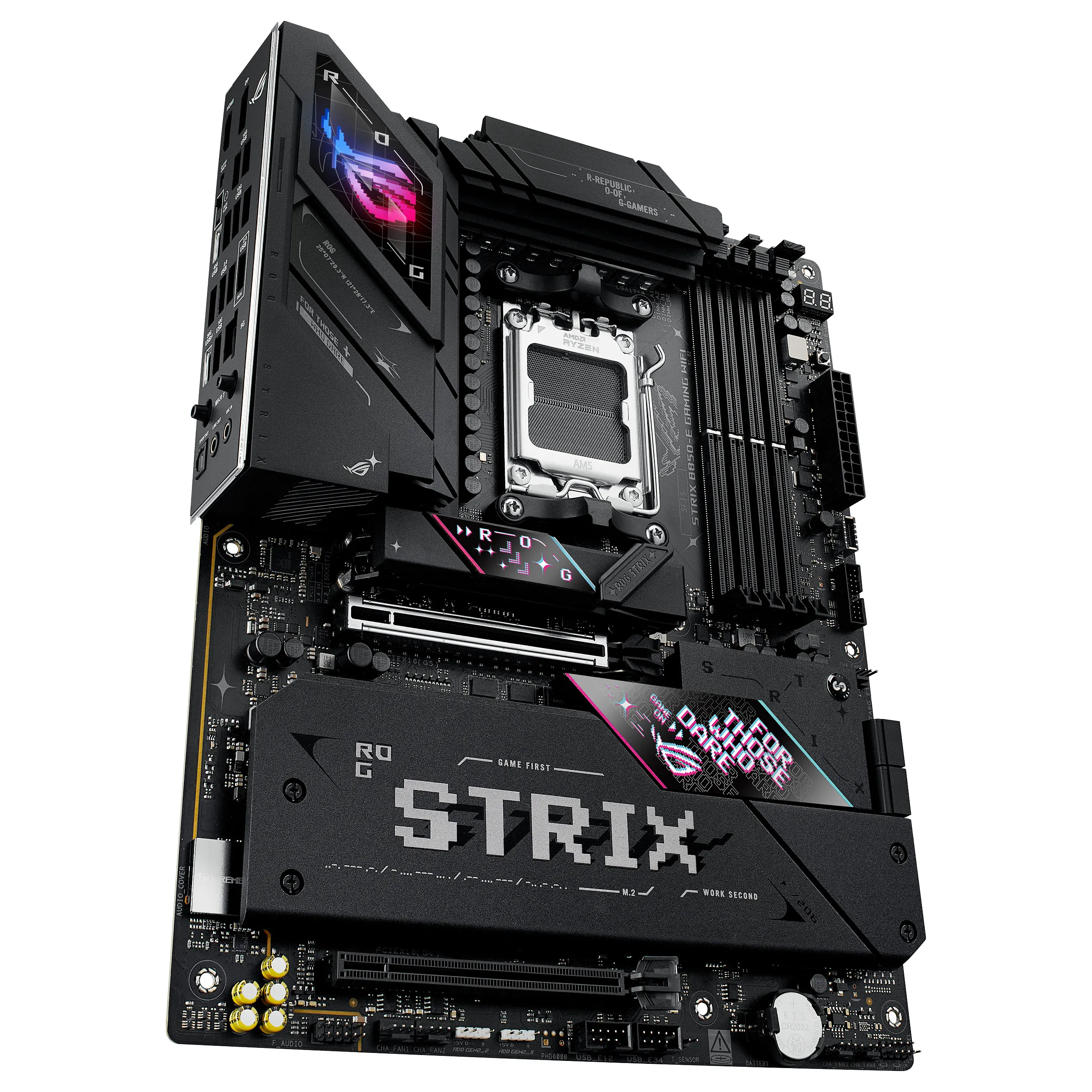

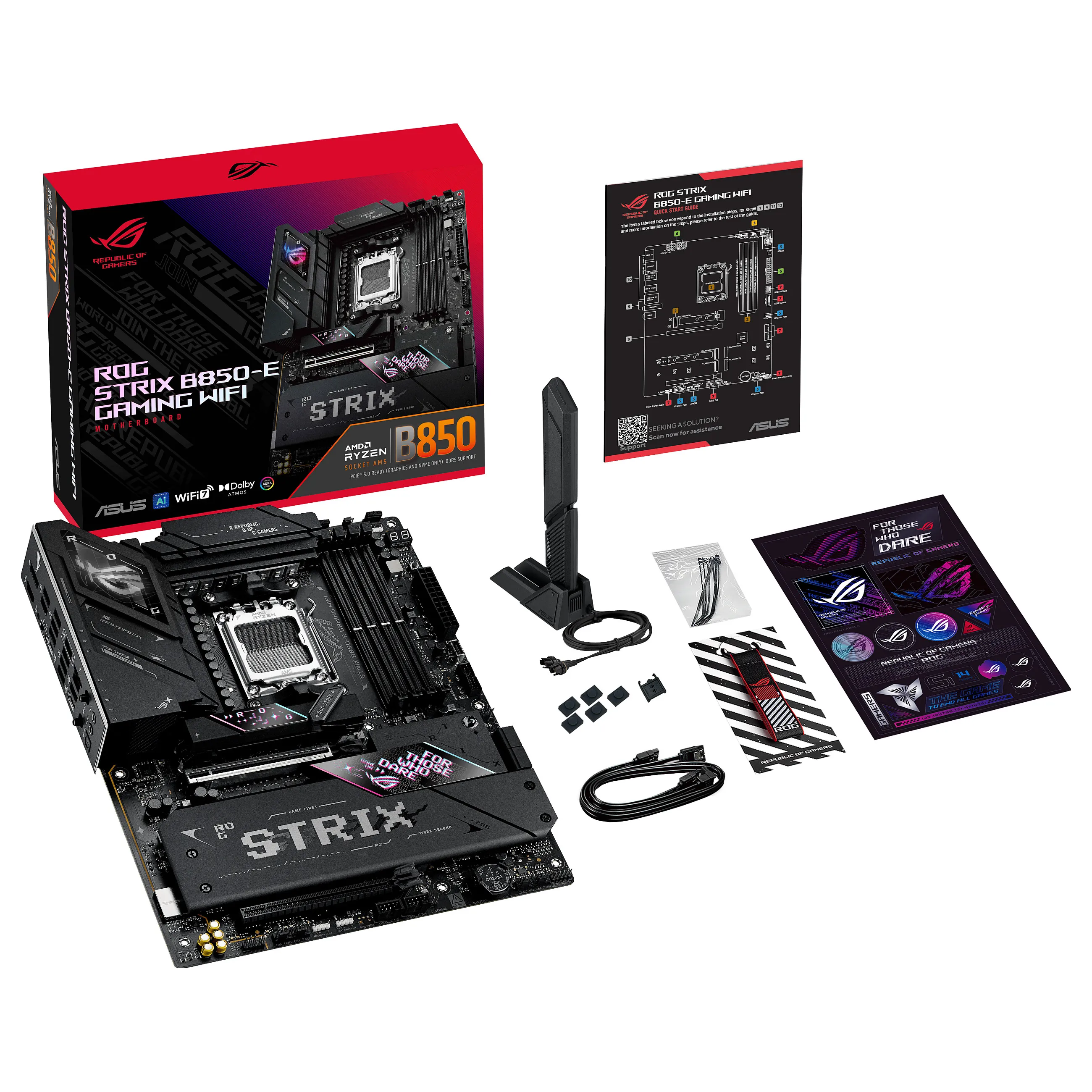

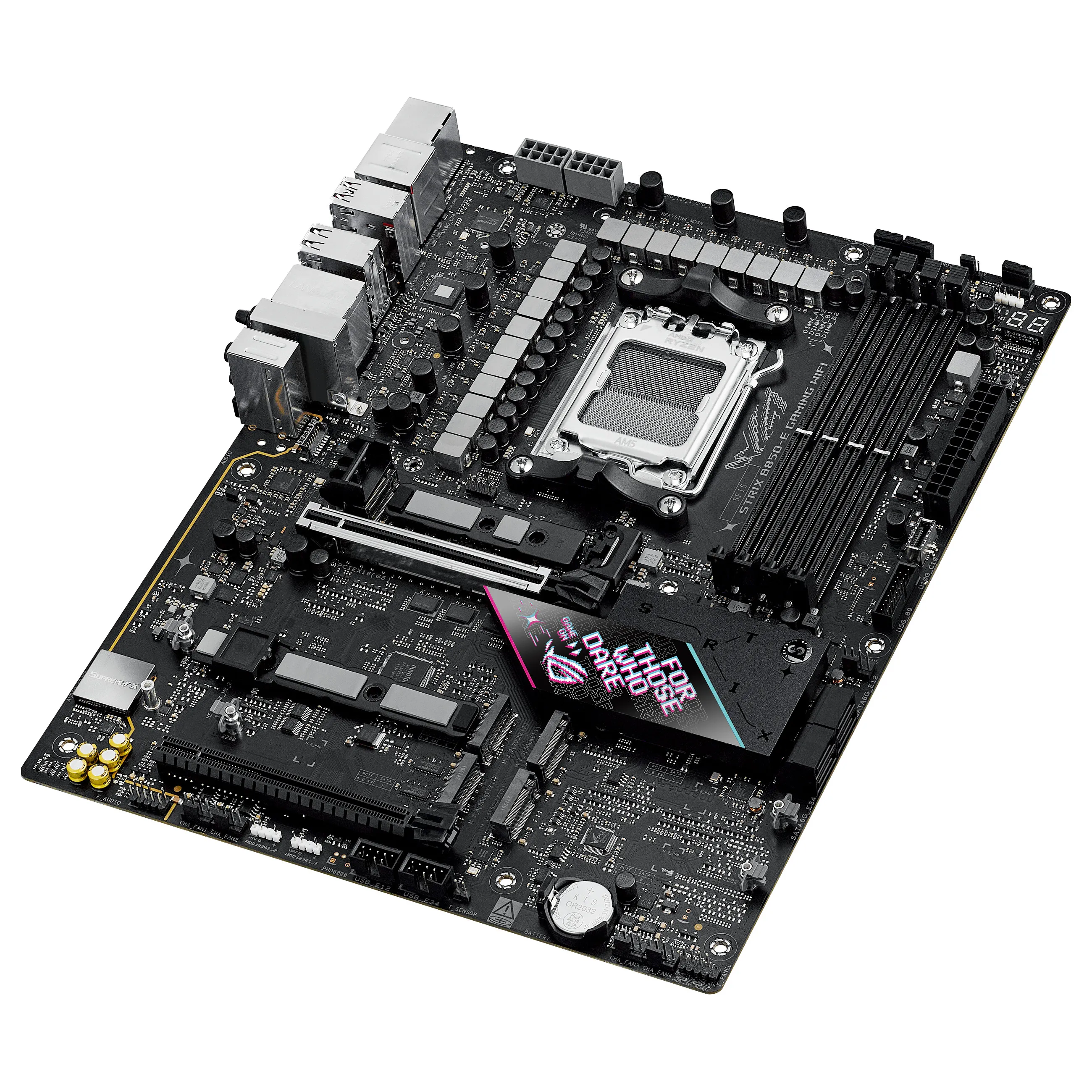

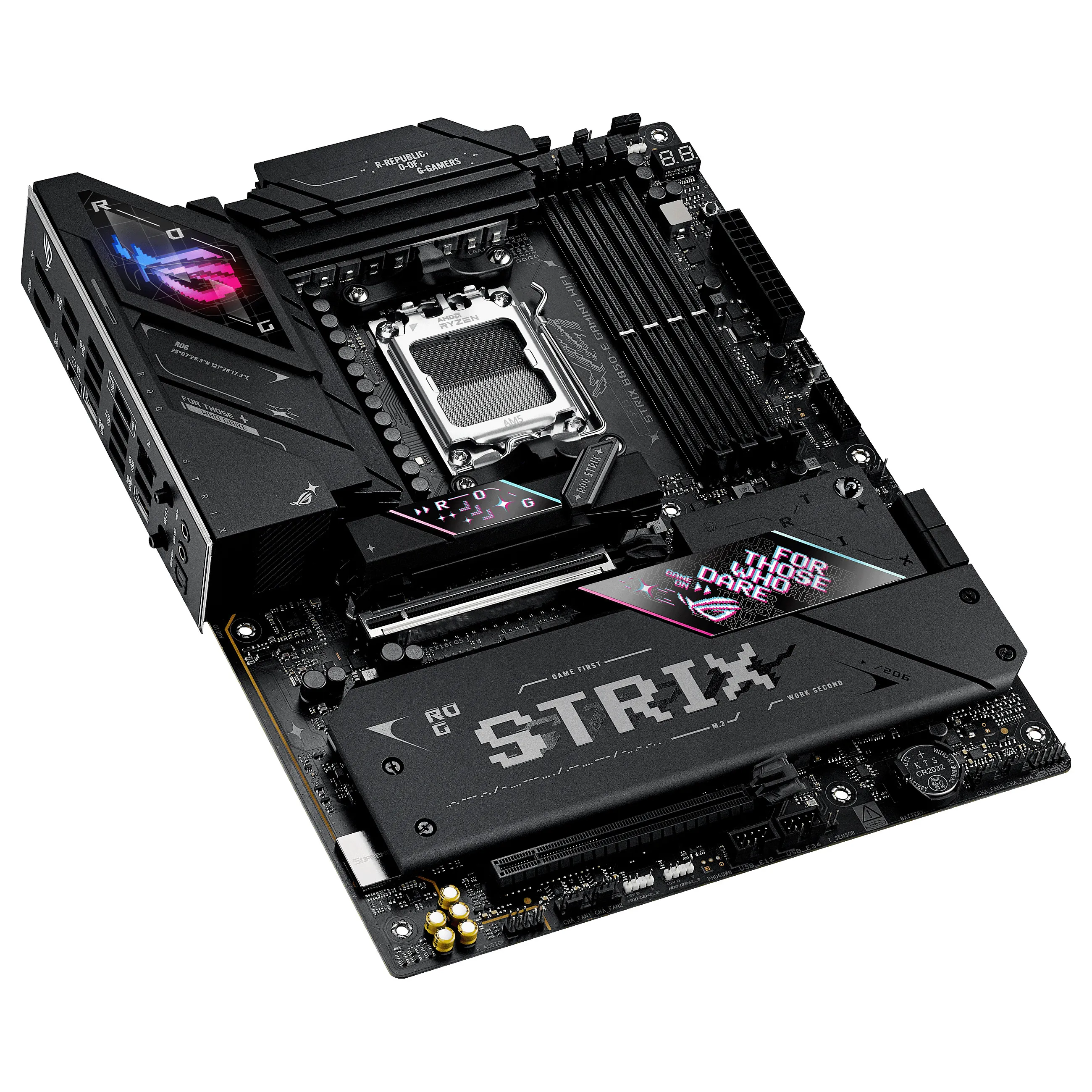

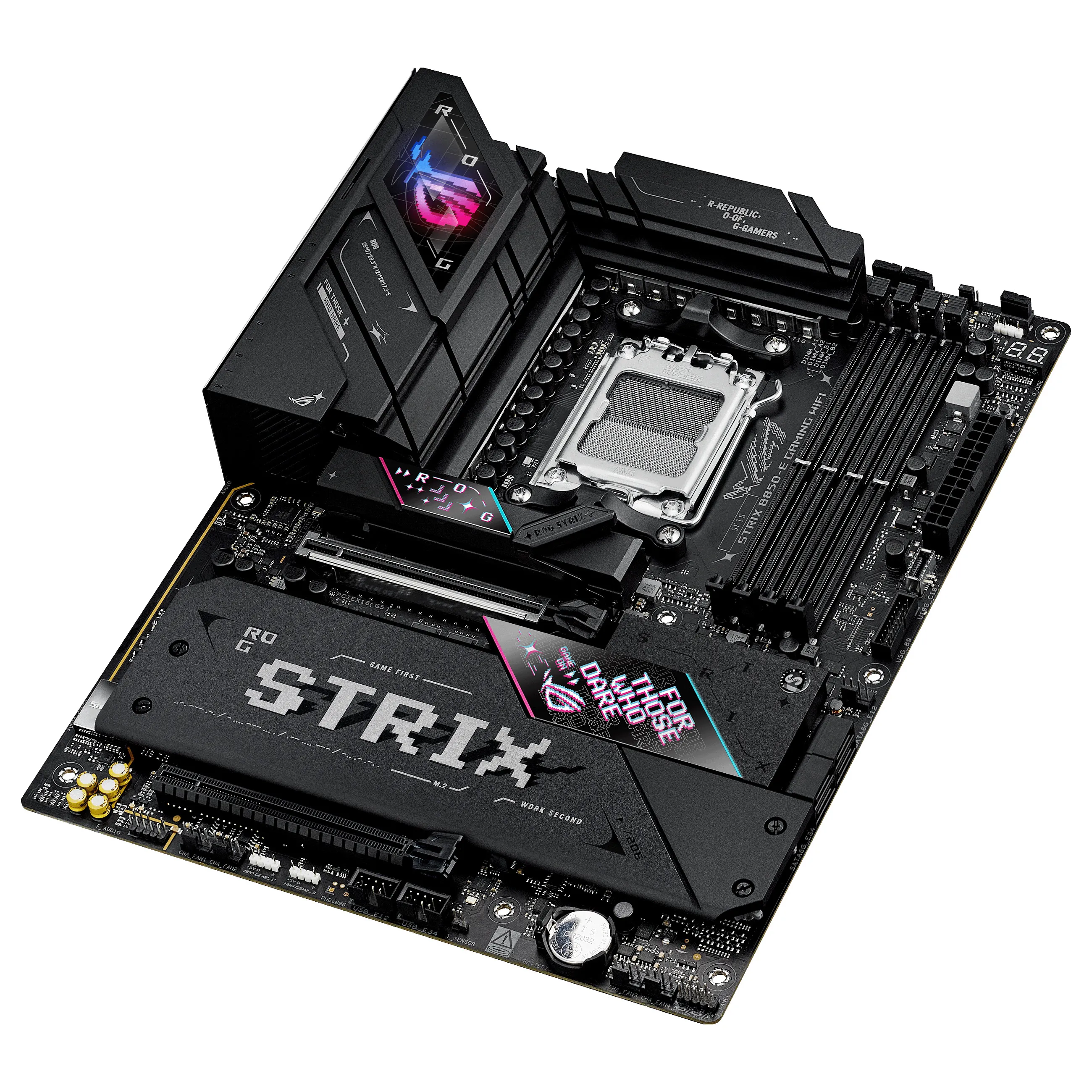

ROG STRIX B850-E gaming wifi
The ROG Strix B850-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen™ 9000 Series processors. Featuring PCIe® 5.0 support, AI Overclocking, AI Networking II, and AEMP, setup is streamlined while performance is maximized. One USB4® Type-C port and WiFi 7 with Realtek 5Gb Ethernet ensure top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy loads. This motherboard not only meets the demands of gaming and professional applications but also delivers the power and connectivity essential for advanced AI PC applications.
The ROG Strix B850-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen™ 9000 Series processors. Featuring PCIe® 5.0 support, AI Overclocking, AI Networking II, and AEMP, setup is streamlined while performance is maximized. One USB4® Type-C port and WiFi 7 with Realtek 5Gb Ethernet ensure top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy loads. This motherboard not only meets the demands of gaming and professional applications but also delivers the power and connectivity essential for advanced AI PC applications.
Processor
Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets: Socket AM5
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Supported memory clock speed (max): 8000 MHz
Maximum internal memory: 256 GB
Feature: Unbuffered memory
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 9
Feature: RAID support
RAID levels: 0, 1, 5, 10
Graphics
Parallel processing technology support: Not supported
Maximum resolution: 7680 x 4320 pixels
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 4
Feature: Front panel audio connector
Feature: Front panel connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of CPU fan connectors: 2
Number of chassis fan connectors: 5
Feature: EPS power connector (8-pin)
Number of EPS power connectors (8-pin): 2
Number of water pump connectors: 1
Number of temperature sensor headers: 1
Feature: RGB LED pin header
Number of RGB LED pin headers: 3

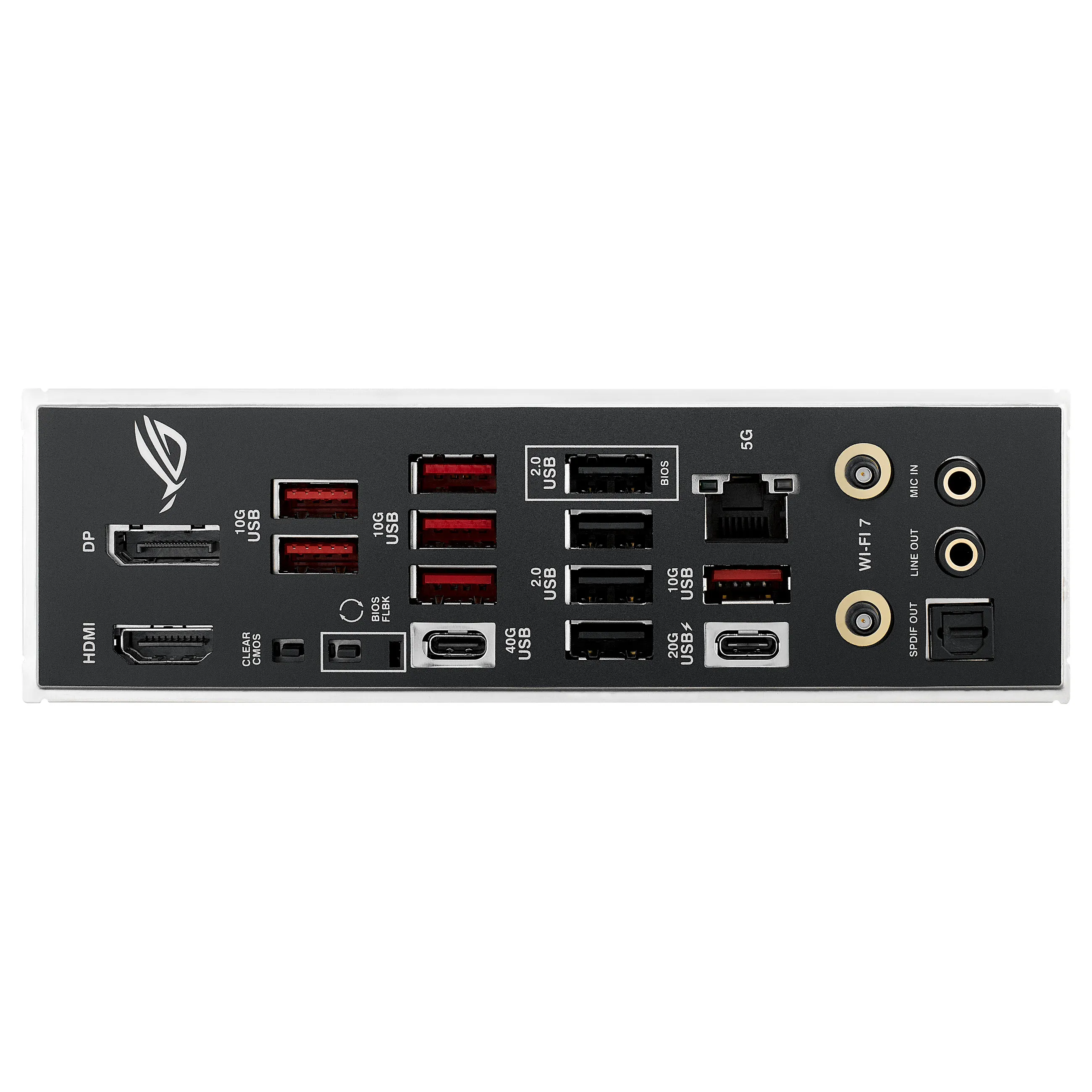

Rear panel I/O ports
USB 2.0 ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6
USB 3.2 Gen 2×2 Type-C ports quantity: 1
USB4 Gen 3×2 ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4
Headphone outputs: 1
Feature: Line-in
Feature: S/PDIF out port
Digital audio optical out: 1
WiFi-AP antenna jack: 2
Network
Feature: Ethernet LAN
Ethernet interface type: 5 Gigabit Ethernet
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Feature: Bluetooth
Bluetooth version: 5.4
Features
Motherboard chipset: AMD B850
Audio chip: Realtek ALC4080
Audio output channels: 7.1 channels
Product colour: Black
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD
Power source type: ATX
Windows operating systems supported: Windows 11
Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 5
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 5.0
3rd M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 5.0
4th M.2 largest key size: 2280
4th M.2 highest PCI Express generation: 4.0
5th M.2 largest key size: 2280
5th M.2 highest PCI Express generation: 4.0
BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Feature: Clear CMOS button
Weight & dimensions
Width: 305 mm
Depth: 244 mm
Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets: Socket AM5
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Supported memory clock speed (max): 8000 MHz
Maximum internal memory: 256 GB
Feature: Unbuffered memory
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 9
Feature: RAID support
RAID levels: 0, 1, 5, 10
Graphics
Parallel processing technology support: Not supported
Maximum resolution: 7680 x 4320 pixels
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 4
Feature: Front panel audio connector
Feature: Front panel connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of CPU fan connectors: 2
Number of chassis fan connectors: 5
Feature: EPS power connector (8-pin)
Number of EPS power connectors (8-pin): 2
Number of water pump connectors: 1
Number of temperature sensor headers: 1
Feature: RGB LED pin header
Number of RGB LED pin headers: 3
Rear panel I/O ports
USB 2.0 ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6
USB 3.2 Gen 2×2 Type-C ports quantity: 1
USB4 Gen 3×2 ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4
Headphone outputs: 1
Feature: Line-in
Feature: S/PDIF out port
Digital audio optical out: 1
WiFi-AP antenna jack: 2
Network
Feature: Ethernet LAN
Ethernet interface type: 5 Gigabit Ethernet
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Feature: Bluetooth
Bluetooth version: 5.4
Features
Motherboard chipset: AMD B850
Audio chip: Realtek ALC4080
Audio output channels: 7.1 channels
Product colour: Black
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD
Power source type: ATX
Windows operating systems supported: Windows 11
Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 5
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 5.0
3rd M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 5.0
4th M.2 largest key size: 2280
4th M.2 highest PCI Express generation: 4.0
5th M.2 largest key size: 2280
5th M.2 highest PCI Express generation: 4.0
BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Feature: Clear CMOS button
Weight & dimensions
Width: 305 mm
Depth: 244 mm
