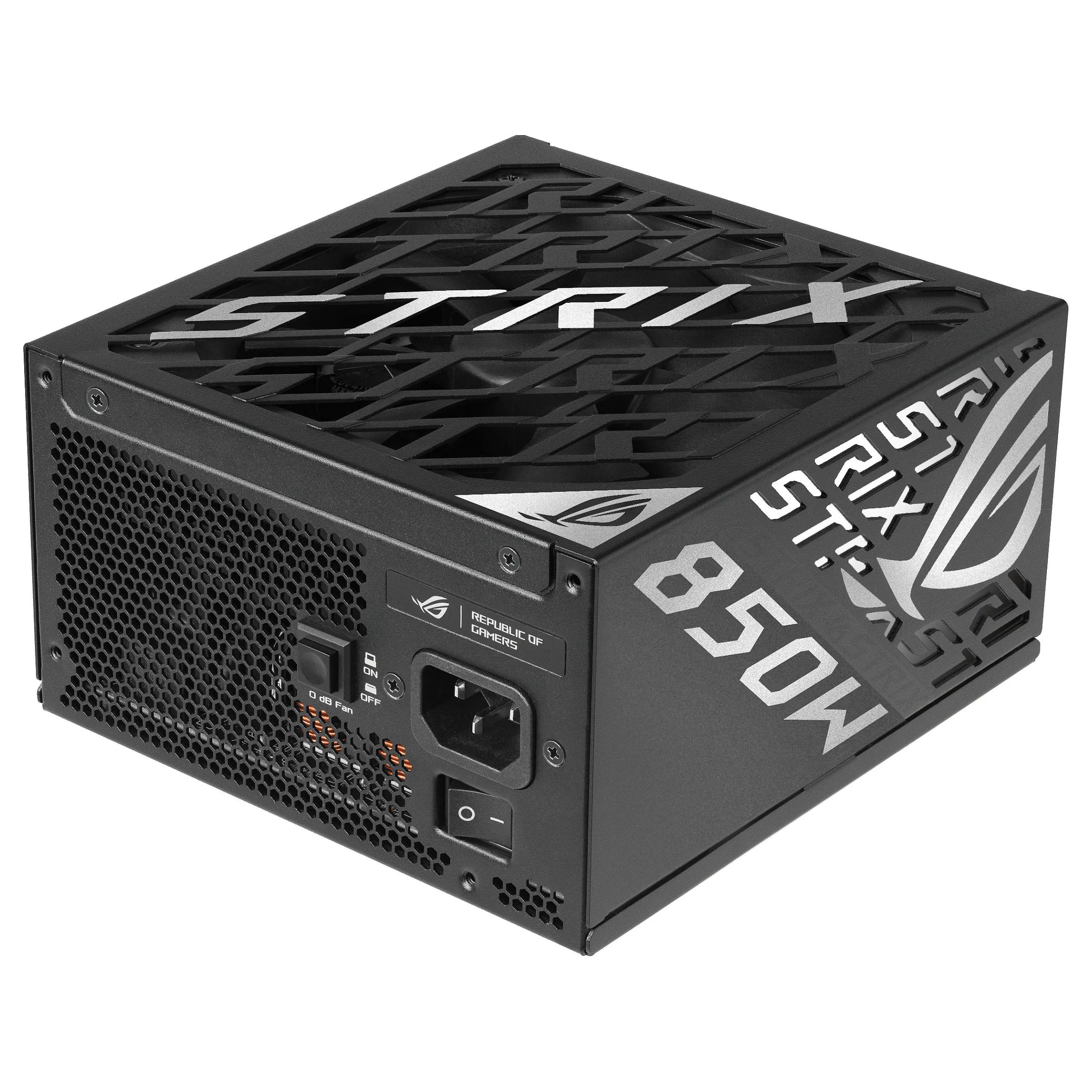

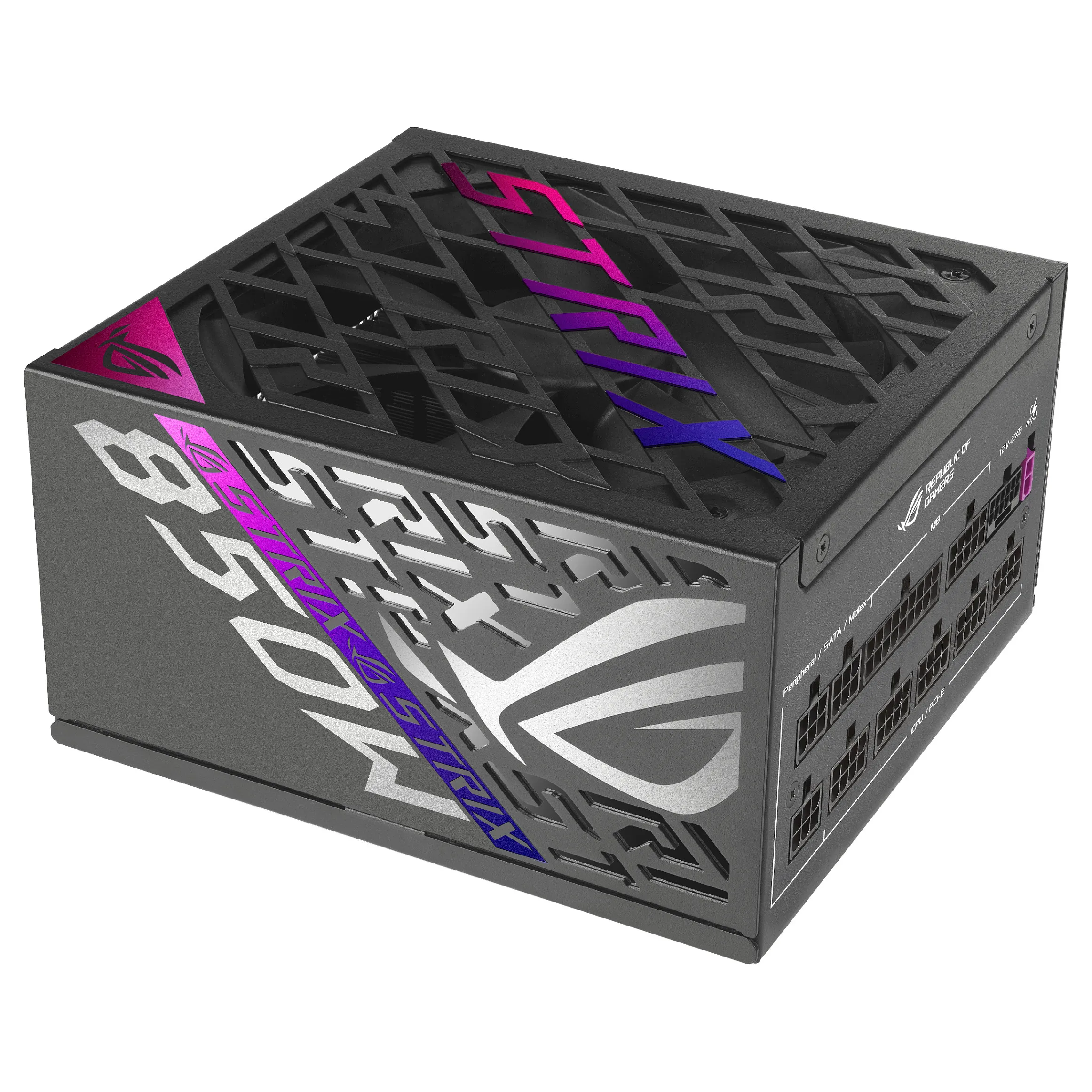

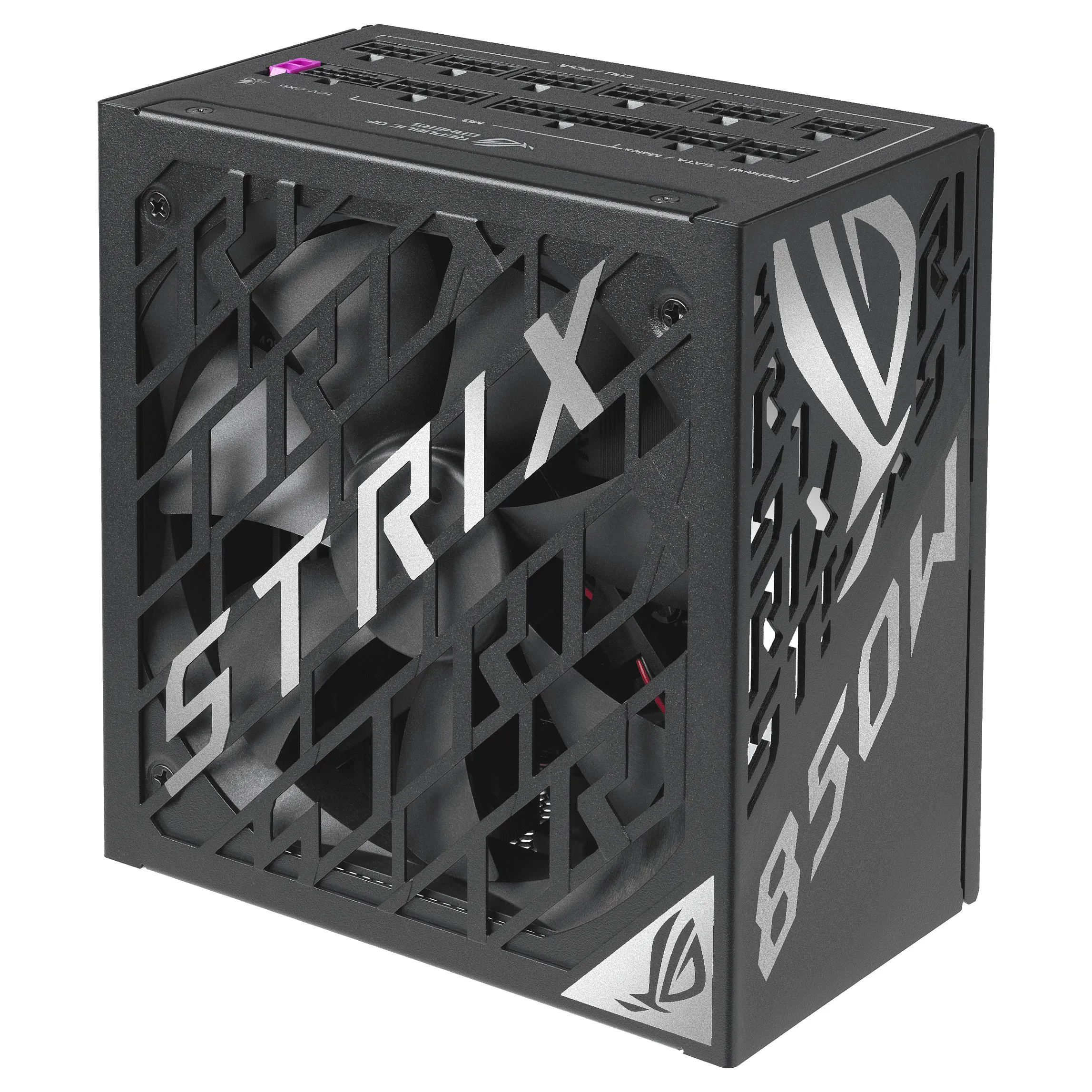

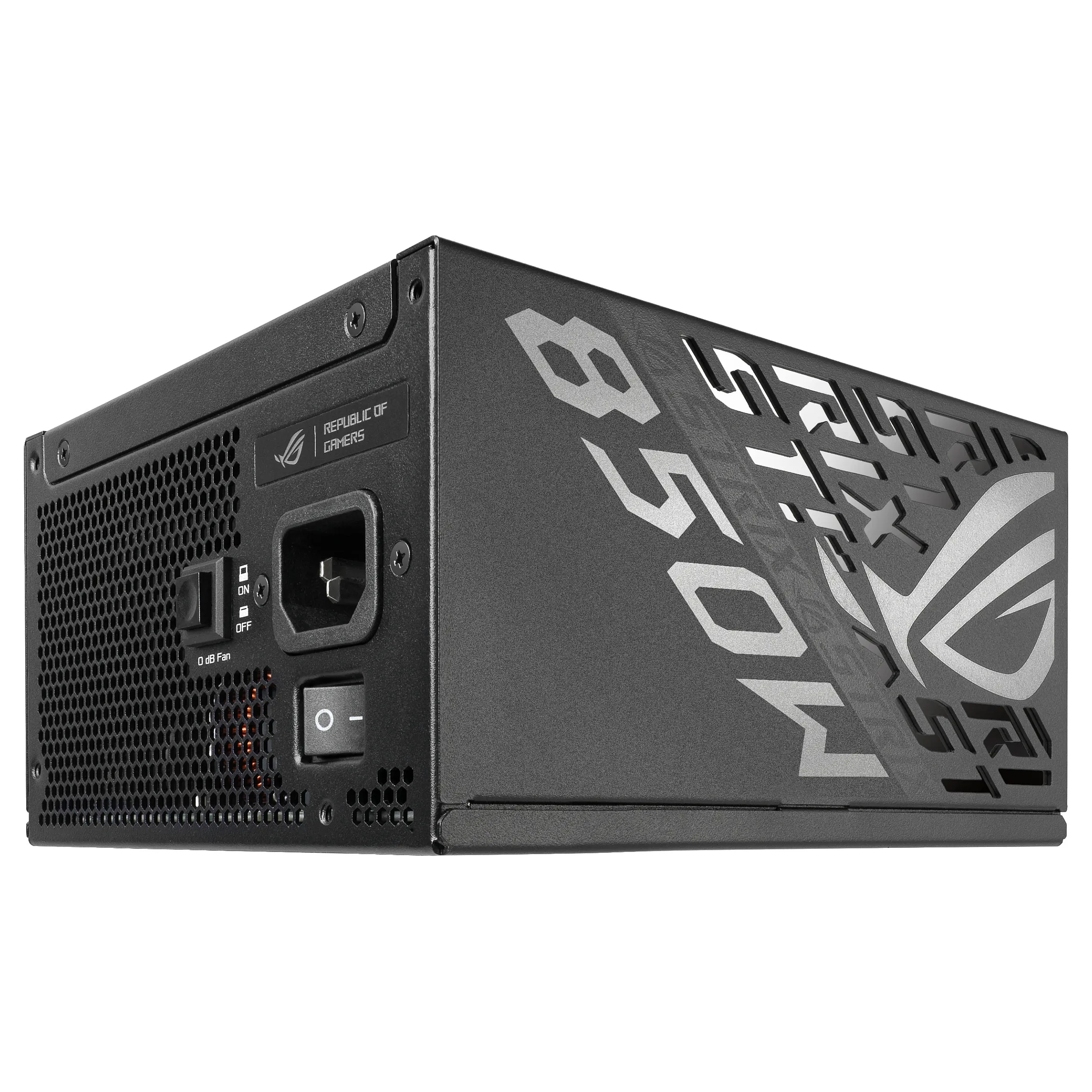

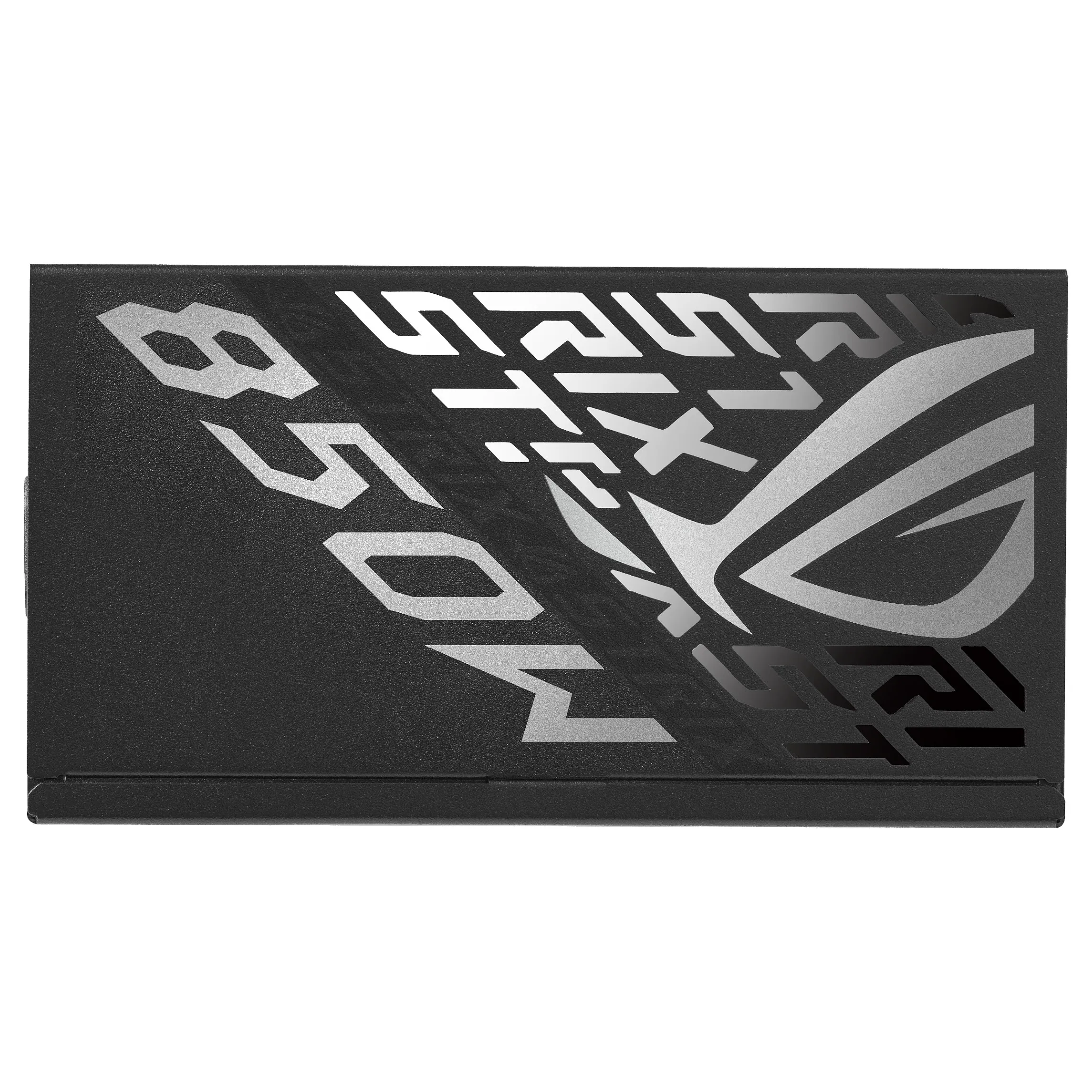

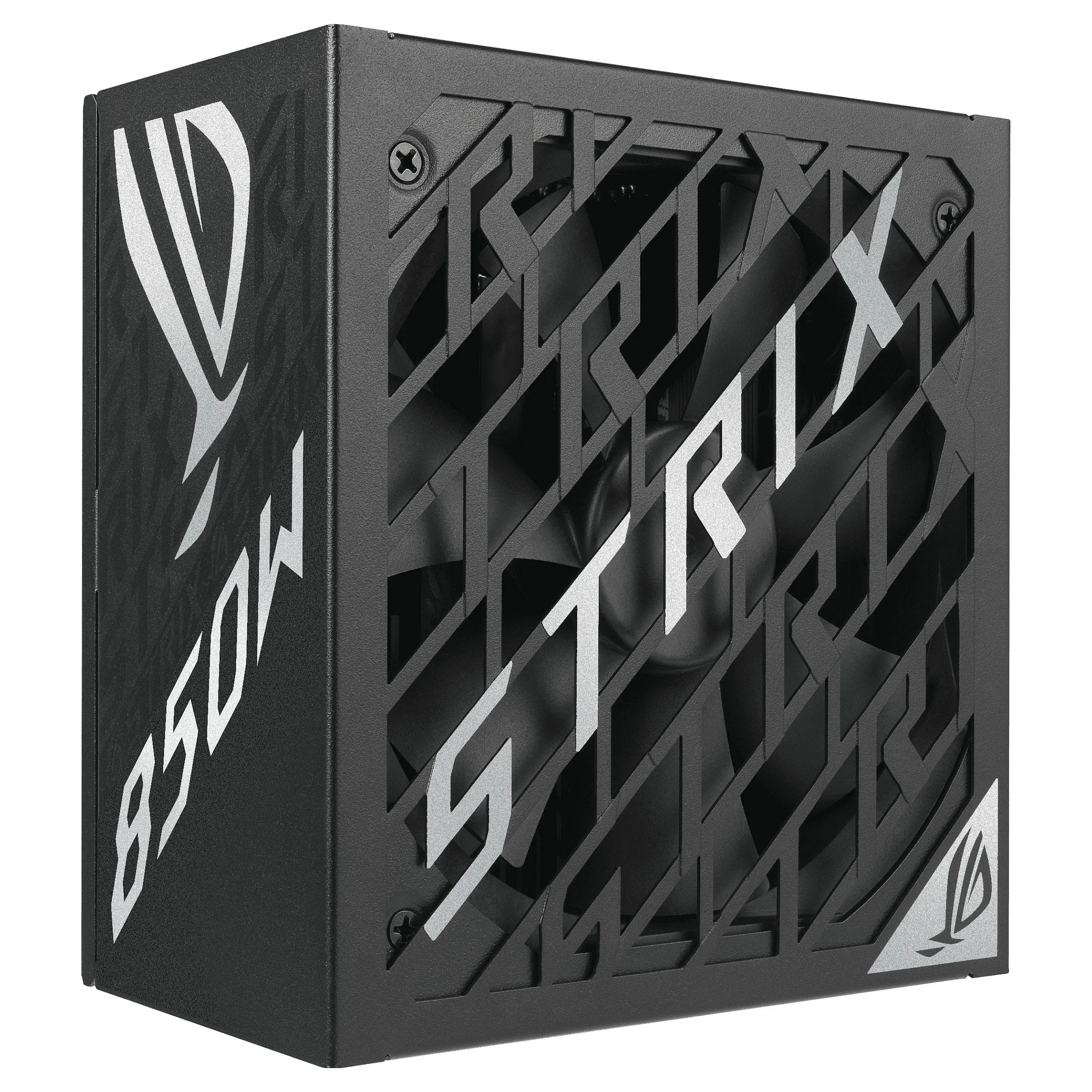

ASUS ROG -STRIX-850P-GAMING. Total power: 850 W, AC input voltage: 100 – 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 400,120 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Semi-passive, Number of fans: 1 fan(s). Cables included: CPU, PCIe, SATA, Peripheral (Molex)

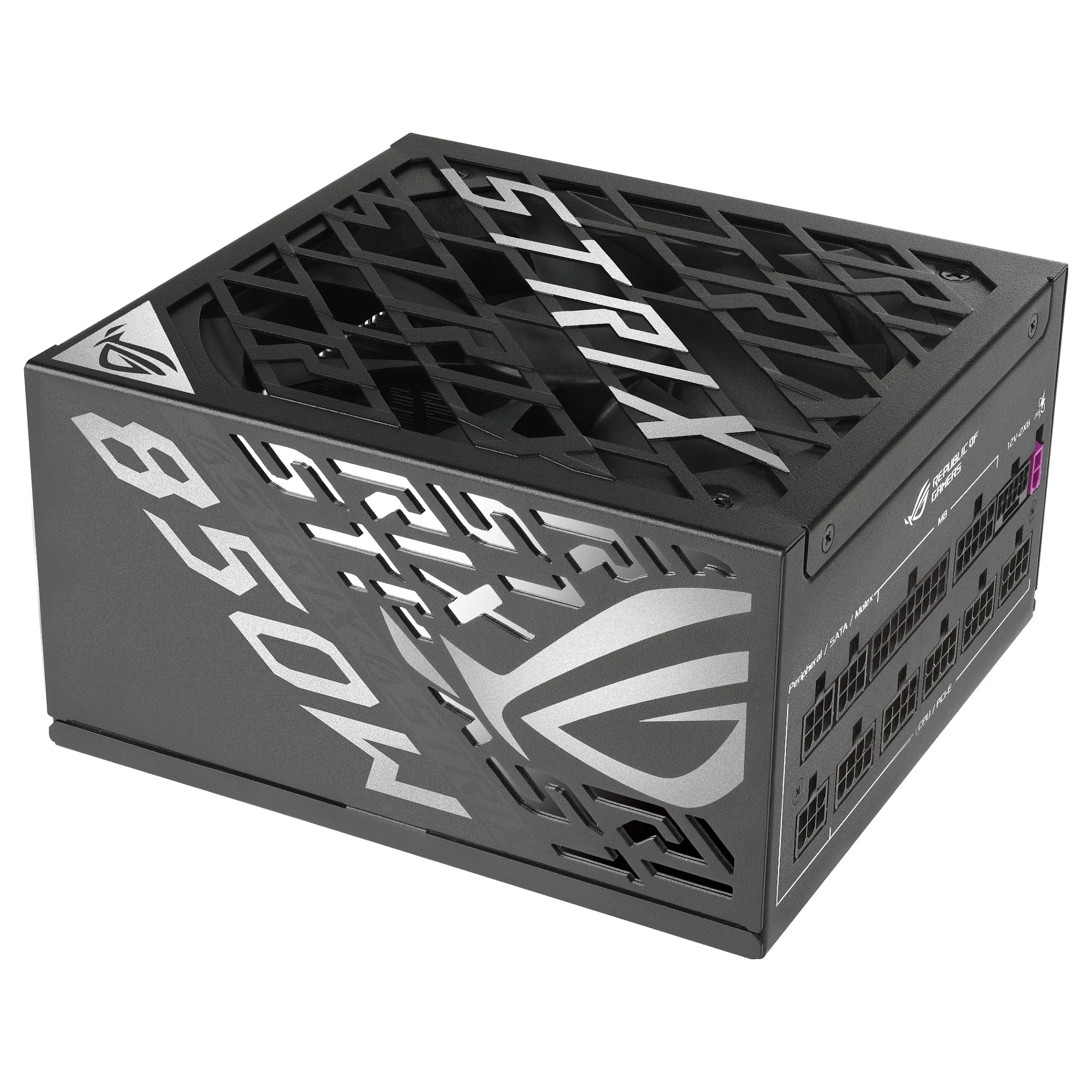

The ROG Strix Platinum PSU delivers the top-tier performance and unwavering stability demanded by gamers. Featuring next-gen GaN MOSFET for superior power efficiency. The Intelligent Voltage Stabilizer ensures a steady flow of power to the graphics card. Plus, it is ready for latest hardwares with ATX 3.1 compliance and a native 12V-2×6 connector. The ROG Strix Platinum Series ensures your high-end rig has the power to conquer any challenge.
GaN MOSFET
The ROG Strix Platinum PSU boasts innovative GaN MOSFET that delivers superior power efficiency by up to 30%, resulting in lower energy waste. Plus, the smaller size of GaN MOSFET allows for a more organized internal layout within the PSU. This optimized design provides space for larger heatsinks and enhanced airflow, improving heat dissipation within the PSU.
ROG Heatsinks
Cool under pressure
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.
Etched Cables
Made from a pliable premium material, these etched cables are easily flexible during installation, and they operate at temperatures 50°C lower than the safety limit when routed for cable management. These cables also meet the rigorous standards of the UL1581 flame test and UL758 certification, helping to ensure a smooth PC DIY experience and exceptional safety.
Total power: 850 W

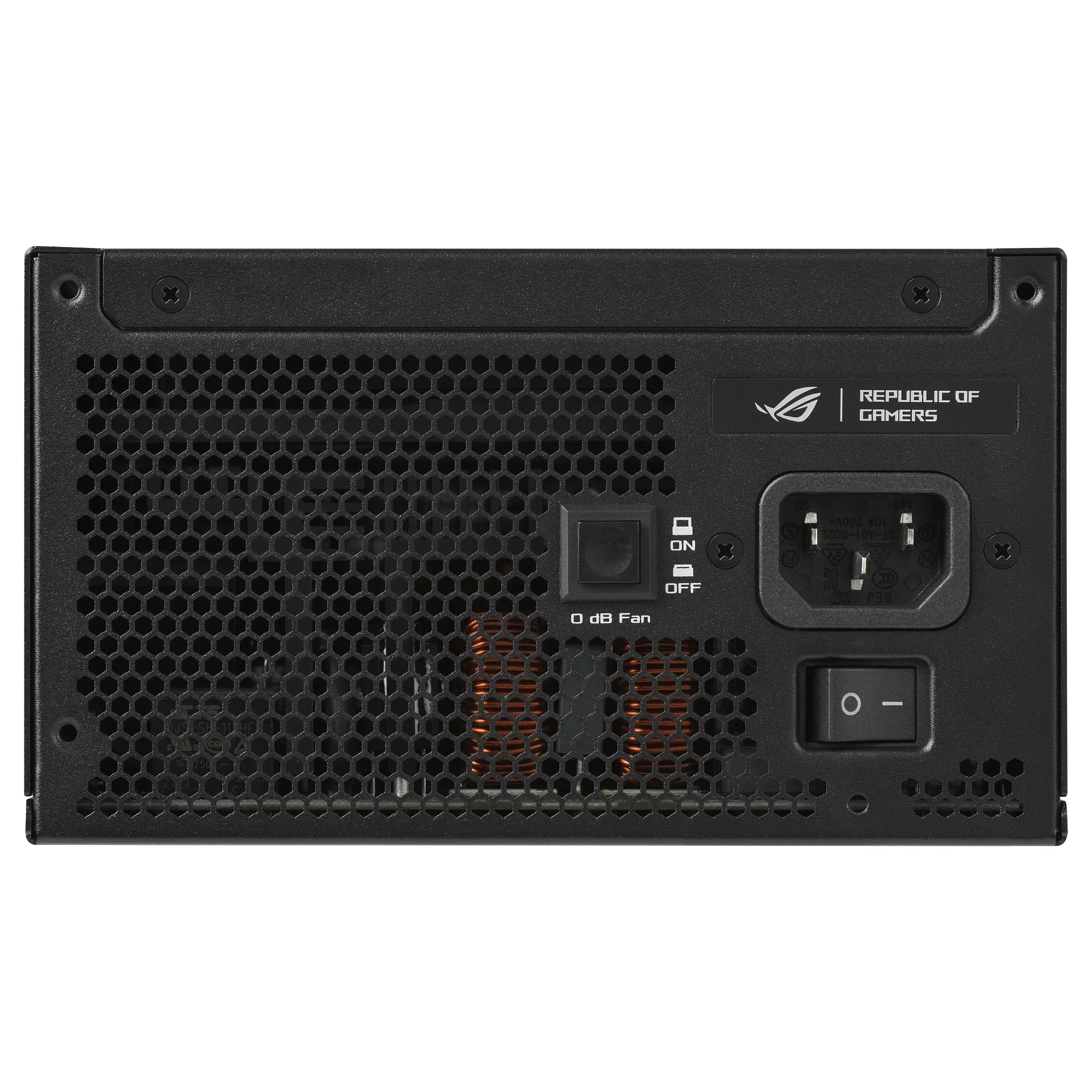

AC input voltage: 100 – 240 V
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 130 W
Combined power (+12V): 850 W
Combined power (+5V): 130 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 25 A
Max output current (+12V): 70.8 A
Max output current (+5V): 25 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

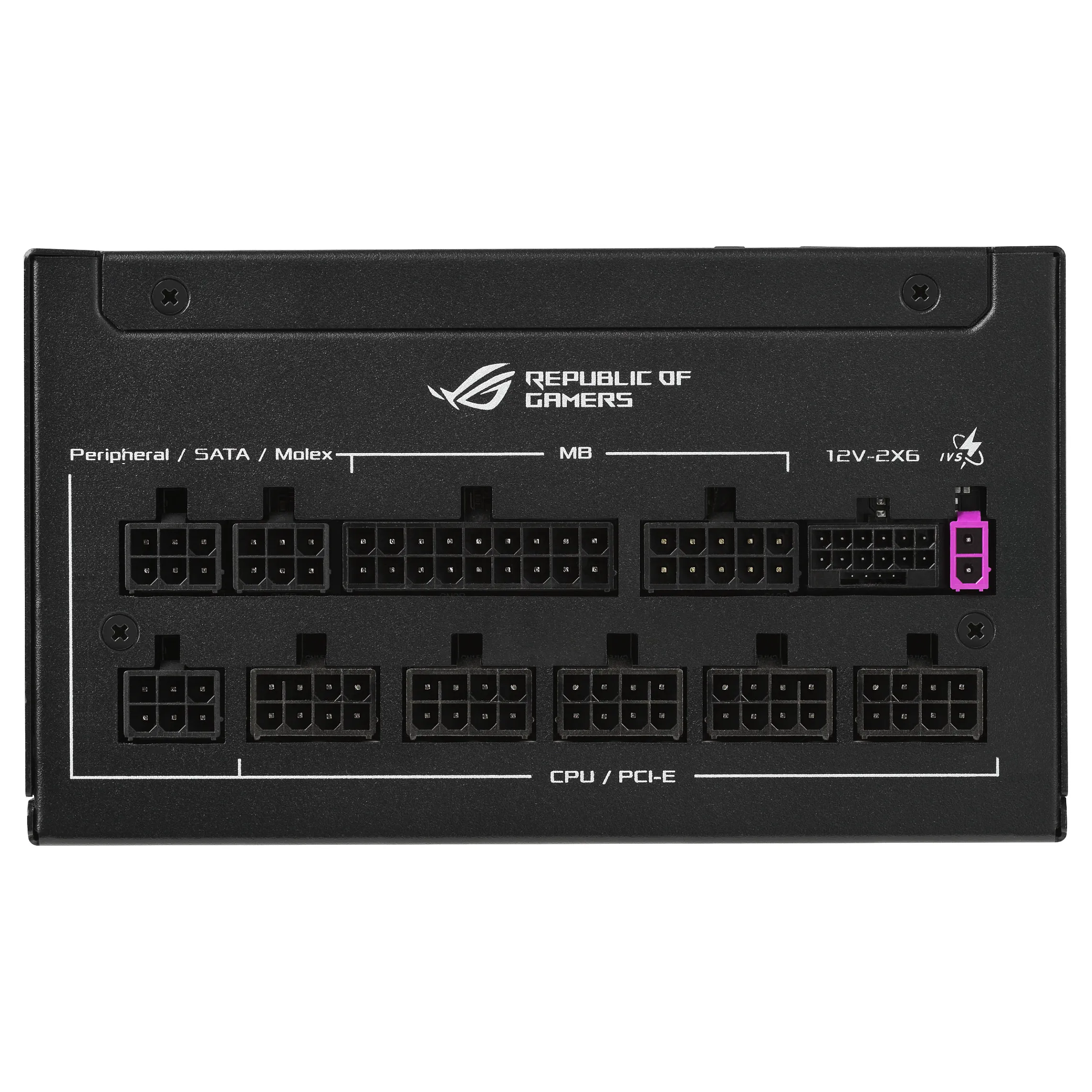

Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 6
SATA power cable length: 400,120 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 400,150 mm
PCI Express power connectors (6+2 pin): 3
PCI Express power connectors (16-pin): 1
PCI Express power cable length: 75 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 100 cm
Feature: PCI Express connector

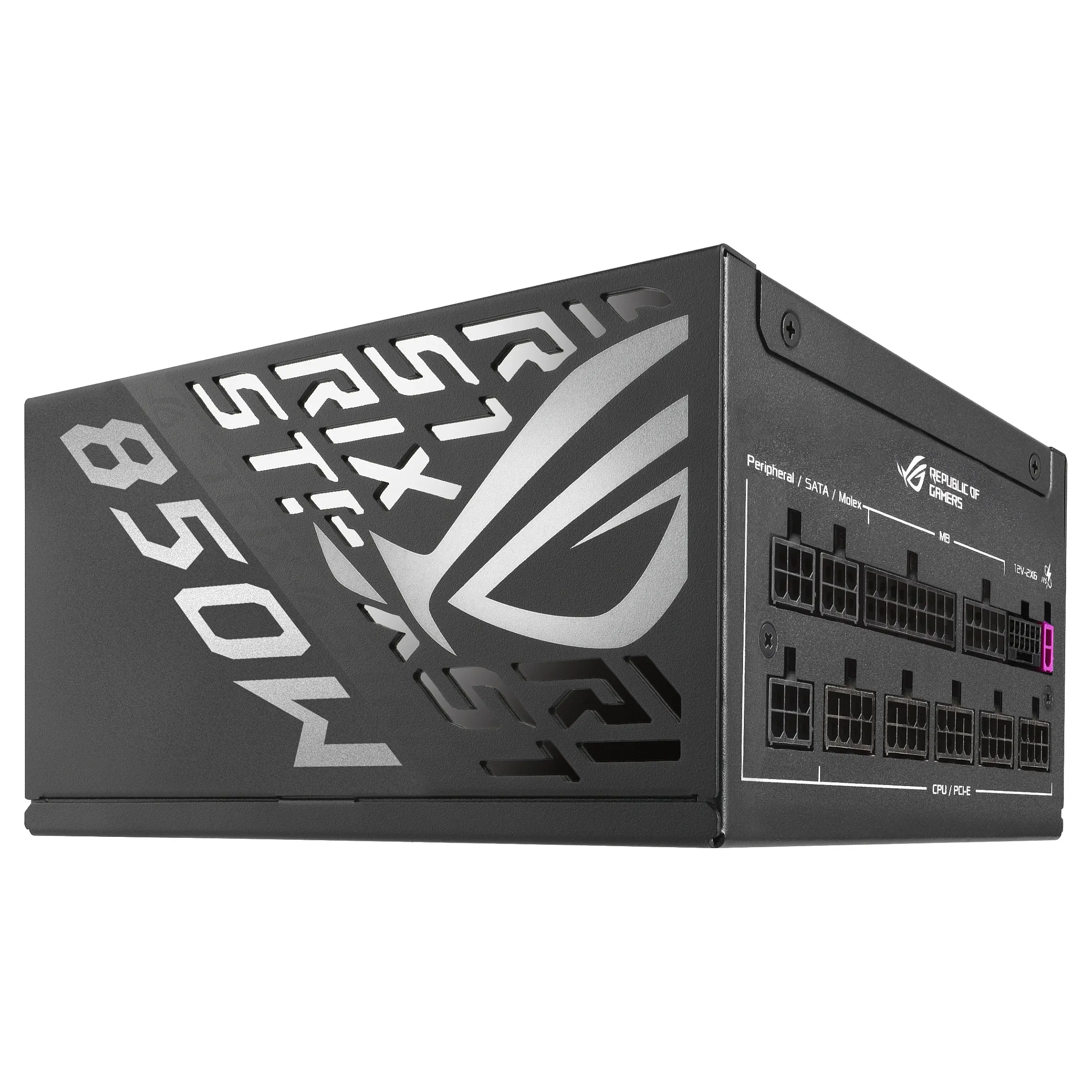

Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Platinum
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Feature: Silent mode
Mean time between failures (MTBF): 120000 h
Design
Product colour: Black
Cooling type: Semi-passive

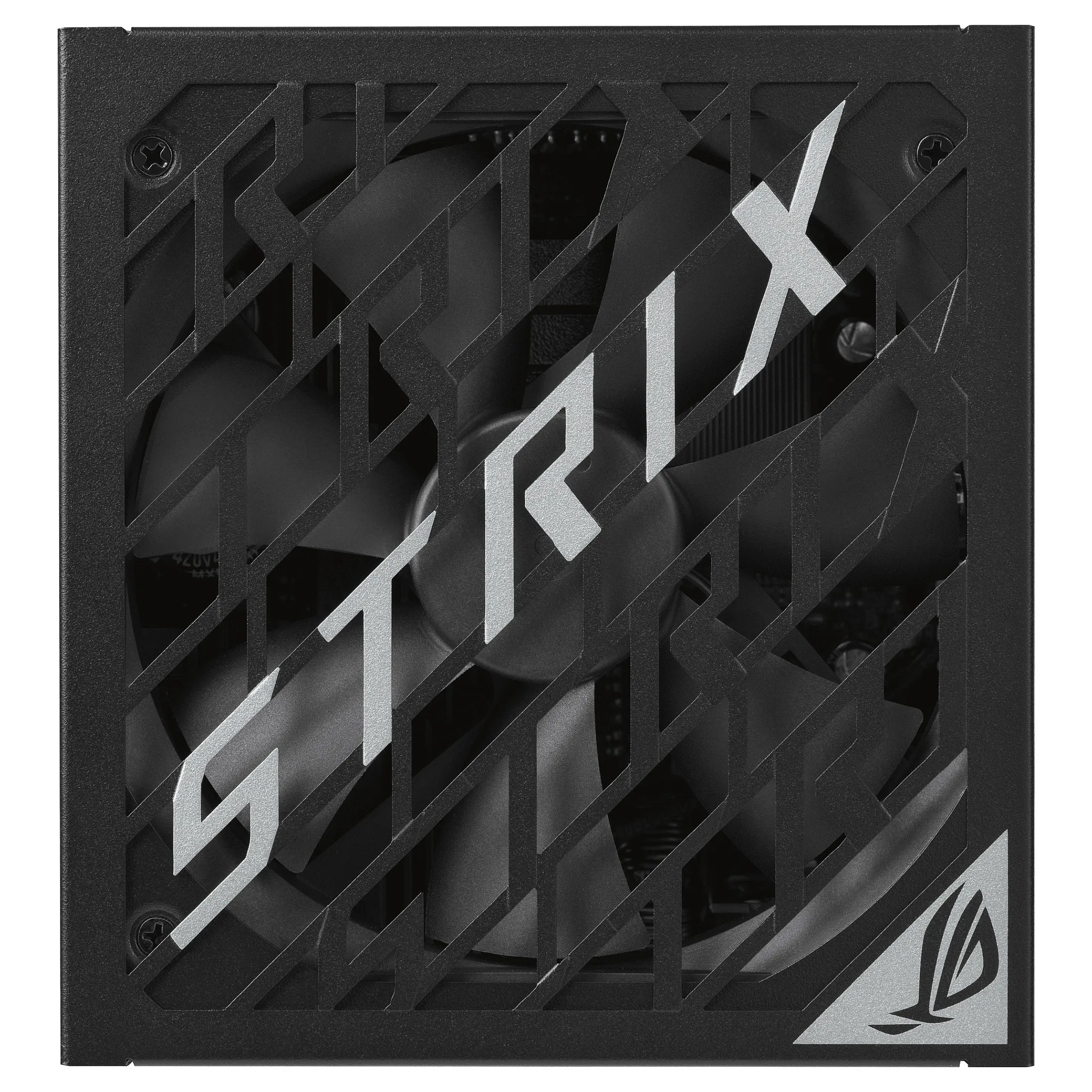

Number of fans: 1 fan(s)

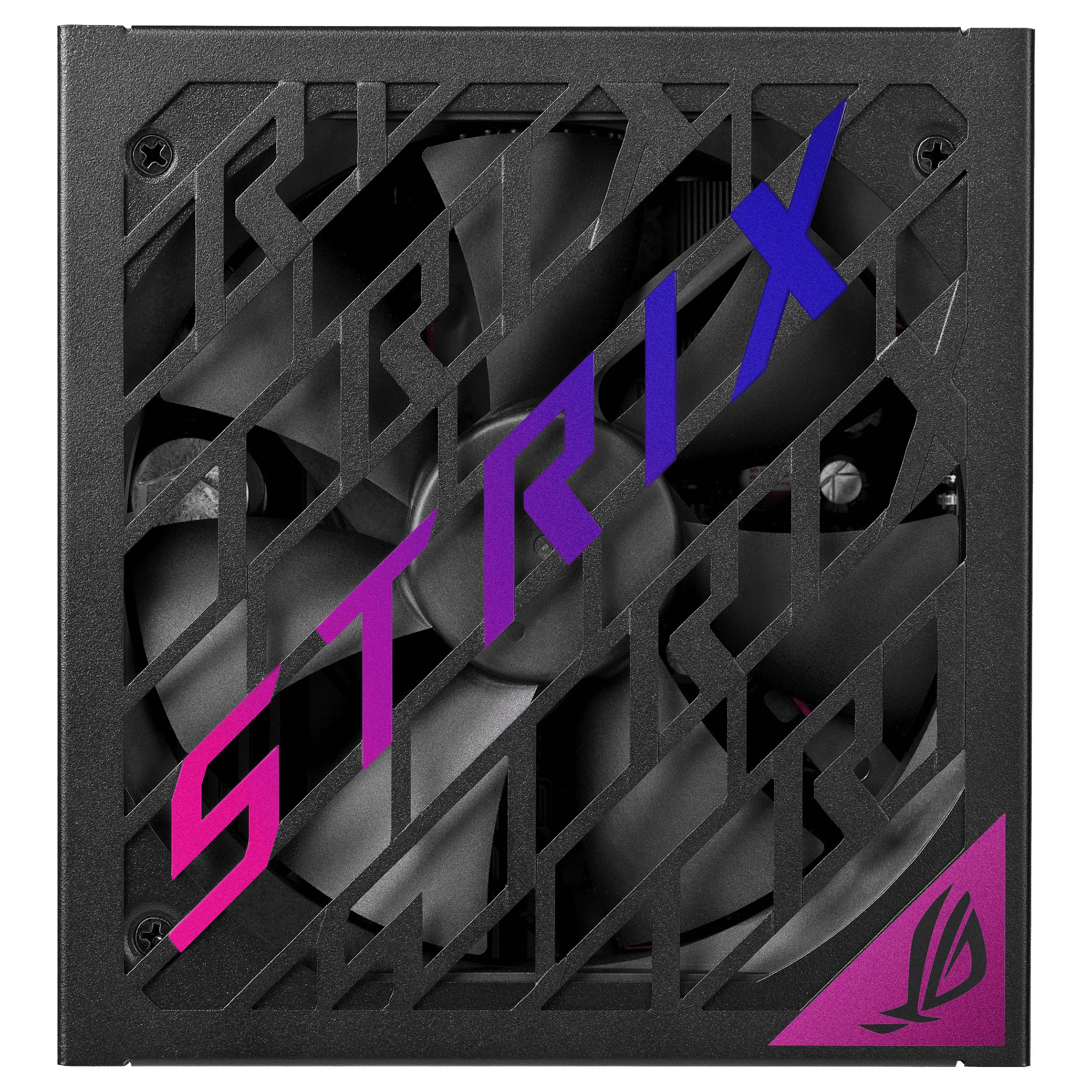

Fan location: Top
Packaging content
Cables included: CPU, PCIe, SATA, Peripheral (Molex)
Certificates
Compliance certificates: RoHS
Weight & dimensions
Width: 160 mm
Depth: 150 mm
Height: 86 mm
Weight: 1.78 kg
Packaging data
Package width: 320 mm
Package depth: 200 mm
Package height: 108 mm
Package weight: 2.8 kg
Package type: Box
